Installation





INTERIOR: REAR DOOR SUNSHADE ASSEMBLY: INSTALLATION

HINT
* Use the same procedures for the RH side and LH side.
* The procedures listed below are for the LH side.

1. INSTALL REAR CURTAIN SUB-ASSEMBLY LH

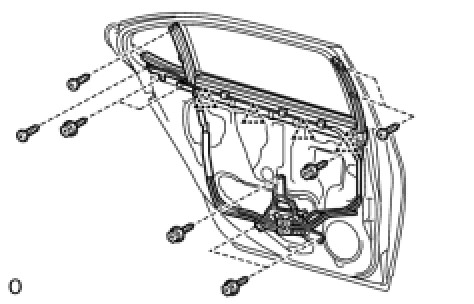

(a) for Standard Body:

Install the rear curtain.

(1) Connect the connector and attach the 3 clips to install the curtain.

(2) Install the 10 screws.

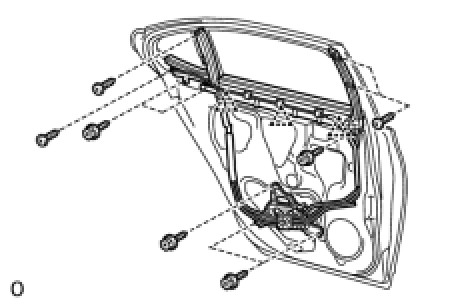

(b) for Long Body:

Install the rear curtain.

(1) Connect the connector and attach the 4 clips to install the curtain.

(2) Install the 10 screws.

2. INSTALL REAR DOOR NO. 2 FRAME GARNISH LH Installation

3. INSTALL REAR DOOR FRAME GARNISH LH Reassembly

4. INSTALL REAR DOOR TRIM COVER LH Installation

5. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Installation

6. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH Installation

7. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG LH Installation

8. PERFORM INITIALIZATION

(a) Perform initialization Repair Instruction - Initialization.

NOTICE:
Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
