Door Control Switch

DOOR LOCK: DOOR CONTROL SWITCH: INSPECTION

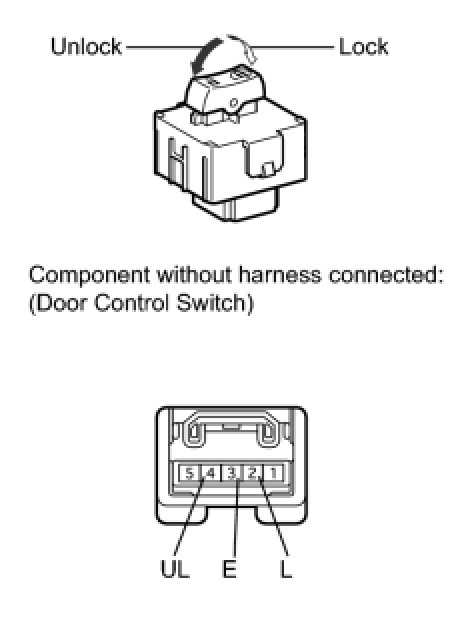

1. INSPECT DOOR CONTROL SWITCH ASSEMBLY

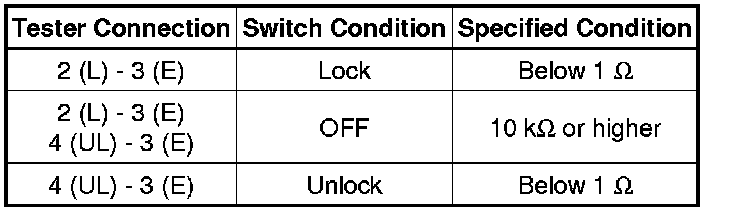

(a) Measure the resistance according to the value(s) in the table below.

Standard resistance:

* If the result is not as specified, replace the control switch.

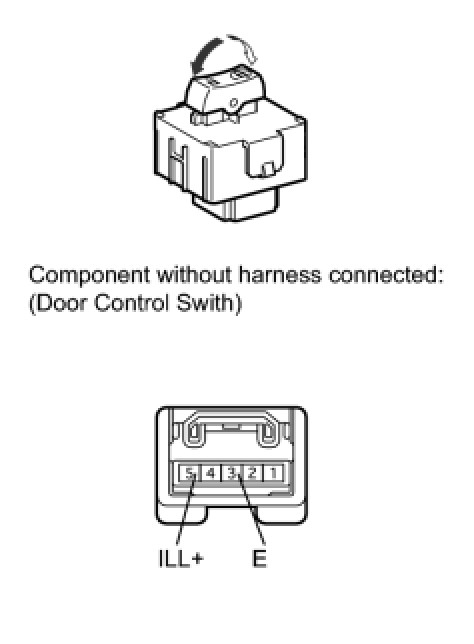

(b) When terminal 5 (ILL+) of the connector is connected to the positive (+) battery terminal and terminal 3 (E) is connected to the negative (-) battery terminal, check that the indicator (LED) illuminates.
