Procedures
1UR-FSE ENGINE MECHANICAL: CYLINDER BLOCK: REPLACEMENT 1.
REPLACE STRAIGHT PIN
NOTICE: It is not necessary to remove the straight pin unless it is being replaced. (a)
Remove the straight pins.
(b)
Using a plastic-faced hammer, tap in new straight pins to the cylinder block.

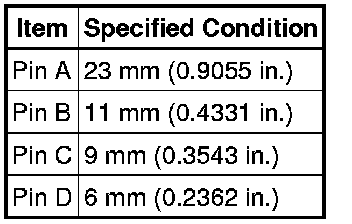

Standard protrusion:
