Alignment

SERVICE SPECIFICATIONS: SUSPENSION: SERVICE DATA

MEASURE VEHICLE HEIGHT (w/o Air Suspension) 2WD

Measuring points:

A
Ground clearance of front wheel center

B
Ground clearance of front center position of front No. 2 suspension lower arm assembly front bush installation

C
Ground clearance of pit center of the attachment rear suspension arm

D
Ground clearance of rear wheel center

MEASURE VEHICLE HEIGHT (w/ Air Suspension) 2WD

Measuring points:

A
Ground clearance of front wheel center

B
Ground clearance of front center position of front No. 2 suspension lower arm assembly front bush installation

C
Ground clearance of pit center of the attachment rear suspension arm

D
Ground clearance of rear wheel center

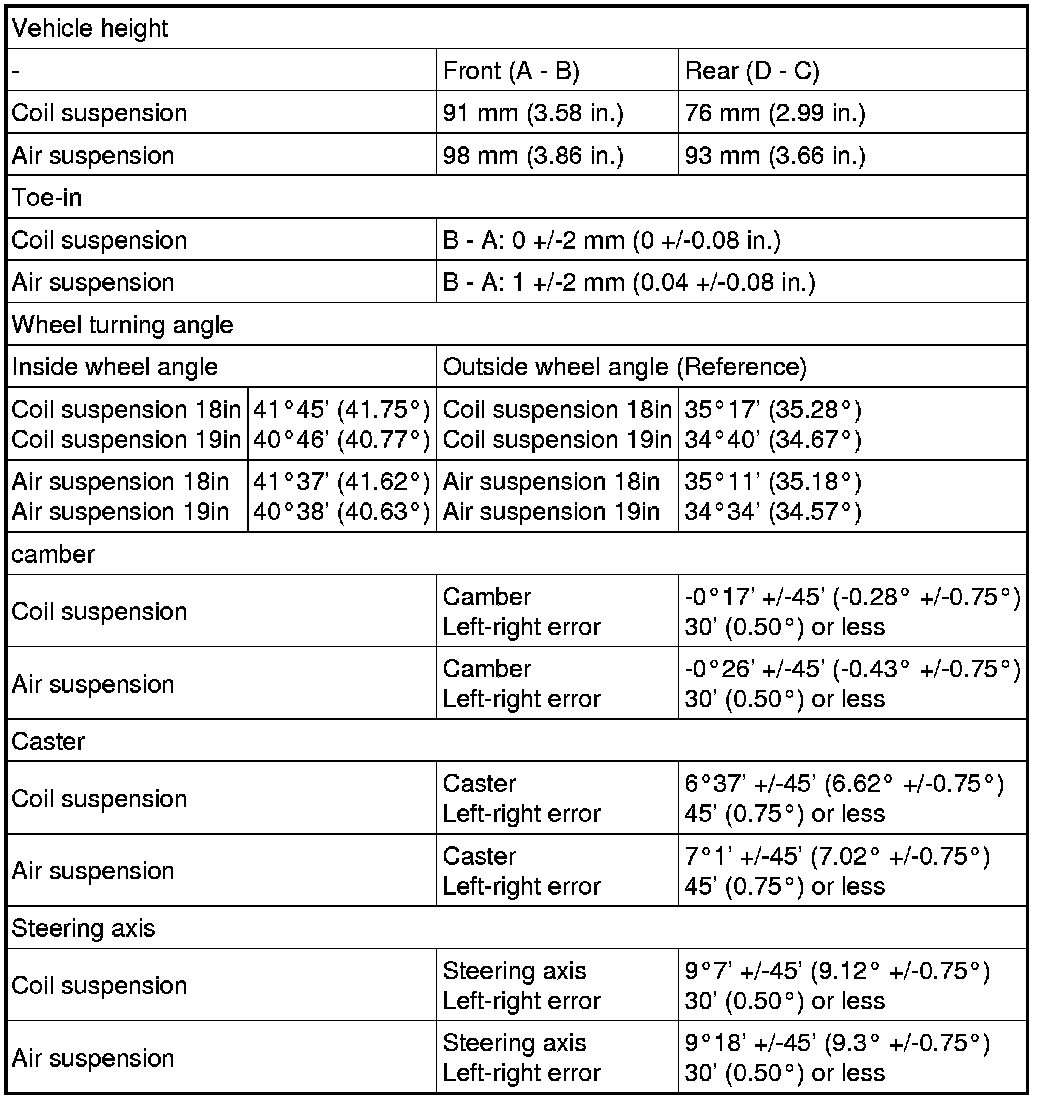

Front wheel alignment (for 2WD)

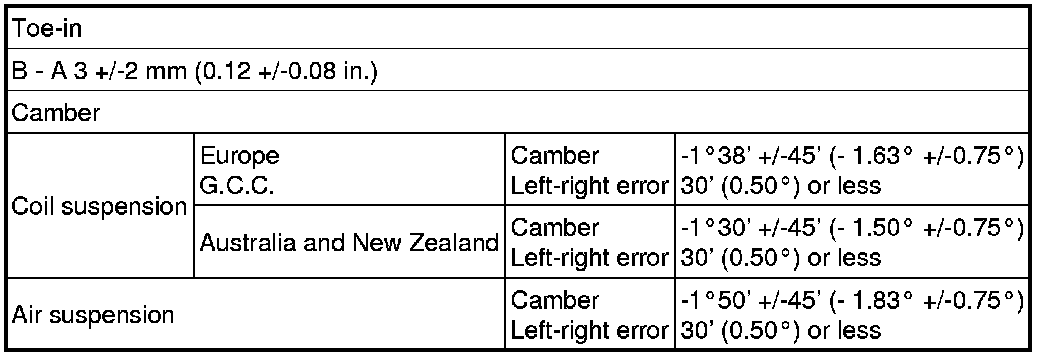

Rear wheel alignment

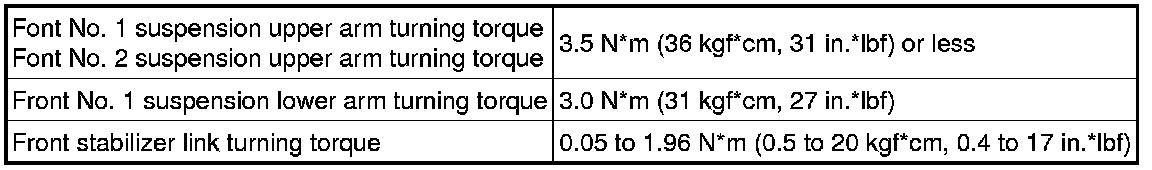

Front suspension (for 2WD)

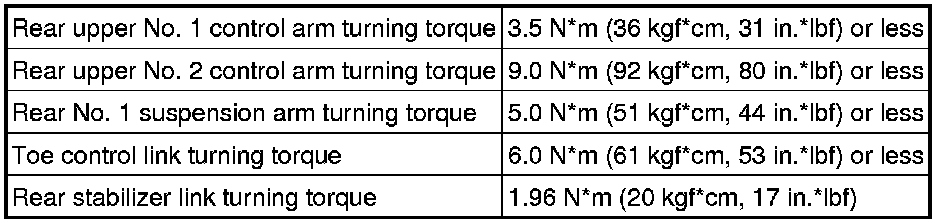

Rear suspension
