Connecting Rod, Engine
Connecting Rod Cap Fasteners
Step 1
40 Nm (408 kgf-cm, 30 ft-lbf)
Step 2 Tighten
90°
Thrust Clearance
Standard thrust clearance
0.15 to 0.55 mm (0.00591 to 0.0217 in.)
Maximum thrust clearance
0.70 mm (0.0276 in.)
Oil Clearance
Standard Clearance
0.025 to 0.050 mm (0.000984 to 0.00197 in.)
Maximum oil clearance
0.070 mm (0.00276 in.)

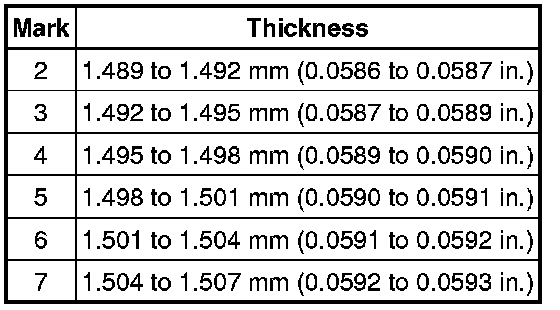

Bearing Center Wall Thickness

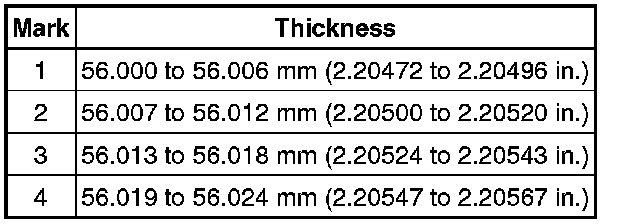

Connecting Rod Inside Diameter
