Installation





2UR-FSE STARTING: POWER SWITCH: INSTALLATION

1. INSTALL POWER SWITCH

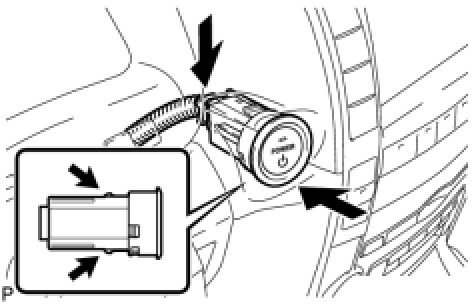

(a) Attach the 2 claws to install the switch.

(b) Connect the switch connector.

2. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY Installation

3. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING Installation

4. INSTALL INSTRUMENT SIDE PANEL LH Installation

5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

6. INSTALL BATTERY SERVICE HOLE COVER LH Installation

7. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY Installation
