Connecting Rod, Engine
Connecting RodStep 1
25 Nm (255 kgf-cm, 18 ft-lbf)
Step 2
90°
Thrust Clearance
Standard thrust clearance
0.15 to 0.40 mm (0.00591 to 0.0157 in.)
Maximum thrust clearance
0.50 mm (0.0197 in.)
Oil Clearance
Standard oil clearance
0.045 to 0.067 mm (0.00177 to 0.00264 in.)
Maximum oil clearance
0.070 mm (0.00276 in.)

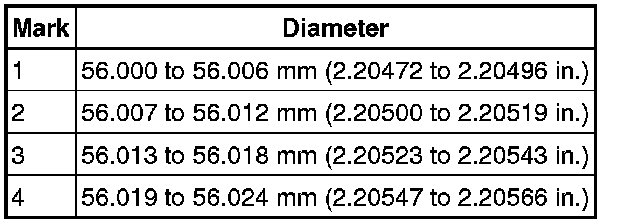

Connecting Rod Diameter

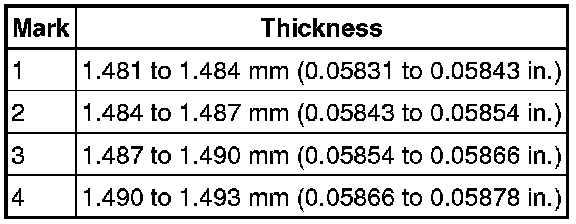

Connecting Rod Bearing Center Wall Thickness:
