Wiper Switch: Testing and Inspection
WIPER / WASHER: WIPER SWITCH: INSPECTION 1.
INSPECT WINDSHIELD WIPER SWITCH ASSEMBLY
(a)

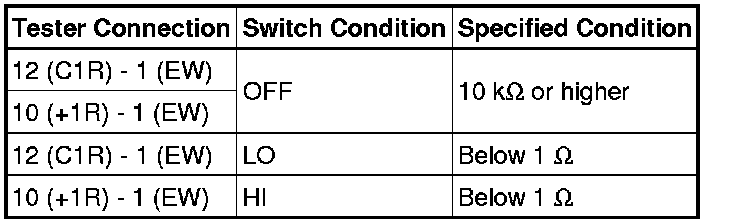

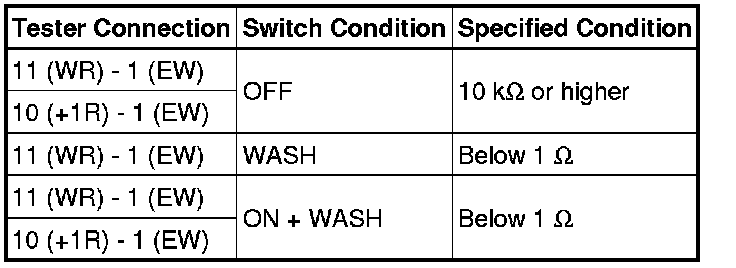

Measure the resistance according to the value(s) in the table below.
Standard Resistance:Rear Wiper SwitchRear Washer SwitchText in Illustration If the result is not as specified, replace the windshield wiper switch assembly.
