Attachment II - Labor and Parts Information
ATTACHMENT IIEMISSIONS RECALL 93E41
LABOR ALLOWANCE
Replace the Electronic Engine Control Processor and Exhaust Gas Recirculation (EGR) Valve to Transducer Hose. Attach Vehicle Emissions Control Information (VECI) and Authorized Modifications Labels. Test Drive the Car to Adapt Processor, Prepare Removed Processor for Return and Provide State of California Vehicle Emission Recall - Proof of Correction Certificate.
1.0 Hrs. - Insert in Box "B" of Form 1864
Note:
Add 0.1 Hr. Administrative Allowance the total repair time.

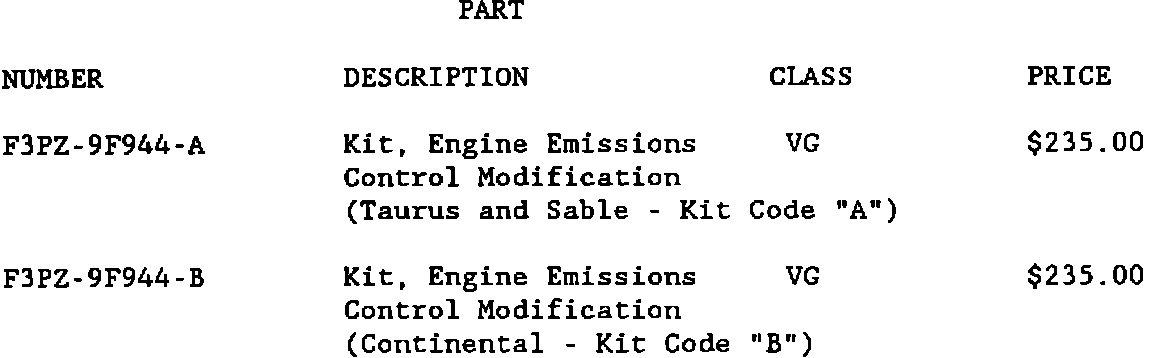

PARTS REQUIREMENTS
Parts will not be direct shipped for this recall. Order your parts requirements through normal order processing channels.
Part prices are current until the next issue of the Master Price Book. For the latest price(s) call an Order Processing Center or check an updated Master Price book of DOES II.
EXCESS STOCK RETURN
Excess stock returned for credit must have been purchased from Ford Parts and Service Division in accordance with Policy Procedure Bulletin 4000.
