Fuel Filter: Locations

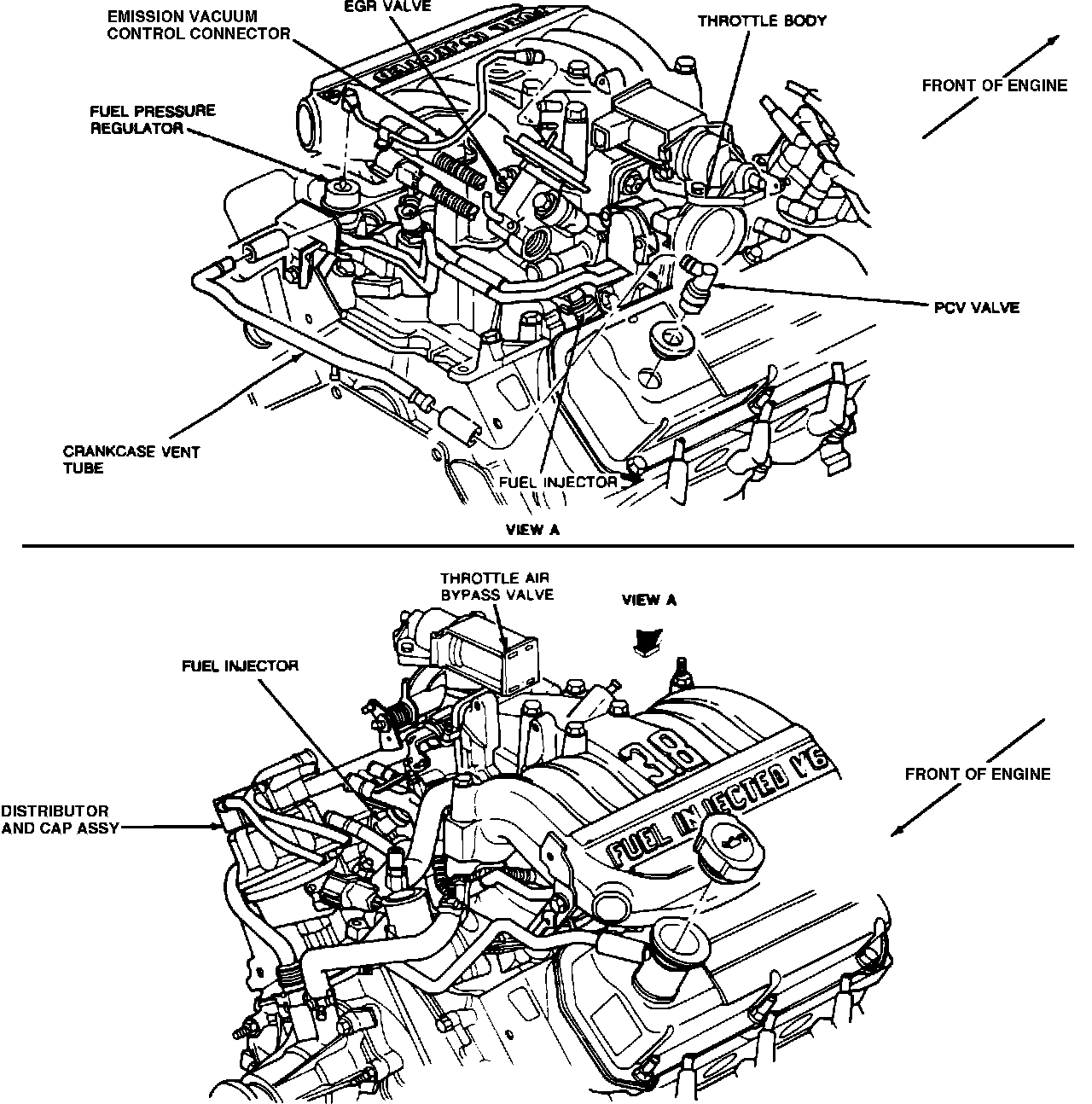

FUEL INJECTORS: Engine View:
FUEL PRESSURE REGULATOR: Fuel Filter:

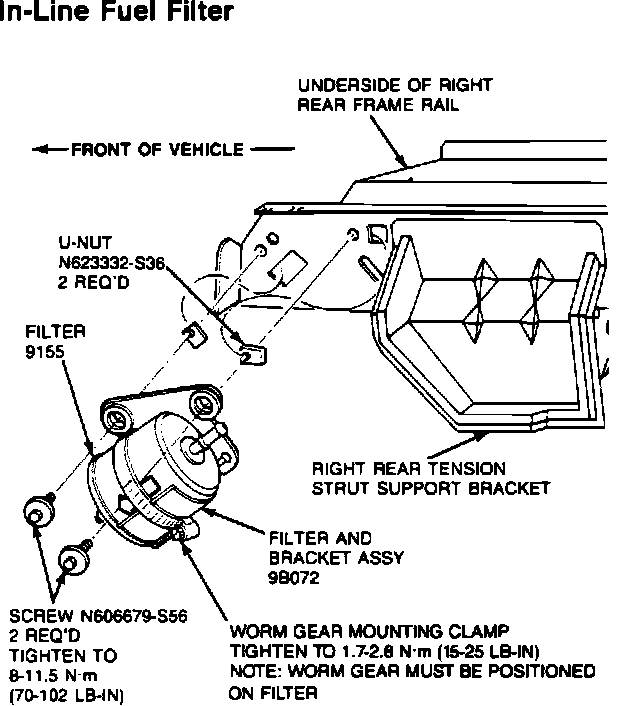

FUEL FILTER: The filter is mounted on the underbody next to the RH front corner of the fuel tank.
Fuel Pump:

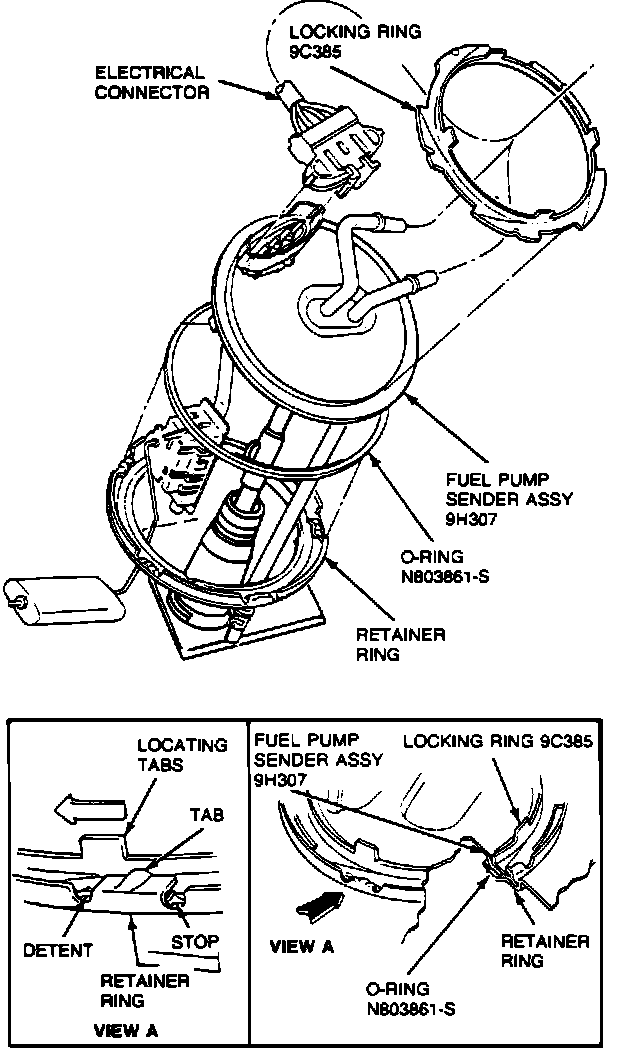

FUEL PUMP: The fuel pump is mounted on the fuel sender assembly inside of the fuel tank.
FUEL PUMP RELAY: Front of the LH fender apron.
INERTIA SWITCH: LH rear quarter panel.
