Control Assembly: Service and Repair

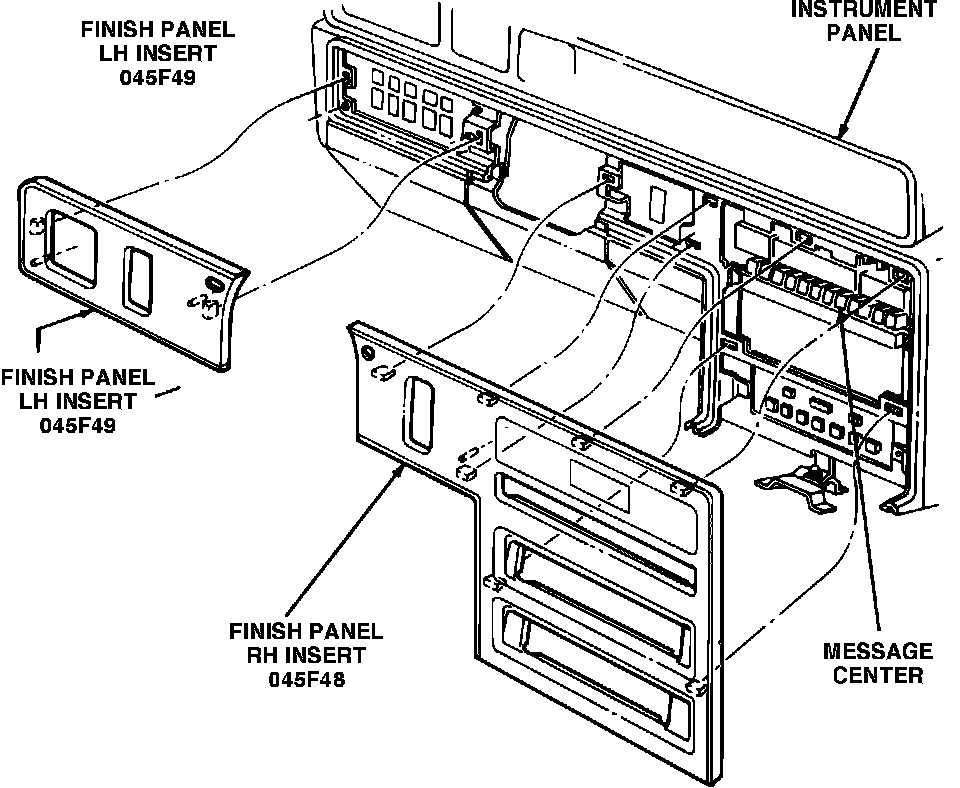

Fig. 12 Instrument panel removal:
1.
Disconnect battery ground cable.
2.
Remove I/P center finish panel right hand insert,
Fig. 12. 3.
Remove four screws attaching
control assembly to I/P.
4.
Slide
control assembly out of I/P and disconnect two electrical connectors by disengaging latches on bottom of control.
5.
Remove
control assembly from vehicle.
6.
Reverse procedure to install.
