Fuel Filter: Locations

FUEL INJECTORS: The fuel injectors are mounted in the lower intake manifold.

FUEL PRESSURE REGULATOR: The fuel pressure regulator is attached to the fuel supply manifold.

In-Line Fuel Filter:

FUEL FILTER: The filter is located downstream of the electric electric fuel pump and is mounted on the underbody.

Fuel Pump:

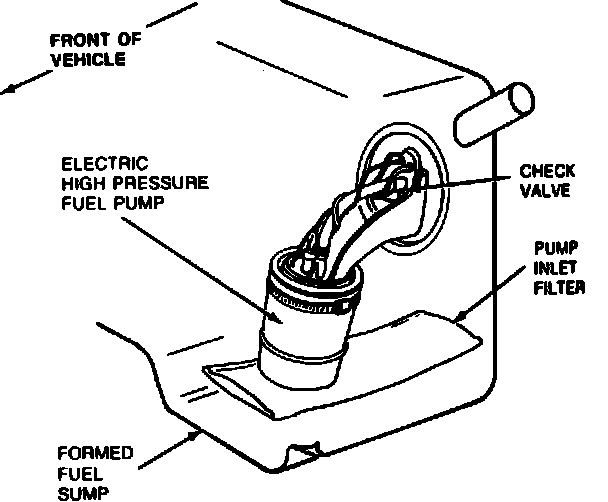

FUEL PUMP: The fuel pump is mounted on the fuel sender assembly inside of the fuel tank.

FUEL PUMP RELAY: At outside of LH trunk lid hinge support.

INERTIA SWITCH: The inertia switch is located on the LH trunk lid hinge support.
