A/C Temperature Sensor - Manual Update

90ford30 SHOP MANUAL - 1990 - PAGE 36-41-1 AND PAGE 36-41-7-A/C HEATER SYSTEM IN-CAR SENSOR AND AMBIENT SENSOR INFORMATION ADDED
Article No. 90-18B-11
FORD: 1990 CROWN VICTORIA

LINCOLN-MERCURY: 1990 GRAND MARQUIS, TOWN CAR















ISSUE: Diagnosis and Testing procedures for Ambient Sensor and In-Car Sensor in Section 36-41 of the 1990 Lincoln Town Car, Crown Victoria/Grand Marquis Shop Manual were omitted.

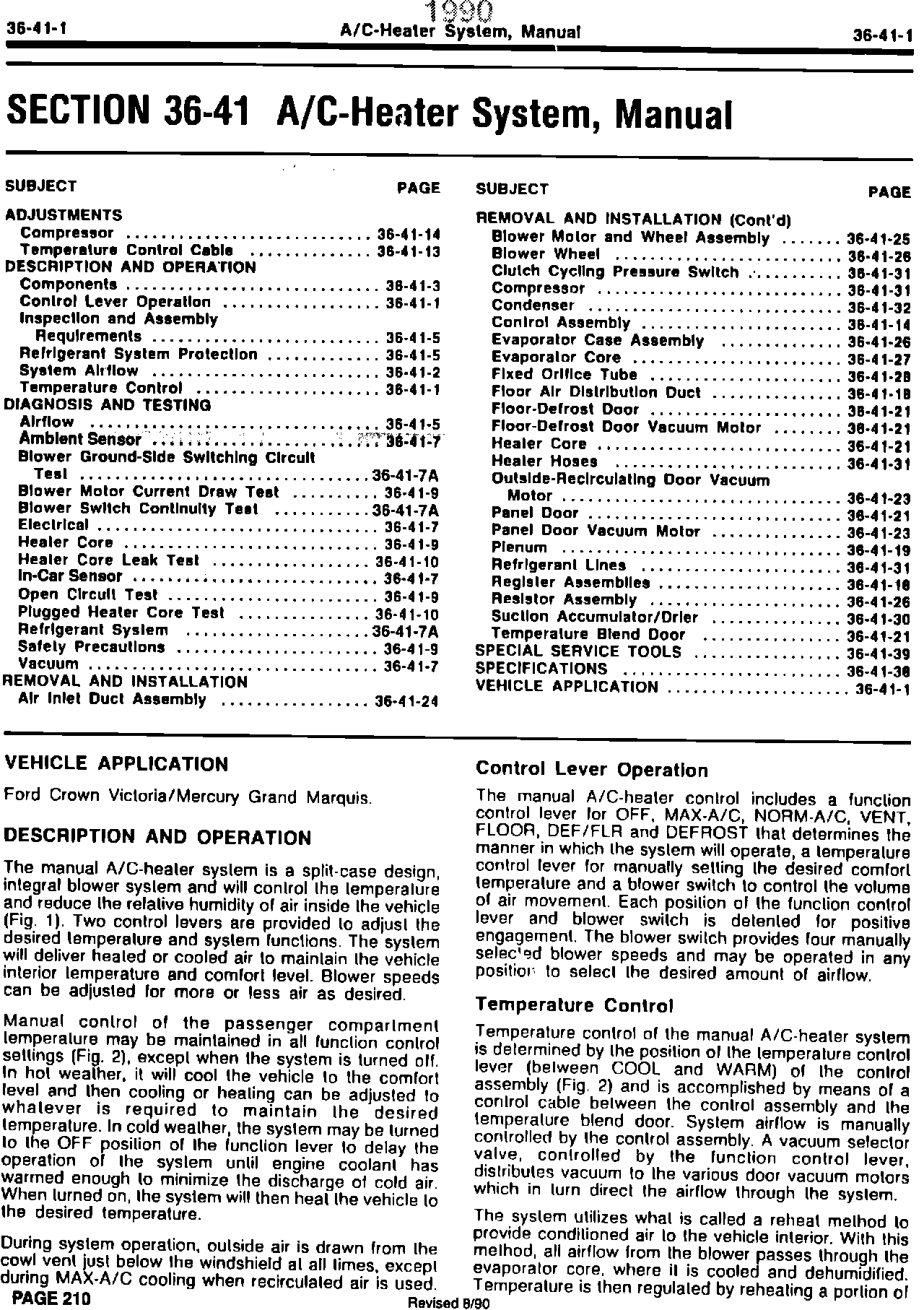

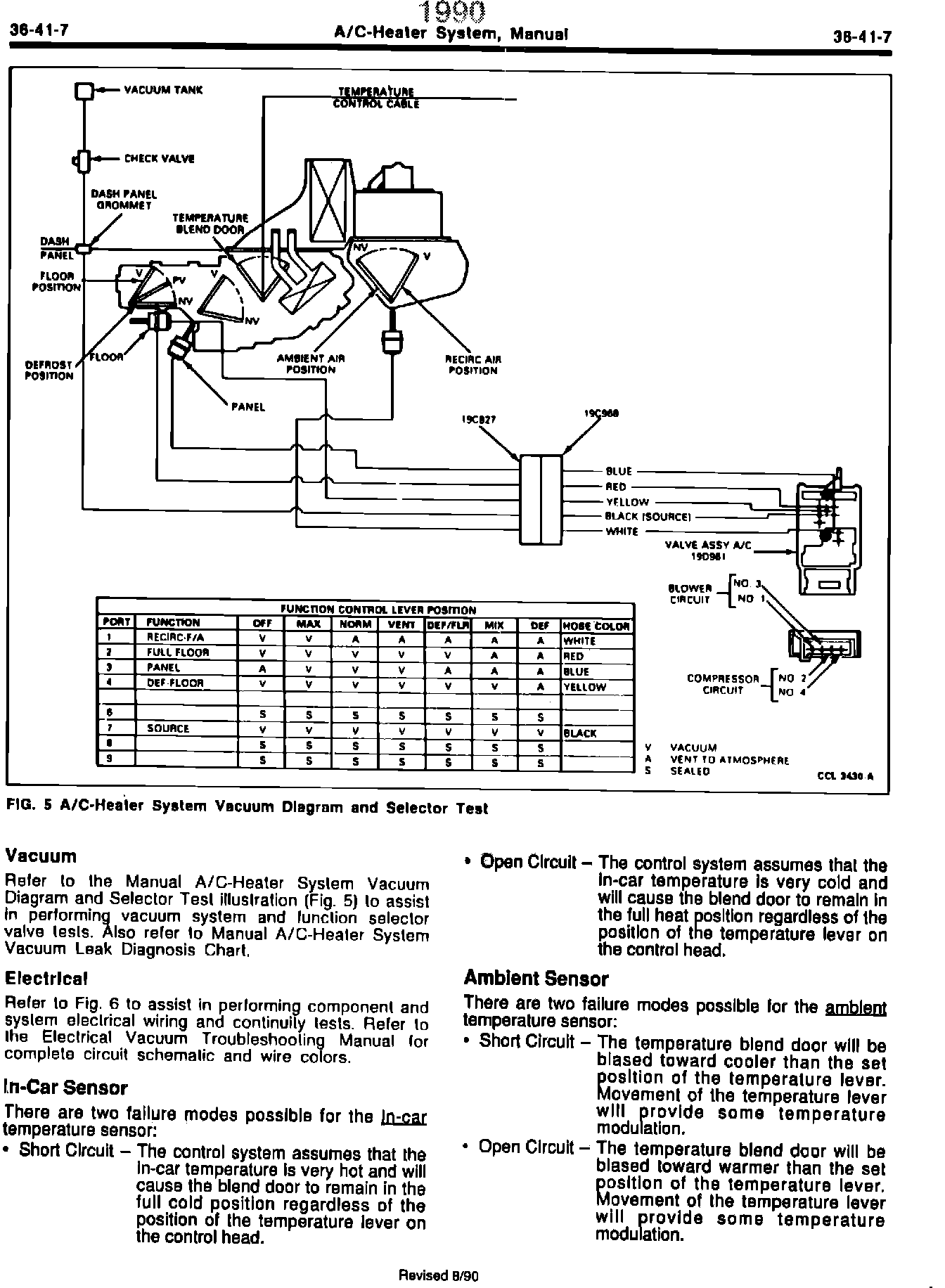

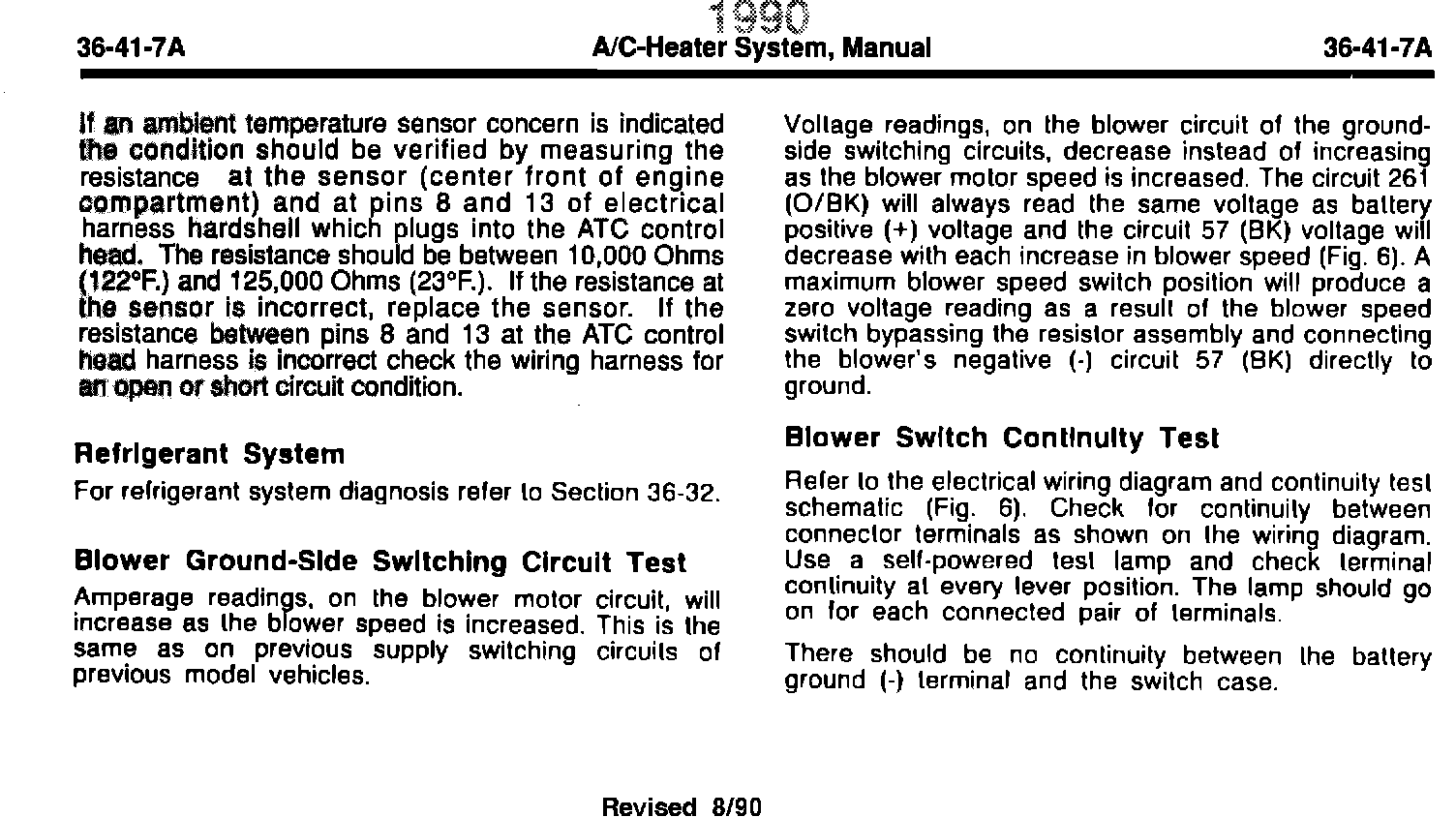

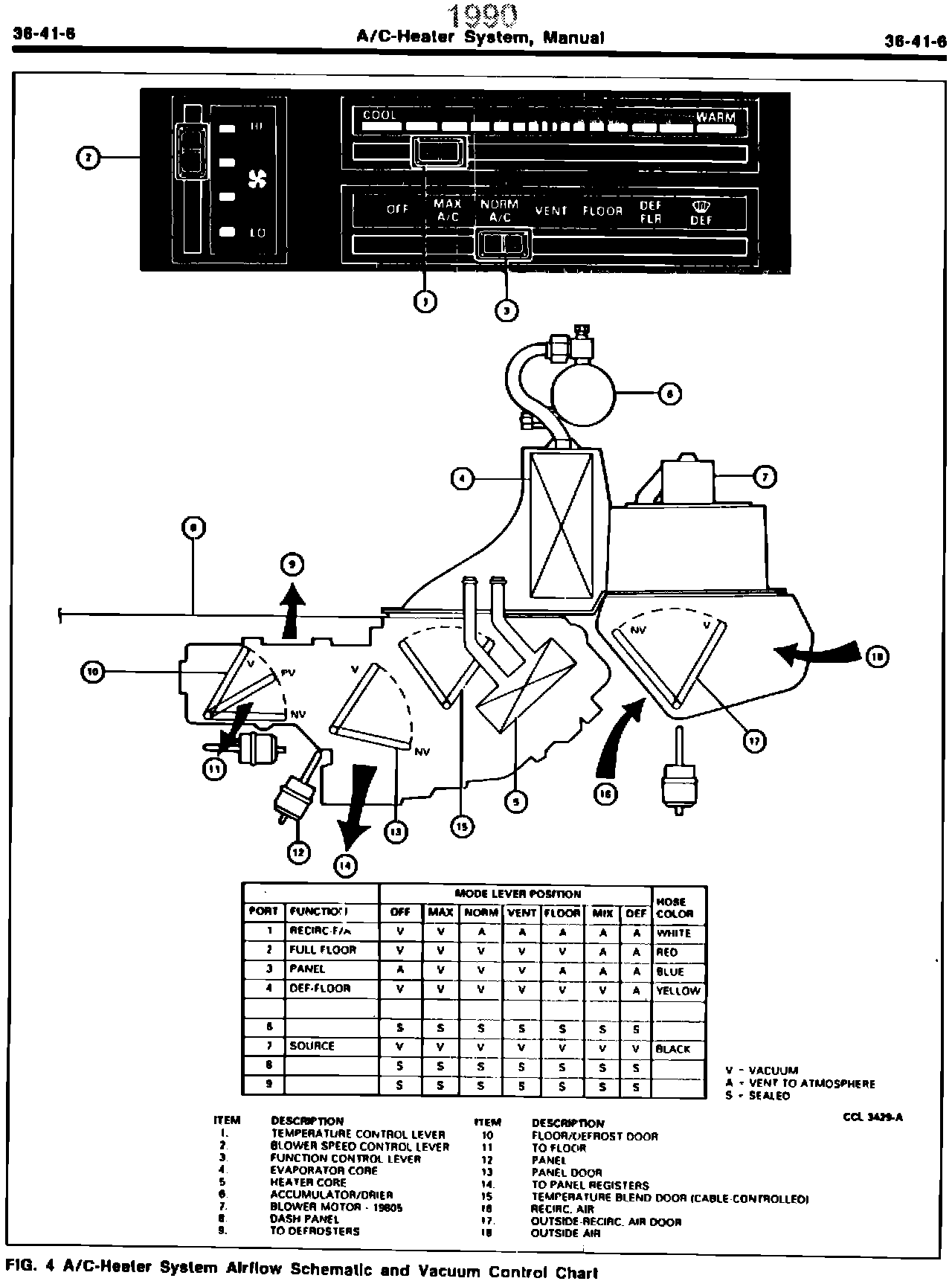

ACTION: Refer to the pages following this TSB article for the revised pages which include these procedures.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
