Seat Belt

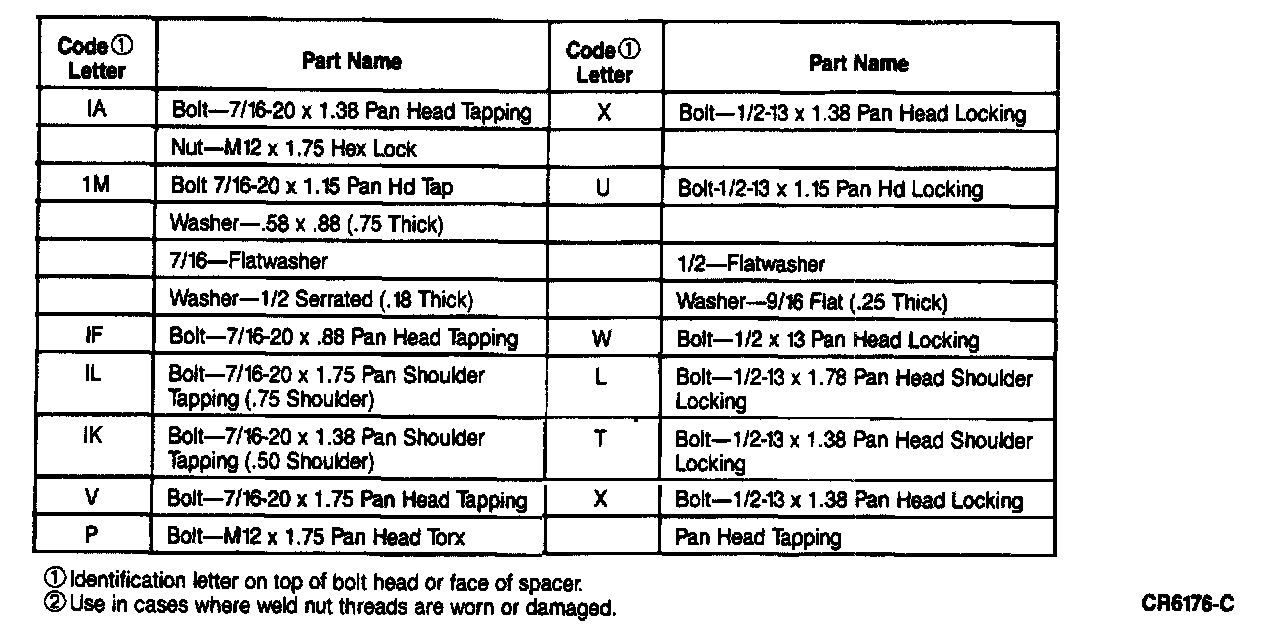

PARTS REPLACEMENT CHART-LAP AND SHOULDER SAFETY BELT WITH DAMAGED WELD NUT ANCHOR PLATE THREADS

TORQUE SPECIFICATIONS

Seat Track-to-Floorpan Studs, Rear 12-24 N.m (9-17 Lb-Ft)
Seat Track-to-Floorpan Nuts, Rear 12-24 N.m (9-17 Lb-Ft)
Slide Bar Bolts 30-40 N.m (23-29 Lb-Ft)
Seat Track-to-Floorpan Bolts, Front 12-24 N.m (9-17 Lb-Ft)
Safety Belt Anchor Bolts 30-40 N.m (23-29 Lb-Ft)
Safety Belt Anchor Nuts 30-40 N.m (23-29 Lb-Ft)
