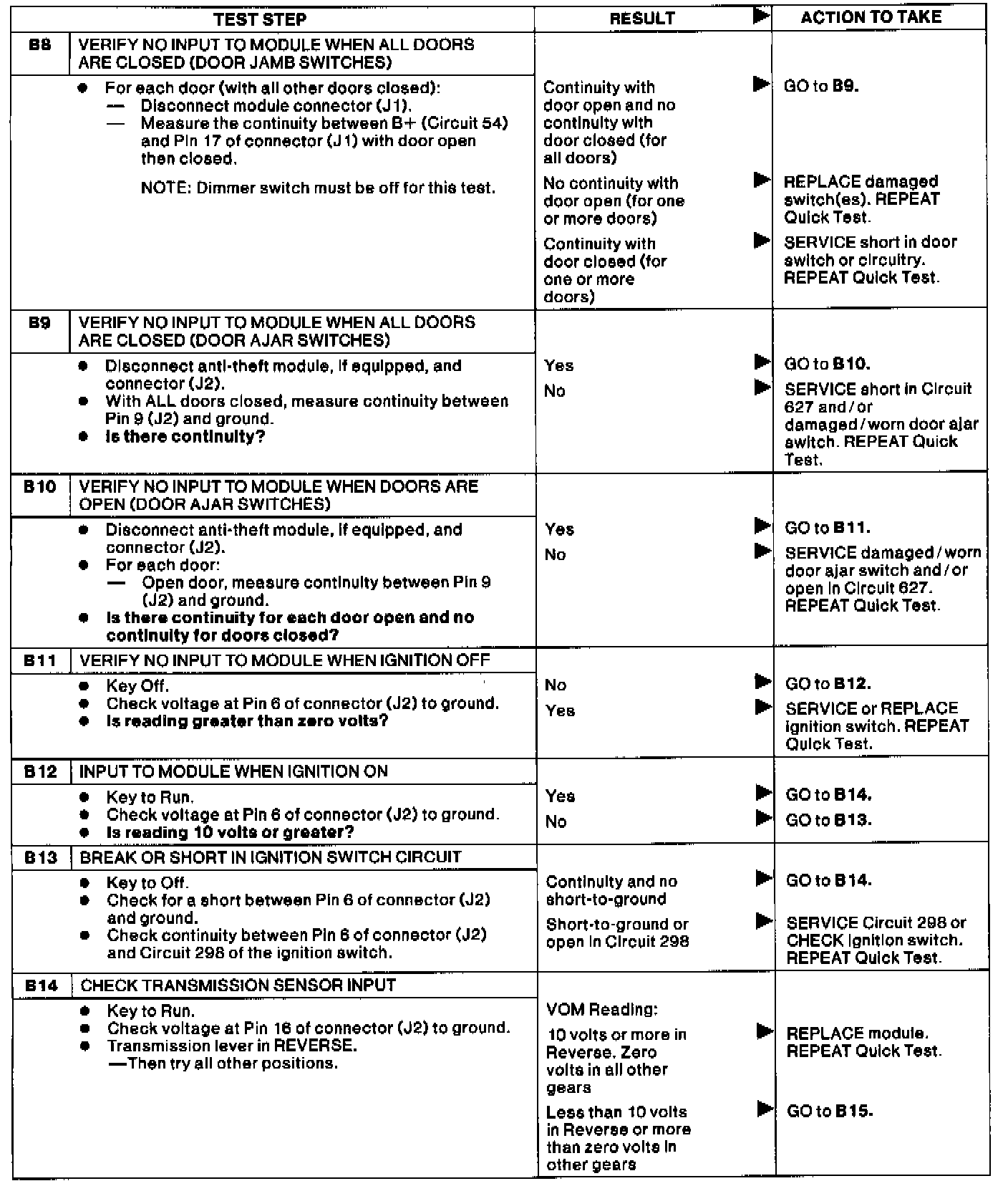

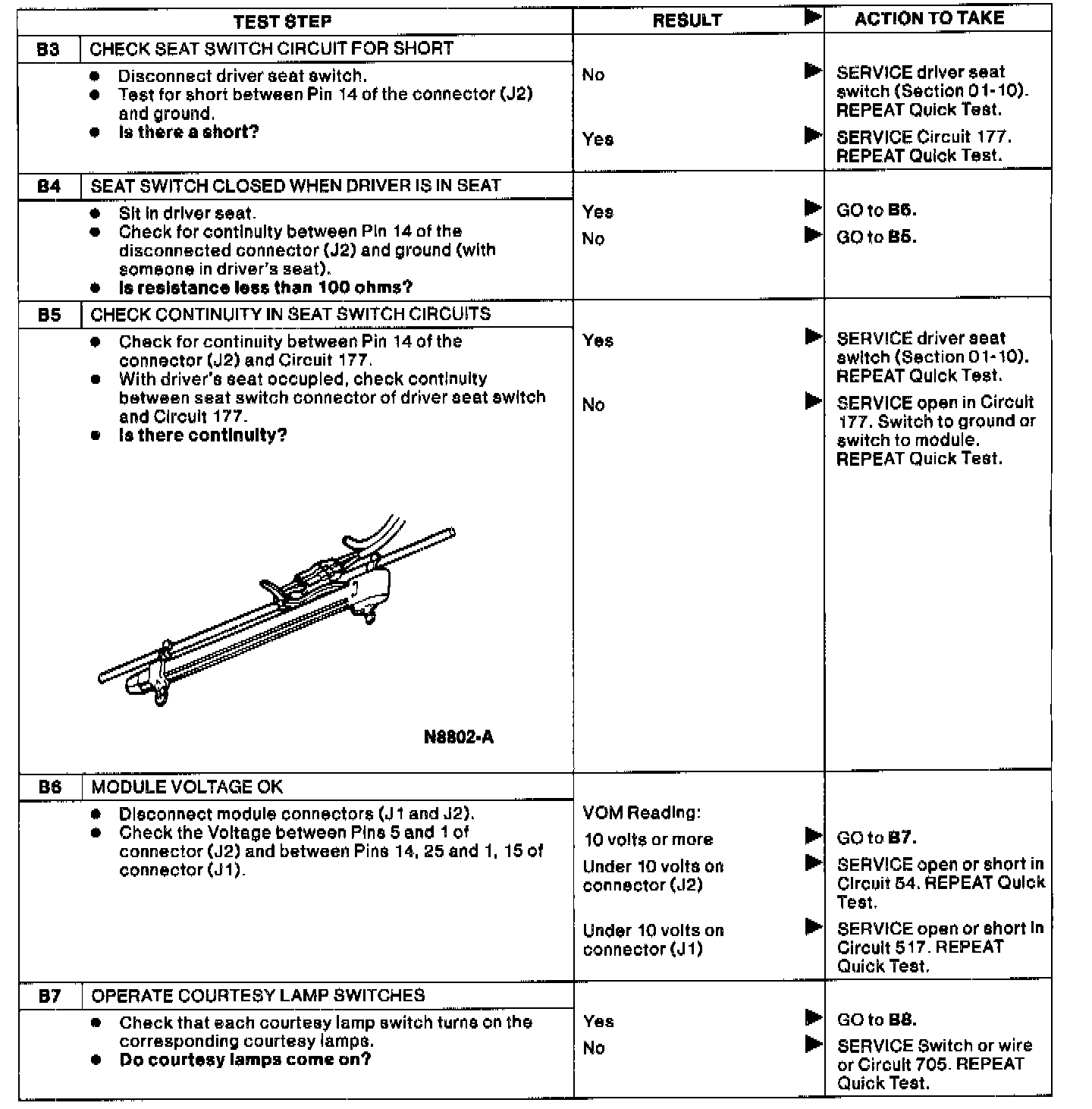

Pinpoint Test B: Automatic Locking System
Pinpoint Test B: Automatic Locking System:
Pinpoint Test B: Automatic Locking System:
Pinpoint Test B: Automatic Locking System:
Perform Test ONLY If Instructed To Do So By Quick Test
This Pinpoint Test Checks:
^
Driver's Seat Switch
^
Backup Lamp Switch (transmission lever)
^
Remote Keyless Entry Module
^
Ignition Switch Input
^
Circuits 177,57, 54, 53, 298, 140, 397,517
