Pinpoint Test F: Power Locks

Pinpoint Test F: Power Locks (Symptom Chart):

Pinpoint Test F1-F2:

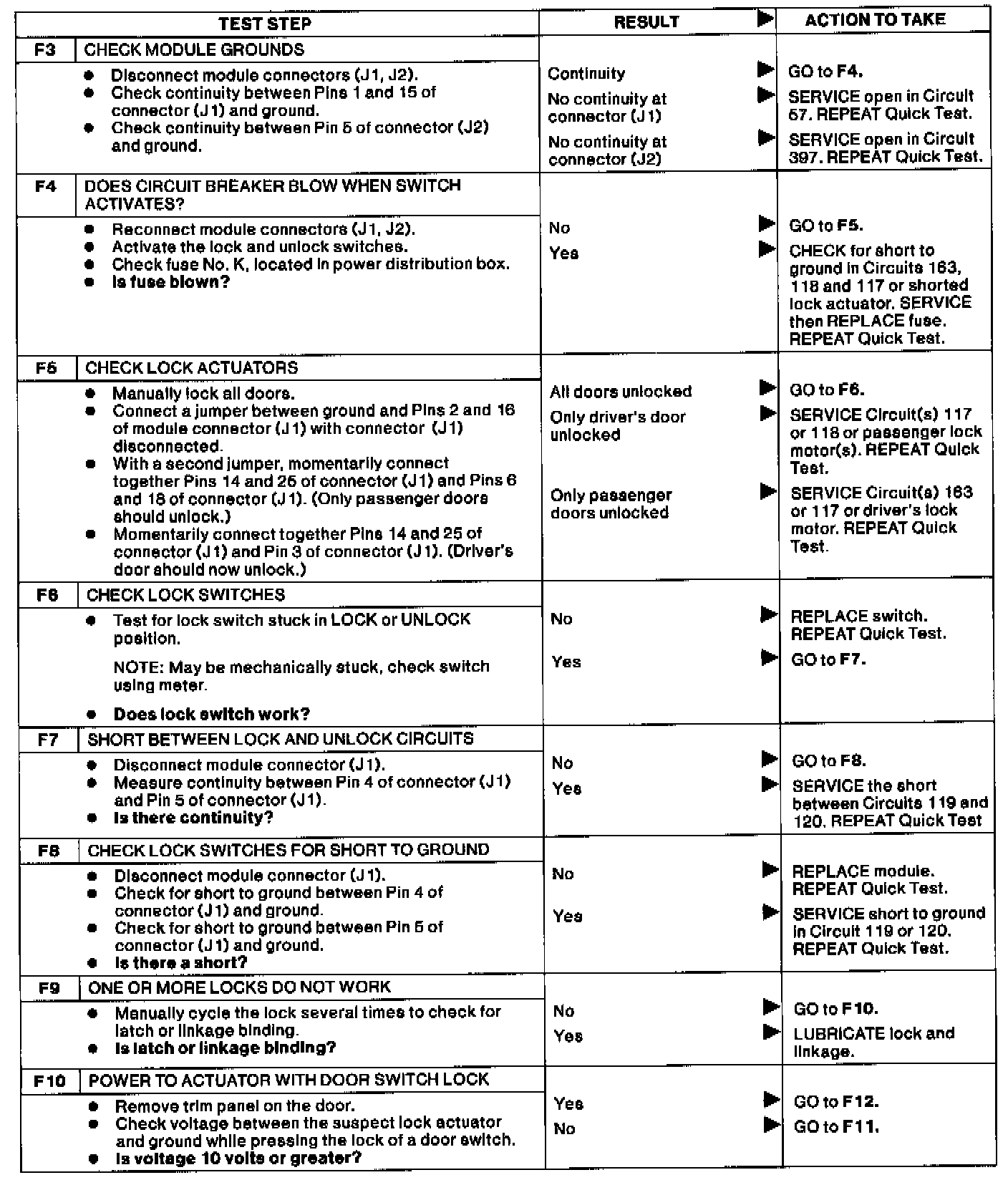

Pinpoint Test F3-F10:

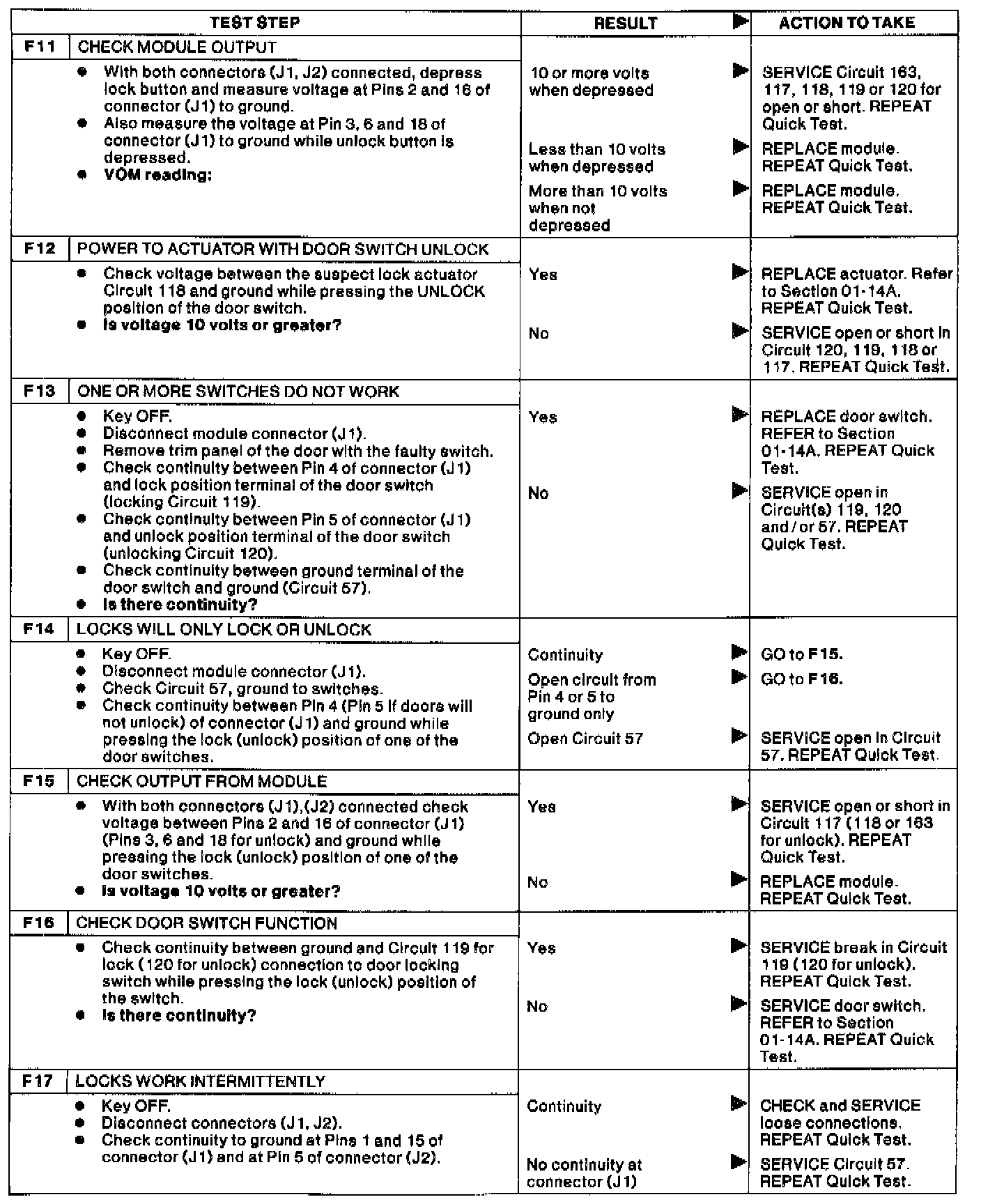

Pinpoint Test F11-F17:

Pinpoint Test F18-F19:

Perform Test ONLY If Instructed To Do So By Quick Test

This section contains a number of sub-sections, for handling different types of concerns found with the power locks as reported by the customer.

BEFORE PERFORMING ANY OF THE TESTS IN THIS SECTION, THE BATTERY MUST BE FULLY CHARGED.

Find the specific concern in the following list and go to the Step specified.

^ To lubricate linkage, use Multi-Purpose Grease Spray D7AZ-19584-AA (ESR-M1C159-A and ESR-M 1 C 106-B) or equivalent
^ Spray into latch opening
- It may be necessary to remove the door trim panel to lubricate the entire latch and linkage system.
^ Manually cycle the lock 10 times.
- Check for interference around right latch and all linkages.
