A/C Plenum Demister Adapter
REMOVAL AND INSTALLATION 1.
Remove steering column assembly. See Steering Column.
2.
Remove instrument panel assembly with attached A/C plenum assembly. See Instrument Panel.
3.
Disconnect demister hoses from adapter.
4.

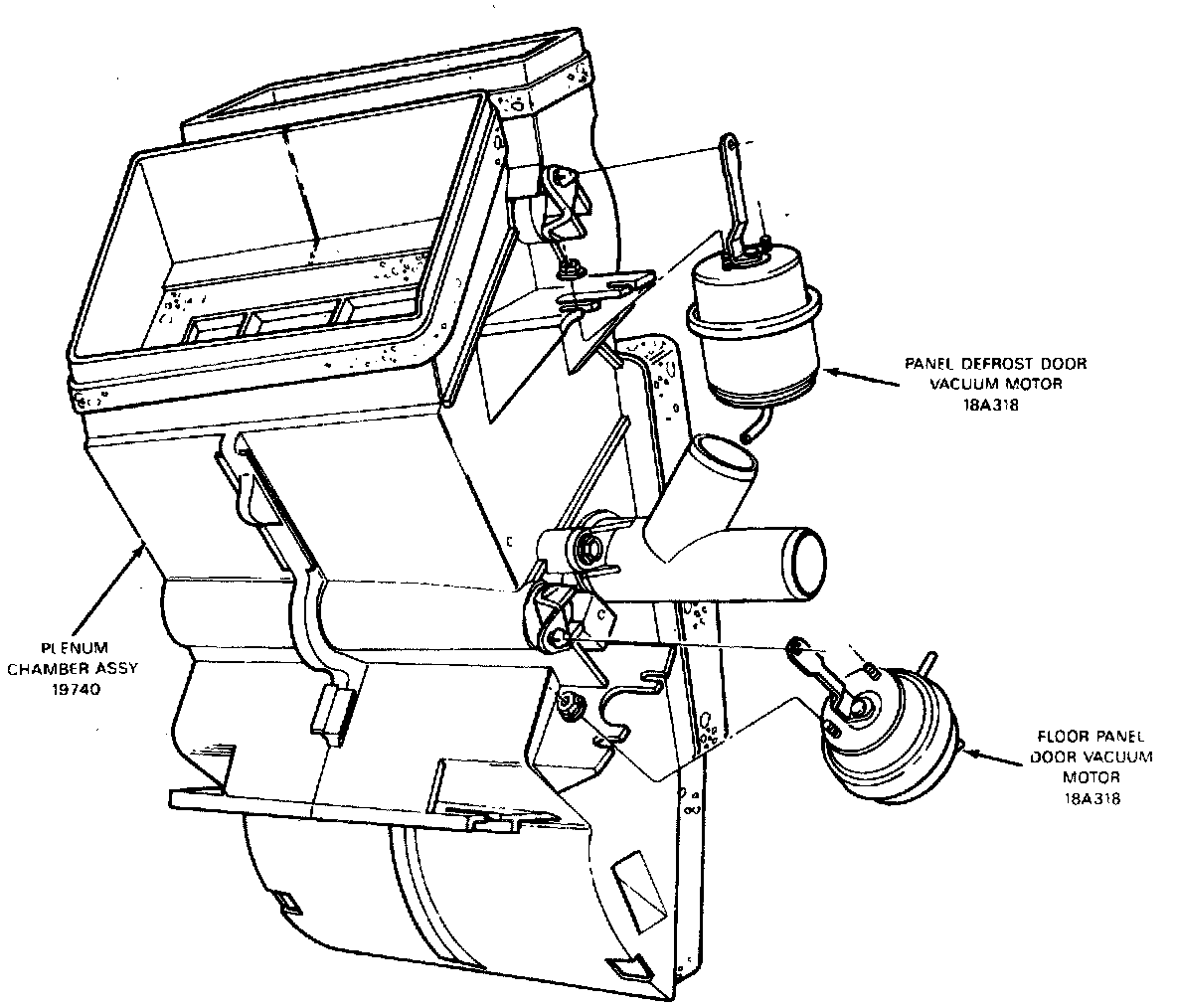

Remove one screw retaining demister adapter to the
plenum chamber assembly (illustration).
5.
To install adapter, reverse Steps 1 through 4.
