EATC System Functional Test

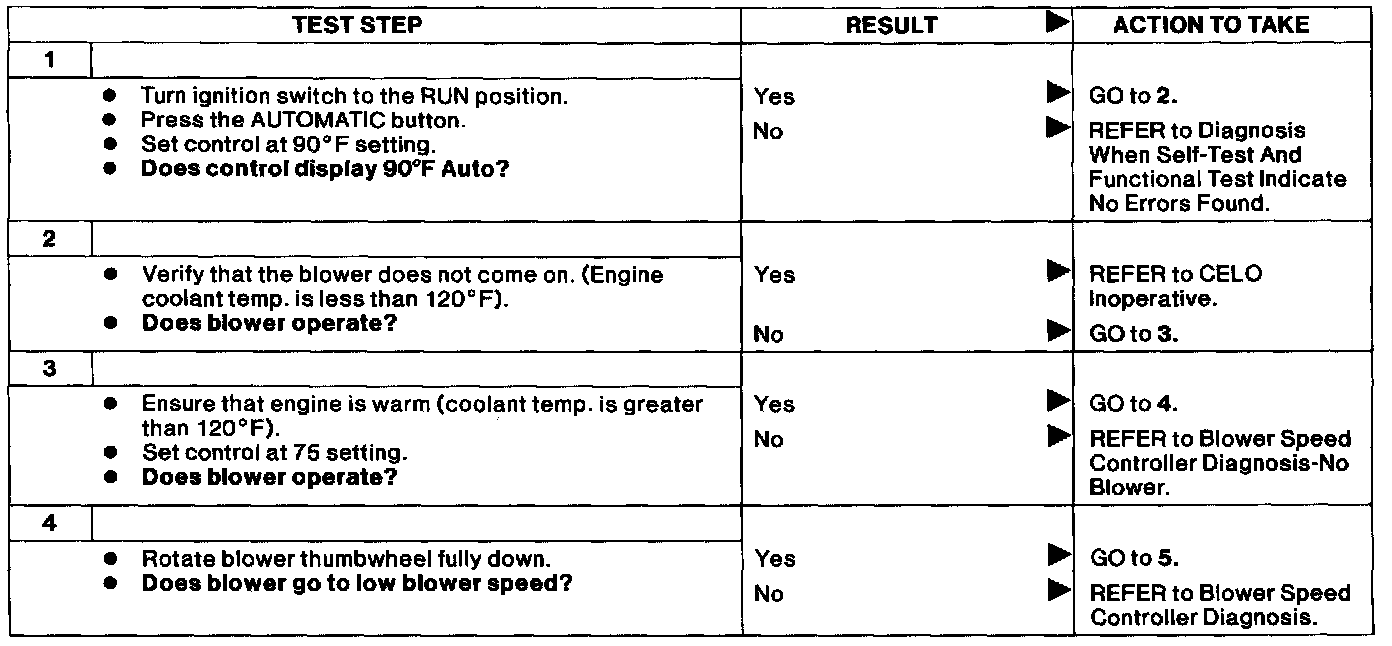

1 - 4:

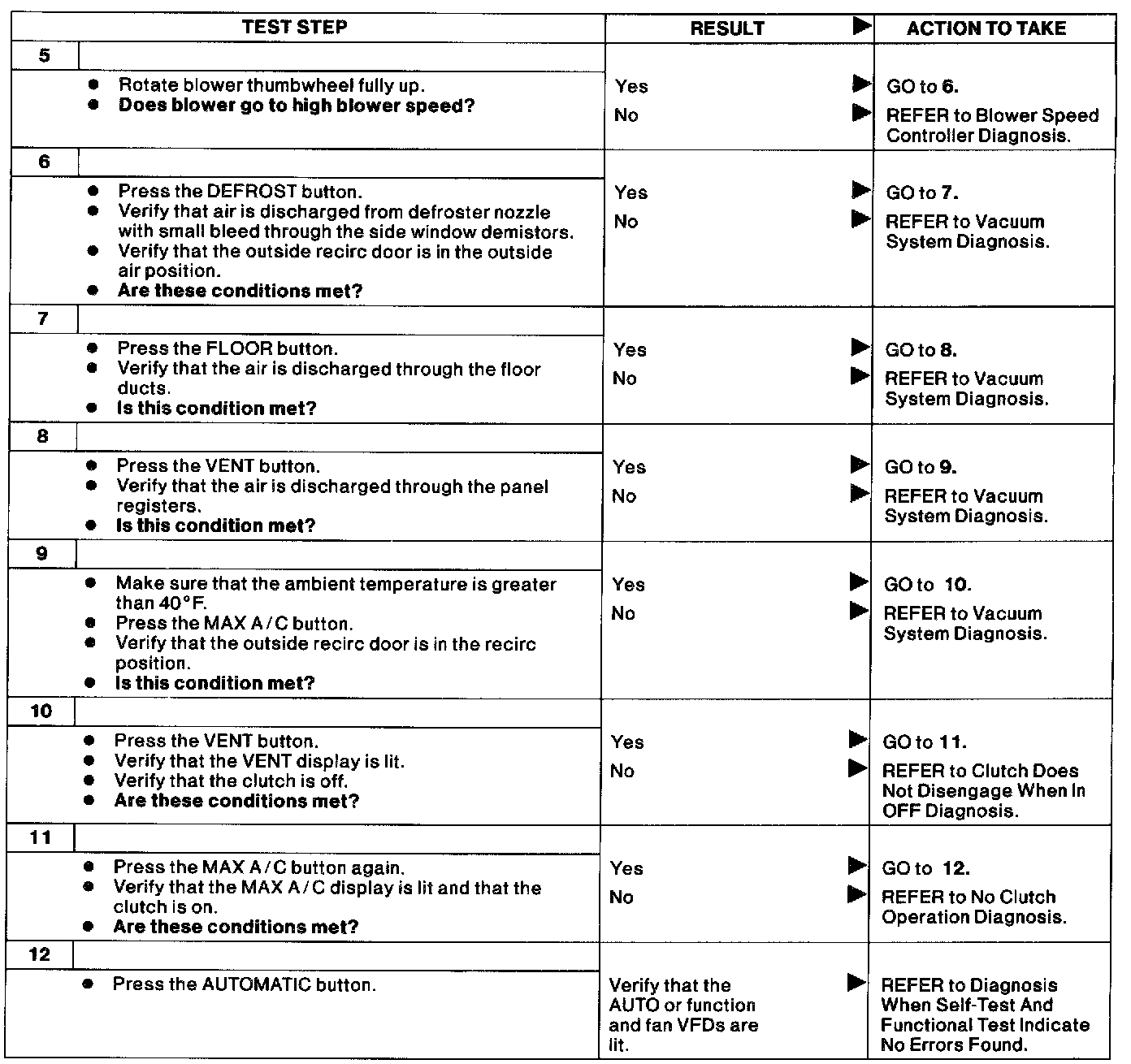

5 - 12:
EATC System Functional Test ^ The EATC system functional test is designed to catch those system failures that the self test is unable to test.
^ Ensure that the engine is cold.
^ The in-vehicle temperature should be greater than 10°C (50°F) for proper evaluation of system response.
^ Refer to the following charts for testing instructions.
