Connector Views

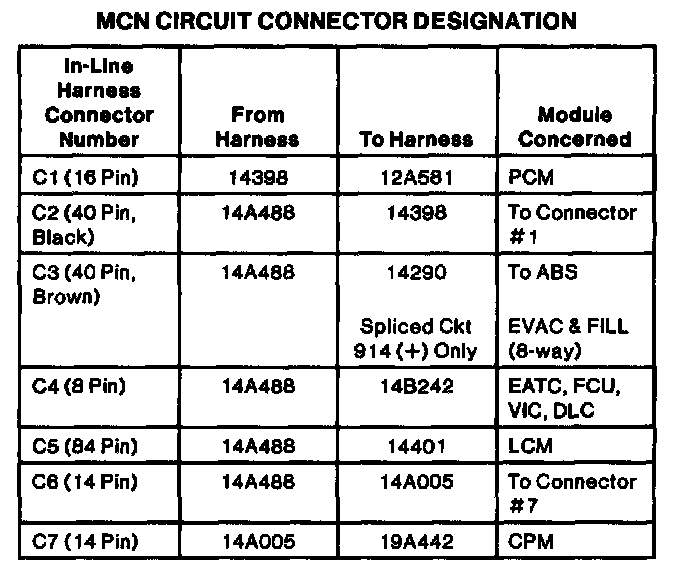

MCN Circuit Connector Designation:

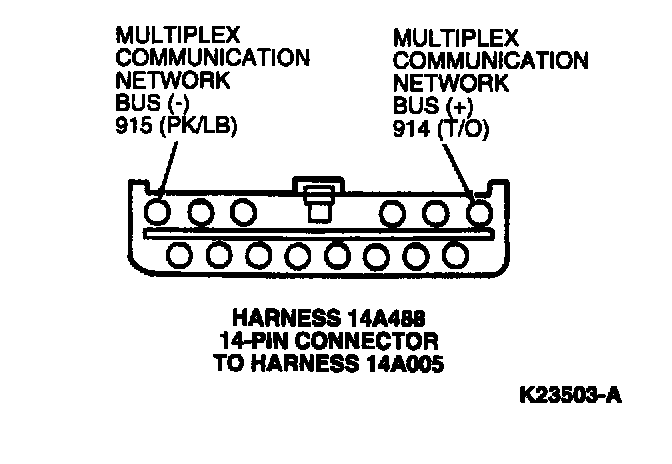

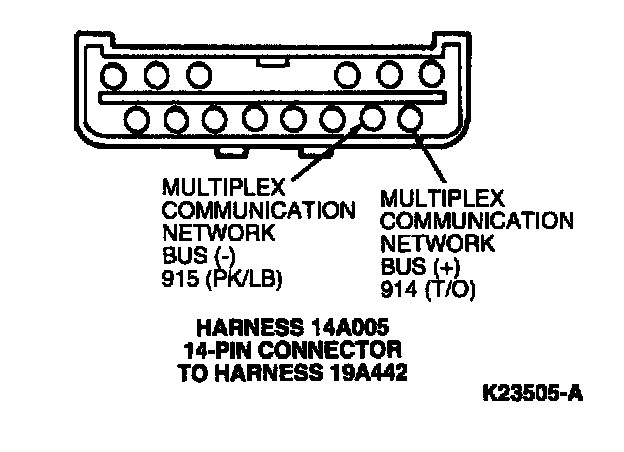

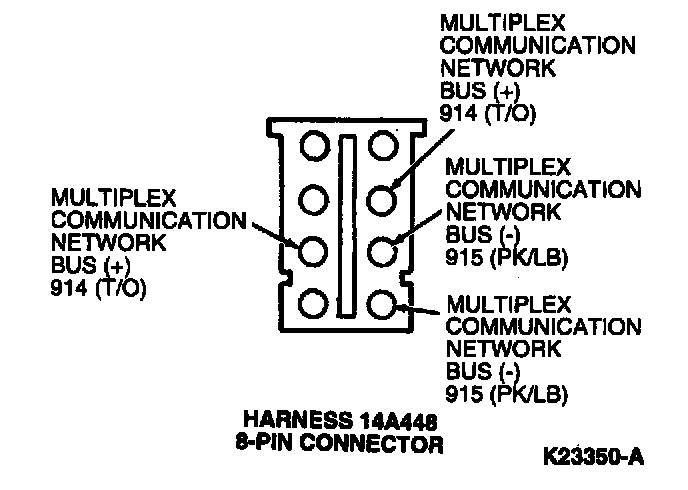

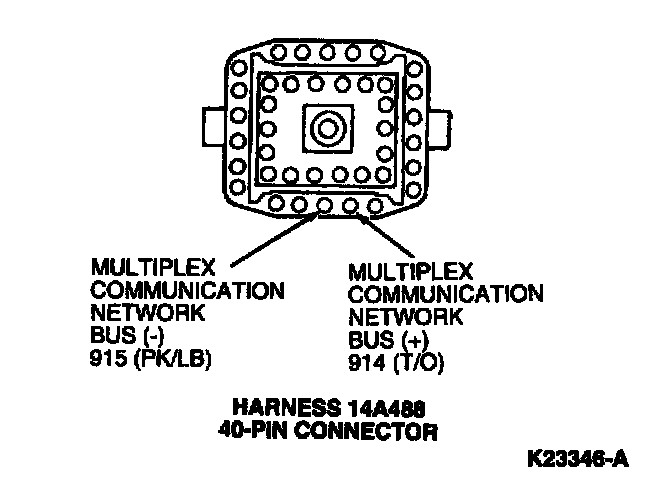

In-Line Connector 1 Part 1 Of 2:

In-Line Connector 1 Part 2 Of 2:

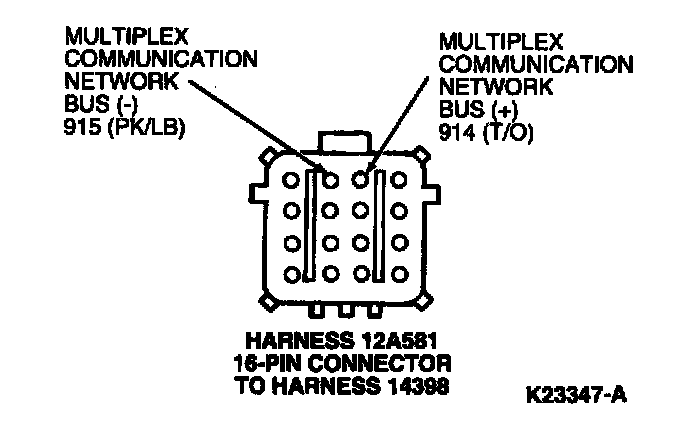

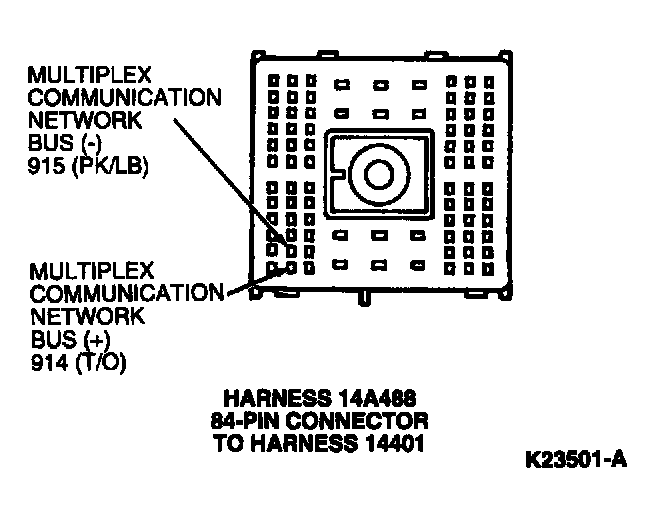

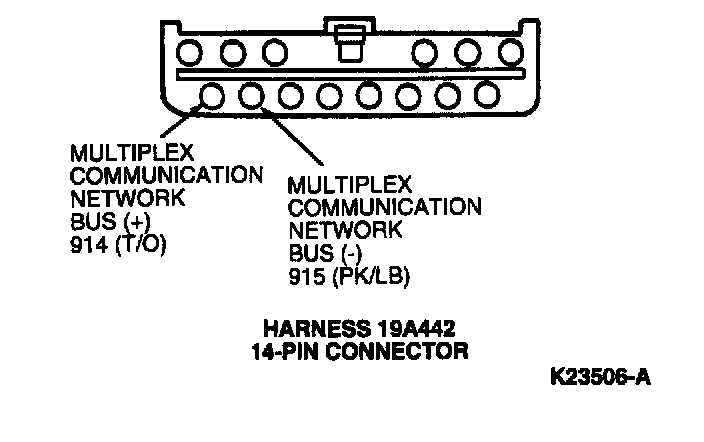

In-Line Connector 2 Part 1 Of 2:

In-Line Connector 2 Part 2 Of 2:

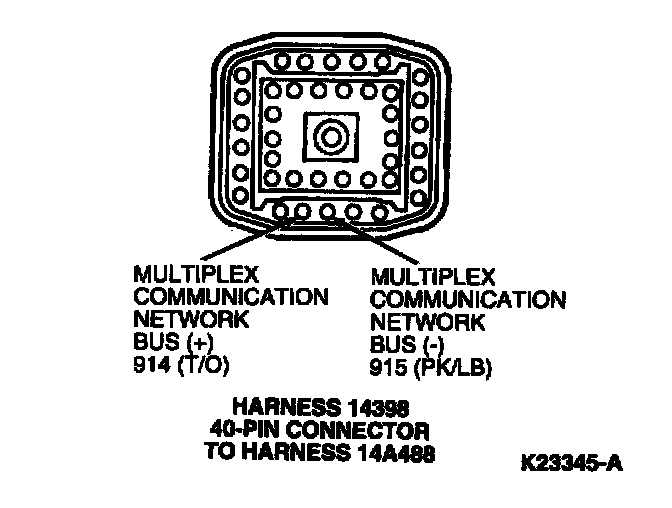

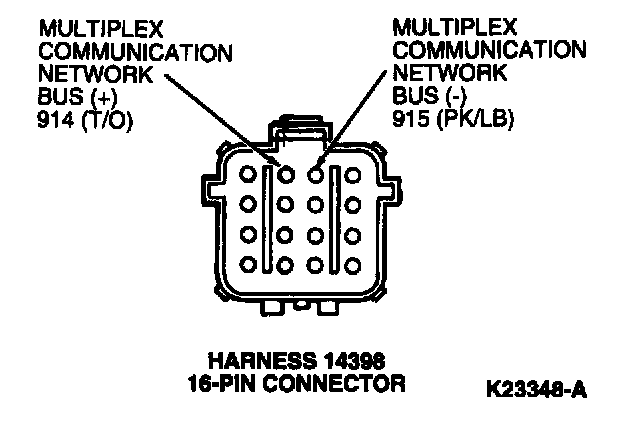

In-Line Connector 3 Part 1 Of 2:

In-Line Connector 3 Part 2 Of 2:

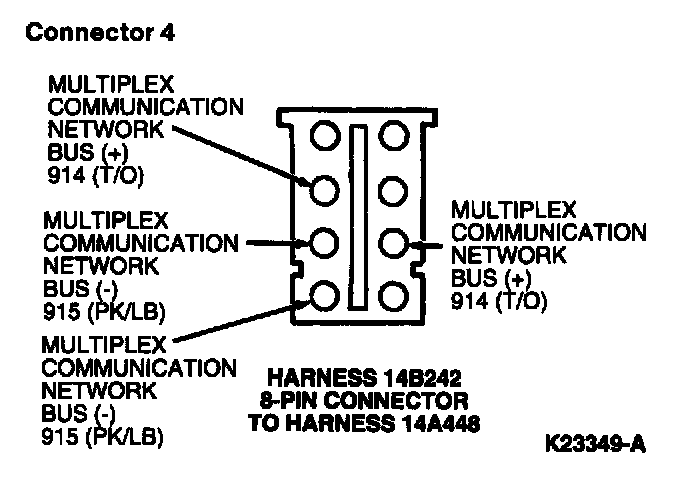

In-Line Connector 4 Part 1 Of 2:

In-Line Connector 4 Part 2 Of 2:

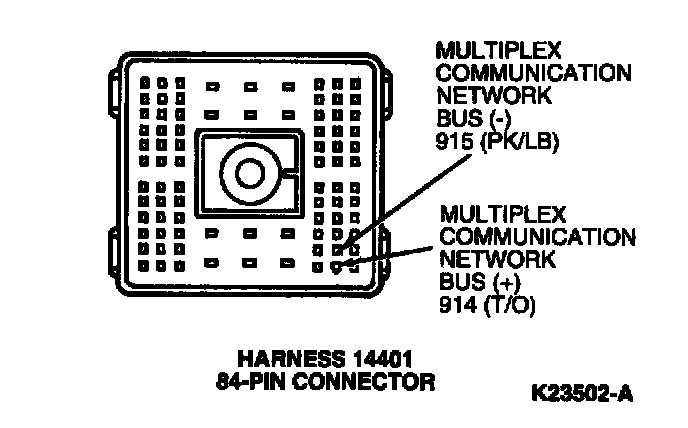

In-Line Connector 5 Part 1 Of 2:

In-Line Connector 5 Part 2 Of 2:

In-Line Connector 6 Part 1 Of 2:

In-Line Connector 6 Part 2 Of 2:

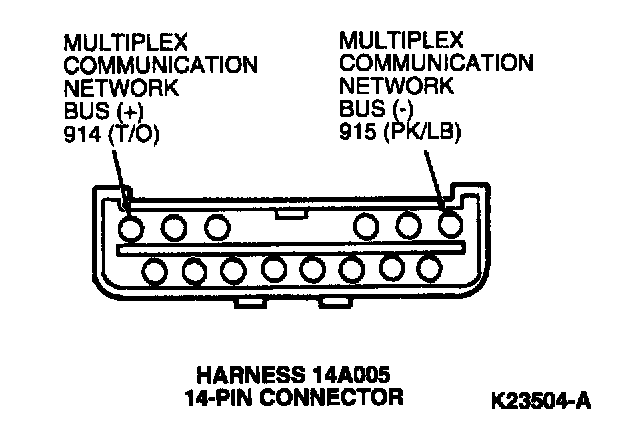

In-Line Connector 7 Part 1 Of 2:

In-Line Connector 7 Part 2 Of 2:

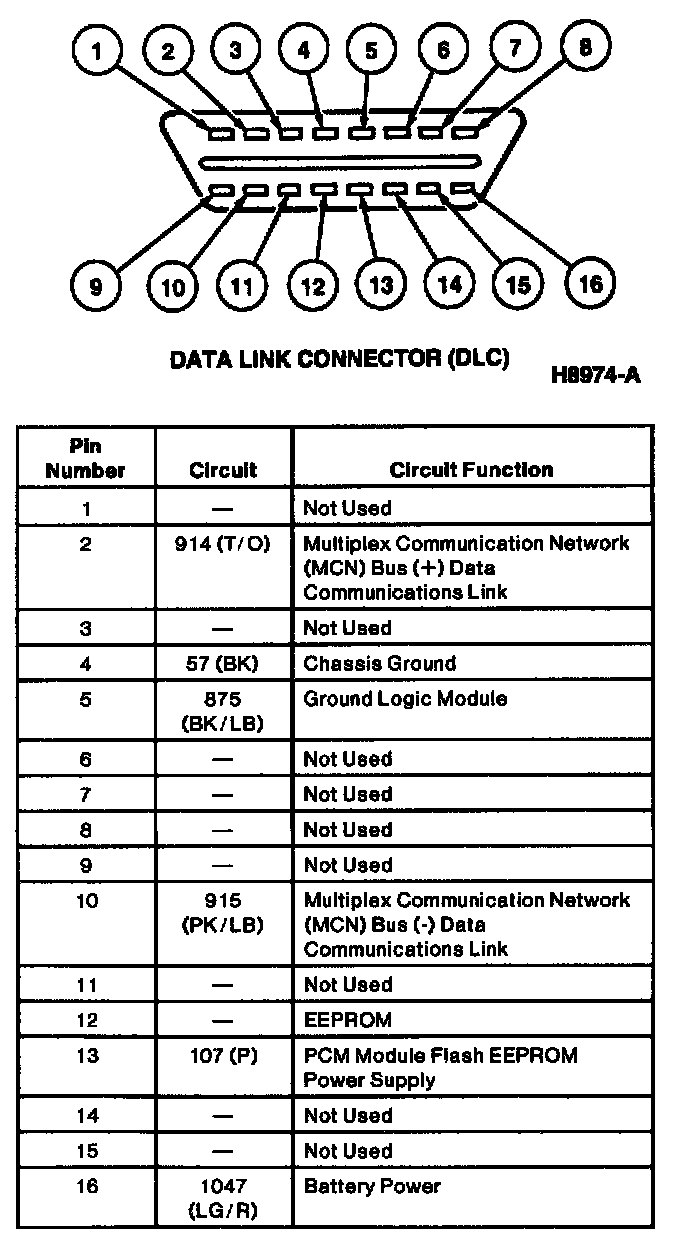

Data Link Connector:

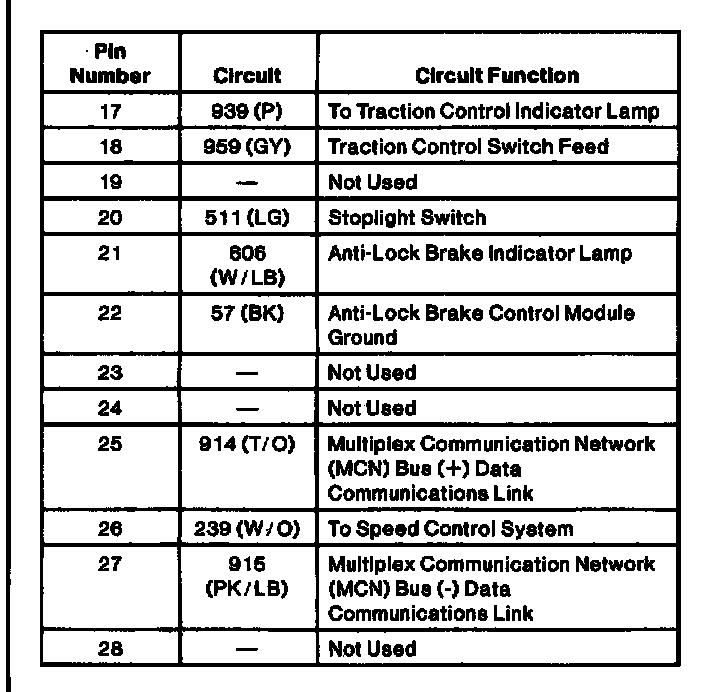

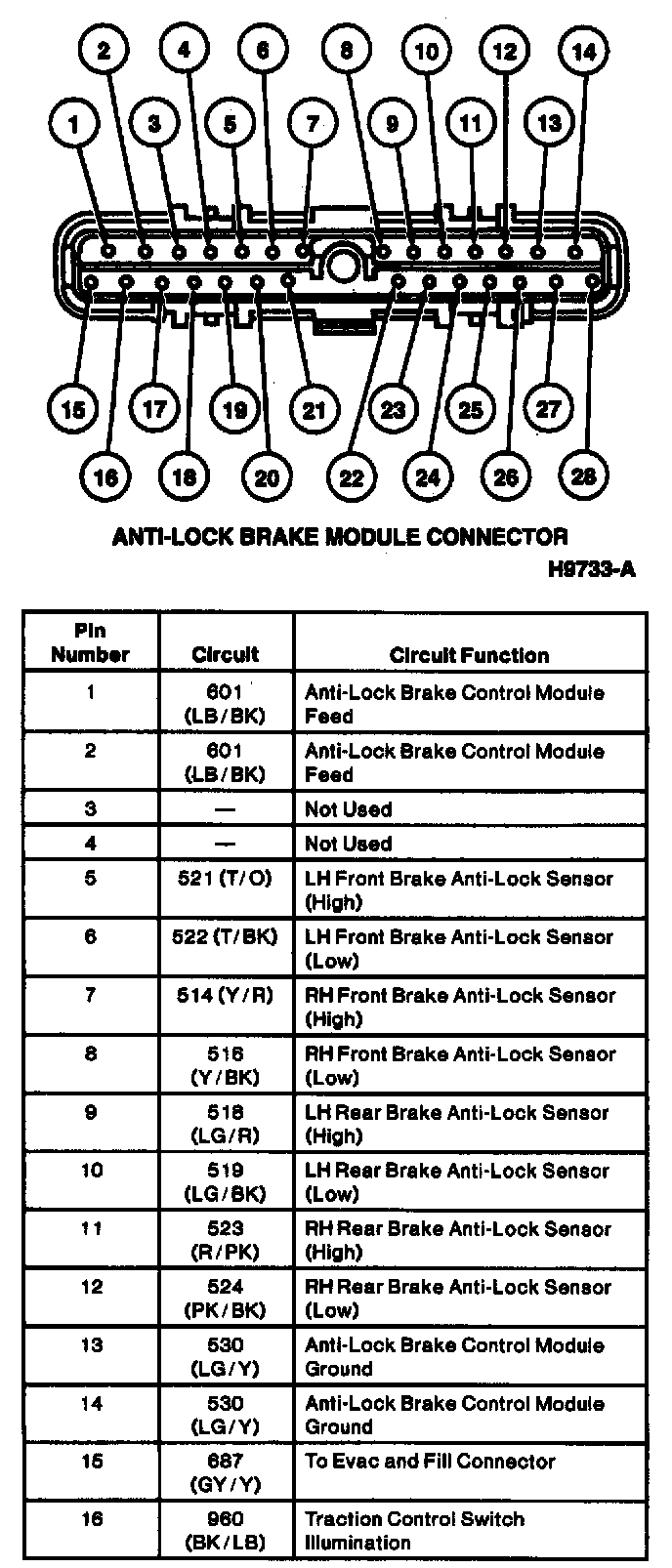

Anti-Lock Brake Module Connector Part 1 Of 2:

Anti-Lock Brake Module Connector Part 2 Of 2:

Anti-lock Brake Evacuate And Fill Connector:

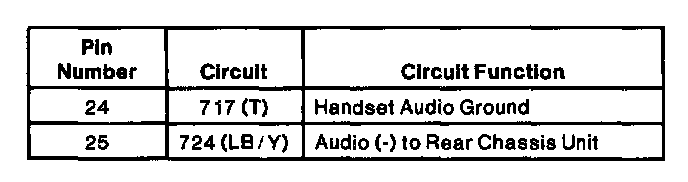

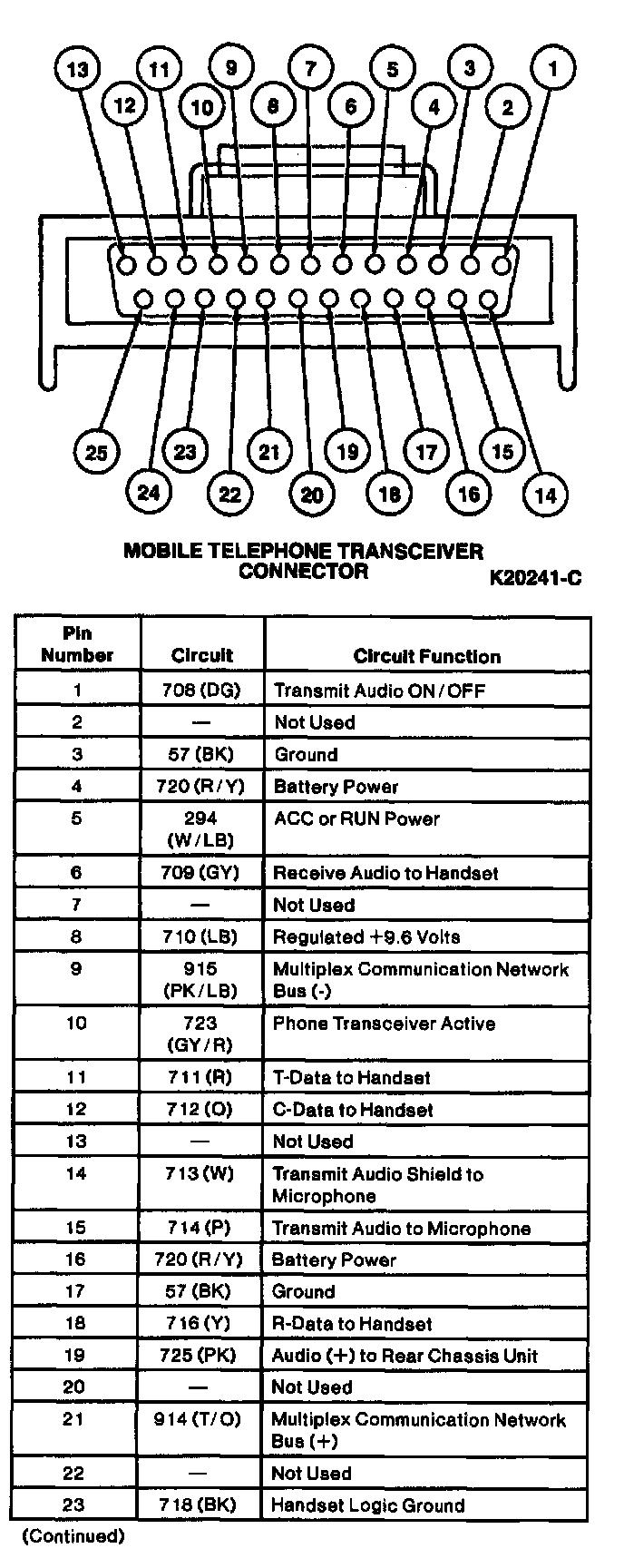

Mobile Telephone Transceiver Connector Part 1 Of 2:

Mobile Telephone Transceiver Connector Part 2 Of 2:

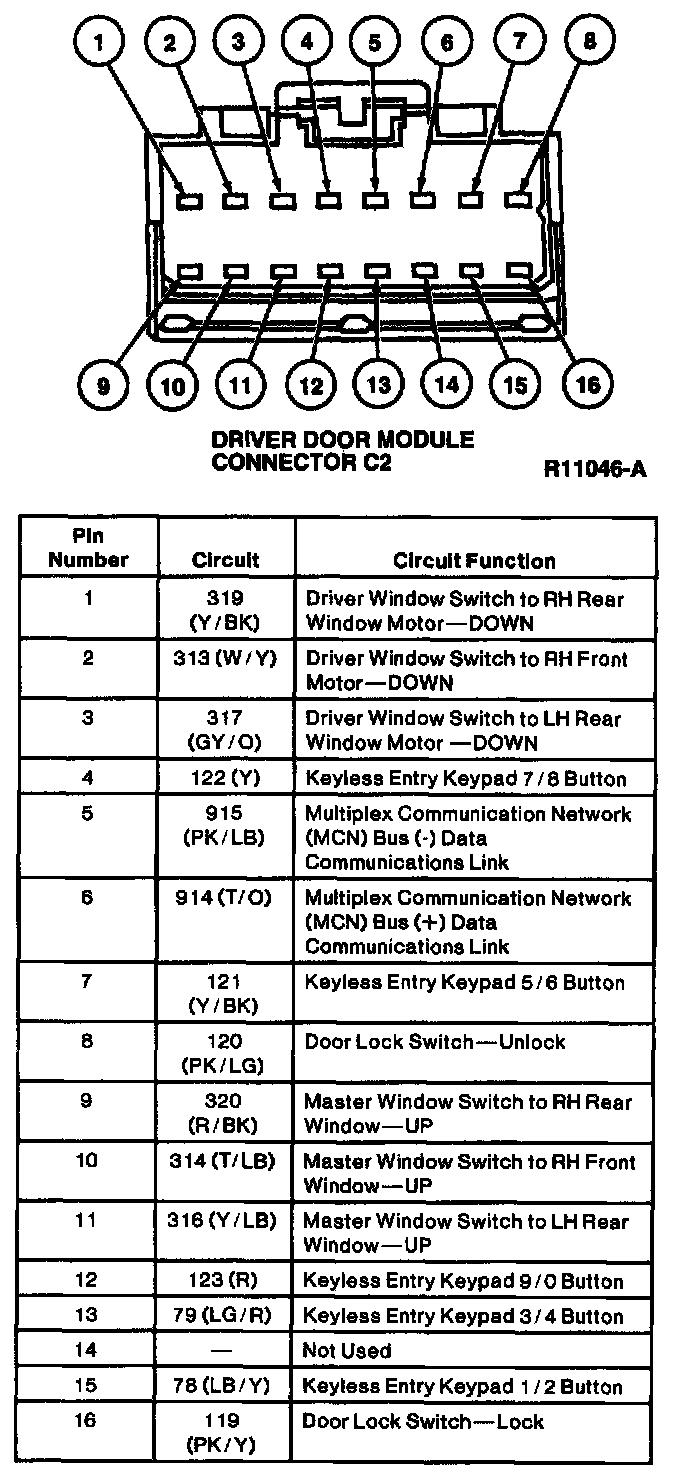

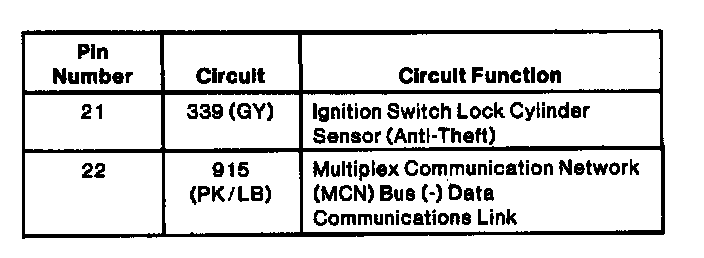

Driver Door Module Connector C2:

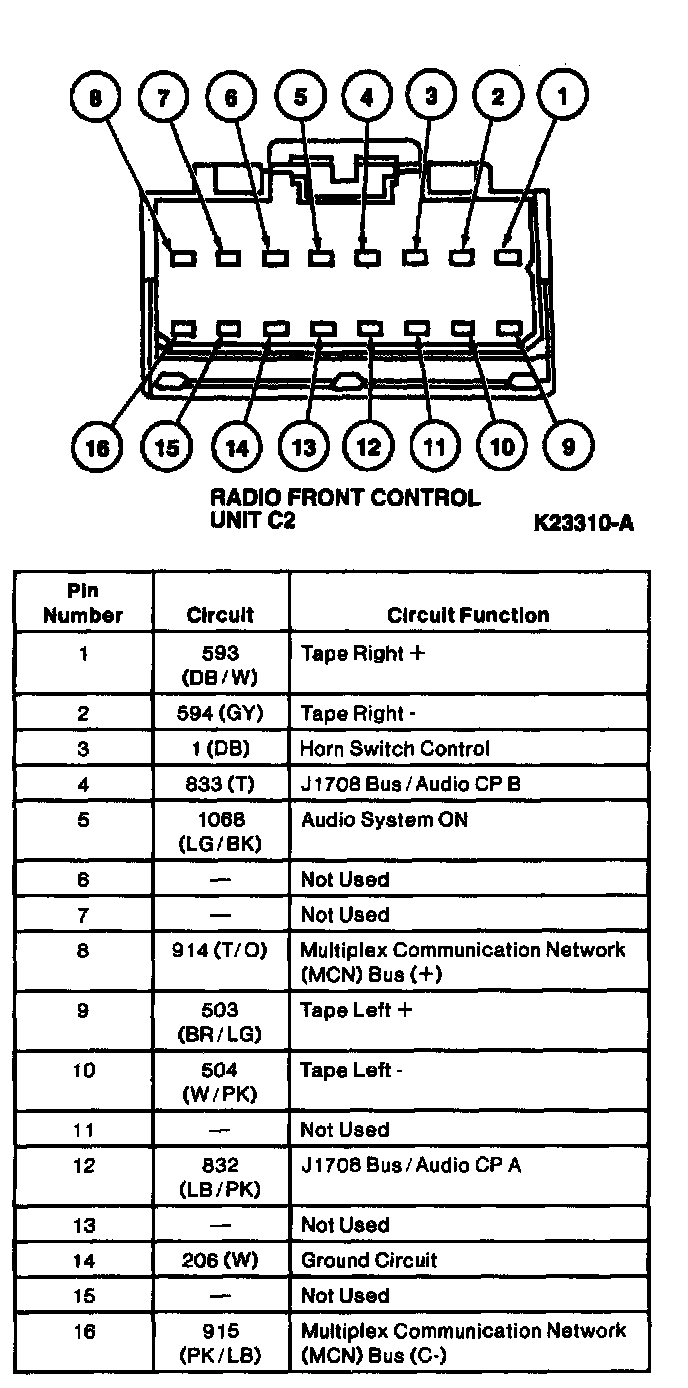

Radio Front Control Unit Connector C2:

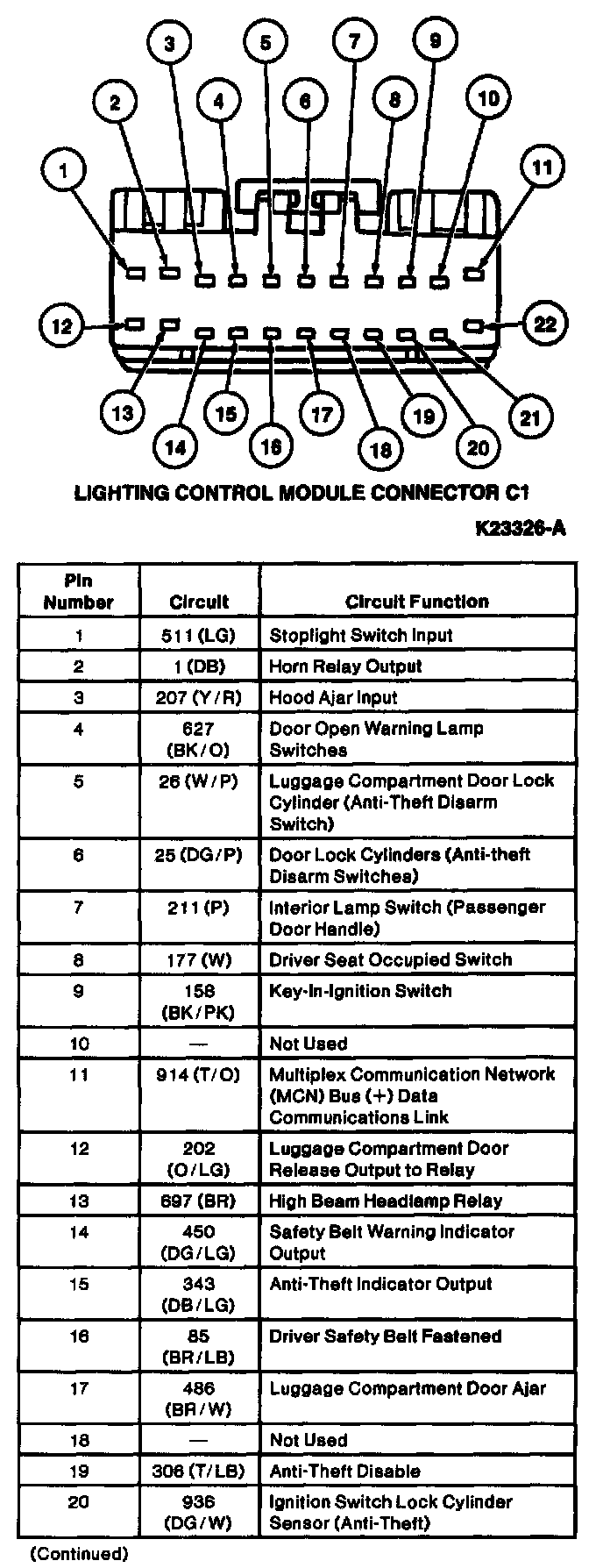

Lighting Control Module Connector C1 Part 1 Of 2:

Lighting Control Module Connector C1 Part 2 Of 2:

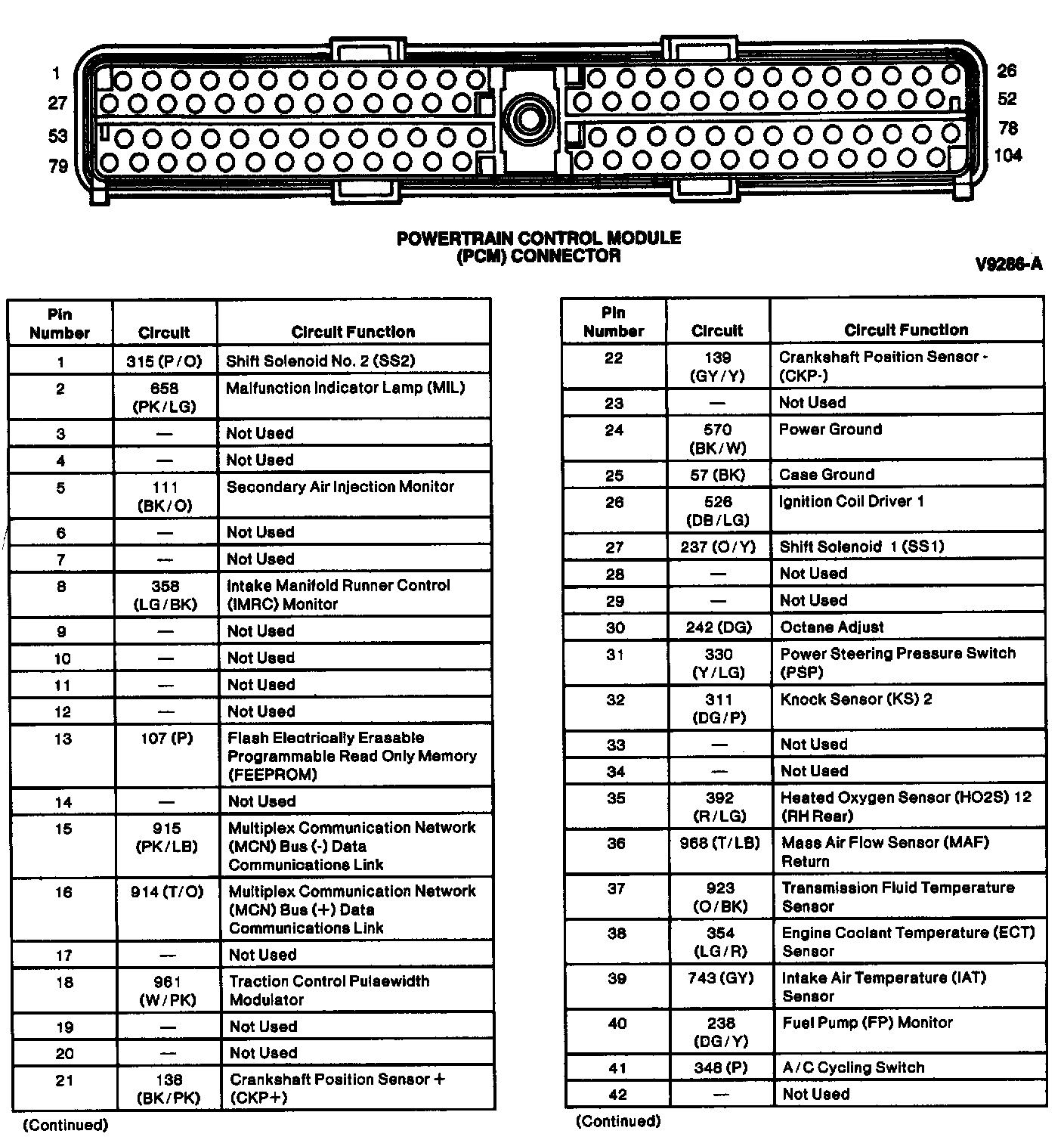

Powertrain Control Module Connector Part 1 Of 3:

Powertrain Control Module Connector Part 2 Of 3:

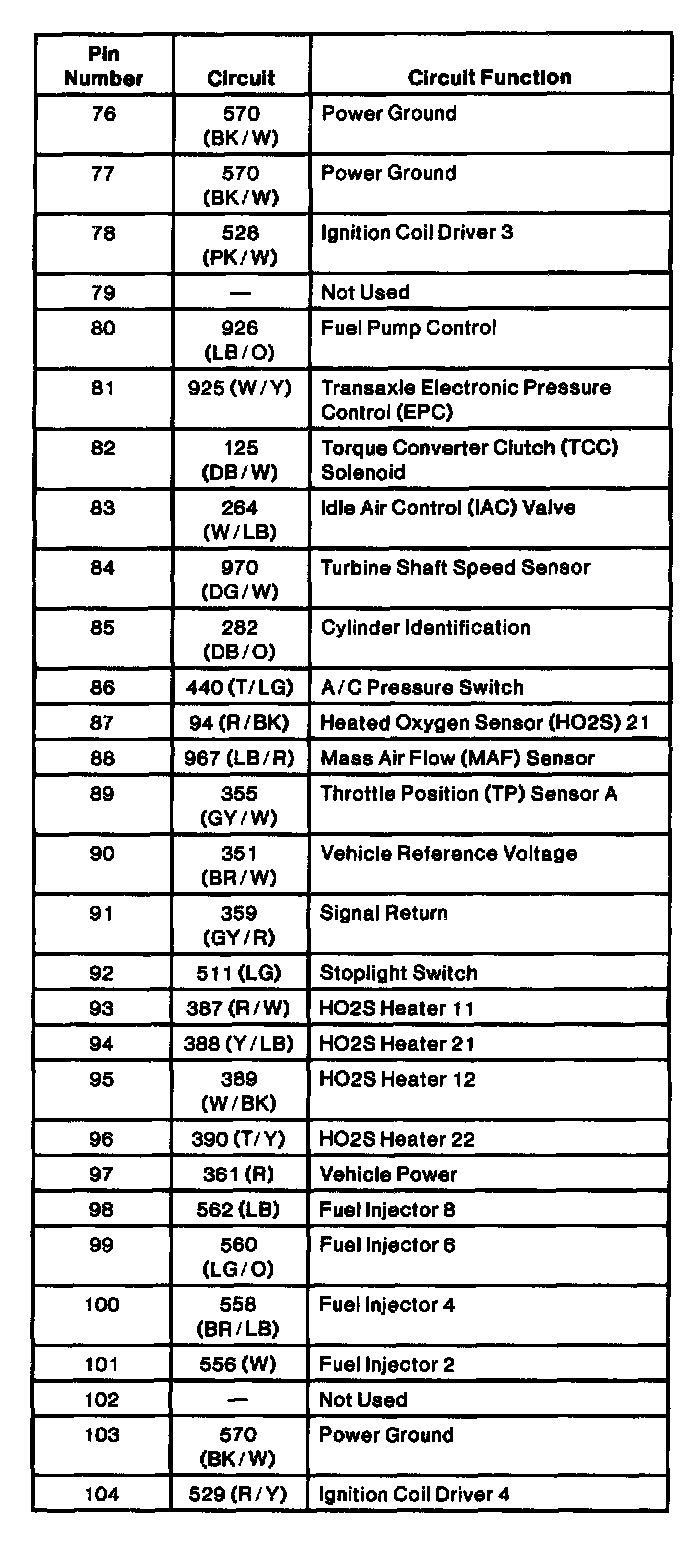

Powertrain Control Module Connector Part 3 Of 3:

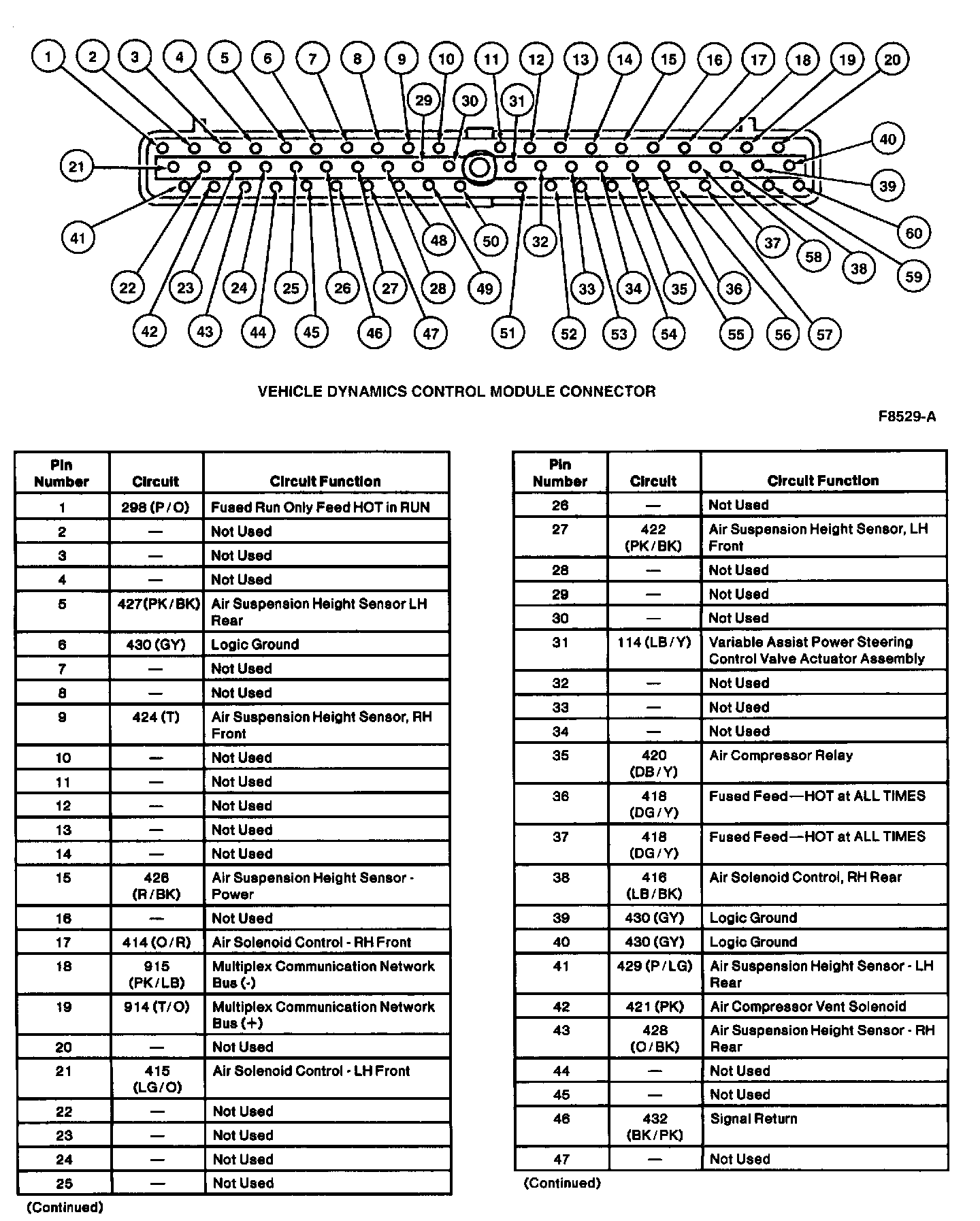

Vehicle Dynamics Control Module Connector Part 1 Of 2:

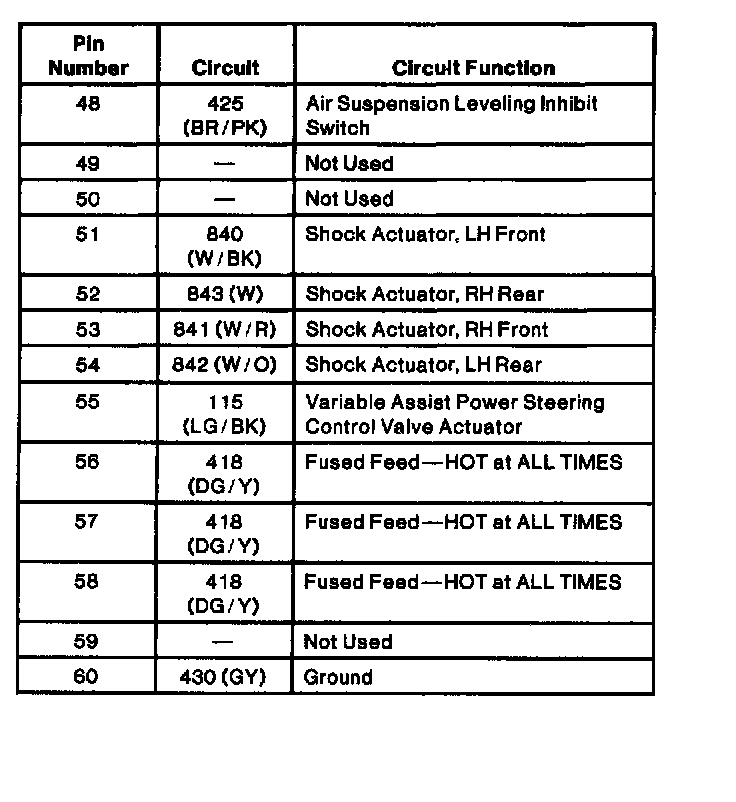

Vehicle Dynamics Control Module Connector Part 2 Of 2:

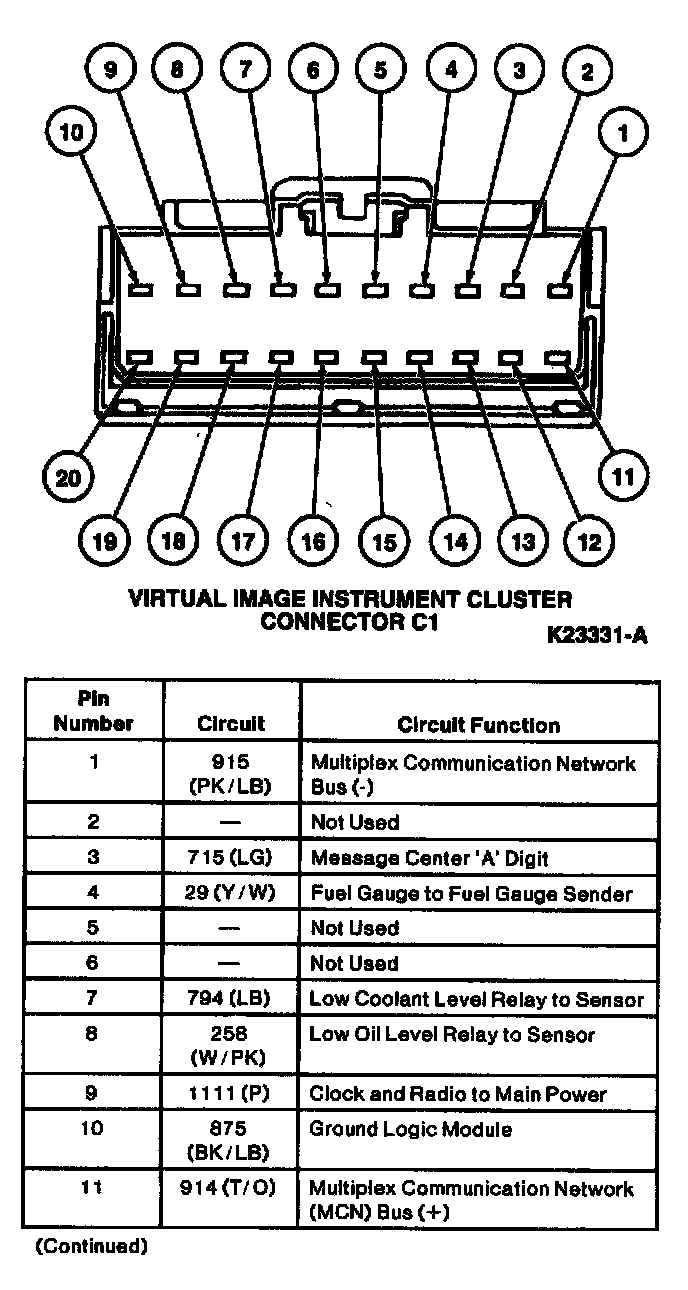

Virtual Image Instrument Cluster Connector C1 Part 1 Of 2:

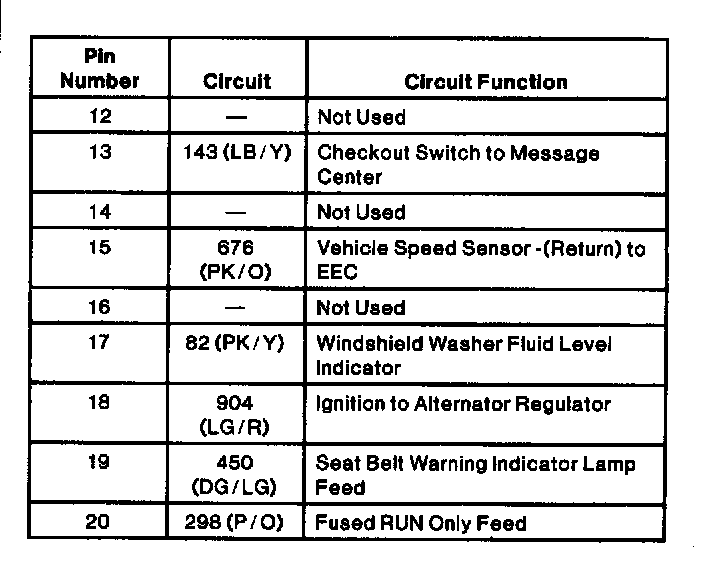

Virtual Image Instrument Cluster Connector C1 Part 2 Of 2:
