Pressure Feedback Exhaust Sensor: Service and Repair

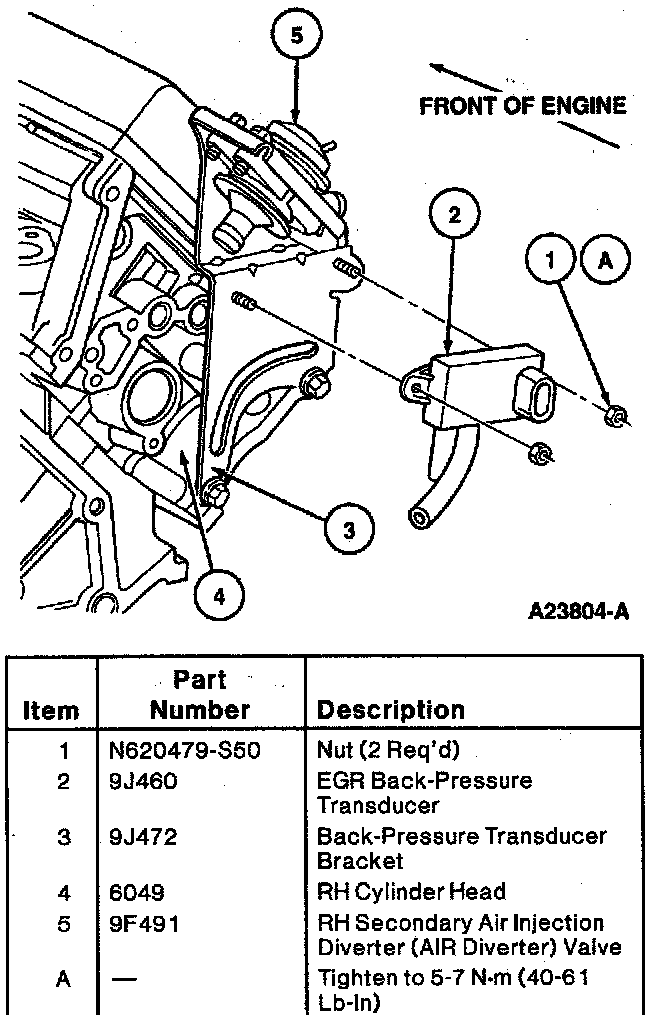

EGR Back-Pressure Transducer:






REMOVAL
^ Disconnect engine control sensor wiring from EGR back-pressure transducer.
^ Disconnect EGR back-pressure transducer hoses from EGR back-pressure transducer.
^ Remove EGR back-pressure transducer retaining nuts and EGR back-pressure transducer from EGR back-pressure transducer bracket.

INSTALLATION
^ To install, reverse removal procedure. Tighten EGR back-pressure transducer retaining nuts to 5-7 Nm (40-61 in lb).
