Engine Controls

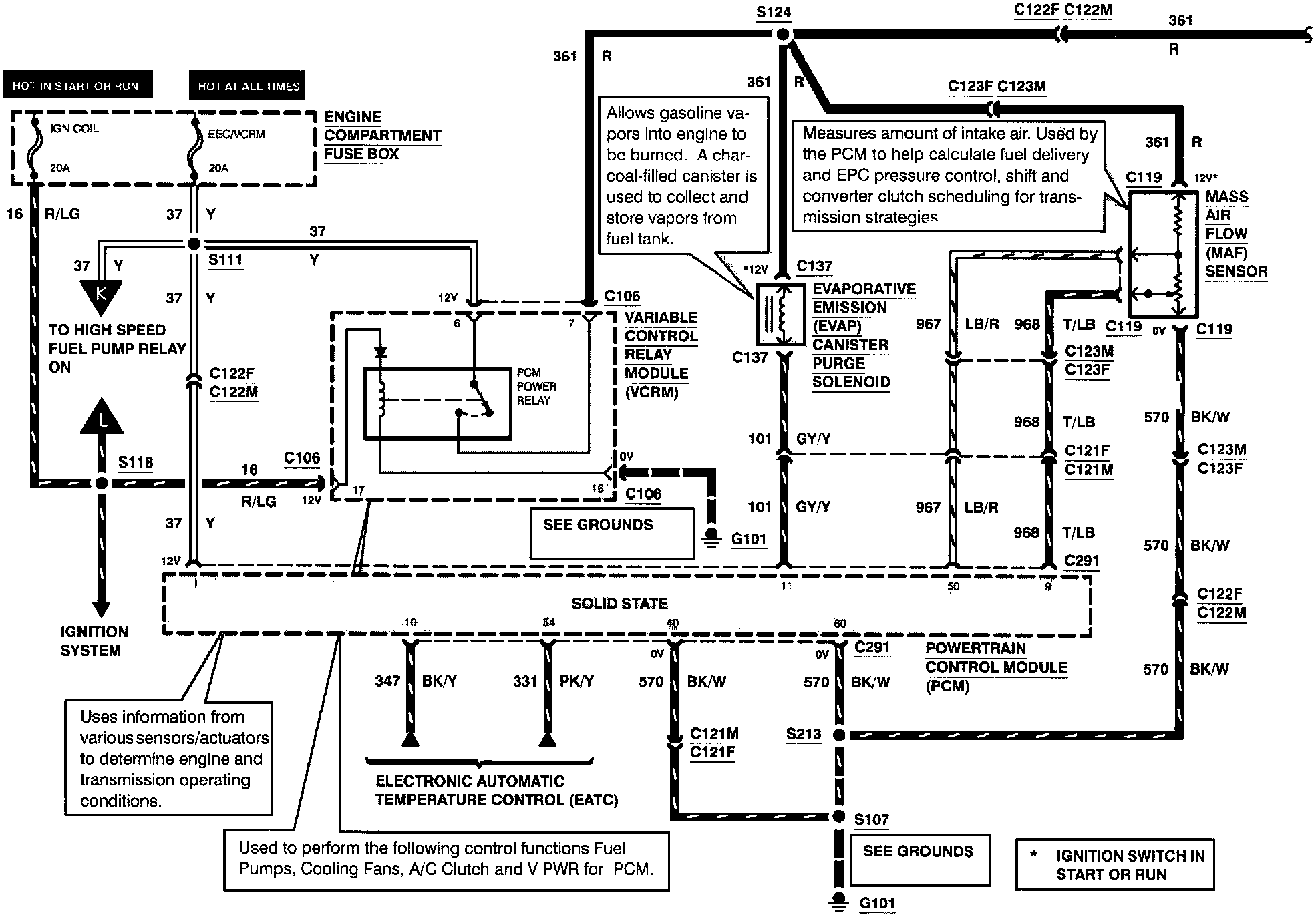

Electronic Engine Control:





EVAPORATIVE EMISSION CANISTER PURGE SOLENOID
MASS AIR FLOW SENSOR

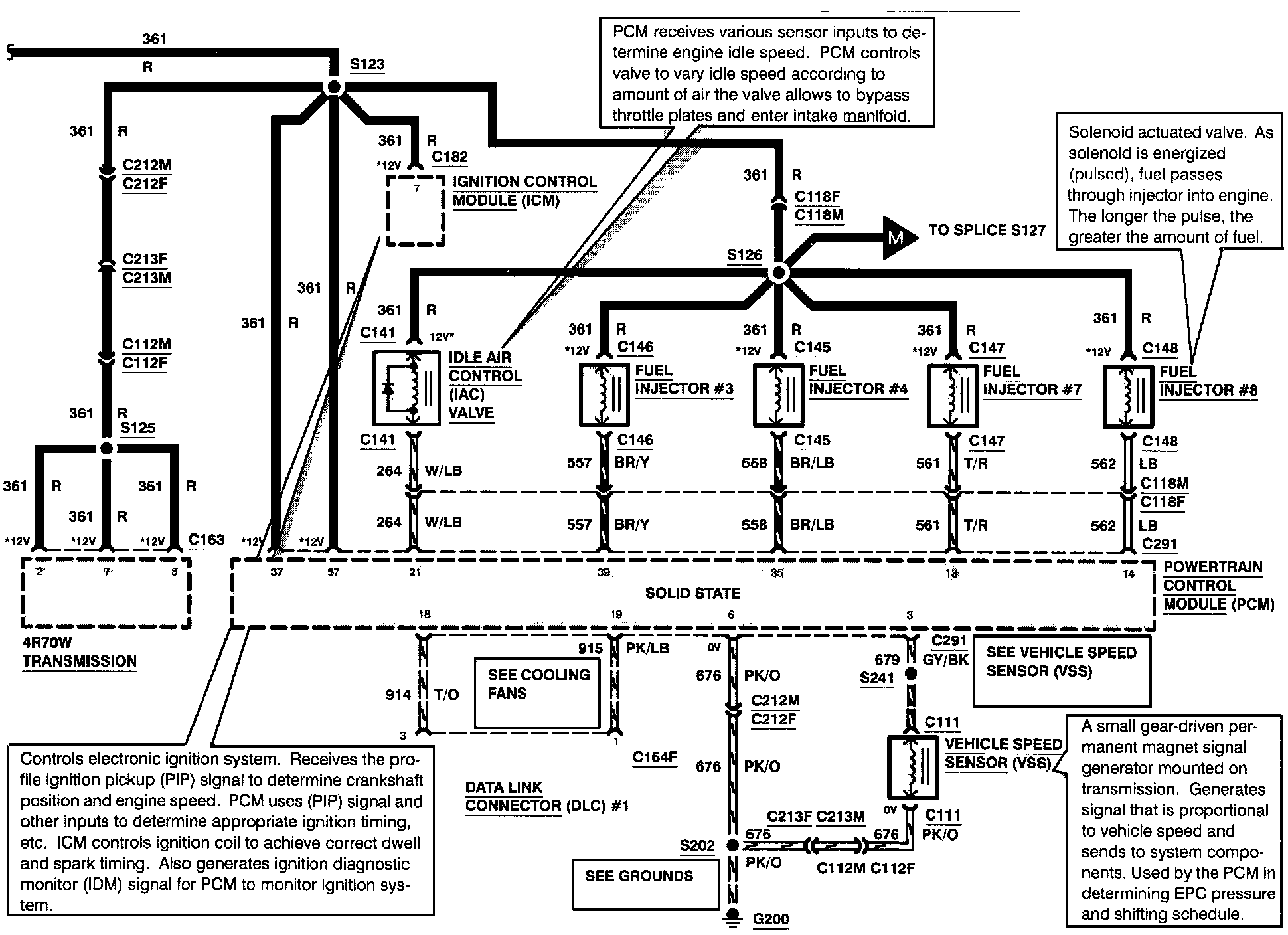

Electronic Engine Control:





IDLE AIR CONTROL VALVE
FUEL INJECTORS
VEHICLE SPEED SENSOR

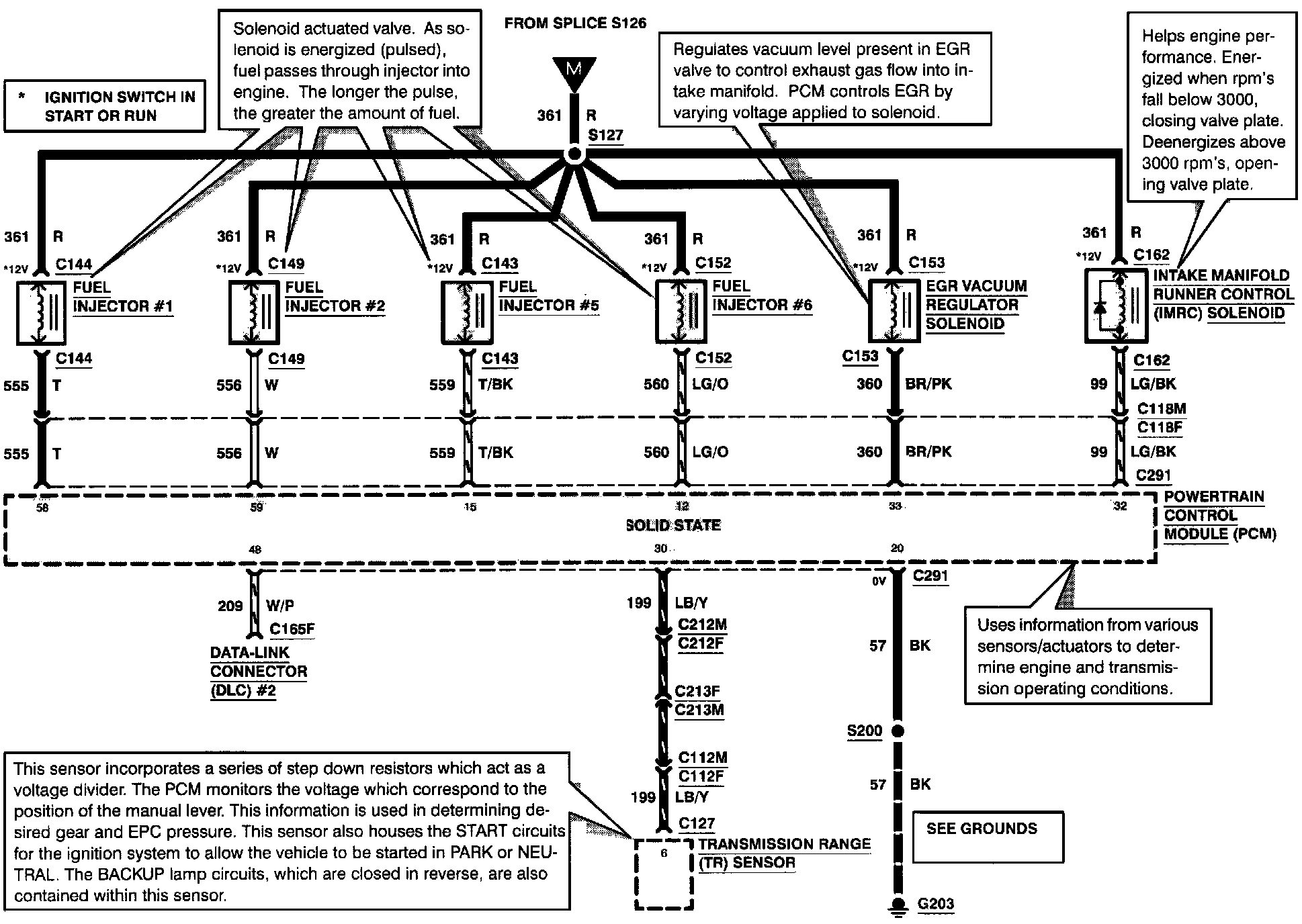

Electronic Engine Control:





EGR VACUUM REGULATOR SOLENOID
FUEL INJECTORS
INTAKE MANIFOLD RUNNER CONTROL SOLENOID

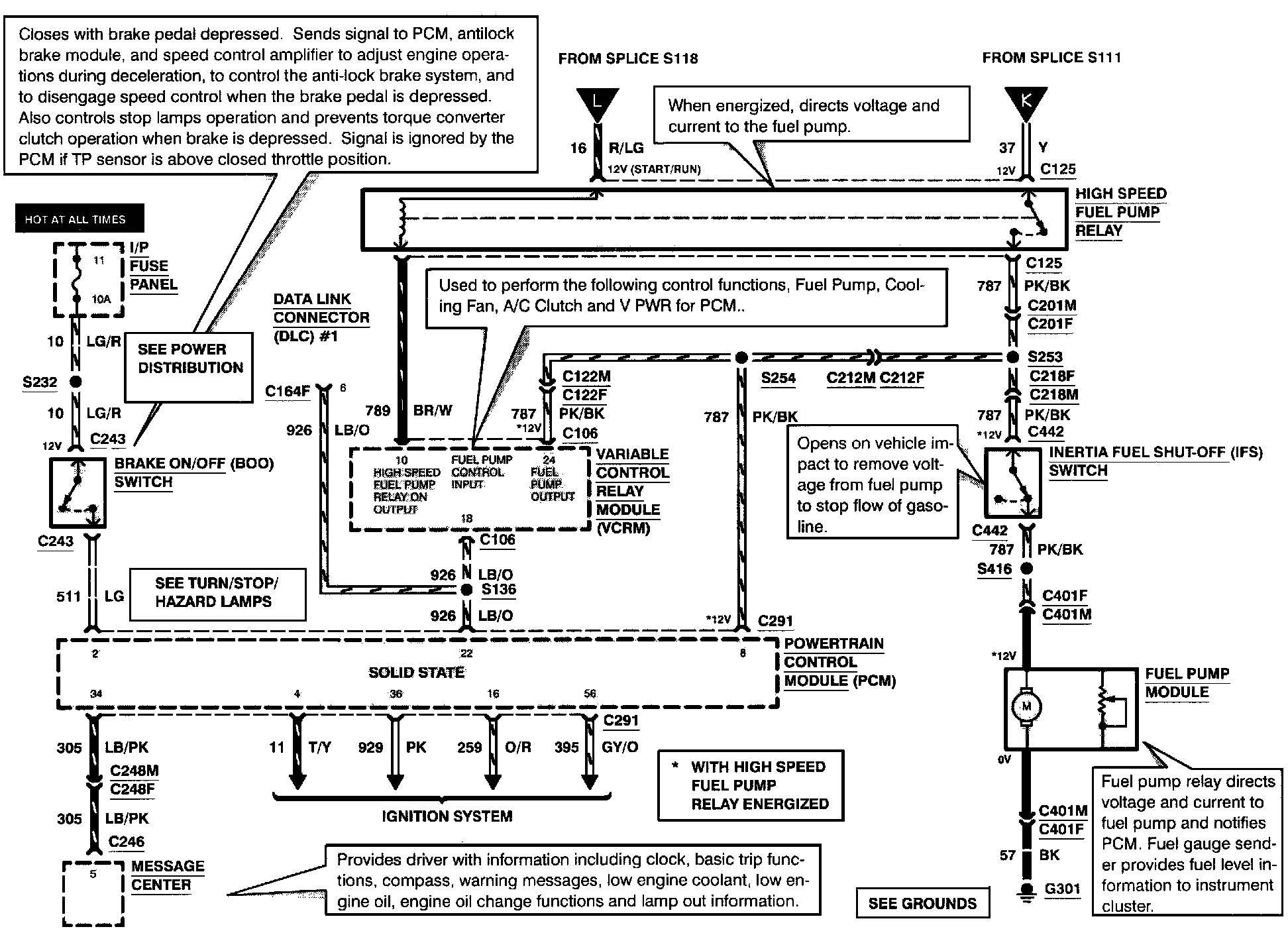

Electronic Engine Control:





BRAKE ON/OFF SWITCH
FUEL PUMP MODULE
HIGH SPEED FUEL PUMP RELAY
INERTIA FUEL SHUT-OFF SWITCH

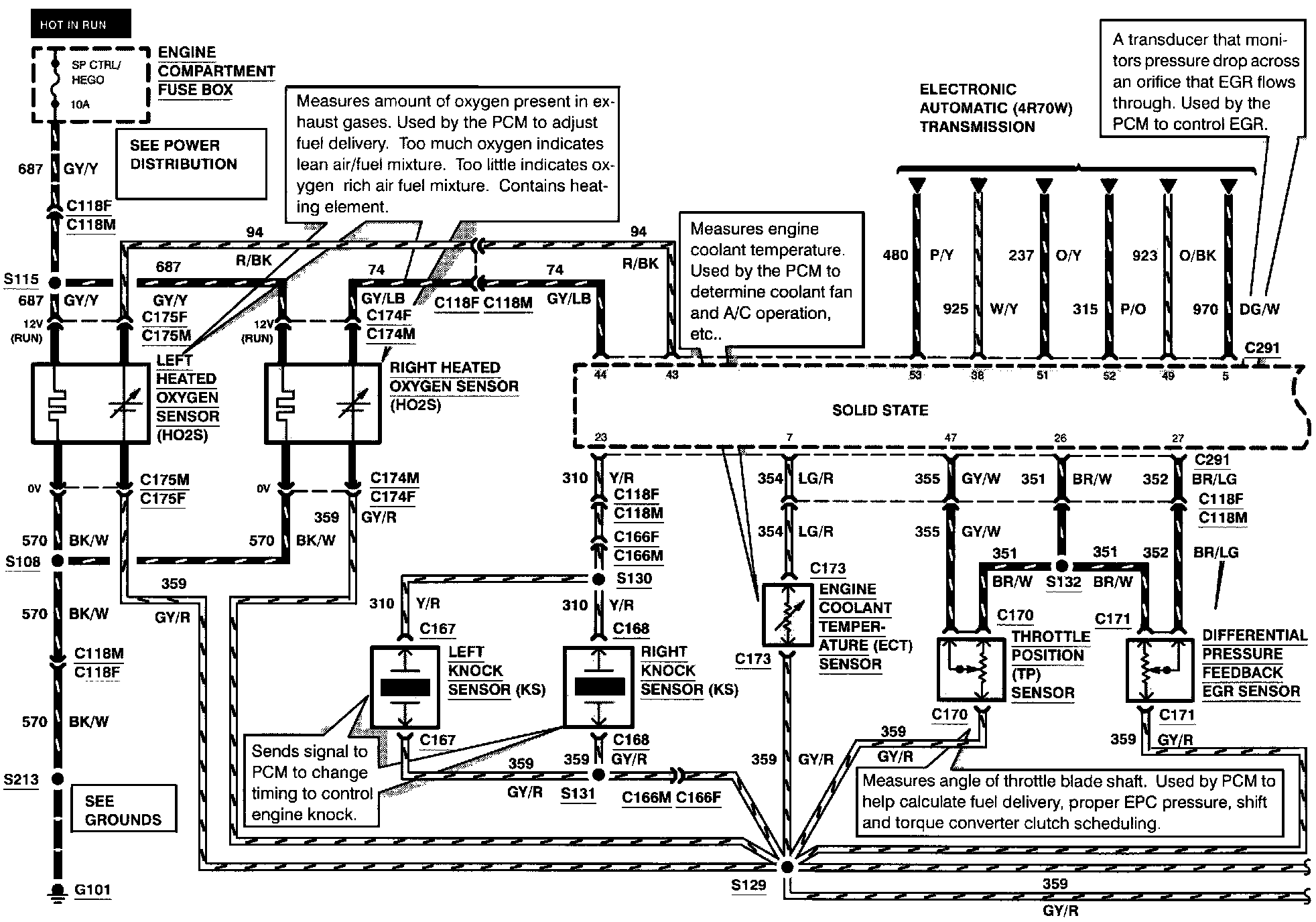

Electronic Engine Control:





DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
LEFT HEATED OXYGEN SENSOR
LEFT KNOCK SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
RIGHT HEATED OXYGEN SENSOR
RIGHT KNOCK SENSOR
THROTTLE POSITION SENSOR

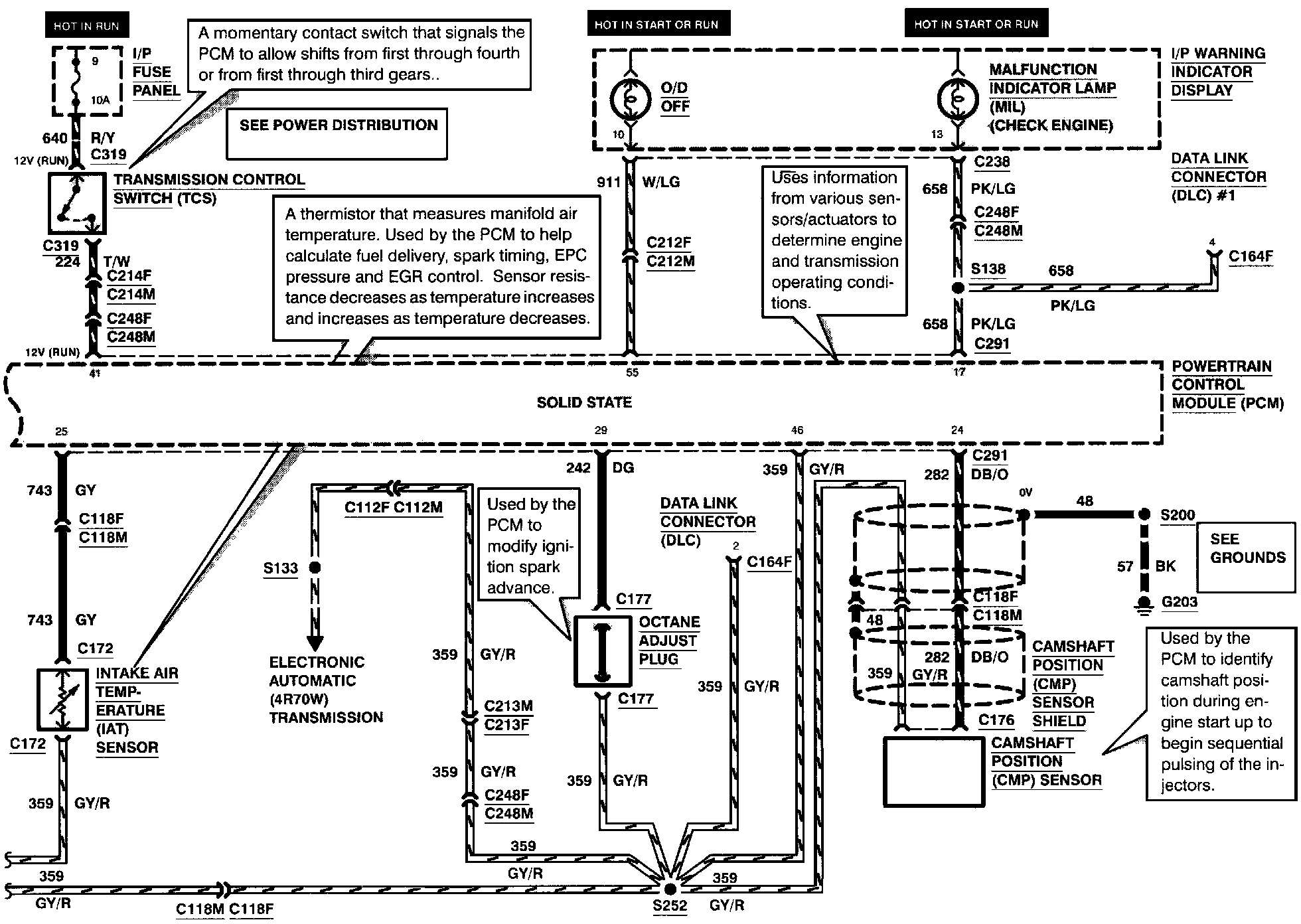

Electronic Engine Control:





CAMSHAFT POSITION SENSOR
INTAKE AIR TEMPERATURE SENSOR
OCTANE ADJUST PLUG
TRANSMISSION CONTROL SWITCH
