Front

Removal

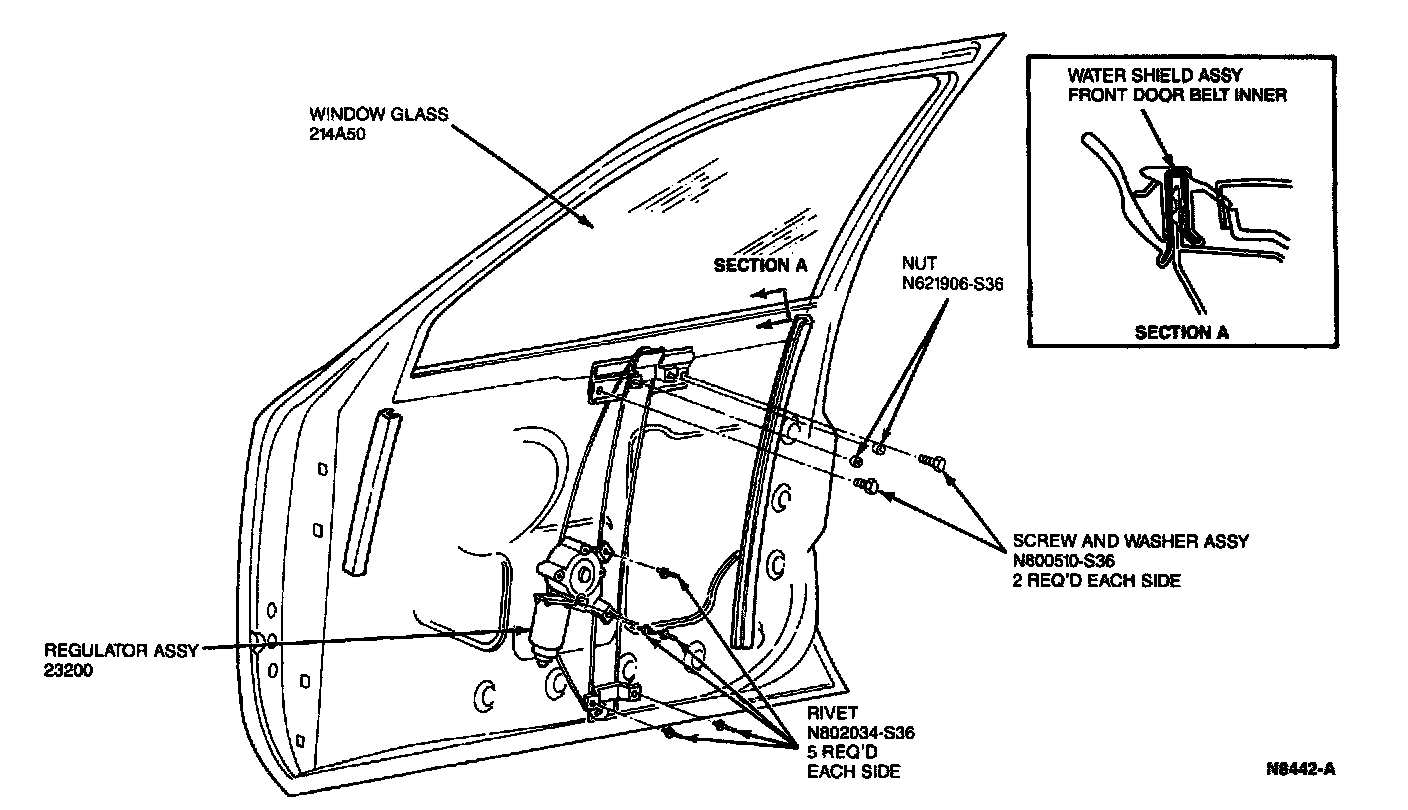

1. Remove door trim panel and watershield. Doors

2. Disconnect battery ground cable. Disconnect motor wires at multiple connector.

3. Remove three 1/4-inch rivets retaining motor bracket to inner panel. Use drift punch to knock out the center pins from each rivet. Using a 1/4-inch diameter drill, drill out remainder of rivet. Use care not to enlarge sheet metal holes in the door inner panel.

4. Working through access hole, remove motor bracket from inner panel and rotate to gain access to three motor retaining screws.

5. Remove motor retaining screws using a No. 2 Scrulox bit and separate motor from bracket and cable drum housing.

6. Remove motor from inside door.


Installation

1. Position motor and drive to cable drum housing and motor mounting bracket. Install three motor screws. Tighten to 4-5 N-m (36-44 lb-in).

2. Install rivets retaining motor mounting bracket to inner panel (1/4-20 X 1/2 inch screw and 1/4-20 nut and washer assemblies or equivalent metric fasteners may be used).

3. Connect power window motor wiring and battery ground cable.

4. Check window operation. Install watershield, door trim panel, and armrest. Doors
