Mirror Control
1.
Remove screw retaining switch plate to driver side armrest.
2.
Lift out front door
trim panel finish panel and tilt to expose connector.
Trim Cover:
3.

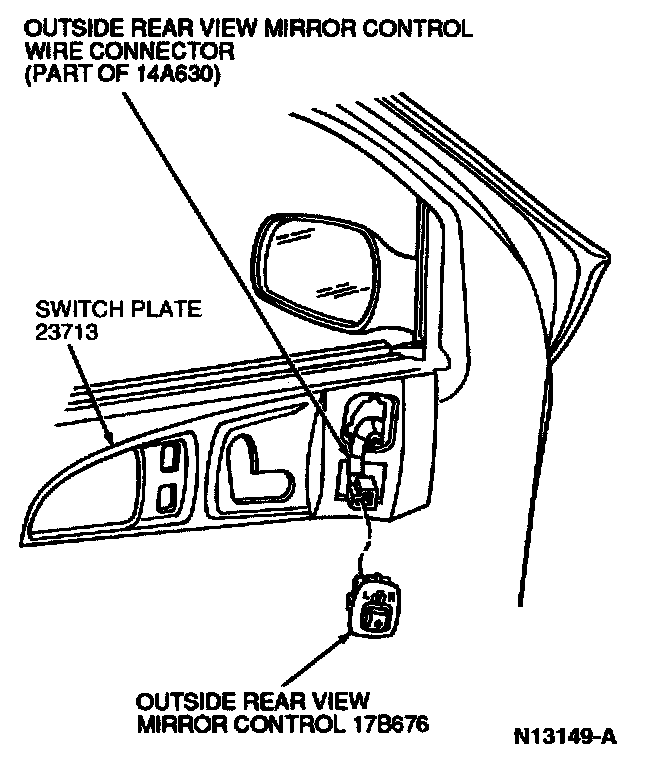

Remove outside rear view mirror control from switch plate (snaps out).
4.
Disconnect wiring connector from switch.
5.
To install, reverse Removal procedure.
