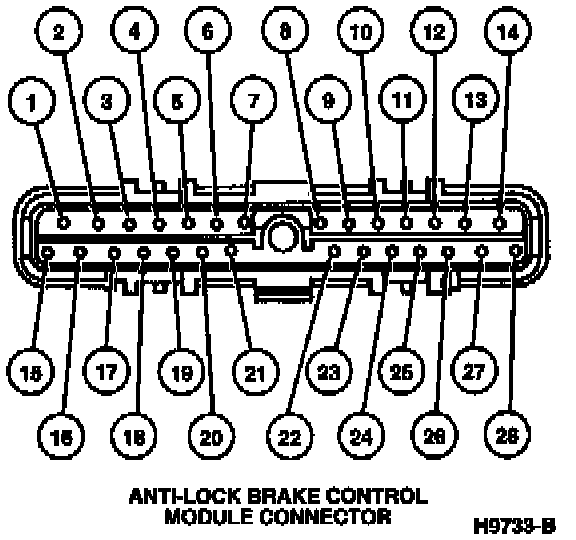

Electronic Brake Control Module

Pin Number Circuit Circuit Function

1 601 (LB/BK) Anti-Lock Brake Control Module Feed
2 601 (LB/BK) Anti-Lock Brake Control Module Feed
3 Not Used
4 Not Used
5 521 (T/O) LH Front Brake Anti-Lock Sensor (High)
6 522 (T/BK) LH Front Brake Anti-Lock Sensor (Low)
7 514 (Y/R) RH Front Brake Anti-Lock Sensor (High)
8 516 (Y/BK) RH Front Brake Anti-Lock Sensor (Low)
9 518 (LG/R) LH Rear Brake Anti-Lock Sensor (High)
10 519 (LG/BK) LH Rear Brake Anti-Lock Sensor (Low)
11 523 (R/PK) RH Rear Brake Anti-Lock Sensor (High)
12 524 (PK/BK) RH Rear Brake Anti-Lock Sensor (Low)
13 530 (LG/Y) Anti-Lock Brake Control Module Ground
14 530 (LG/Y) Anti-Lock Brake Control Module Ground
15 687 (GY/Y) To EVAC and Fill Connector
16 960 (BK/LB) Traction Control Switch OFF Indicator Lamp(a)
17 939 (P) Traction Control Active Indicator Lamp (a)
18 959 (GY) Traction Control Switch Signal (a)
19 Not Used
20 511 (LG) Stoplight Switch
21 606 (W/LB) ABS Indicator Lamp
22 57 (BK) Ground
23 Not Used (Reserved for Navigation System)
24 Not Used (Reserved for Navigation System)
25 914 (T/O) Multiplex Communications Network (MCN)
Communication Link (+)
26 239 (W/O) Vehicle Speed Signal
27 915 (PK/BK) Multiplex Communications Network (MCN)
Communication Link (-)
28 Not Used

(a) - With Traction Control
