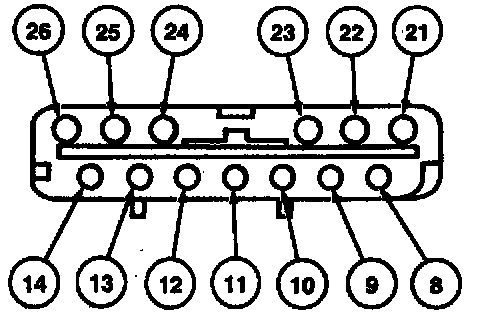

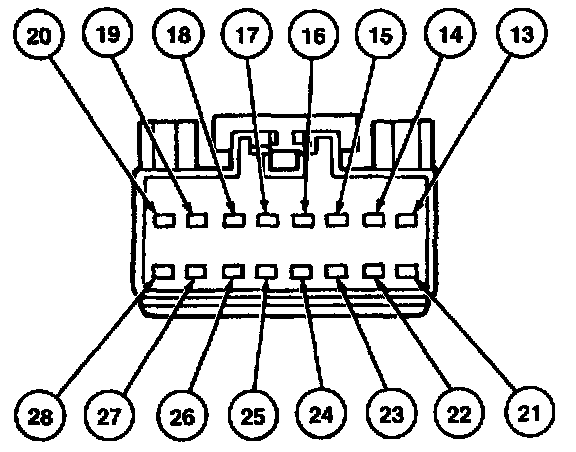

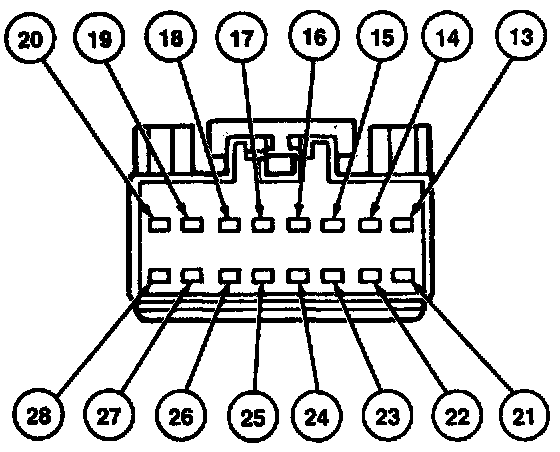

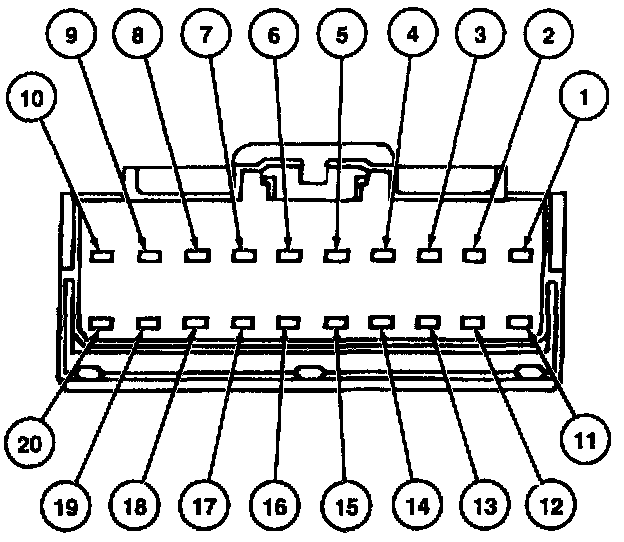

Connector Views

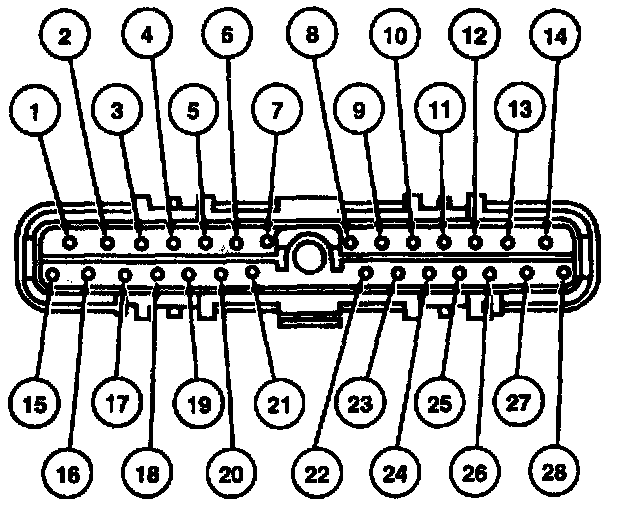

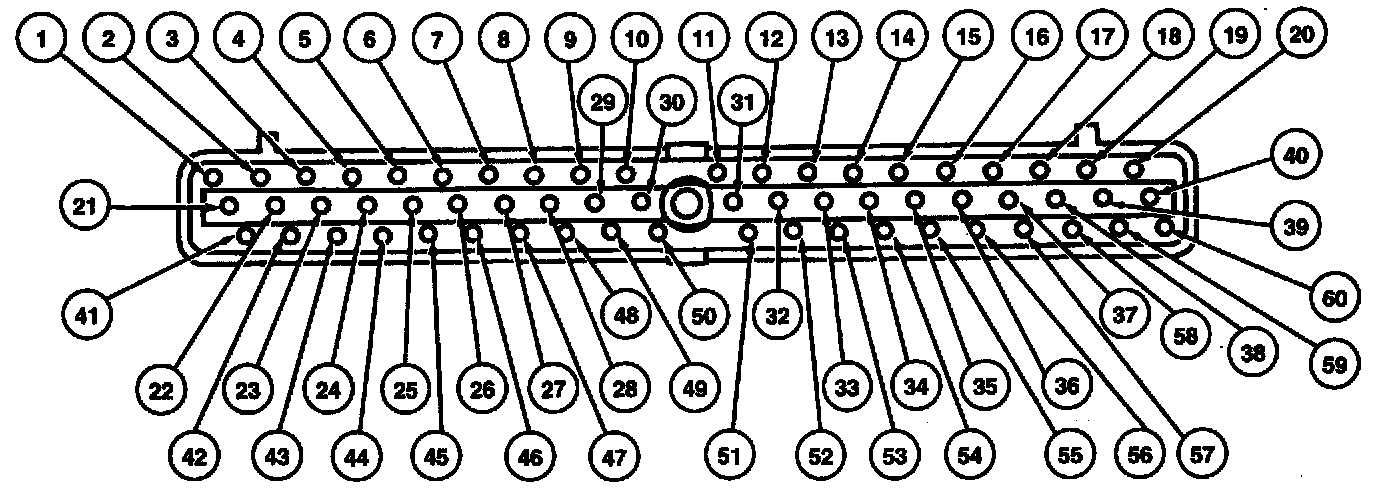

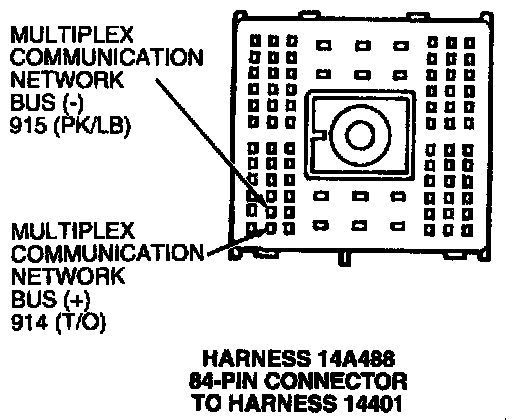

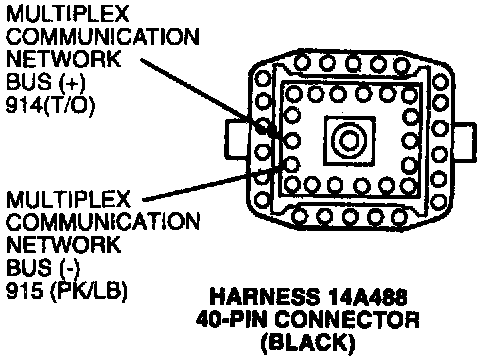

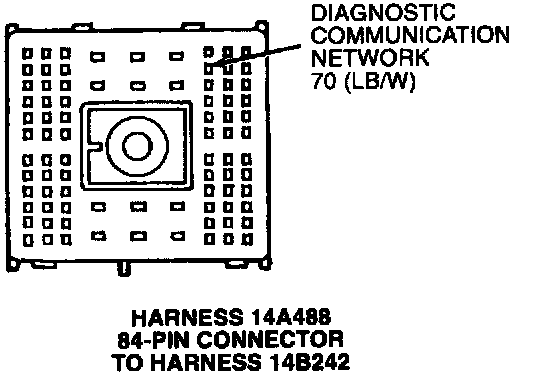

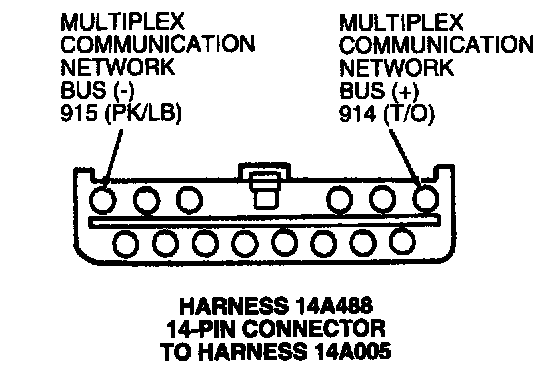

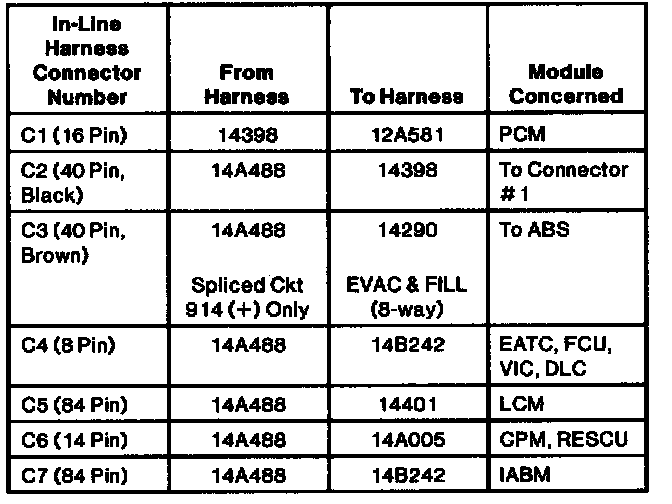

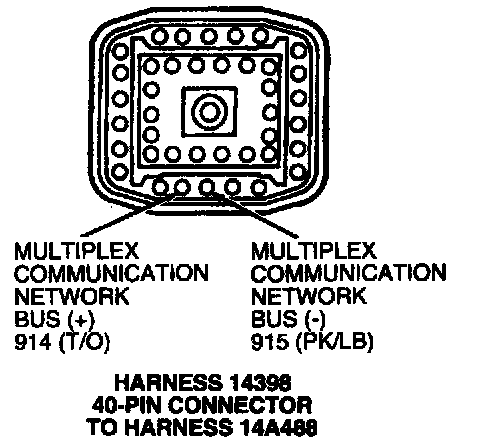

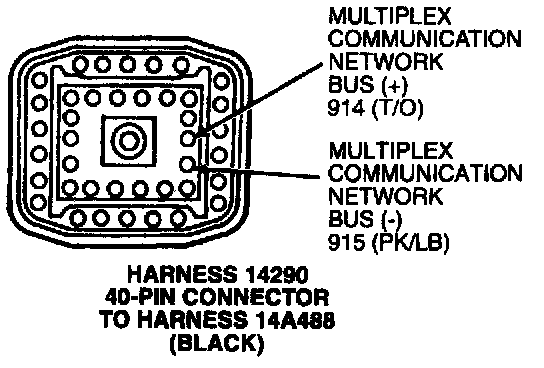

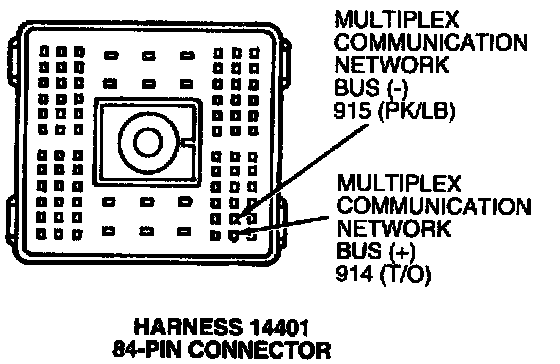

MCN Circuit Connector Designation:

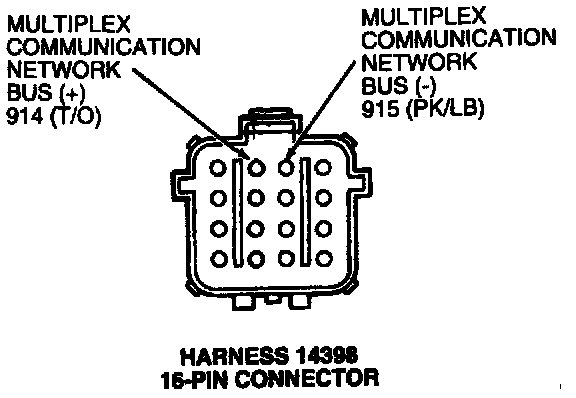

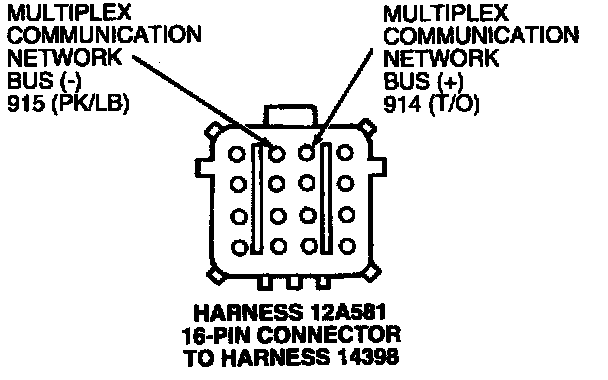

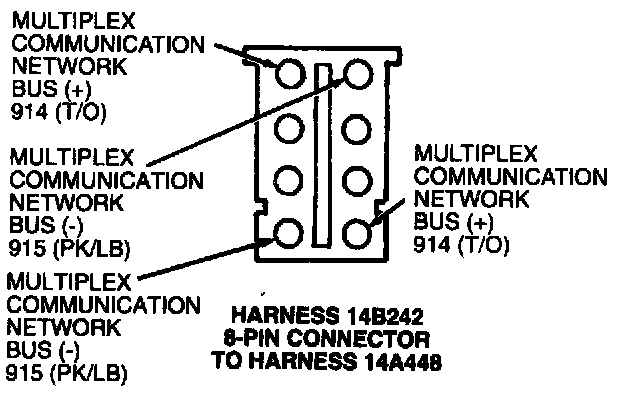

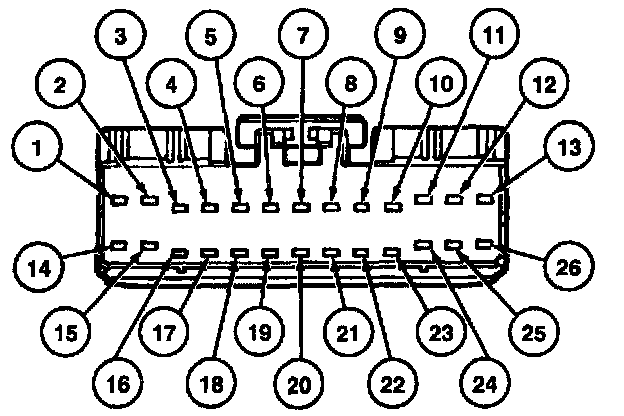

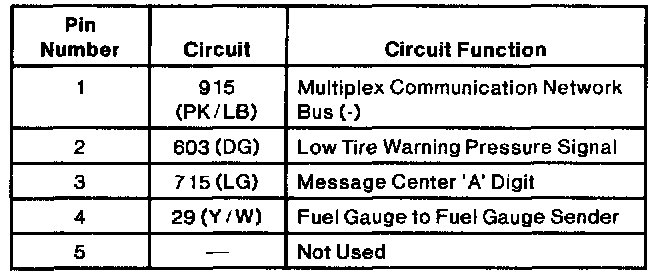

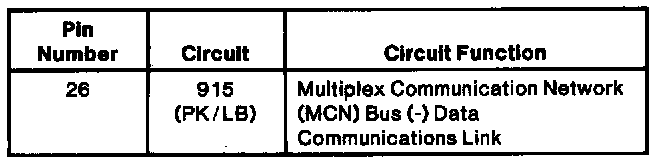

Connector 1 (C1) Part 1 Of 2:

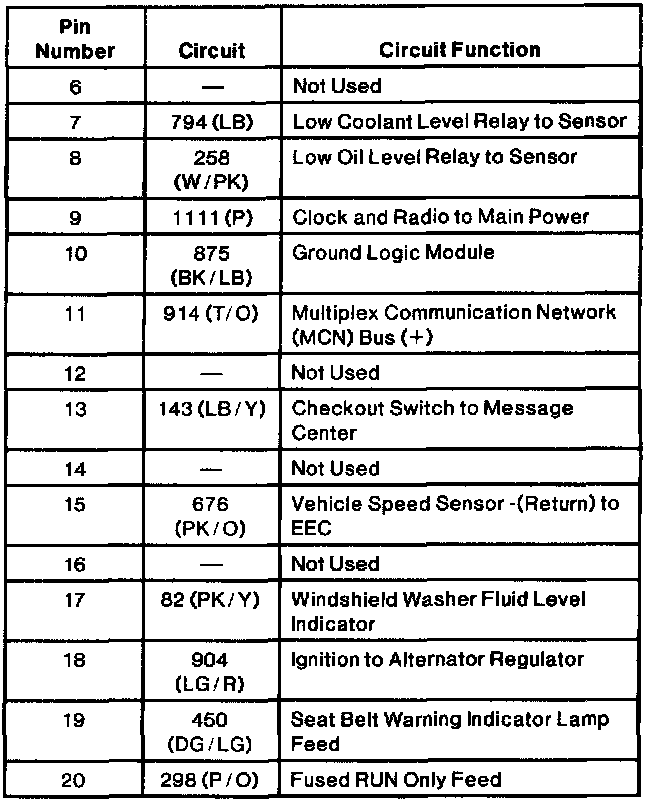

Connector 1 (C1) Part 2 Of 2:

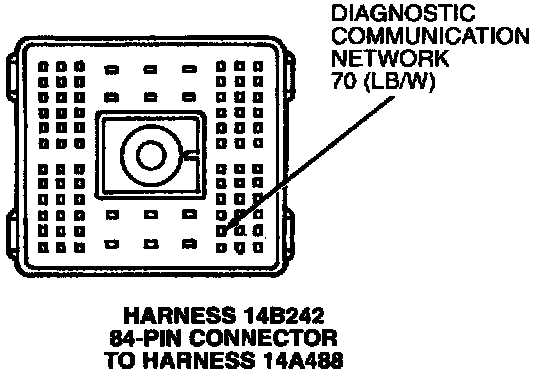

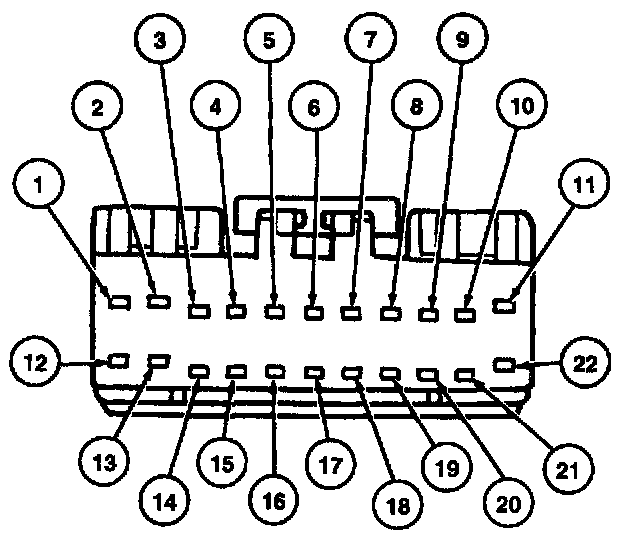

Connector 2 (C2) Part 1 Of 2:

Connector 2 (C2) Part 2 Of 2:

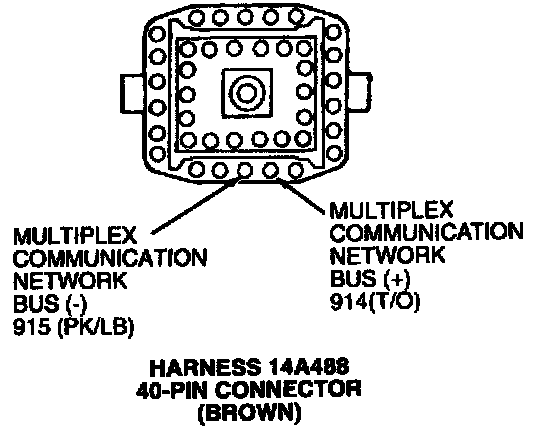

Connector 3 (C3) Part 1 Of 2:

Connector 3 (C3) Part 2 Of 2:

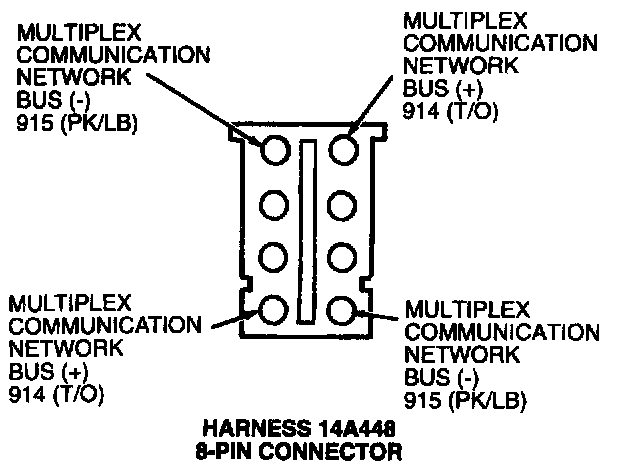

Connector 4 (C4) Part 1 Of 2:

Connector 4 (C4) Part 2 Of 2:

Connector 5 (C5) Part 1 Of 2:

Connector 5 (C5) Part 2 Of 2:

Connector 6 (C6) Part 1 Of 2:

Connector 6 (C6) Part 2 Of 2:

Connector 7 (C7) Part 1 Of 2:

Connector 7 (C7) Part 2 Of 2:

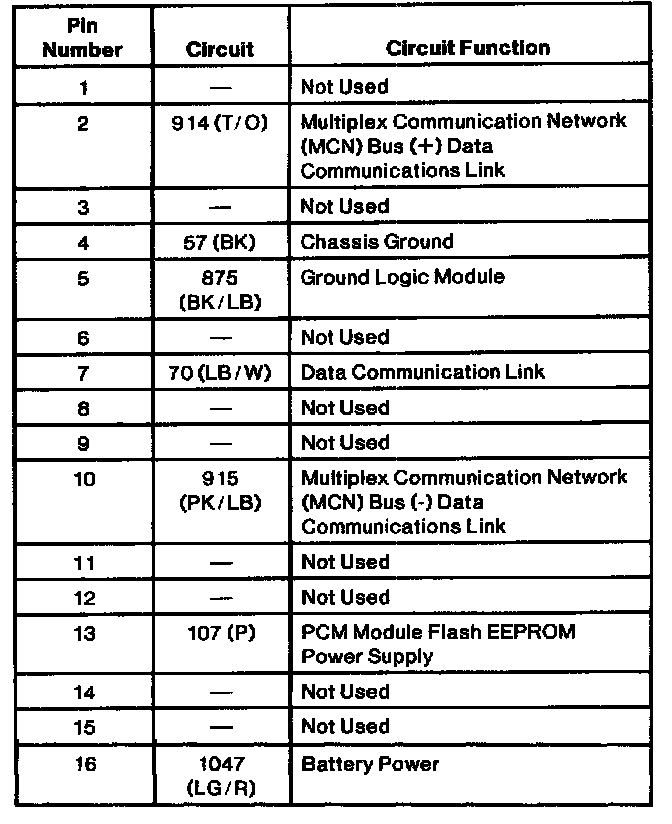

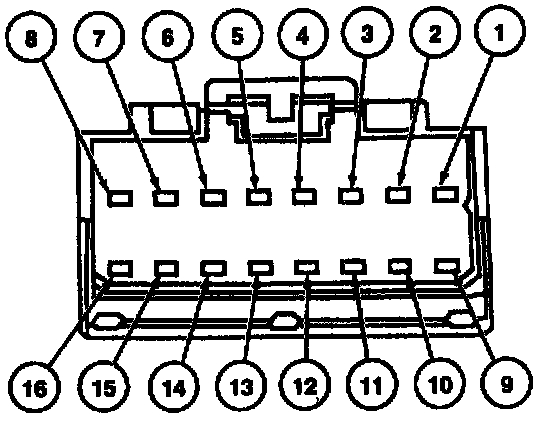

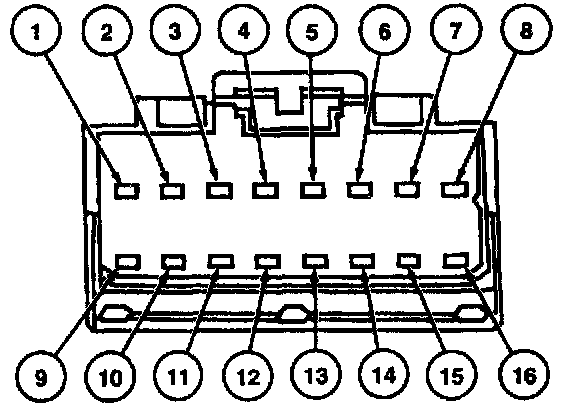

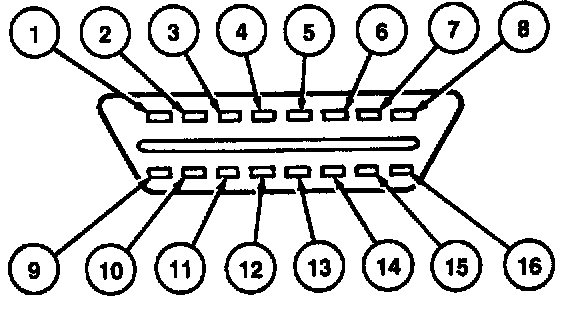

Data Link Connector Part 1 Of 2:

Data Link Connector Part 2 Of 2:

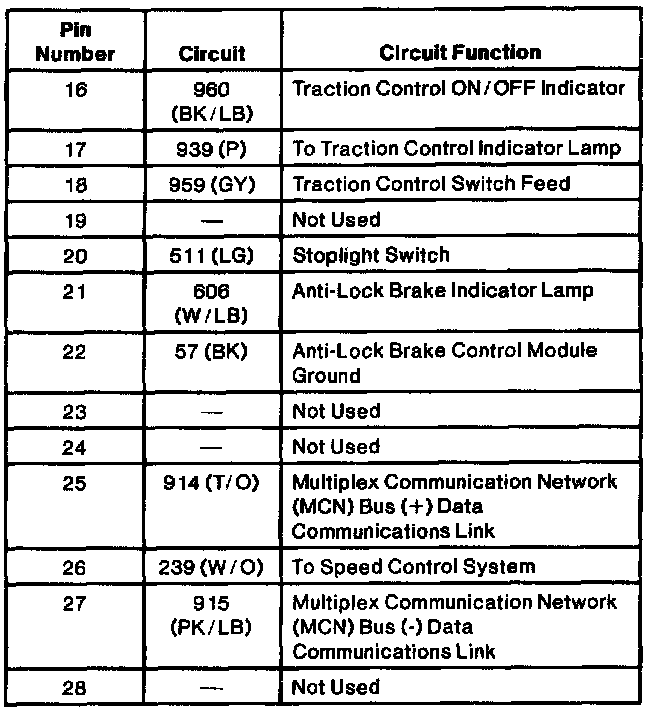

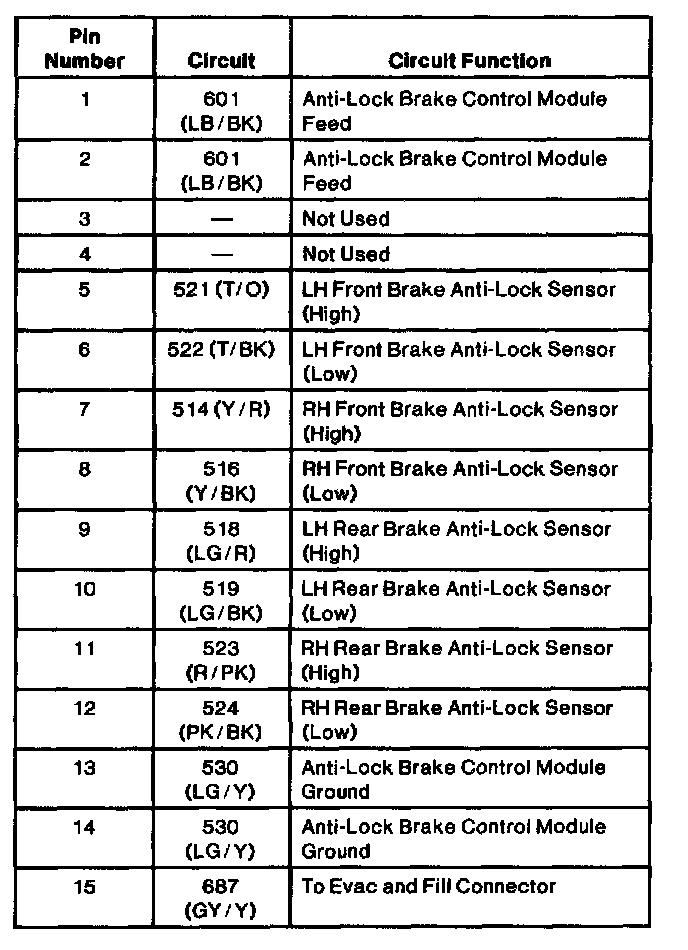

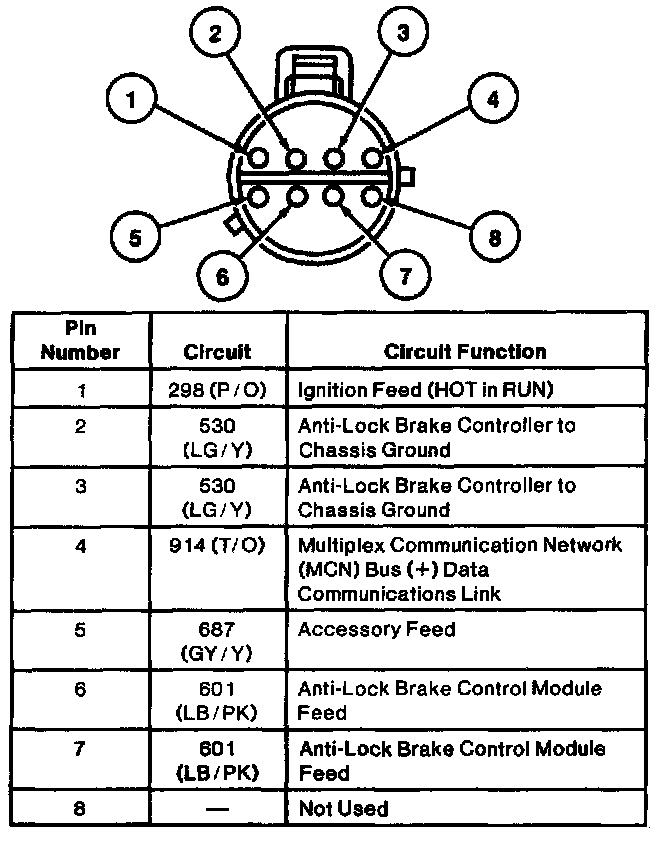

Antilock Brake Control Module Part 1 Of 3:

Antilock Brake Control Module Part 2 Of 3:

Antilock Brake Control Module Part 3 Of 3:

Antilock Brake System Evacuate And Fill Connector:

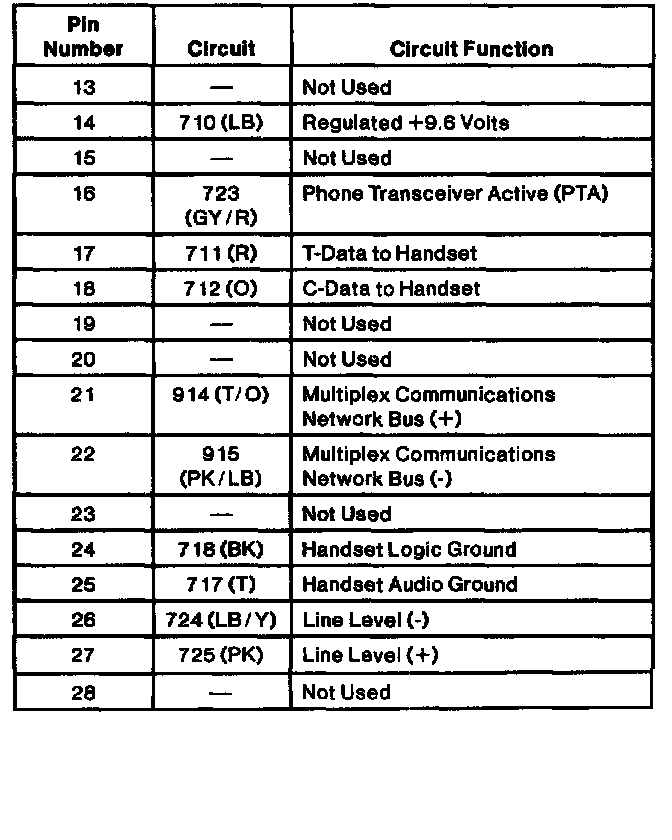

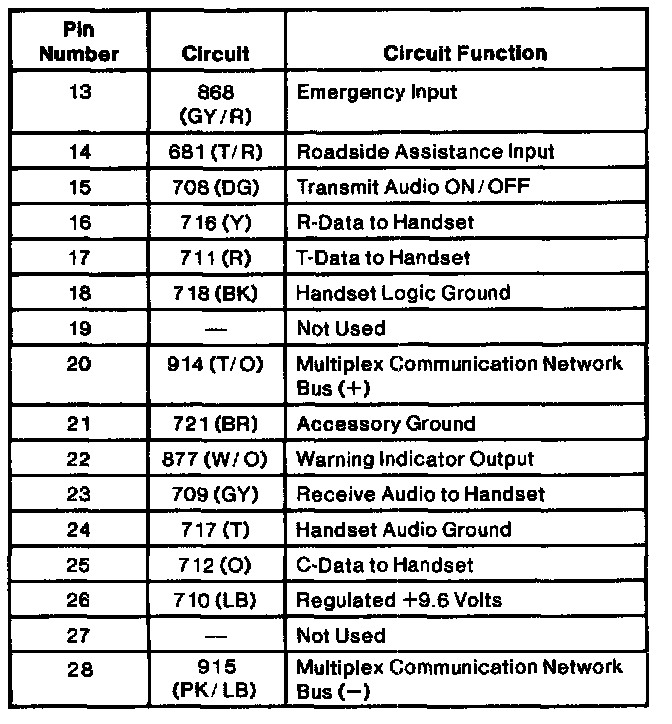

Mobile Telephone Transceiver Connector C2 Part 1 Of 2:

Mobile Telephone Transceiver Connector C2 Part 2 Of 2:

Remote Emergency Satellite Cellular Unit Module Connector C2 Part 1 Of 2:

Remote Emergency Satellite Cellular Unit Module Connector C2 Part 2 Of 2:

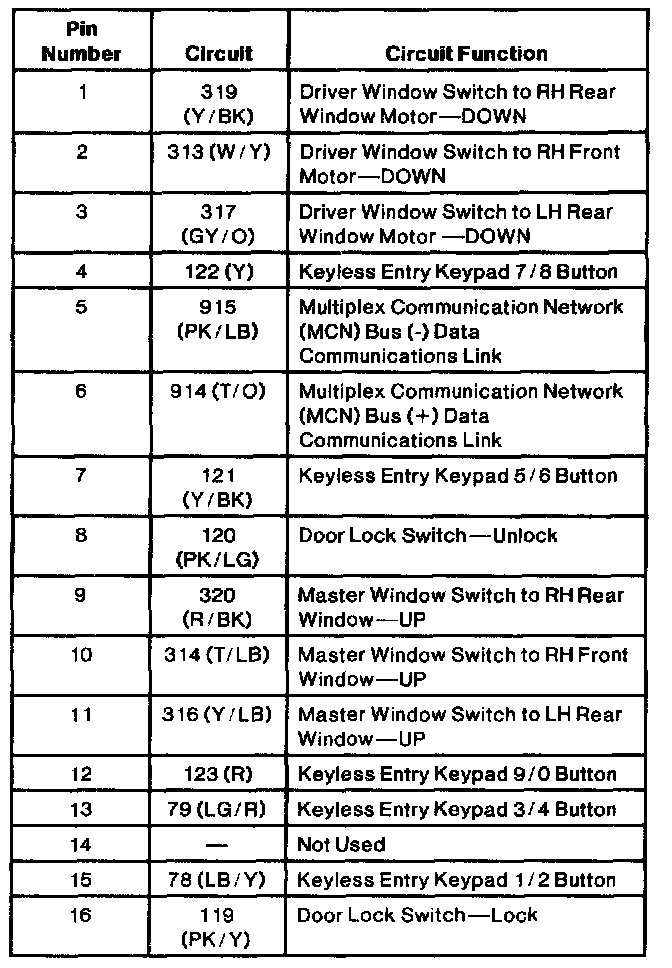

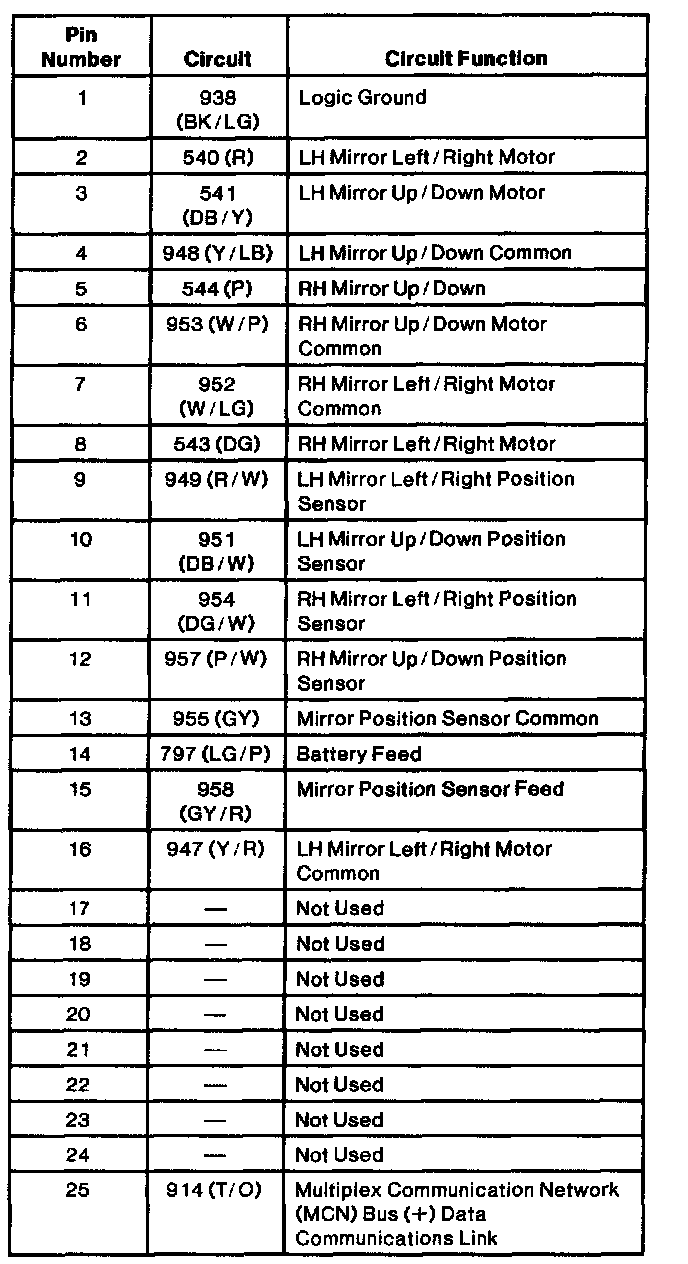

Driver Door Module Connector C2 Part 1 Of 2:

Driver Door Module Connector C2 Part 2 Of 2:

Driver Seat Module Connector C2 Part 1 Of 3:

Driver Seat Module Connector C2 Part 2 Of 3:

Driver Seat Module Connector C2 Part 3 Of 3:

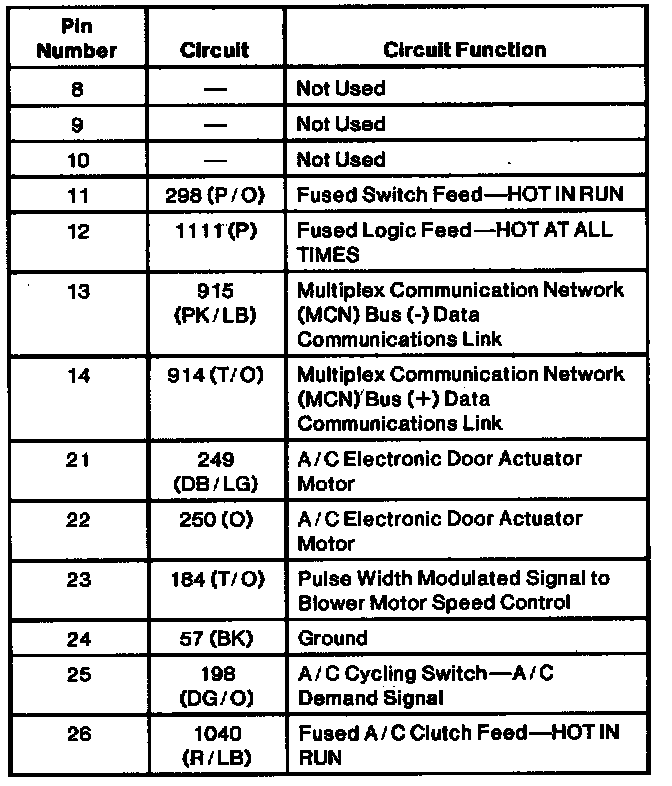

Electronic Automatic Temperature Control Connector C2 Part 1 Of 2:

Electronic Automatic Temperature Control Connector C2 Part 2 Of 2:

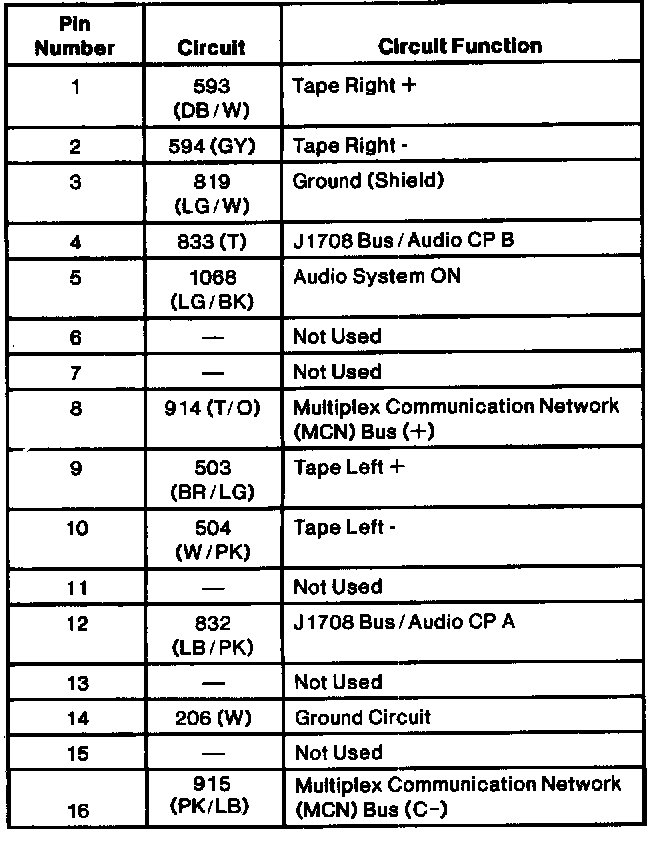

Radio Front Control Unit C2 Part 1 Of 2:

Radio Front Control Unit C2 Part 1 Of 2:

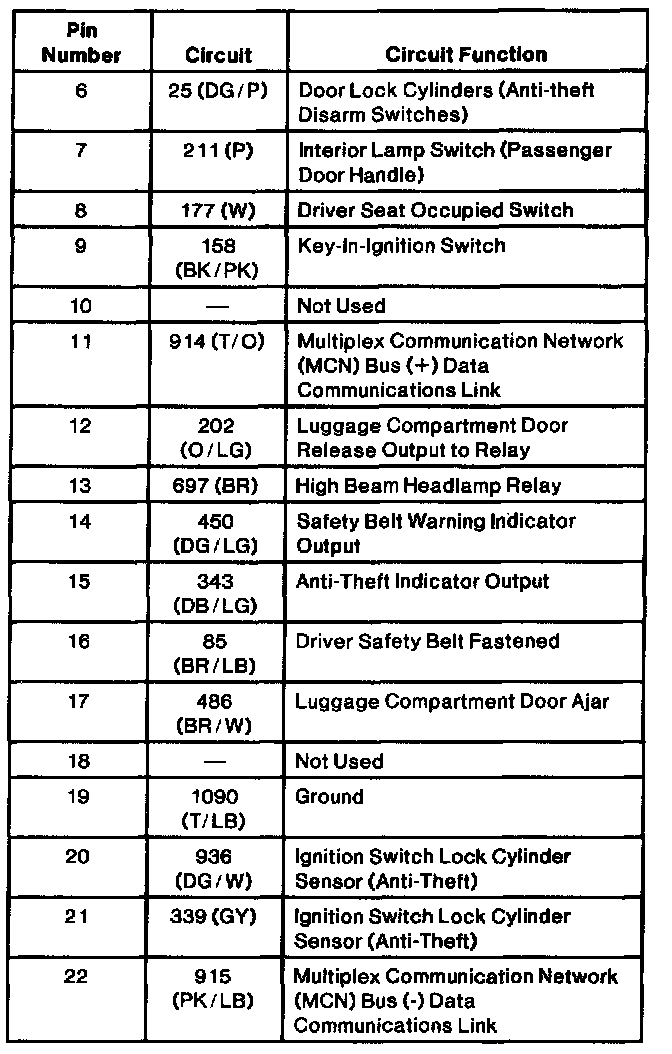

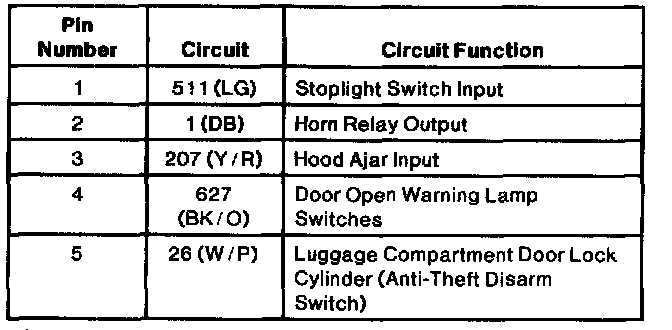

Lighting Control Module Connector C1 Part 1 Of 3:

Lighting Control Module Connector C1 Part 2 Of 3:

Lighting Control Module Connector C1 Part 3 Of 3:

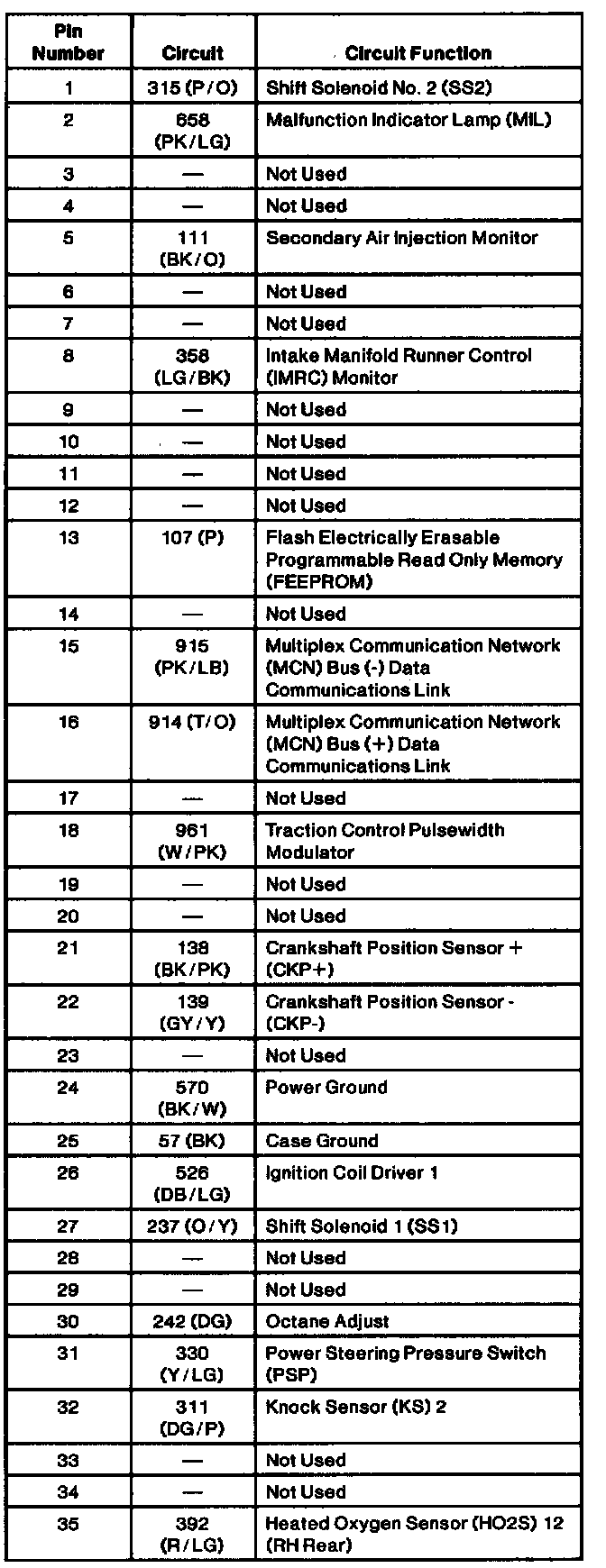

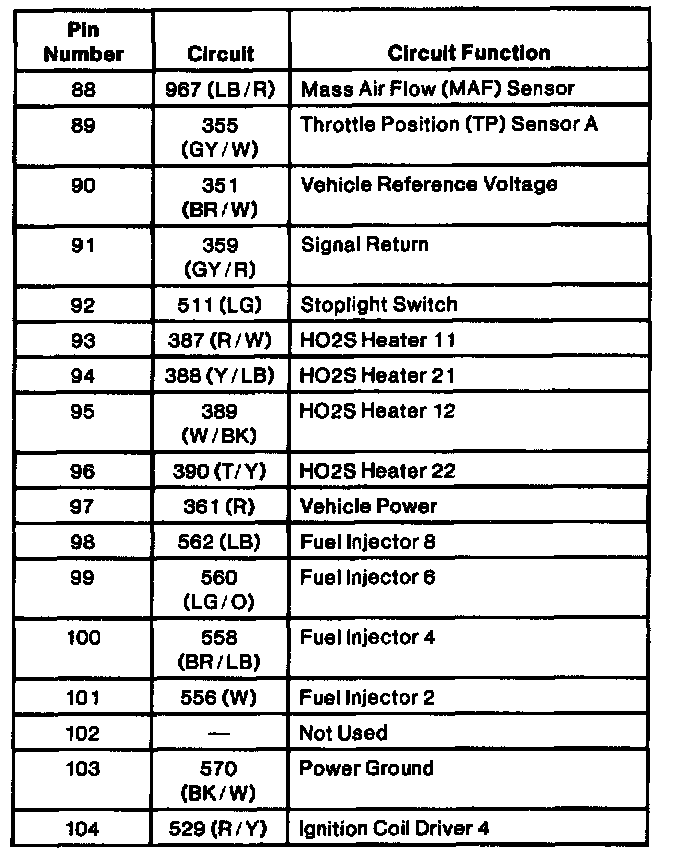

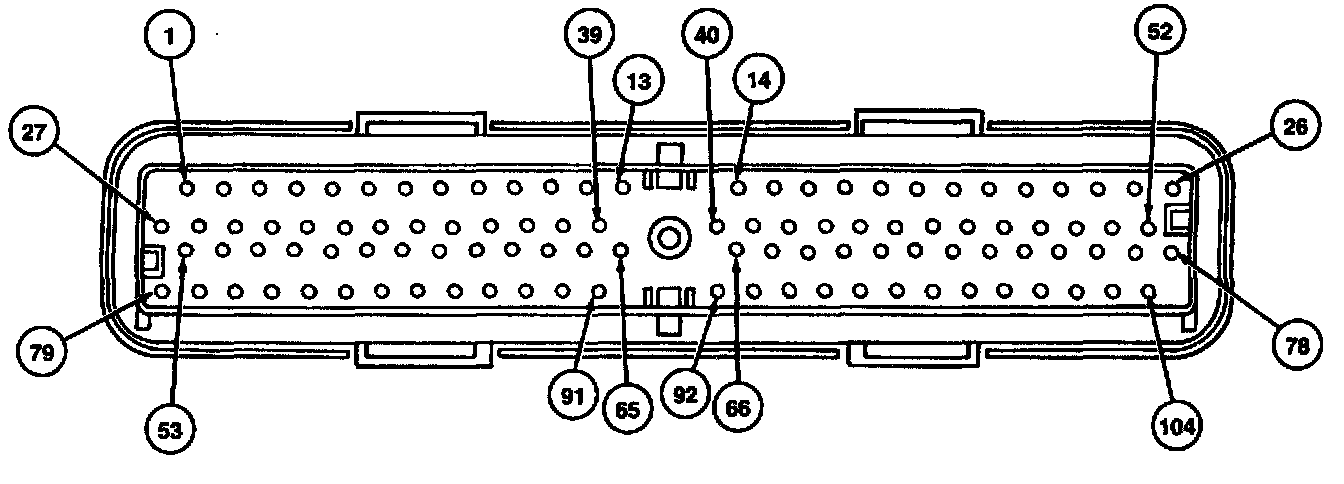

Powertrain Control Module Part 1 Of 5:

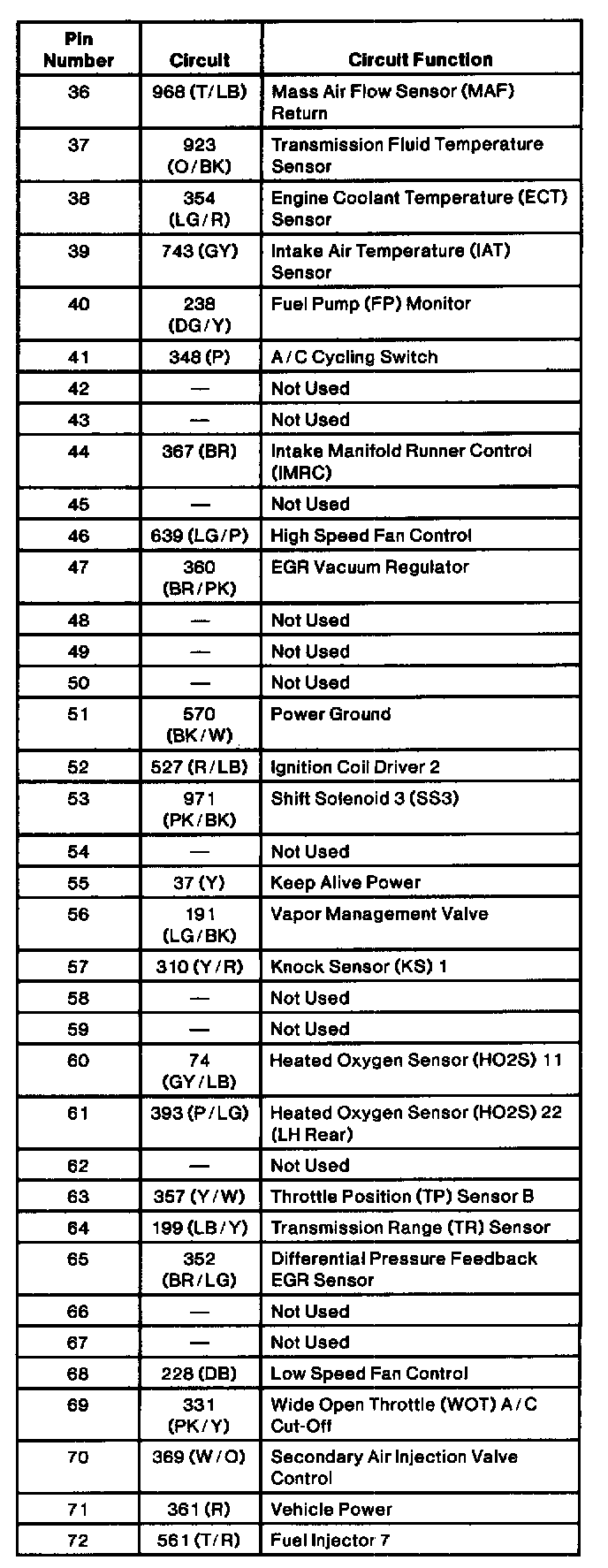

Powertrain Control Module Part 2 Of 5:

Powertrain Control Module Part 3 Of 5:

Powertrain Control Module Part 4 Of 5:

Powertrain Control Module Part 5 Of 5:

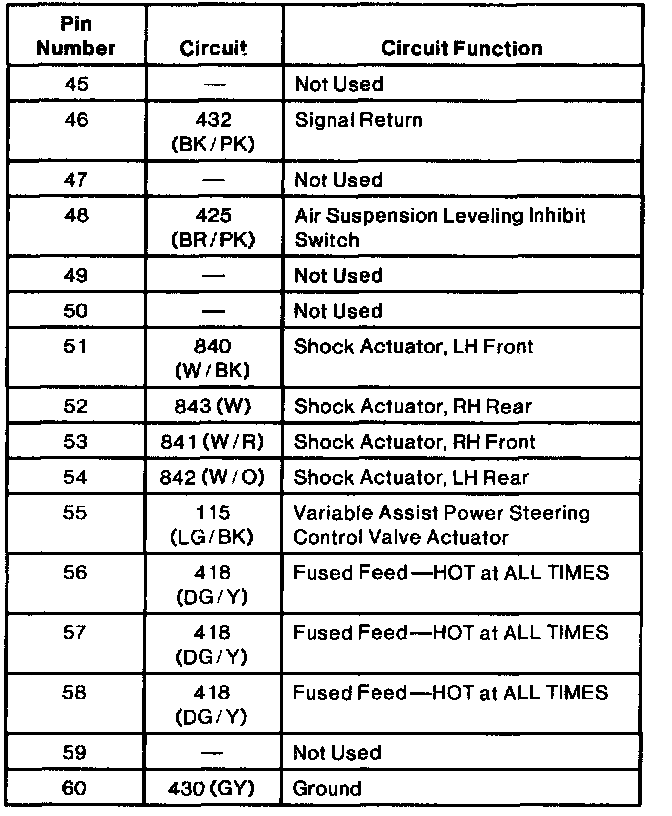

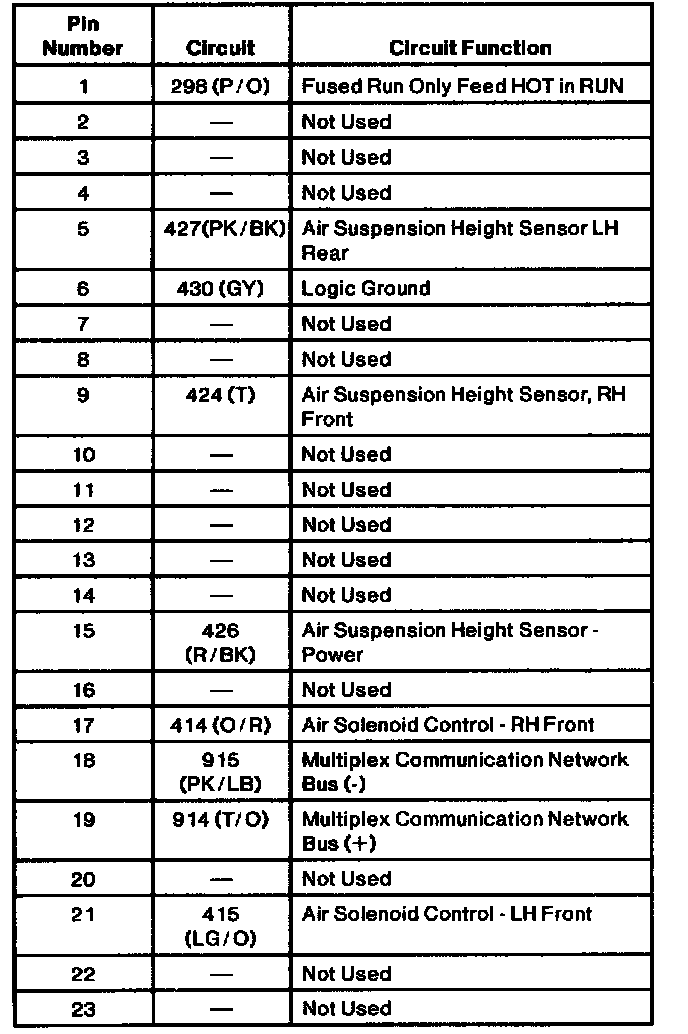

Vehicle Dynamics Control Module Connector Part 1 Of 4:

Vehicle Dynamics Control Module Connector Part 2 Of 4:

Vehicle Dynamics Control Module Connector Part 3 Of 4:

Vehicle Dynamics Control Module Connector Part 4 Of 4:

Virtual Instrument Cluster Connector C1 Part 1 Of 3:

Virtual Instrument Cluster Connector C1 Part 2 Of 3:

Virtual Instrument Cluster Connector C1 Part 3 Of 3:
