EGR Tube: Service and Repair

EGR Valve To Exhaust Manifold Tube:

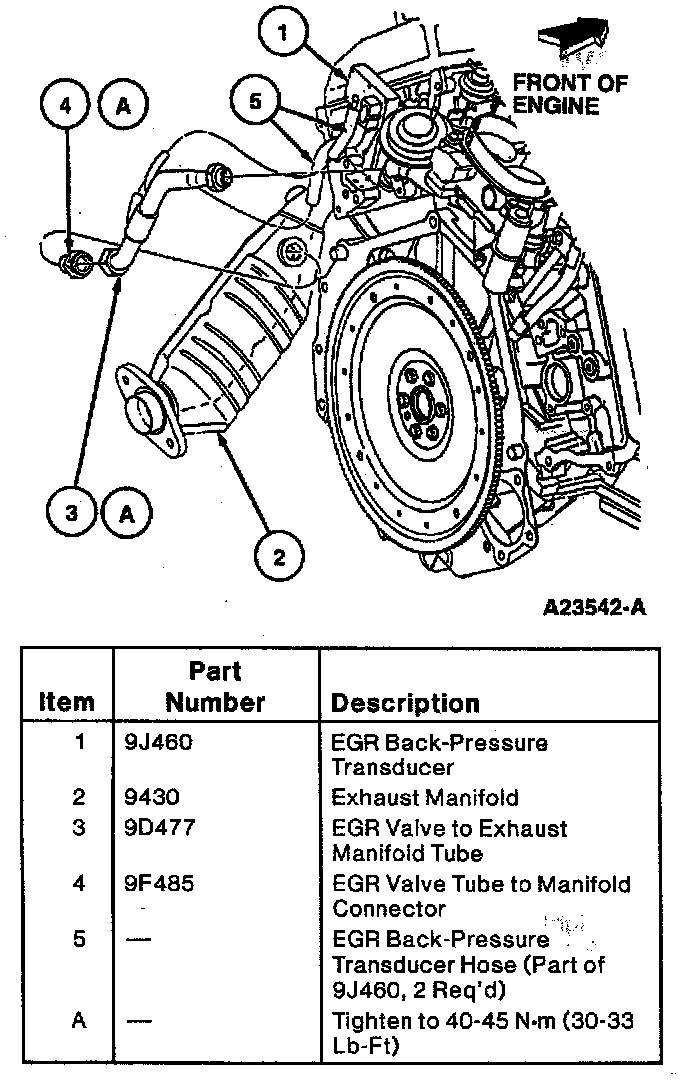

1. Remove engine appearance cover, air cleaner outlet tube and engine intake air resonator.
2. Disconnect Exhaust Gas Recirculation (EGR) backpressure transducer hoses from EGR valve to exhaust manifold tube.
3. Disconnect EGR valve to exhaust manifold tube from EGR valve and EGR valve tube to manifold connector.
4. Remove EGR valve tube to manifold connector from exhaust manifold connector if required.
5. To install, reverse removal procedures. Tighten EGR valve tube to manifold connector to exhaust manifold to 40-45 Nm (30-33 lb ft).
