Electronic Brake Control Module

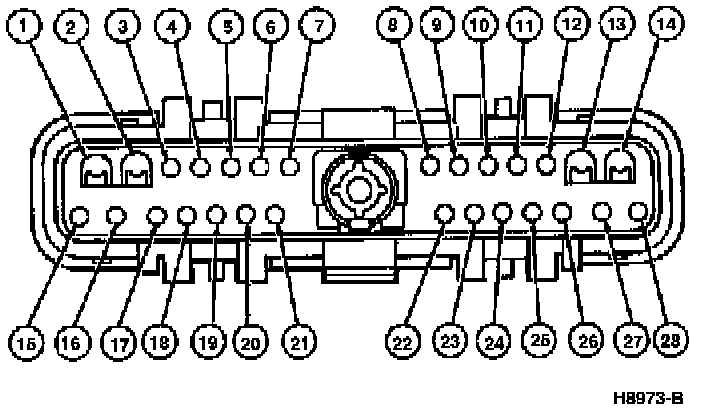

Connector:

Pin Number Circuit Circuit Function

1 533 (T/R) Battery Power
2 533 (T/R) Battery Power
3 -- Not Used
4 -- Not Used
5 521 (T/O) LH Front Wheel Speed Sensor
6 522 (T/BK) LH Front Wheel Speed Sensor
7 514 (Y/R) RH Front Wheel Speed Sensor
8 516 (Y/BK) RH Front Wheel Speed Sensor
9 518 (LG/R) LH Rear Wheel Speed Sensor
10 519 (LG/BK) LH Rear Wheel Speed Sensor
11 523 (R/PK) RH Rear Wheel Speed Sensor
12 524 (PK/BK) RH Rear Wheel Speed Sensor
13 530 (LG/Y) Ground
14 530 (LG/Y) Ground
15 532 (O/Y) Ignition Feed
16 -- Not Used
17 -- Not Used
18 -- Not Used
19 -- Not Used
20 511 (LG) Brake Lamp Switch Input
21 603 (DG) ABS Warning Lamp
22 57 (BK) Brake Anti-Lock Sensor Ground
23 -- Not Used
24 -- Not Used
25 -- Not Used
26 -- Not Used
27 -- Not Used
28 70 (LB/W) Data Link Connector
