Transmission Position Sensor/Switch: Adjustments

1. Turn manual control lever to NEUTRAL position.
2. Loosen two TR sensor retaining bolts.

NOTE: Park is the last detent when the manual control lever is full forward. Return two detents toward output shaft (7060) for neutral.

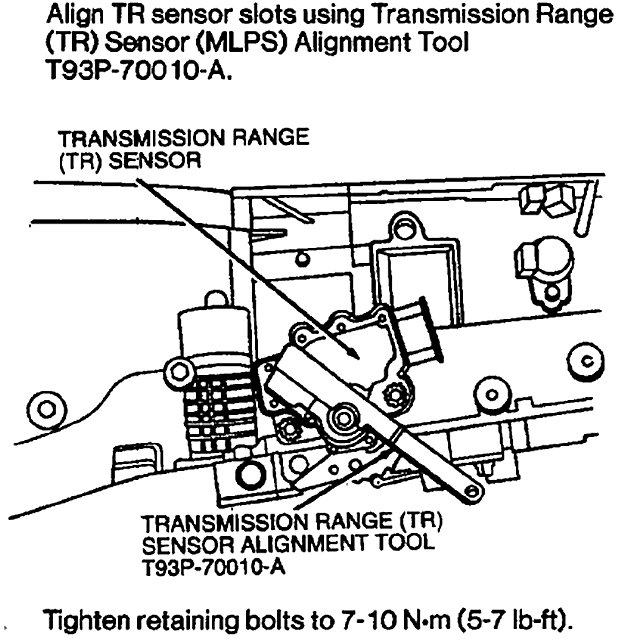

3. Align all three slots on TR sensor with three tabs on tool. slots using TR Sensor Alignment Tool T93P-70010-A or AH.
4. Tighten retaining bolts to 7-10 Nm (5-7 lb ft) (98-89 lb-in).
