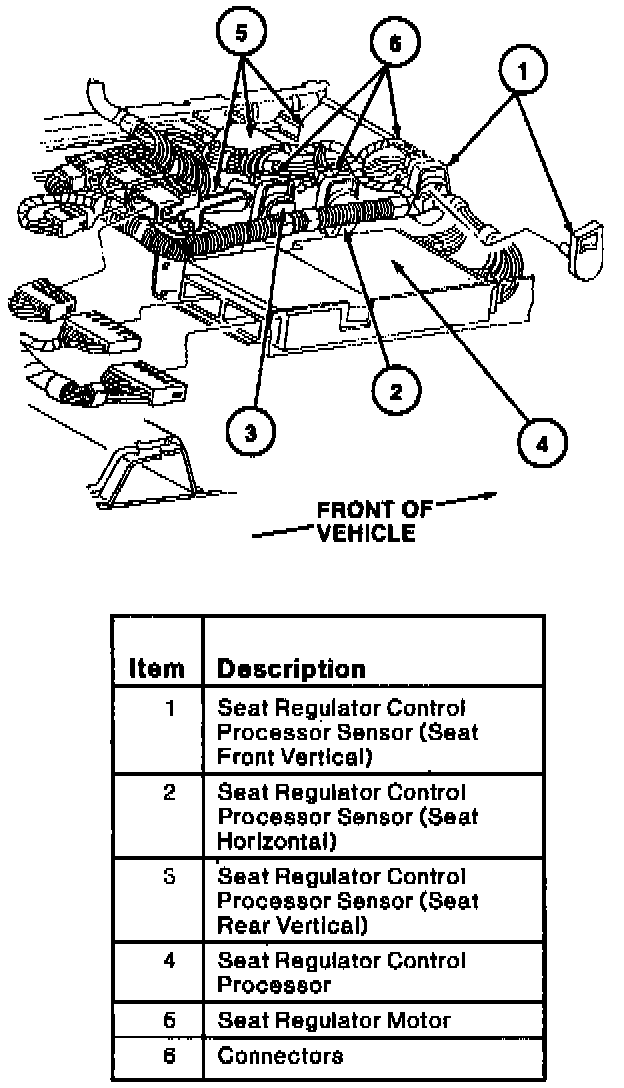

Seat Regulator Control Processor Sensor
REMOVAL 1.
Access and disconnect connectors from seat regulator control processor sensor mounted to end of seat regulator motor.
2.
Rotate sensor housing one quarter turn clockwise and remove seat regulator control processor sensor from motor.
INSTALLATION 1.
Follow removal procedure in reverse order.
