Window Glass: Service and Repair
REMOVAL 1.
Remove door trim panel and watershield.
2.

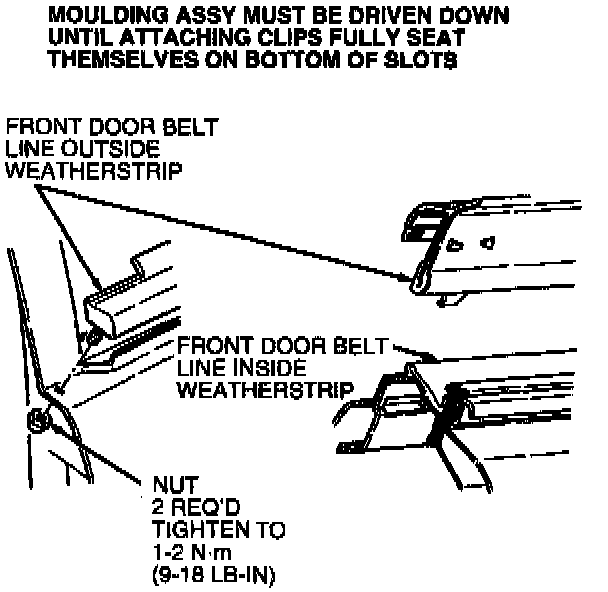

Remove door belt line outside weatherstrip retaining nut(s) and remove door belt line outside weatherstrip by disengaging clips.
3.
Remove belt line inside weatherstrip by gently pulling from door flange.
INSTALLATION 1.
Follow removal procedure in reverse order.
2.
Tighten nuts to
1-2 Nm (9-18 Lb-In).
