Engine Views

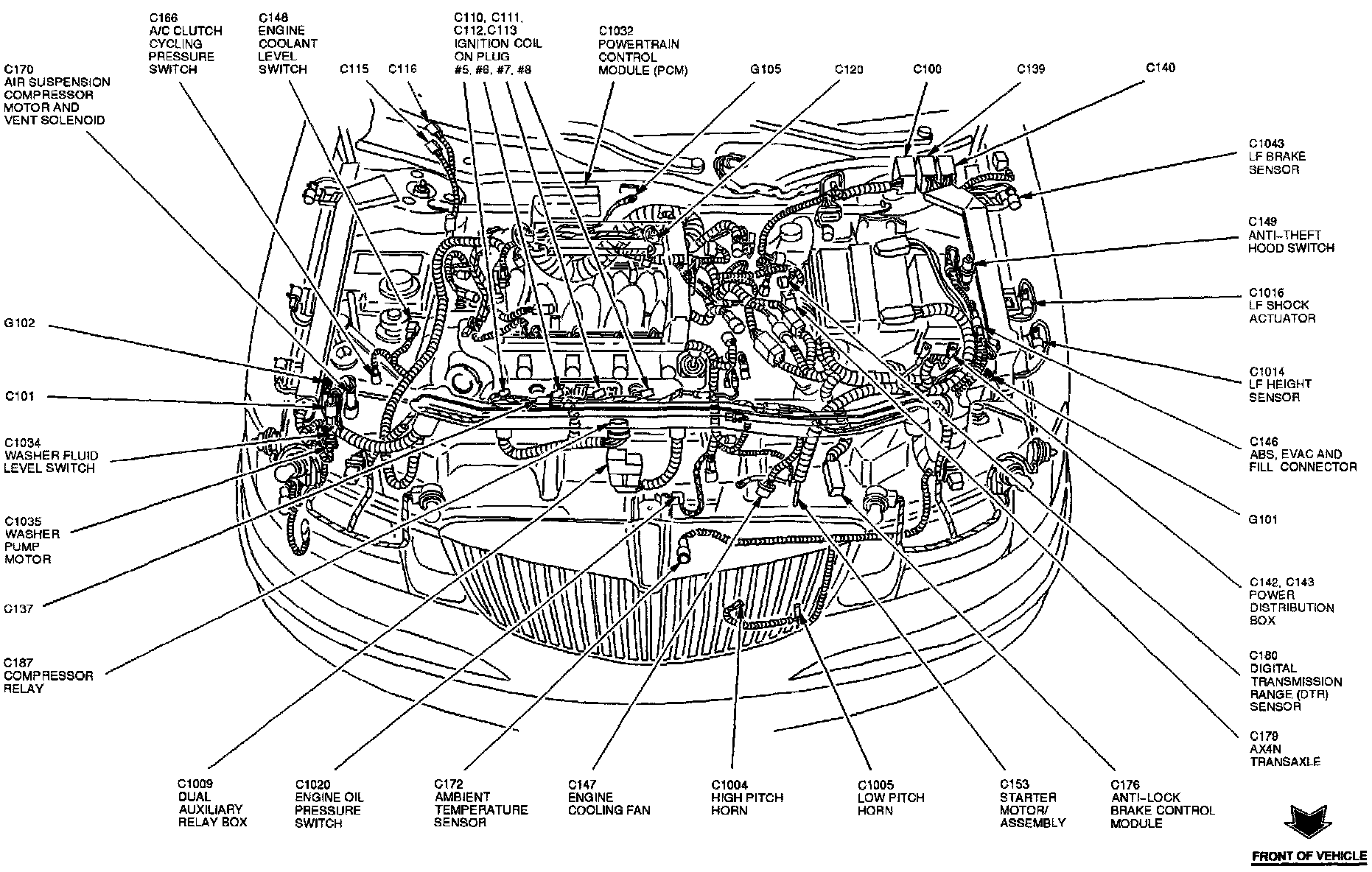

Engine Views:

A/C CLUTCH CYCLING PRESSURE SWITCH
AIR SUSPENSION COMPRESSOR MOTOR AND VENT SOLENOID
AMBIENT TEMPERATURE SENSOR
ANTI-LOCK BRAKE CONTROL MODULE
ANTI-LOCK BRAKE SYSTEM EVACUATE AND FILL CONNECTOR
ANTI-THEFT HOOD SWITCH
AX4N TRANSAXLE
COMPRESSOR RELAY
DIGITAL TRANSMISSION RANGE SENSOR
DUAL AUXILIARY RELAY BOX
ENGINE COOLANT LEVEL SWITCH
ENGINE COOLING FAN
ENGINE OIL PRESSURE SWITCH
HIGH PITCH HORN
IGNITION COIL ON PLUG #5
IGNITION COIL ON PLUG #6
IGNITION COIL ON PLUG #7
IGNITION COIL ON PLUG #8
LF BRAKE SENSOR
LF HEIGHT SENSOR
LF SHOCK ACTUATOR
LOW PITCH HORN
POWER DISTRIBUTION BOX
POWERTRAIN CONTROL MODULE
STARTER MOTOR/ASSEMBLY
WASHER FLUID LEVEL SWITCH
WASHER PUMP MOTOR

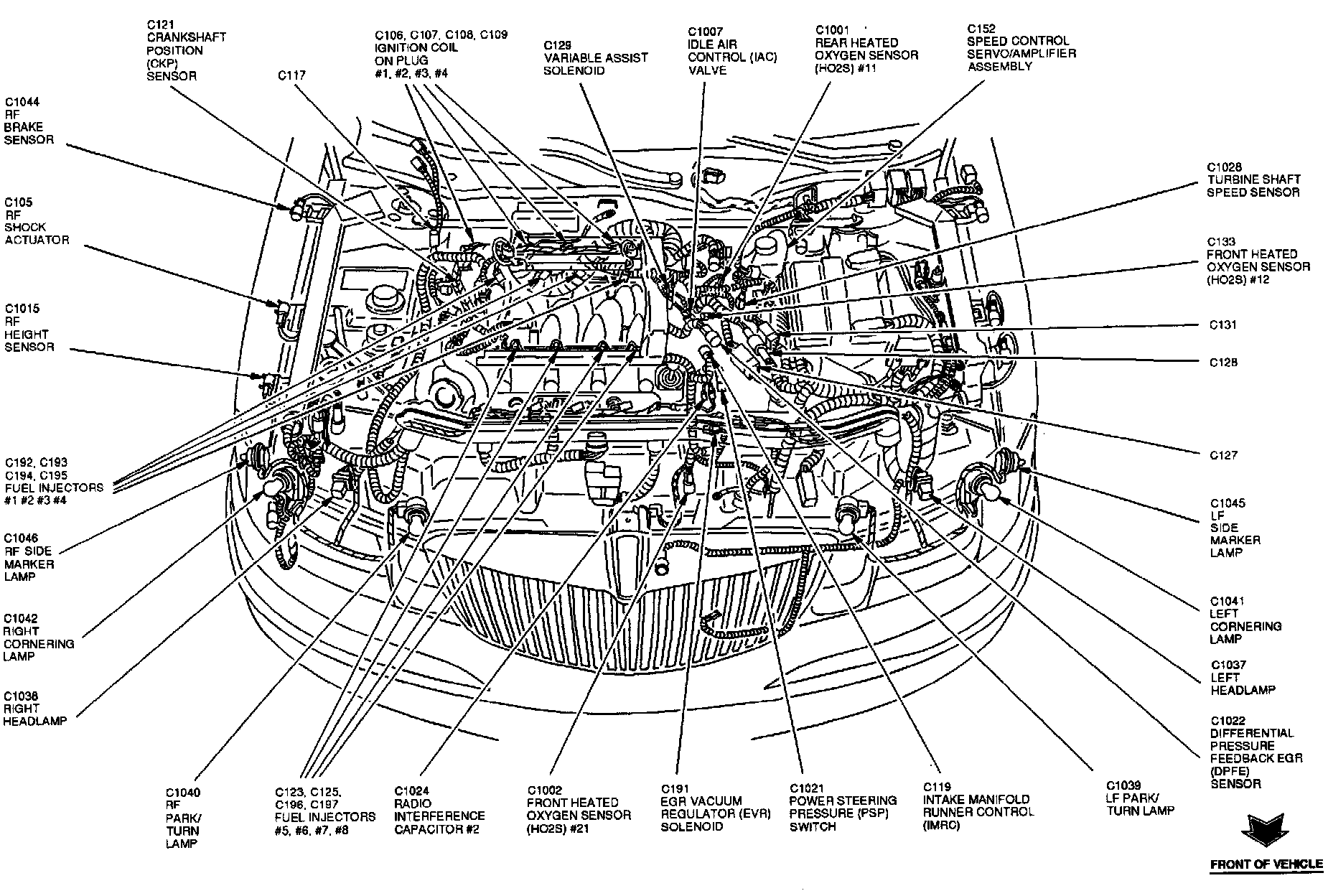

Engine Views:

CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID
FRONT HEATED OXYGEN SENSOR #12
FRONT HEATED OXYGEN SENSOR #21
FUEL INJECTORS
IDLE AIR CONTROL VALVE
IGNITION COIL ON PLUG #1
IGNITION COIL ON PLUG #2
IGNITION COIL ON PLUG #3
IGNITION COIL ON PLUG #4
INTAKE MANIFOLD RUNNER CONTROL
LEFT CORNERING LAMP
LEFT HEADLAMP
LF PARK/TURN LAMP
LF SIDE MARKER LAMP
POWER STEERING PRESSURE SWITCH
RADIO INTERFERENCE CAPACITOR #2
REAR HEATED OXYGEN SENSOR #11
RF BRAKE SENSOR
RF HEIGHT SENSOR
RF PARK/TURN LAMP
RF SHOCK ACTUATOR
RF SIDE MARKER LAMP
RIGHT CORNERING LAMP
RIGHT HEADLAMP
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
TURBINE SHAFT SPEED SENSOR
VARIABLE ASSIST SOLENOID

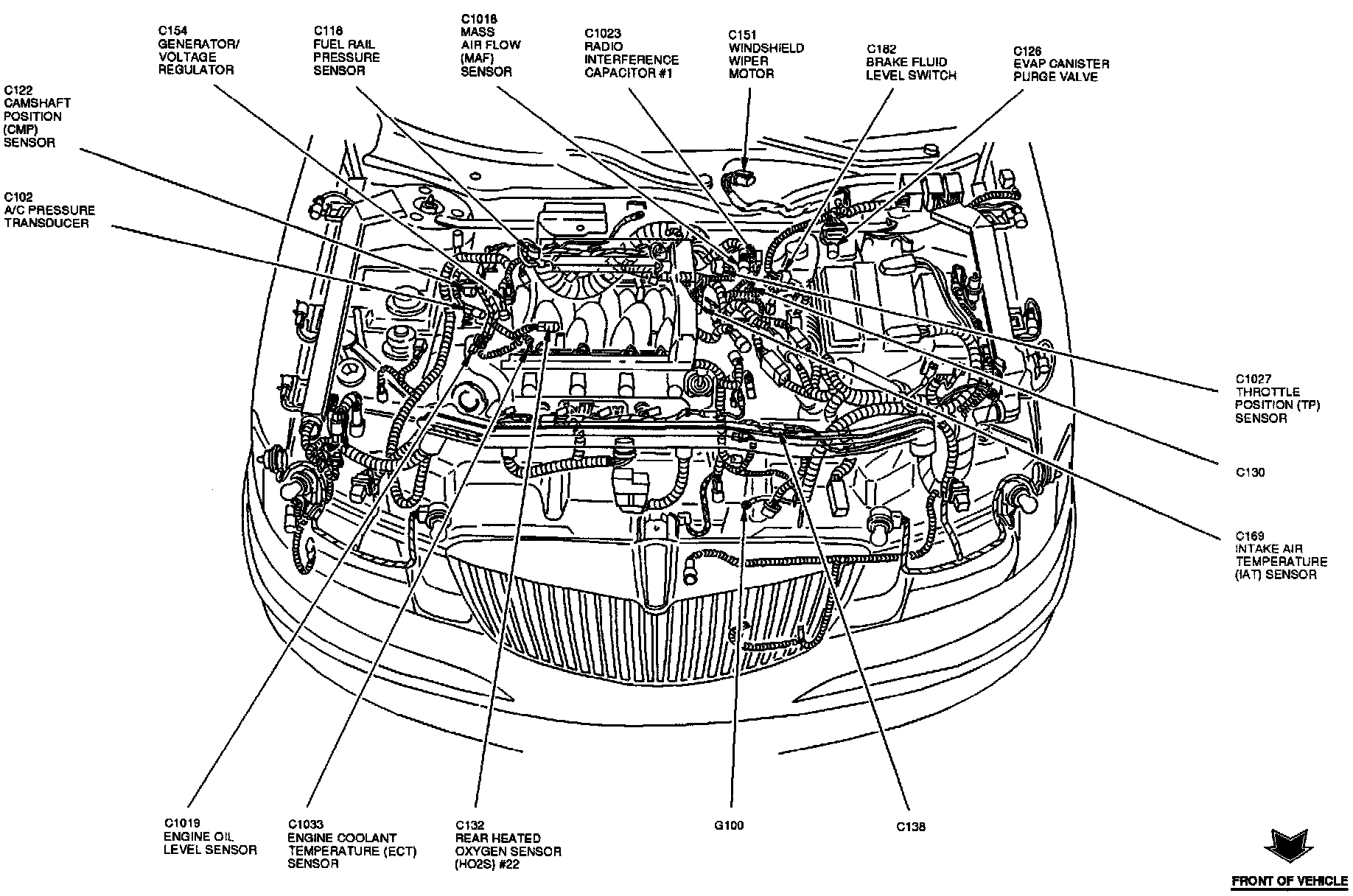

Engine Views:

A/C PRESSURE TRANSDUCER
BRAKE FLUID LEVEL SWITCH
CAMSHAFT POSITION SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL LEVEL SENSOR
EVAPORATIVE CANISTER PURGE VALVE
FUEL RAIL PRESSURE SENSOR
GENERATOR/VOLTAGE REGULATOR
INTAKE AIR TEMPERATURE SENSOR
MASS AIR FLOW SENSOR
RADIO INTERFERENCE CAPACITOR #1
REAR HEATED OXYGEN SENSOR #22
THROTTLE POSITION SENSOR
WINDSHIELD WIPER MOTOR
