D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

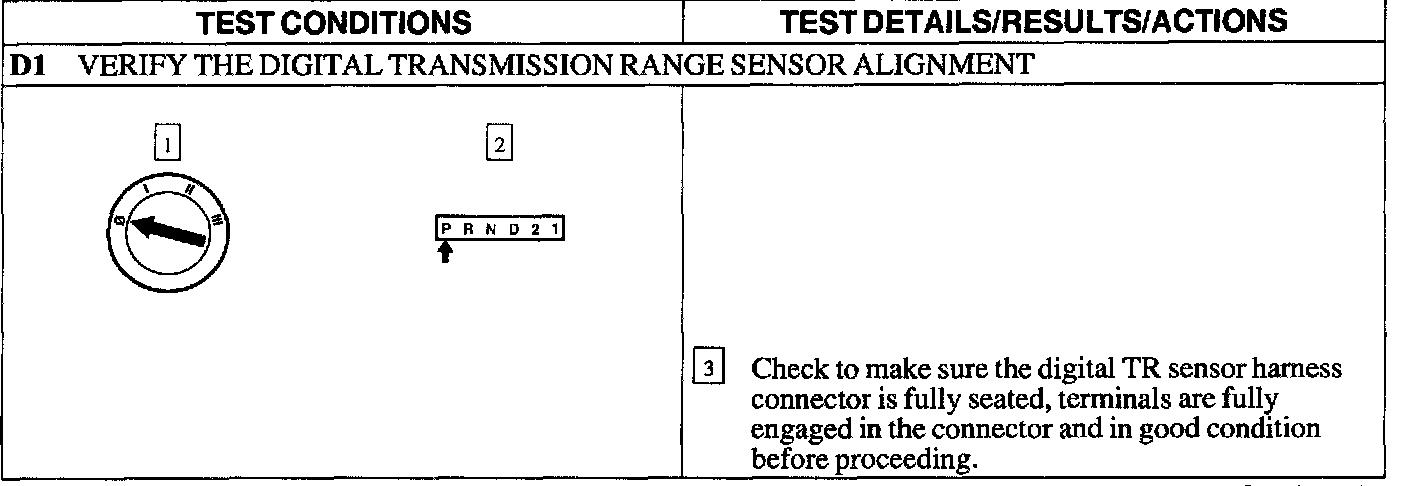

Test D1:

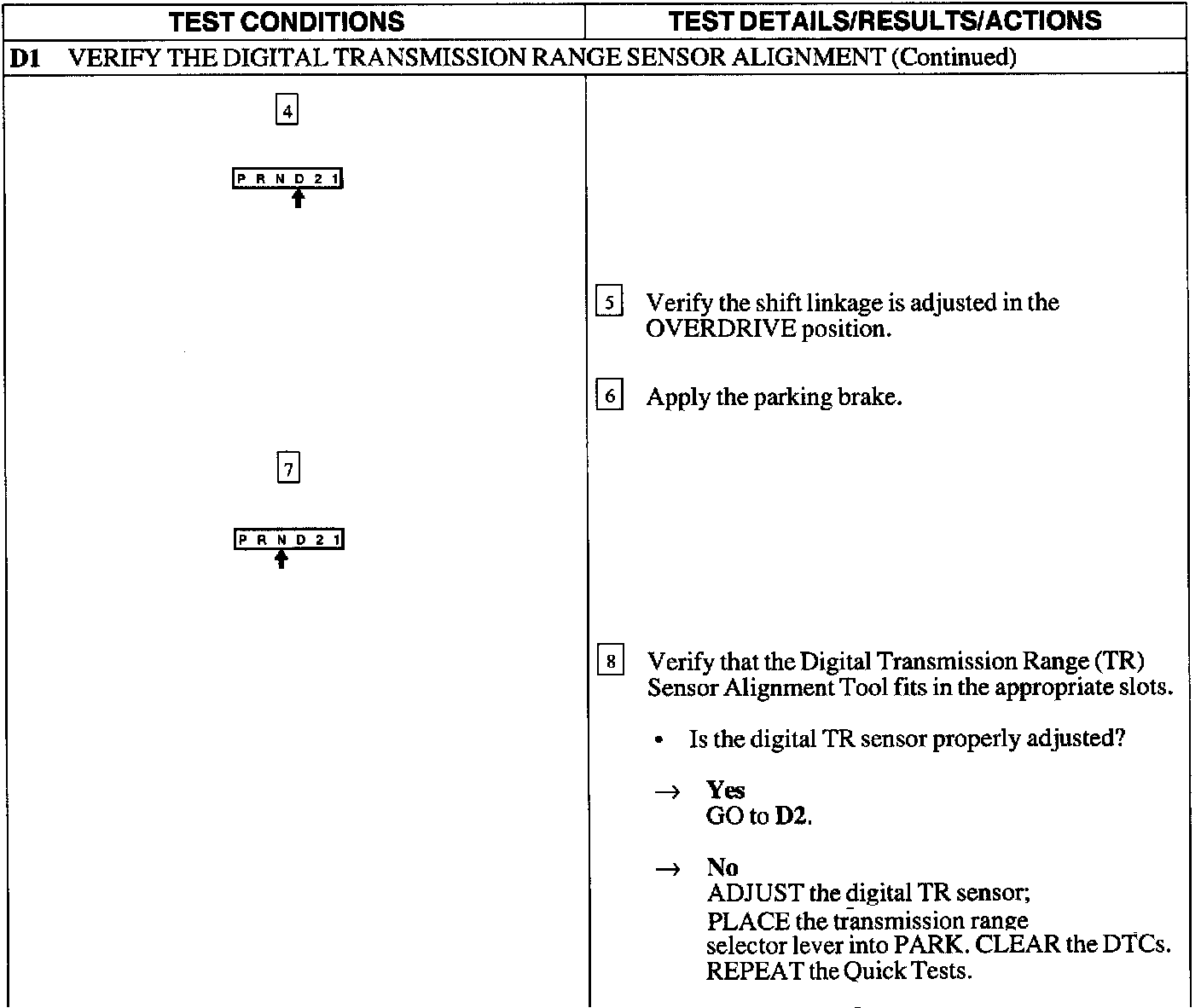

Test D1:

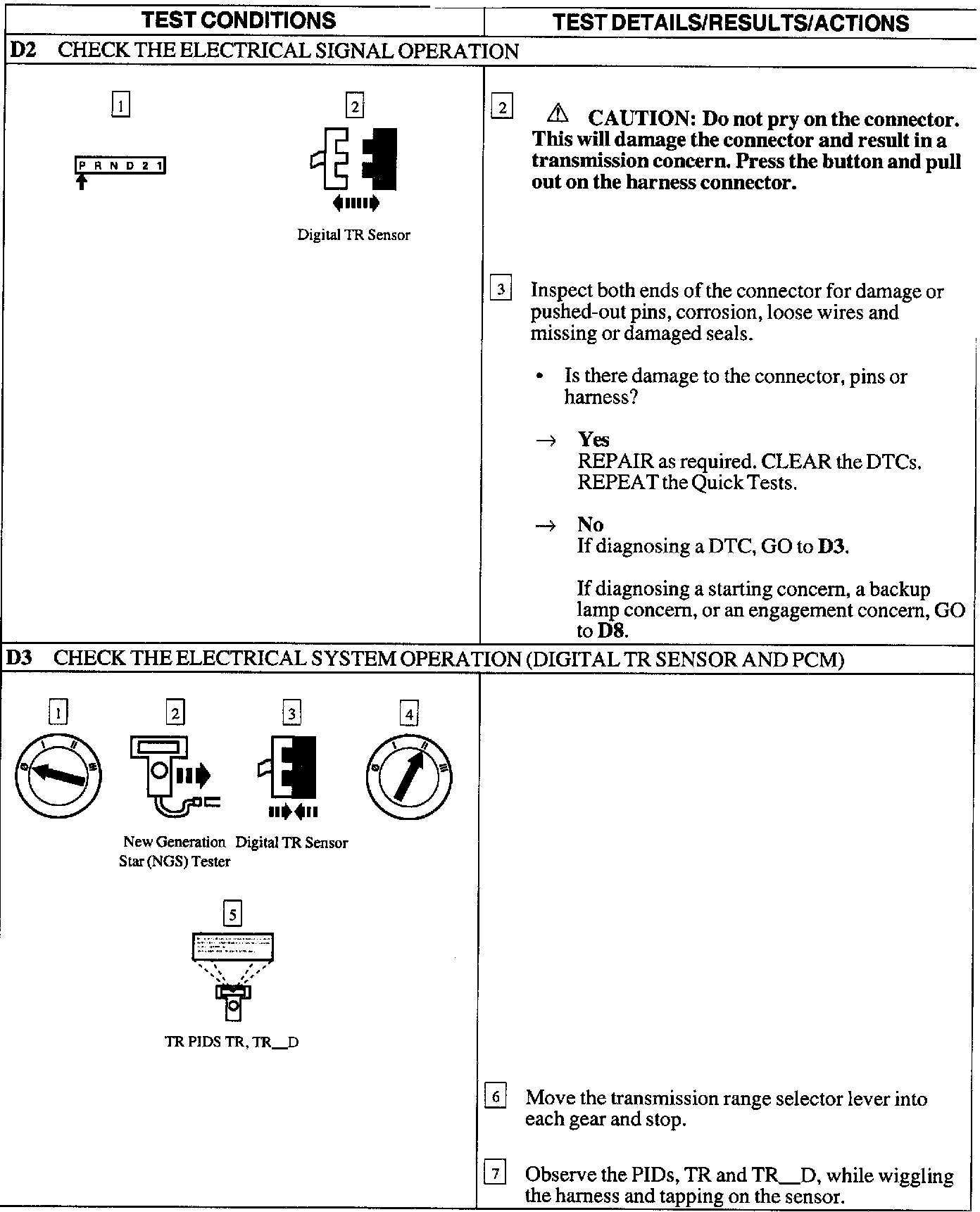

Test D2 - D3:

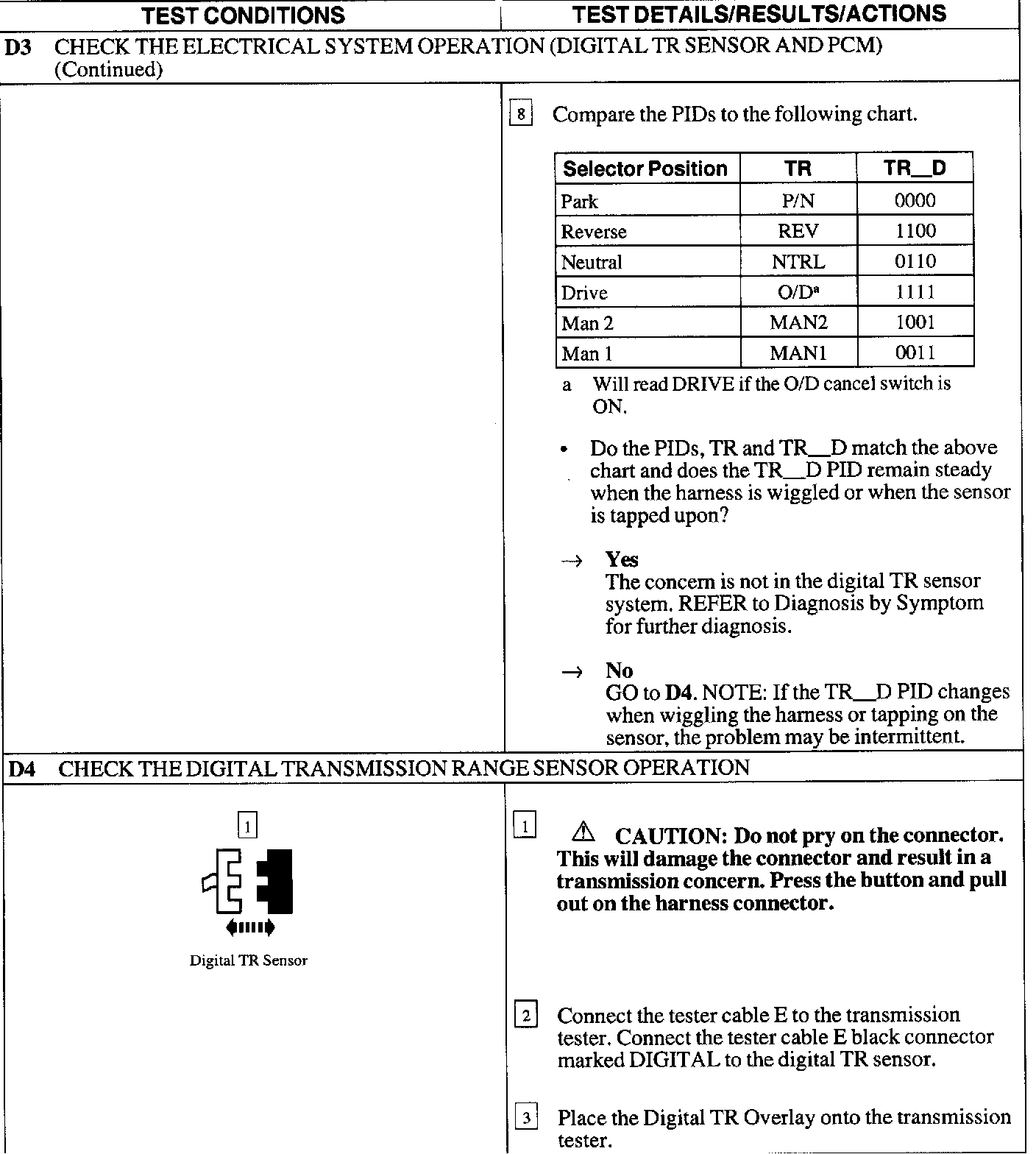

Test D3 - D4:

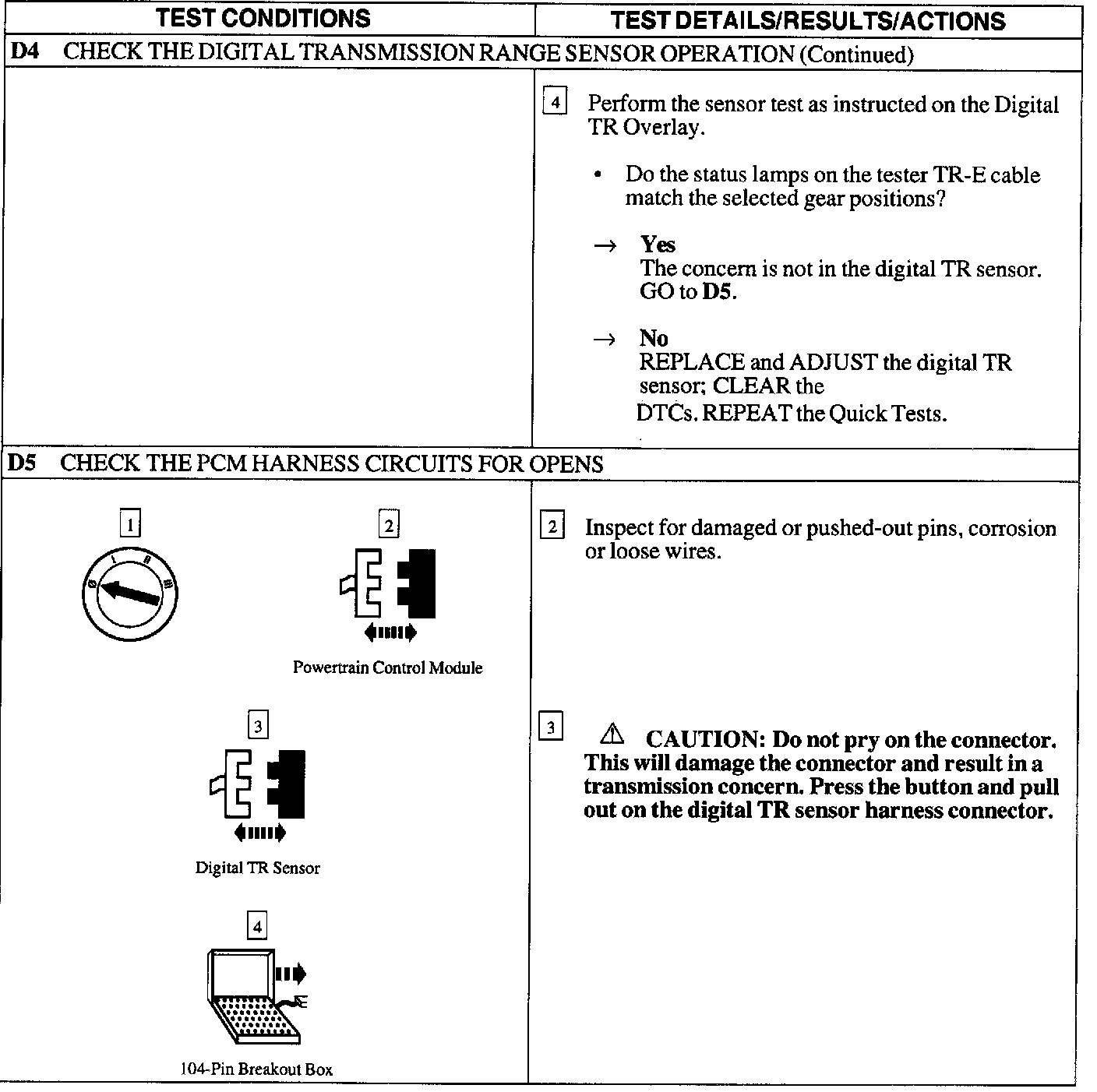

Test D4 - D5:

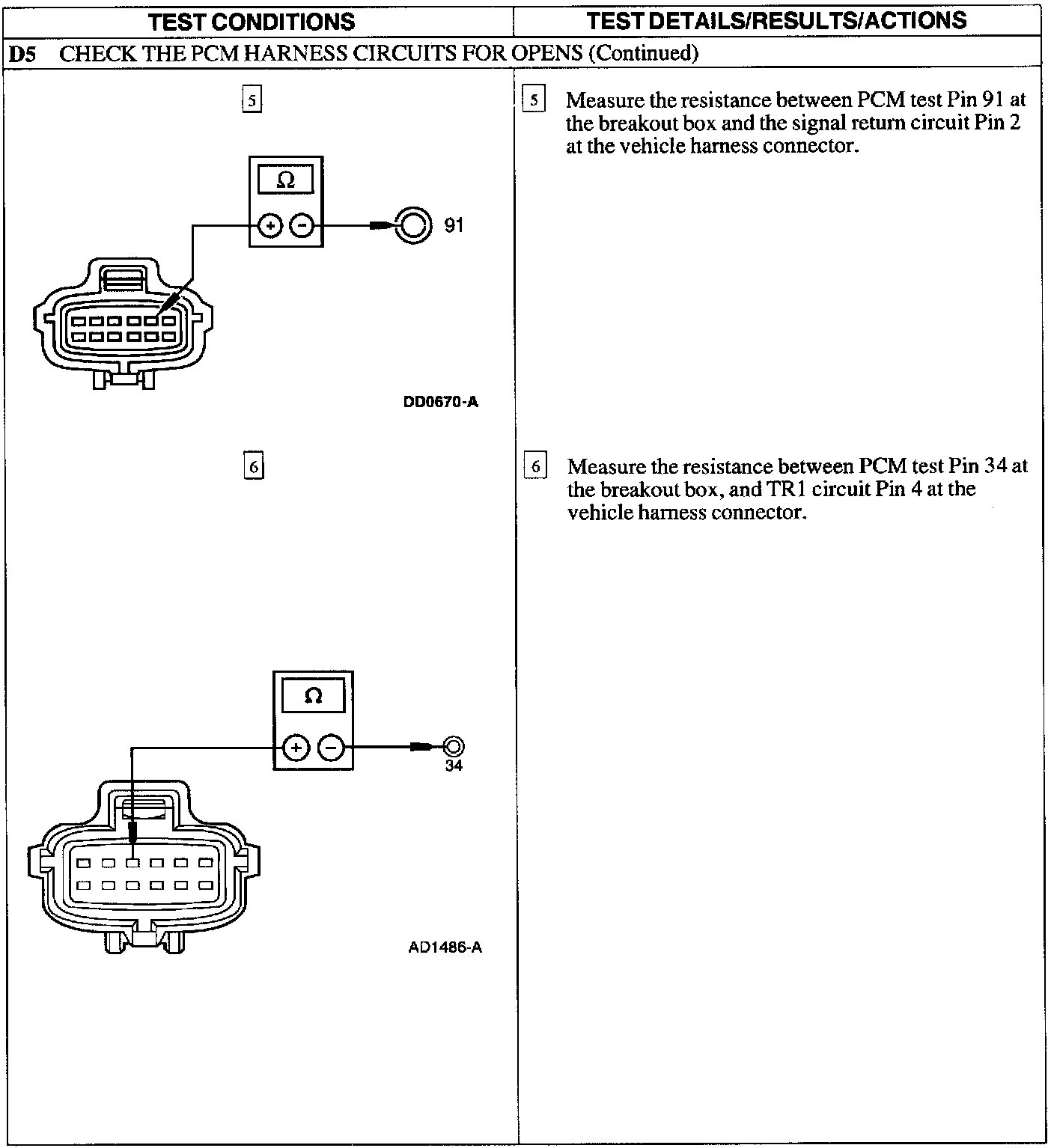

Test D5:

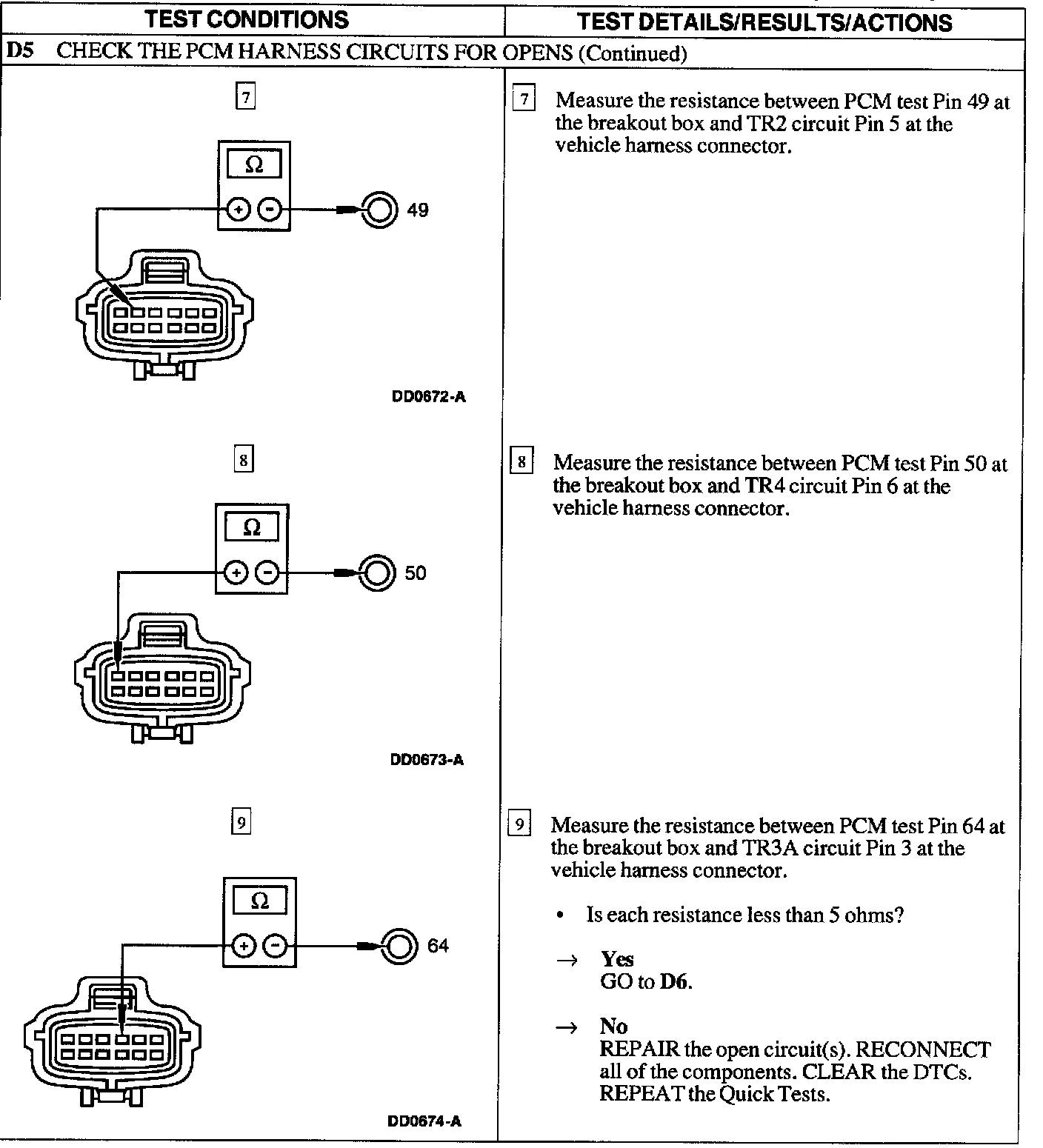

Test D5:

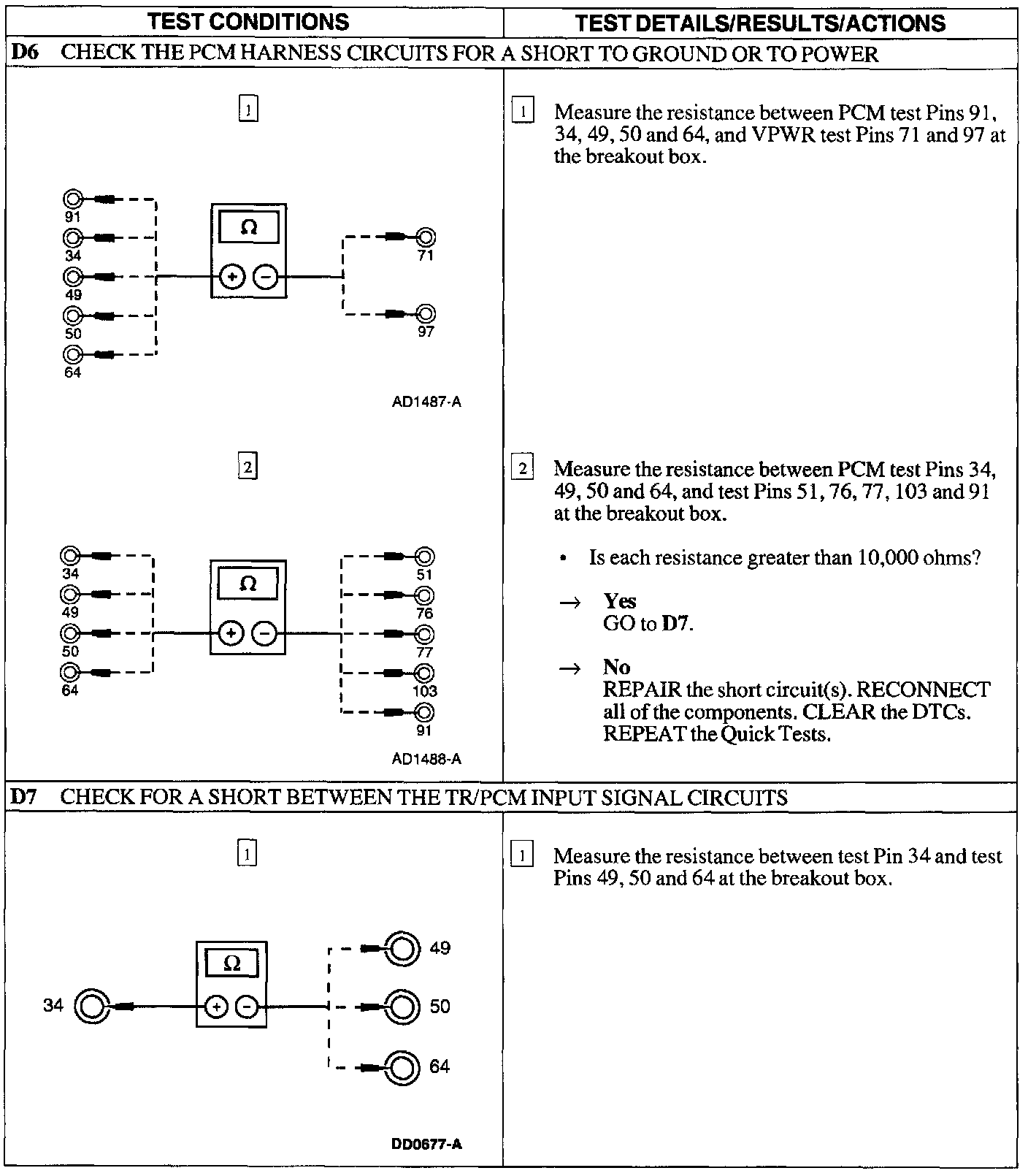

Test D6 - D7:

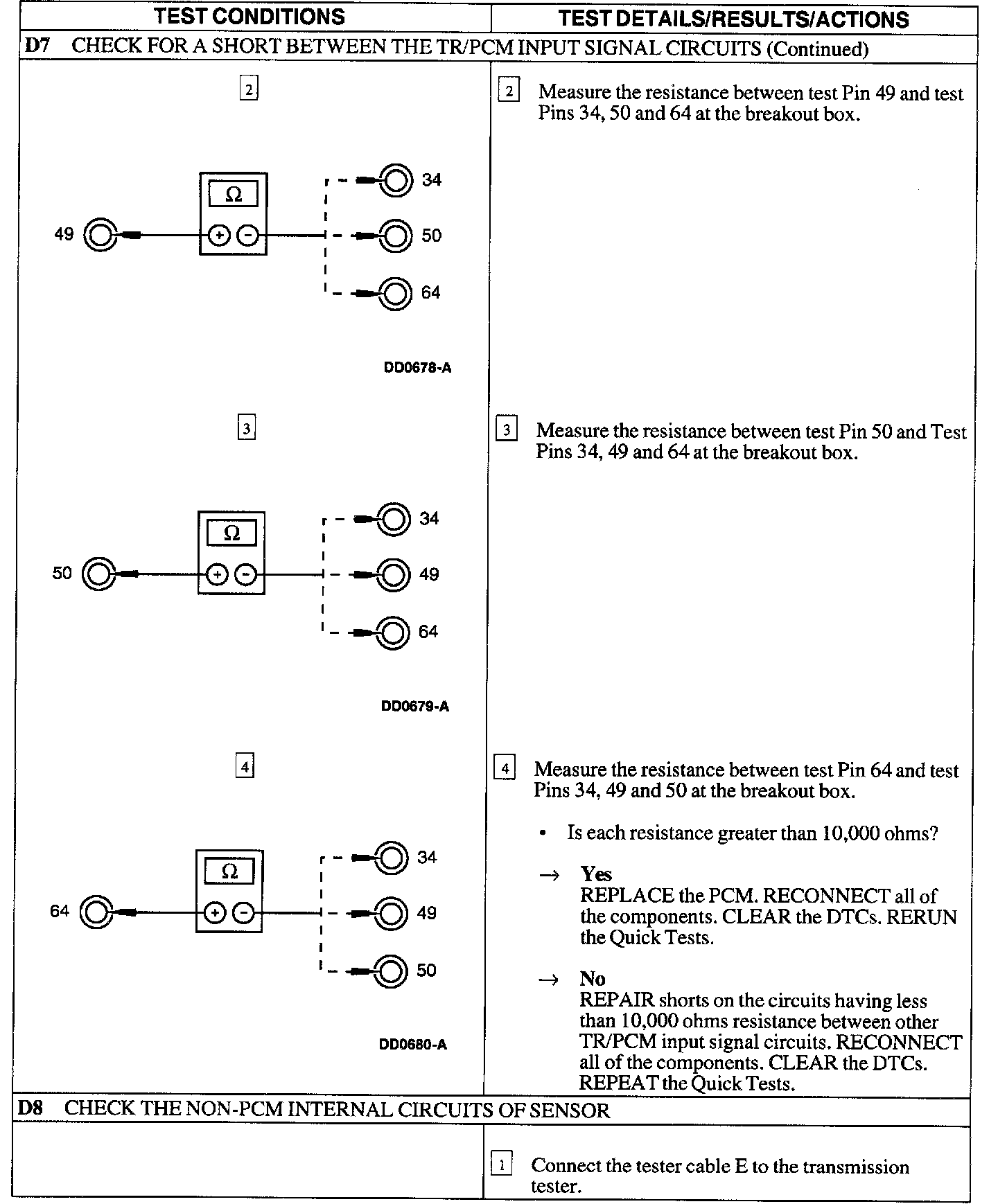

Test D7 - D8:
Test D8:
NOTE: Refer to the digital Transmission Range
(TR) sensor harness connector illustration preceding these pinpoint tests.
