Purging

NOTE: If the air is not purged from the power steering system correctly, pump failure could result. This condition can occur on pre-delivery vehicles with evidence of aerated fluid or on vehicles that have had steering component repairs.

A whine heard from the power steering pump may be caused by air in the system. The power steering purging procedure must be performed under the following conditions:
- Prior to any component repair for which power steering noise complaints are accompanied by evidence of aerated fluid.
- After replacement of any power steering system component (gear, hose, etc.).





1. Remove the power steering fluid reservoir cap.

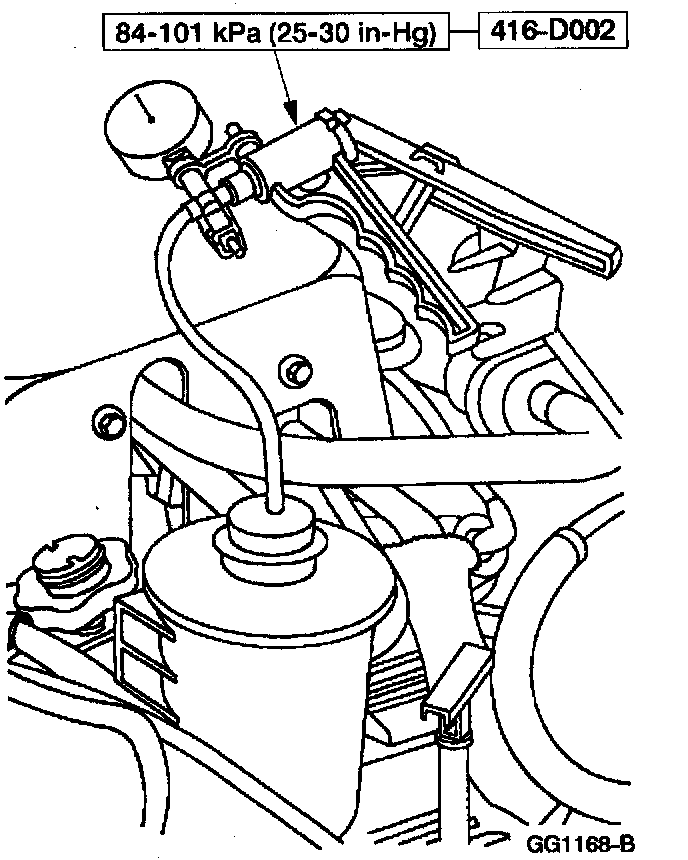

2. Tightly insert the stopper of Vacuum Pump into the power steering fluid reservoir.
3. Start the engine and allow it to idle.





4. Apply the maximum vacuum source for a minimum of three minutes with the engine at idle. Maintain the maximum vacuum with Vacuum Pump.
5. Release the vacuum source and remove Vacuum Pump.





6. Add fluid to the center mark of the power steering fluid reservoir.





7. Reinstall Vacuum Pump stopper and apply maximum vacuum.
8. Cycle the steering wheel from stop to stop every 30 seconds for approximately five minutes.

CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump will occurs





9. Stop the engine, release the vacuum source, and remove Vacuum Pump.





10. Add power steering fluid if necessary. Install the power steering fluid reservoir cap.
11. Start the engine and cycle the steering wheel from stop to stop every 30 seconds for approximately five minutes.

CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump will occur.

12. Check for power steering fluid leaks at all connections. If the power steering fluid still shows signs of aeration, repeat this procedure.
