Pressure Feedback Exhaust Sensor: Service and Repair
REMOVAL 1.
Remove the air cleaner outlet tube.
2.

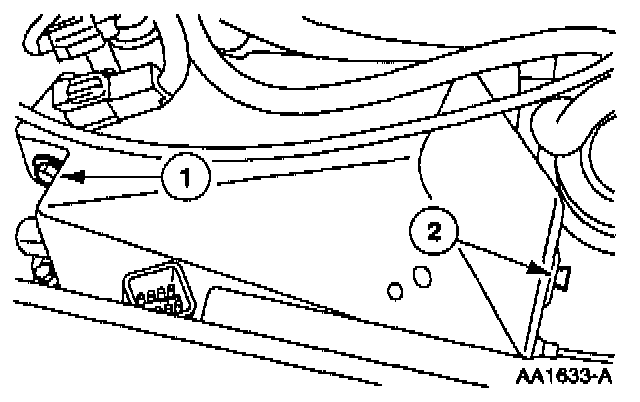

Remove the throttle linkage cover.
1
Remove the screw.
2
Remove the push pin.
3.
Remove the

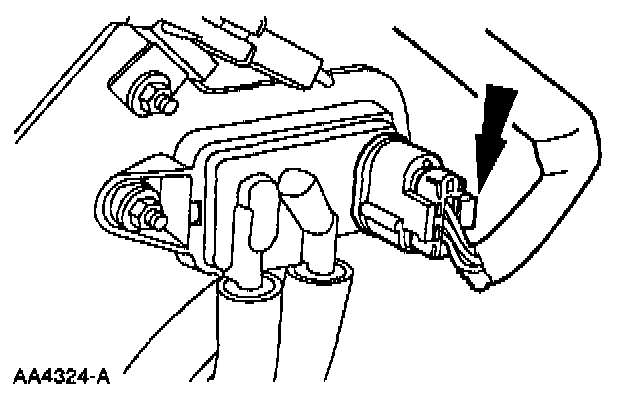

differential pressure feedback EGR.
1
Disconnect the electrical connector.
2
Disconnect the hoses.
3
Remove the nuts and the DPFE.
INSTALLATION 1.
Follow the removal procedure in reverse order.
