Engine

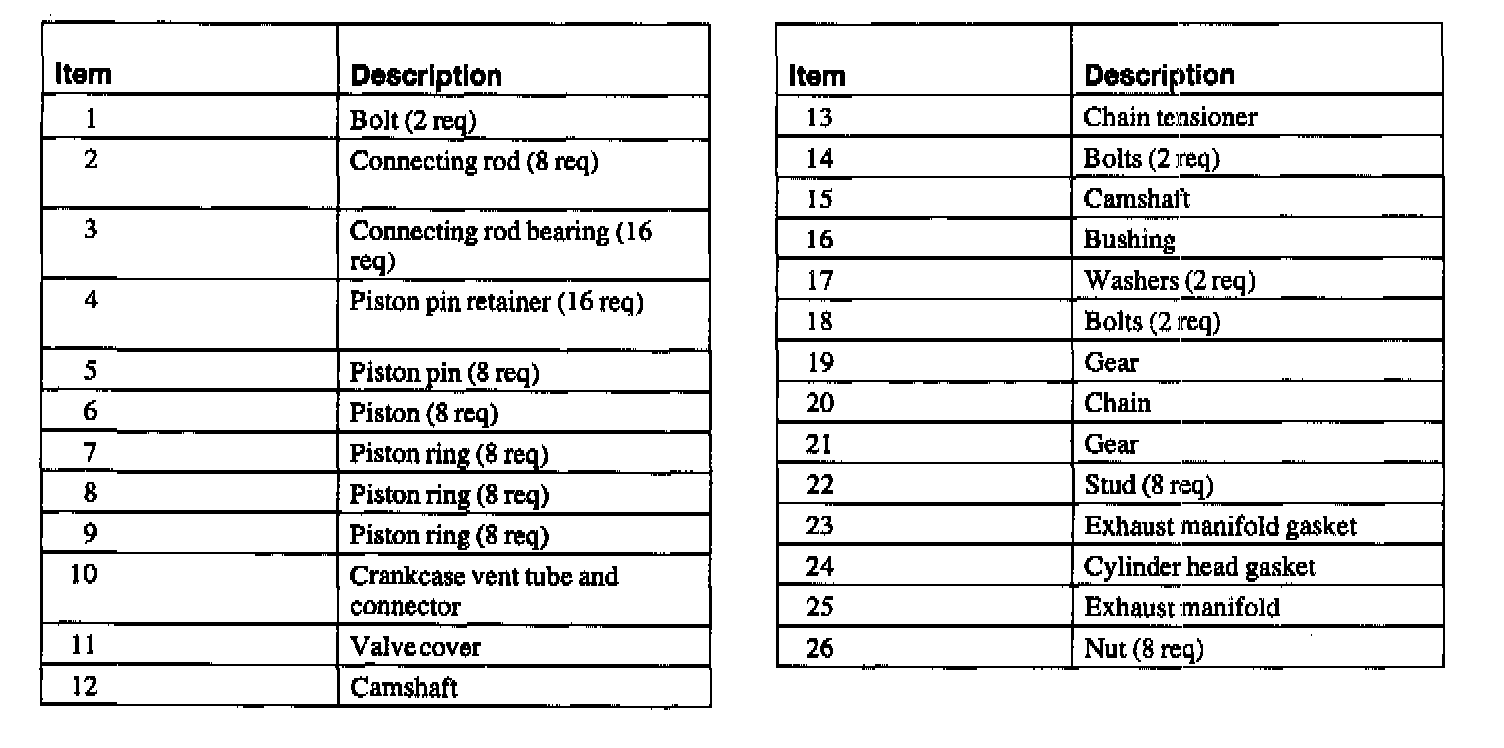

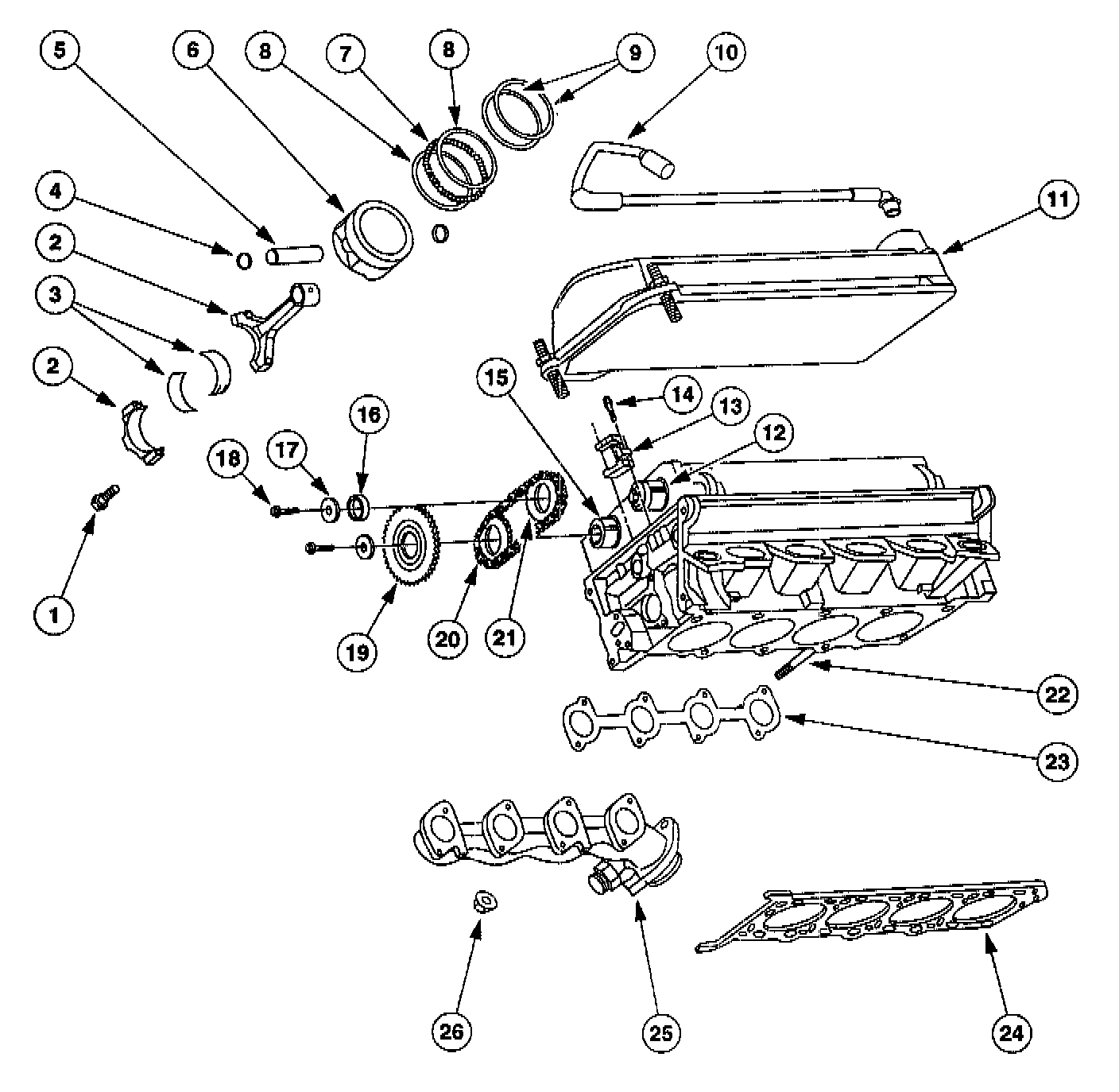

Engine Component Views, Part 1 Of 2:

Part 2 Of 2:

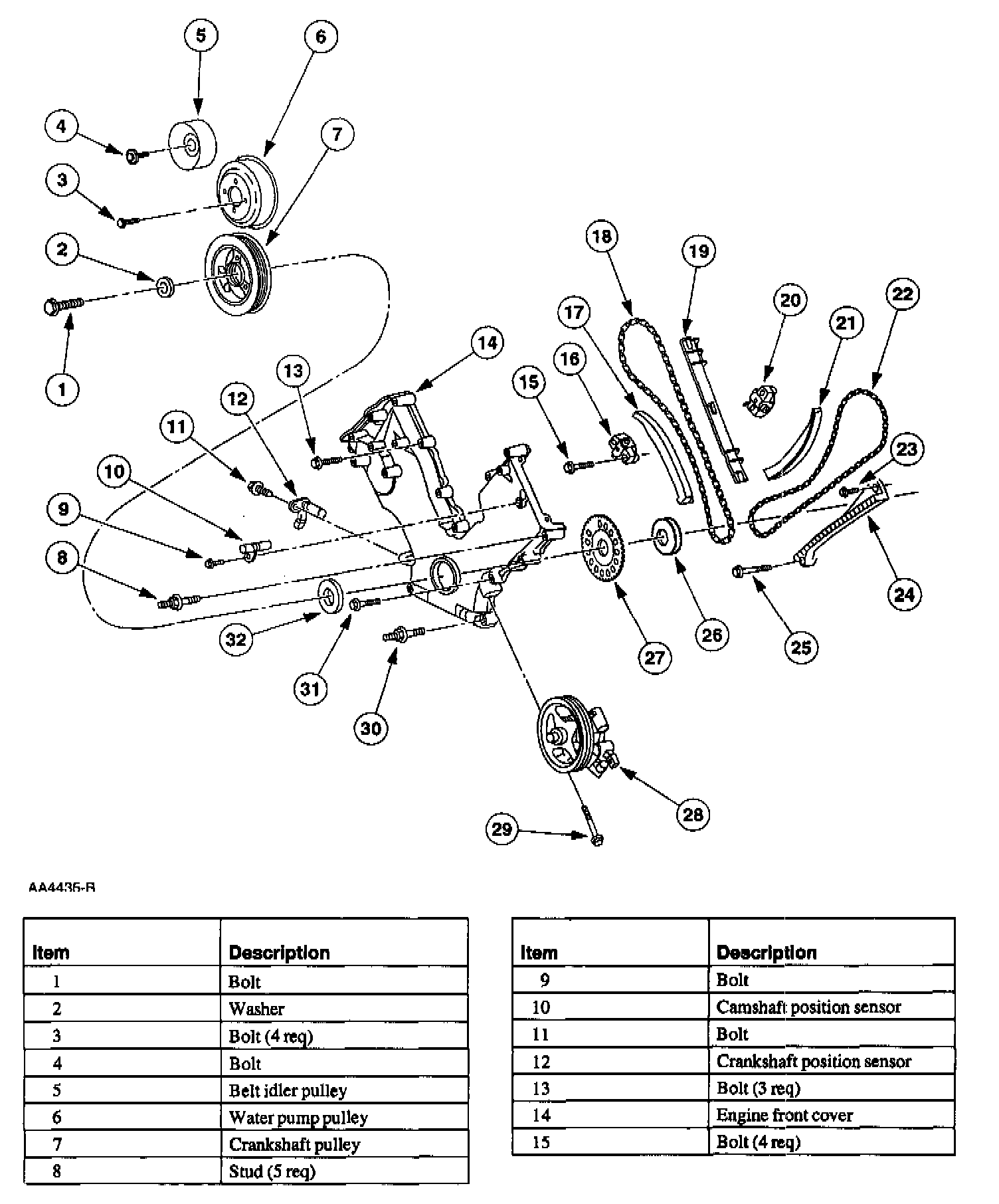

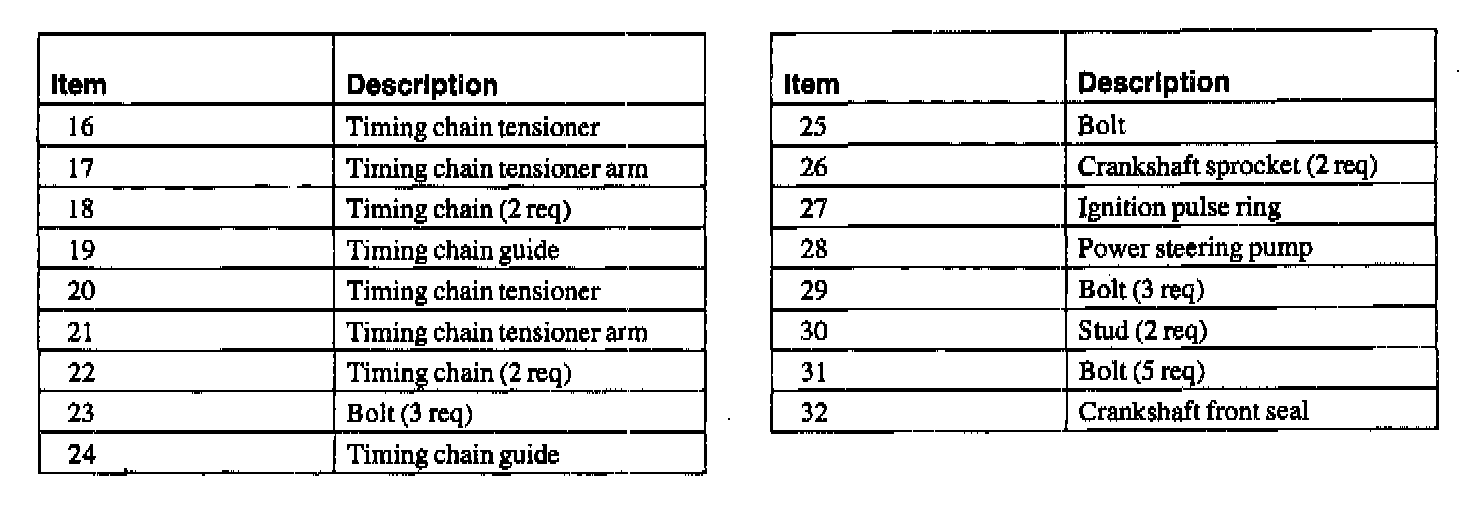

Engine Front End, Part 1 Of 2:

Engine Front End, Part 2 Of 2:

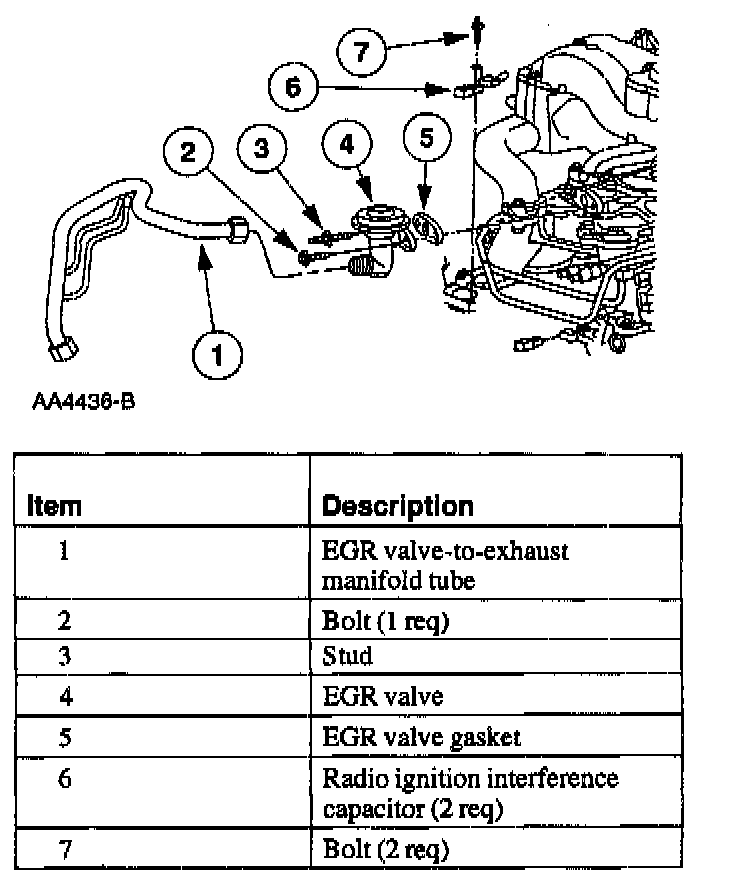

EGR Valve:

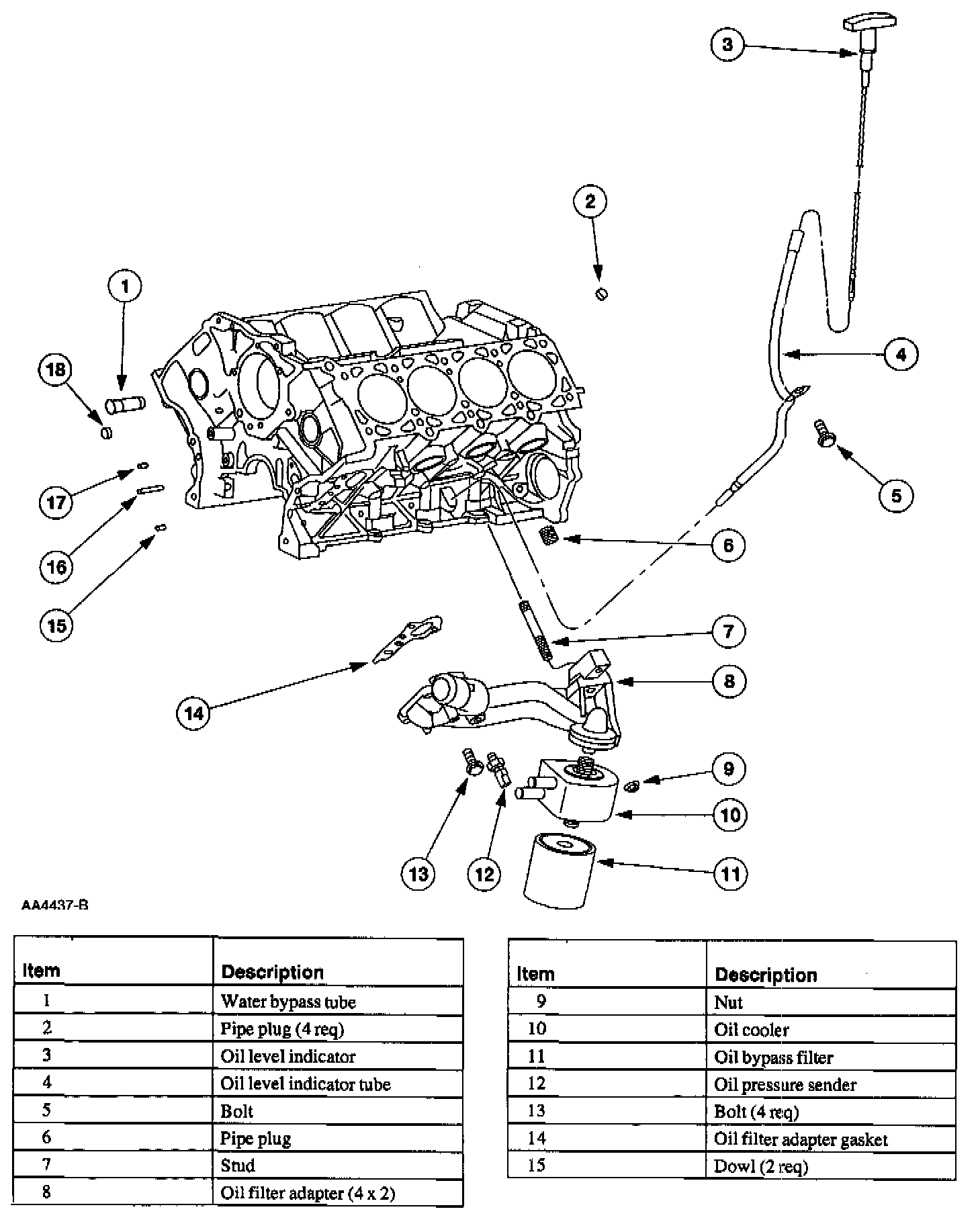

Engine Lubrication, Part 1 Of 2:

Engine Lubrication, Part 2 Of 2:

Crankshaft, Connecting Rods, And Pistons, Part 1 Of 2:

Crankshaft, Connecting Rods, And Pistons, Part 2 Of 2:

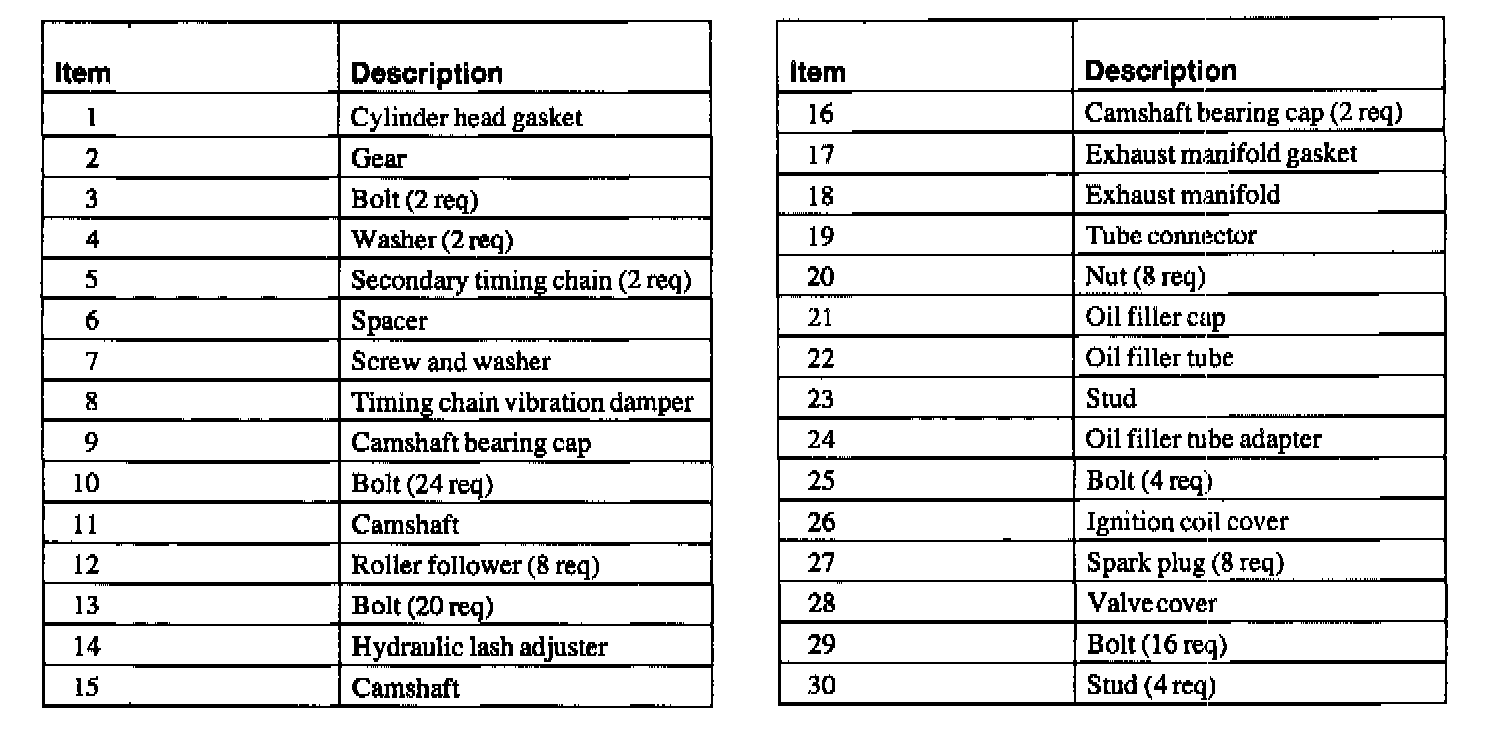

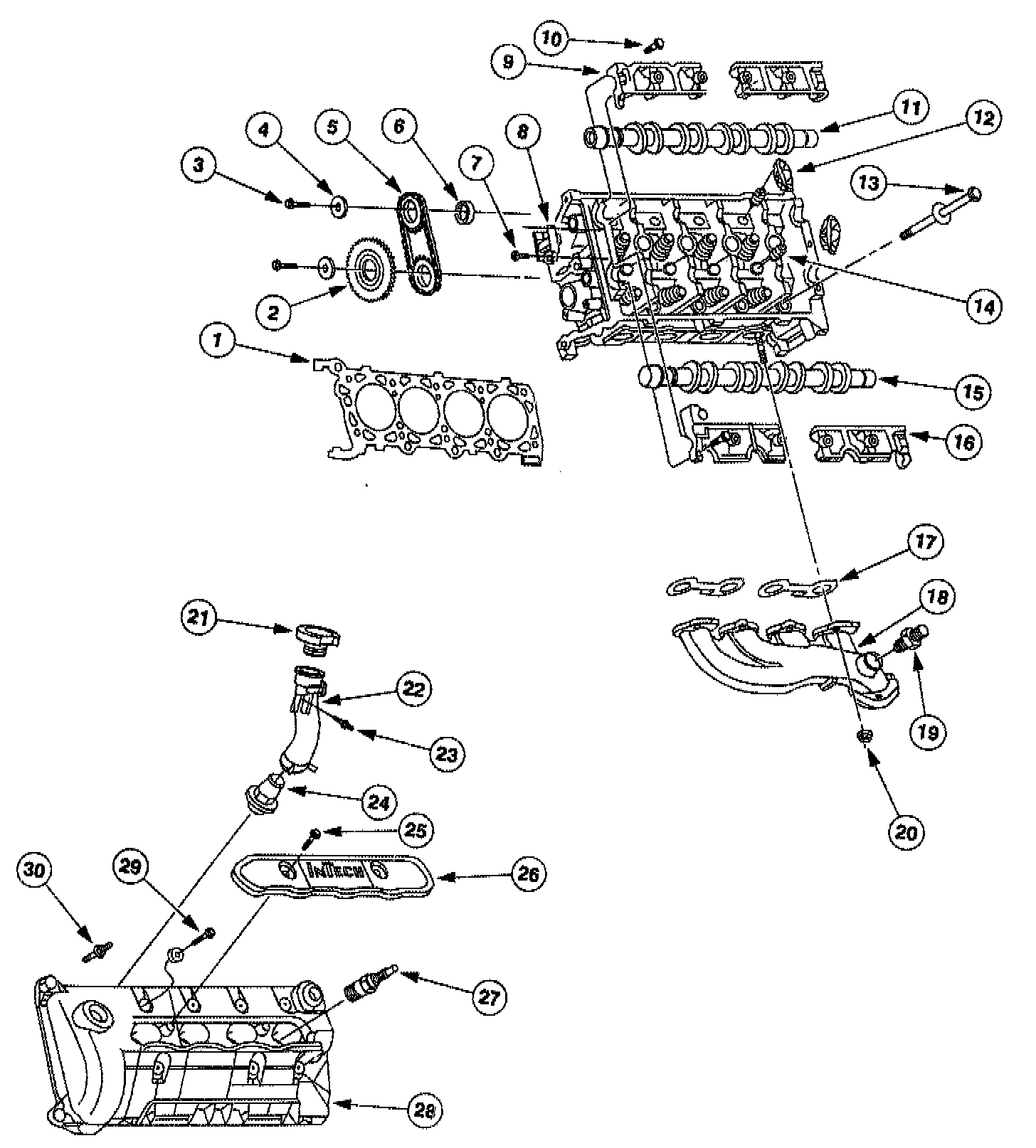

Cylinder Head, Part 1 Of 2:

Cylinder Head, Part 2 Of 2:

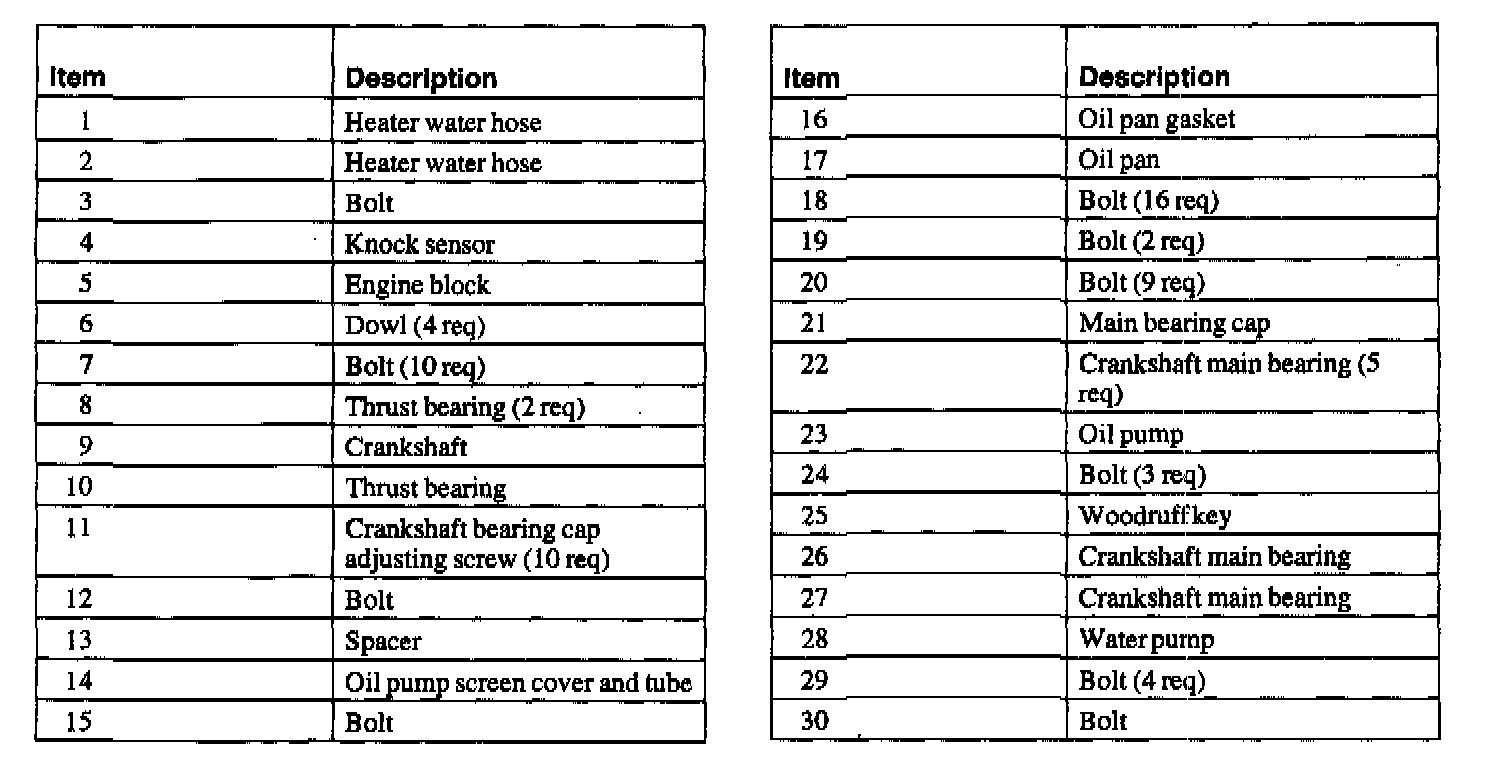

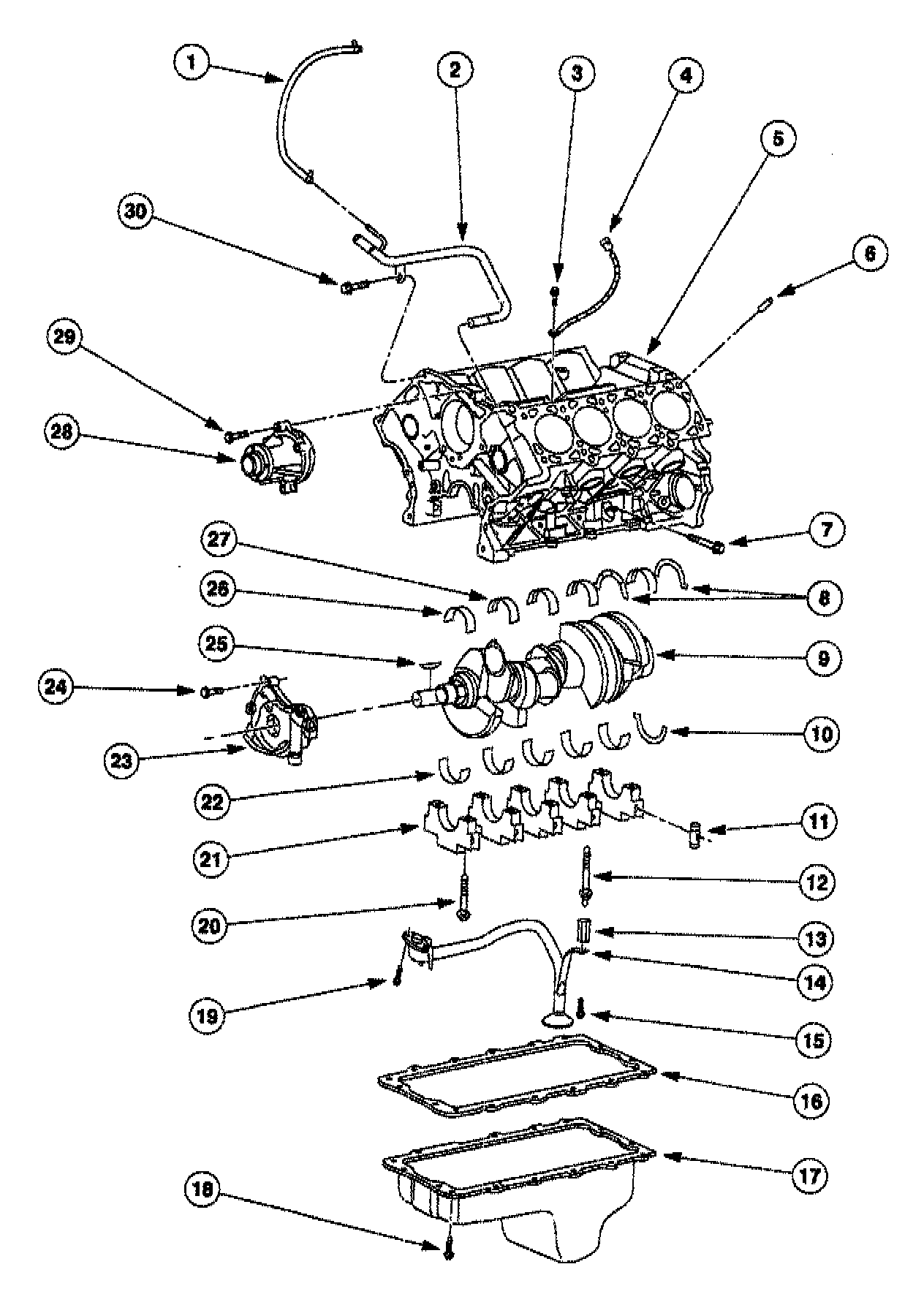

Lower Engine, Part 1 Of 2:

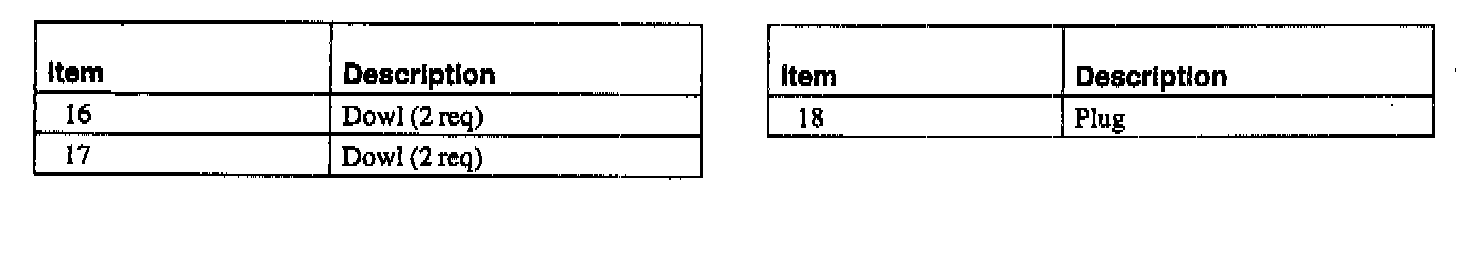

Lower Engine, Part 2 Of 2:

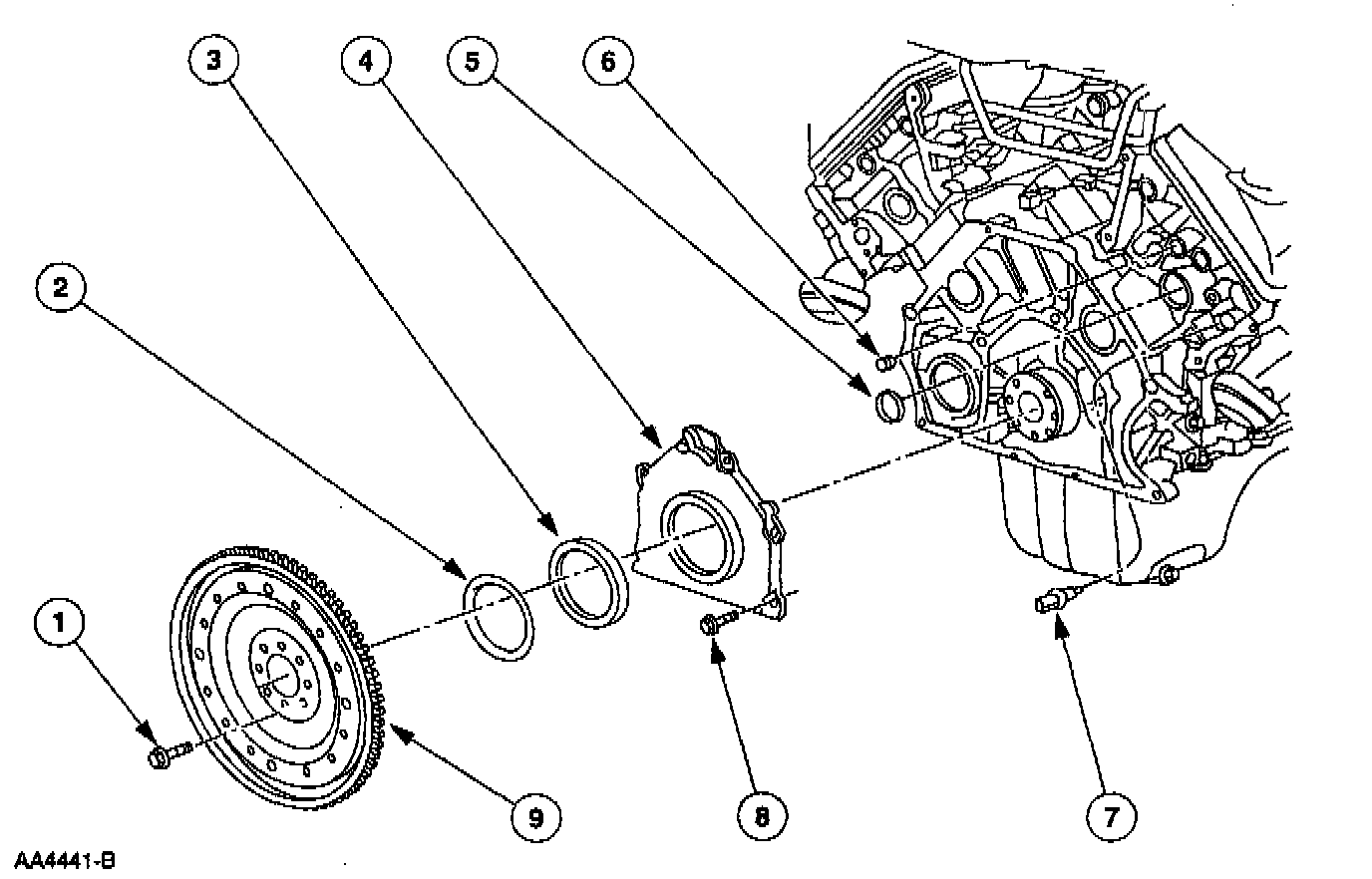

Rear Of Engine, Part 1 Of 2:

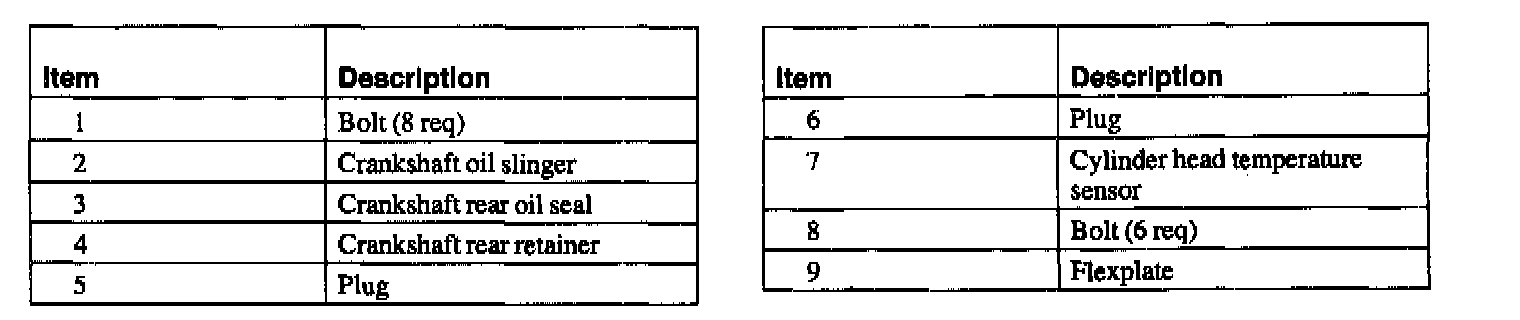

Rear Of Engine, Part 2 Of 2:
