D: Transmission Range (TR)/Manual Lever Position (MLP) Sensor

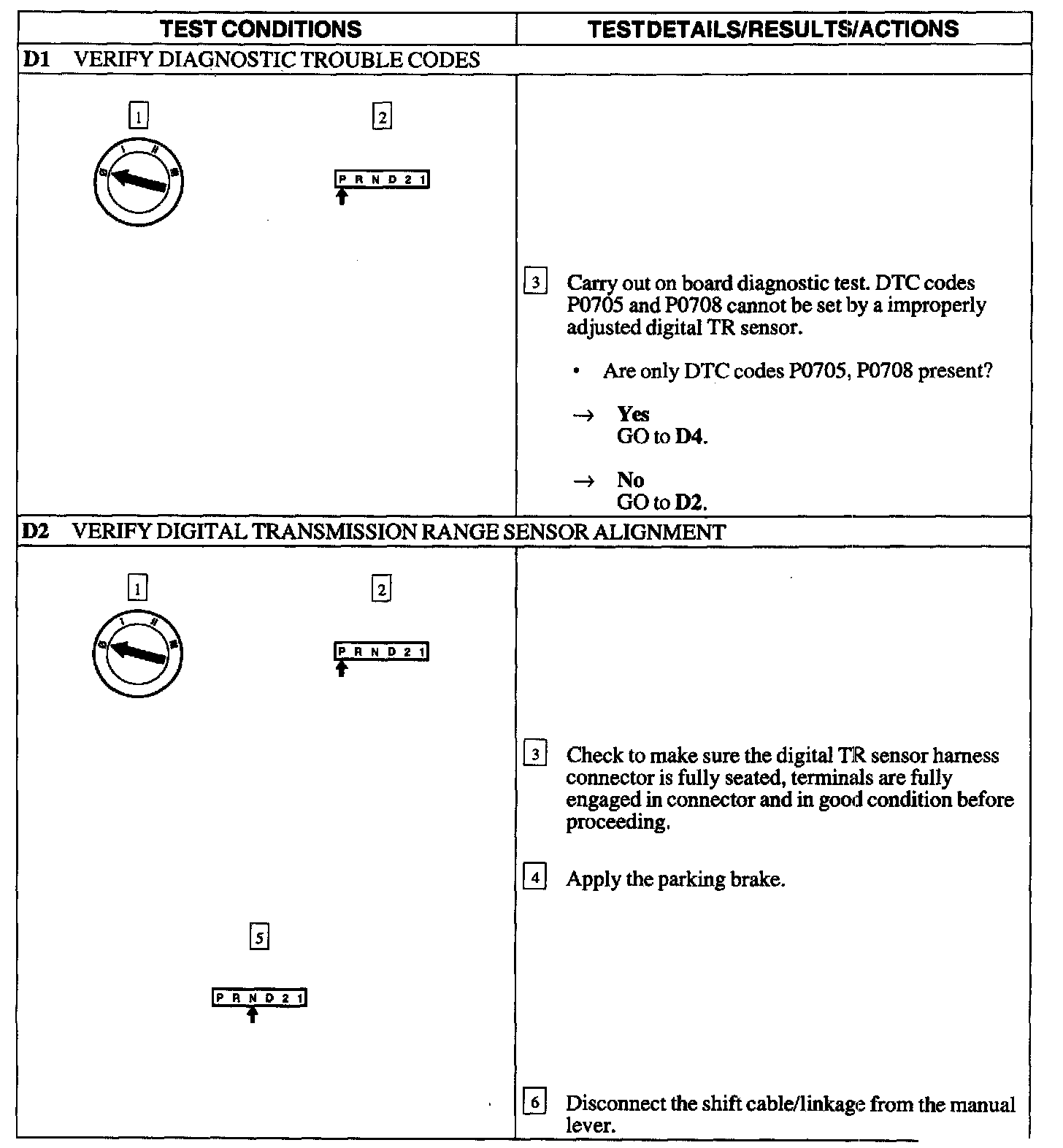

D1 - D2:

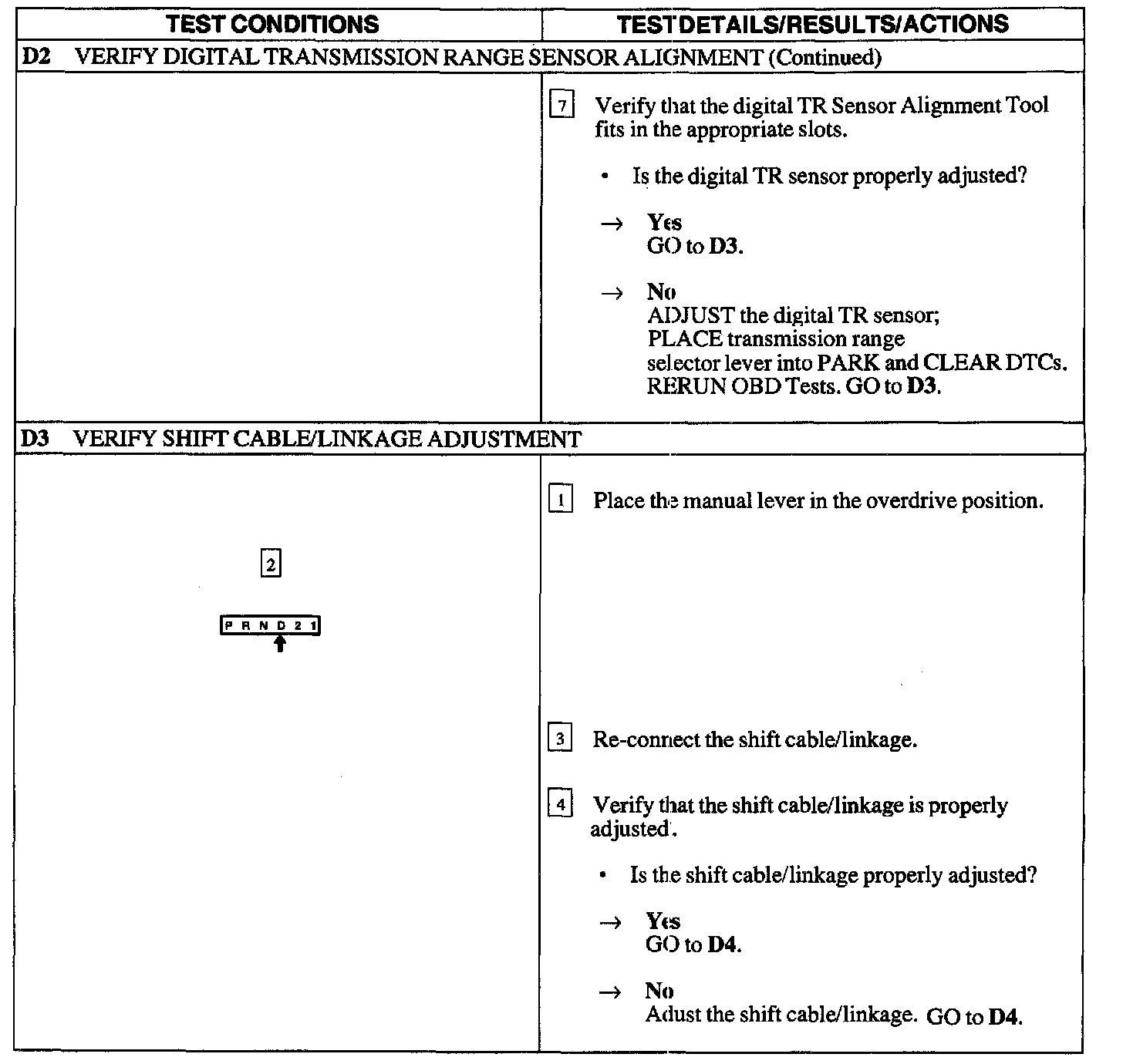

D2 - D3:

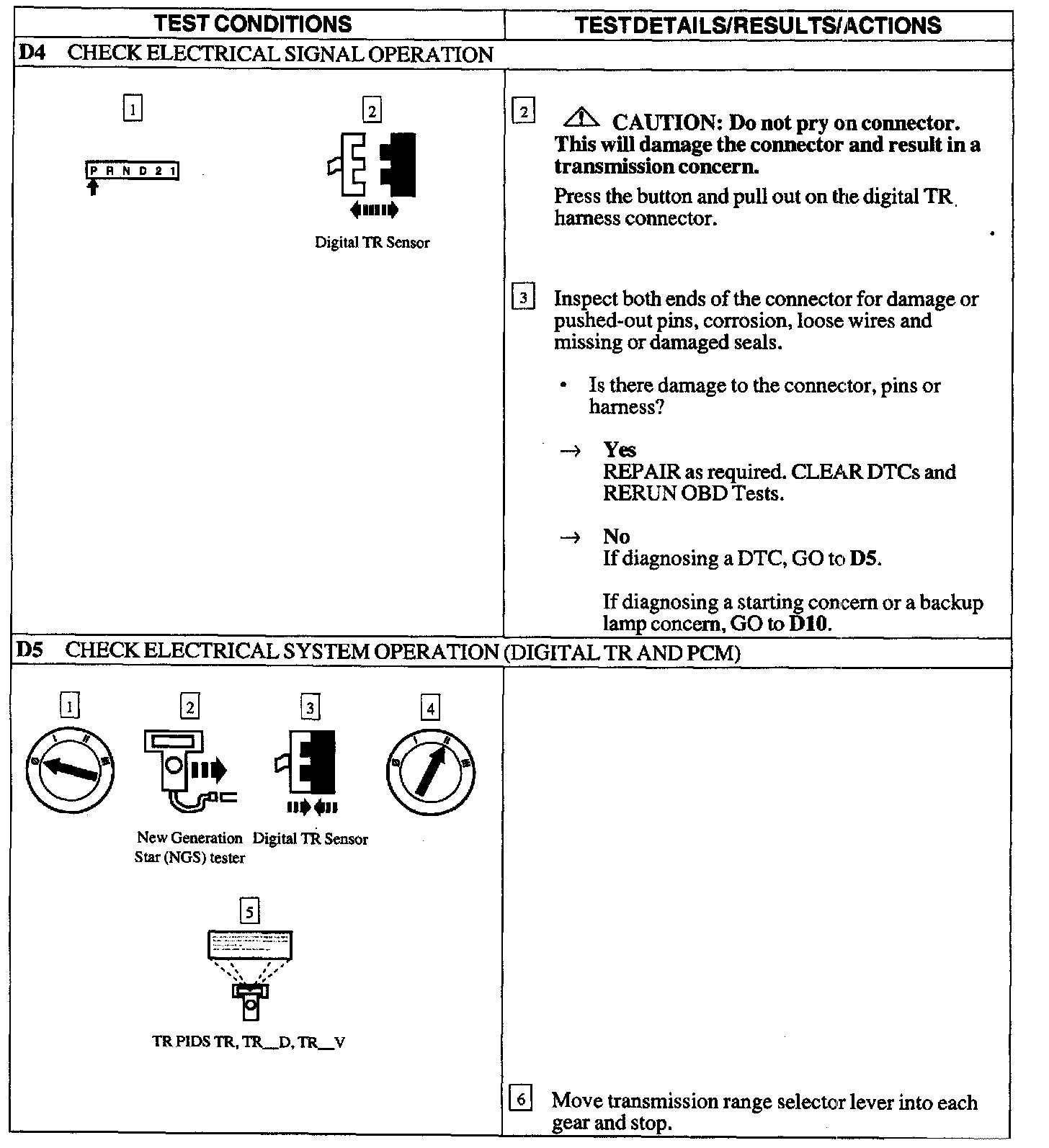

D4 - D5:

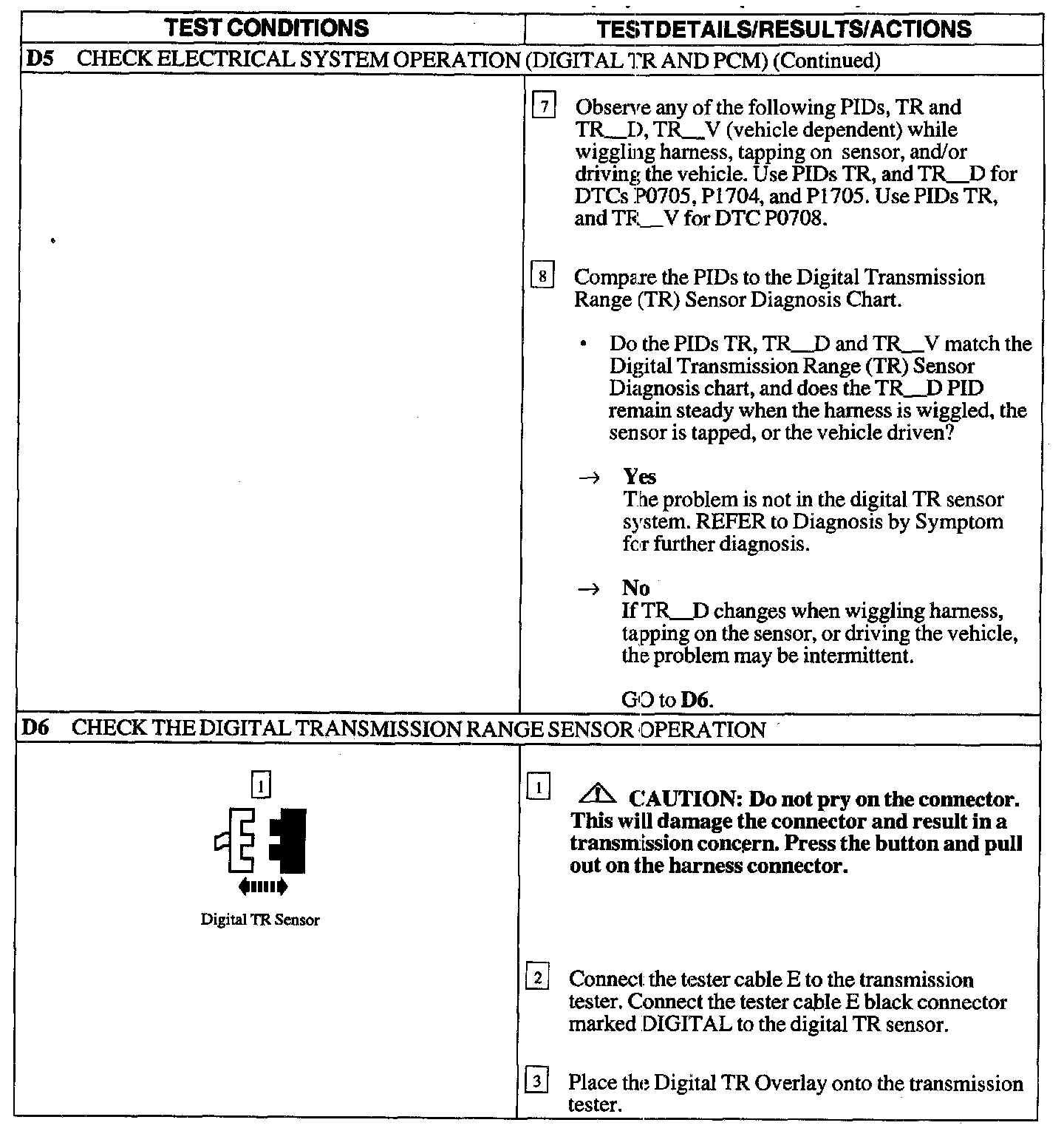

D5 - D6:

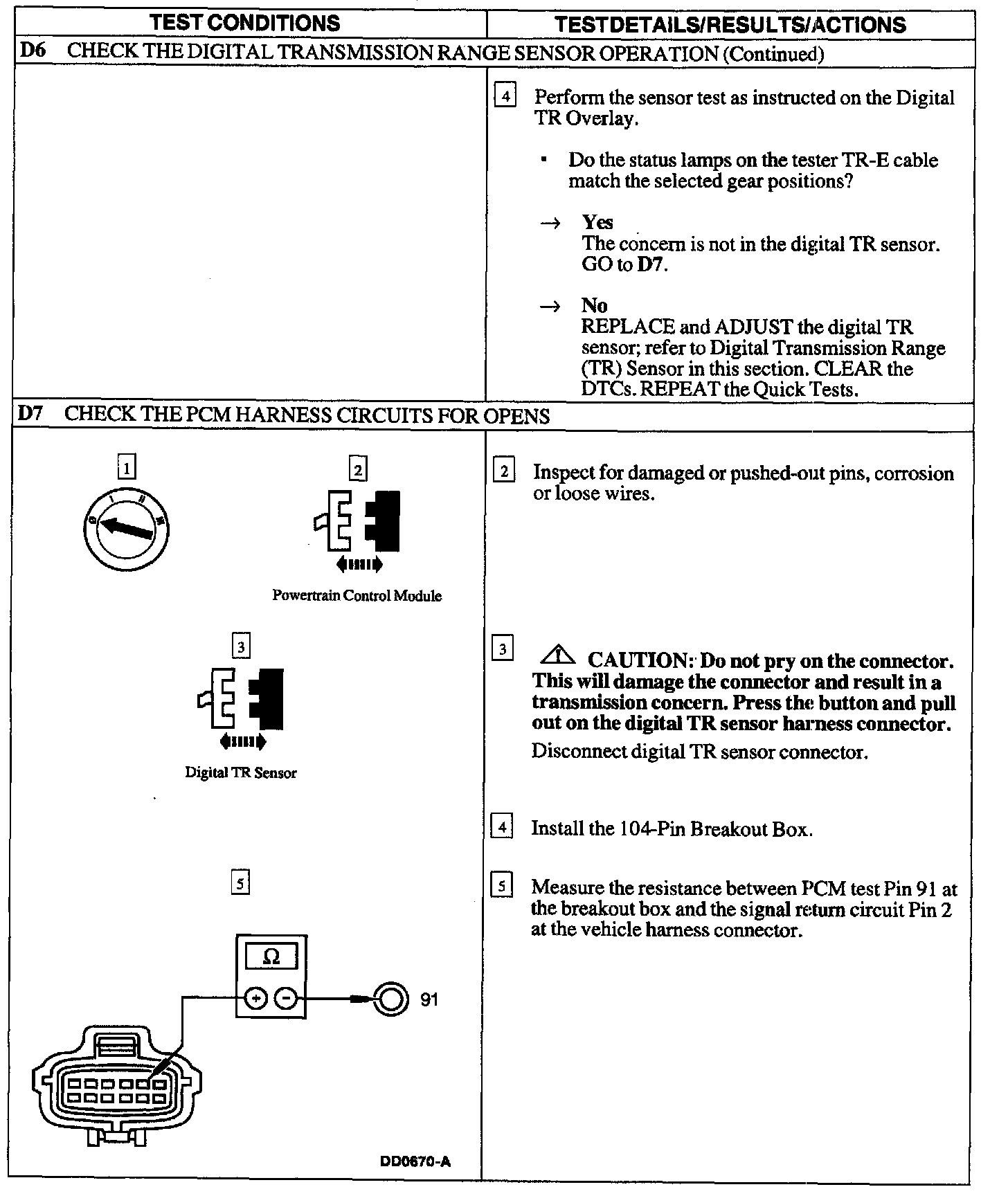

D6 - D7:

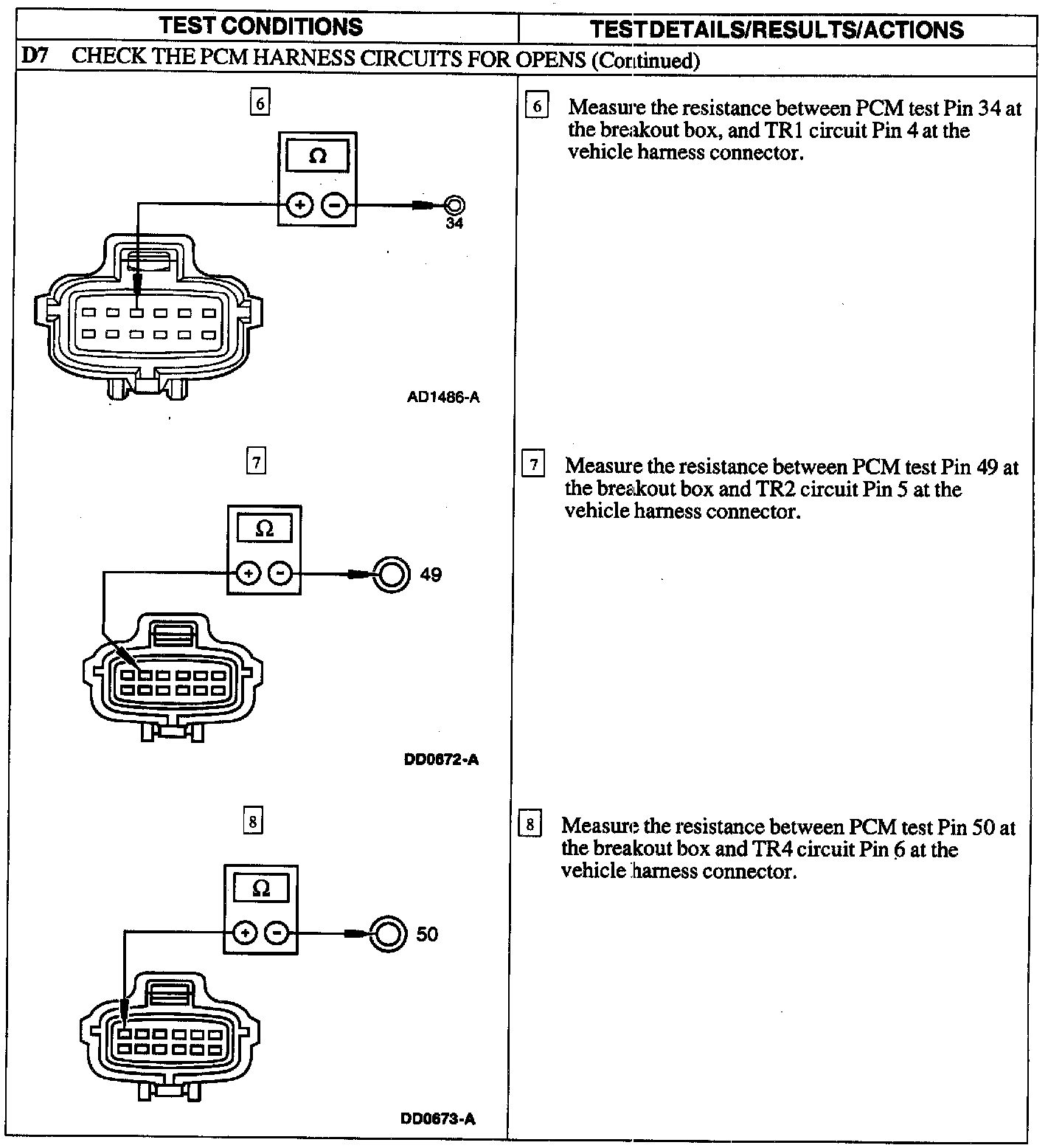

D7:

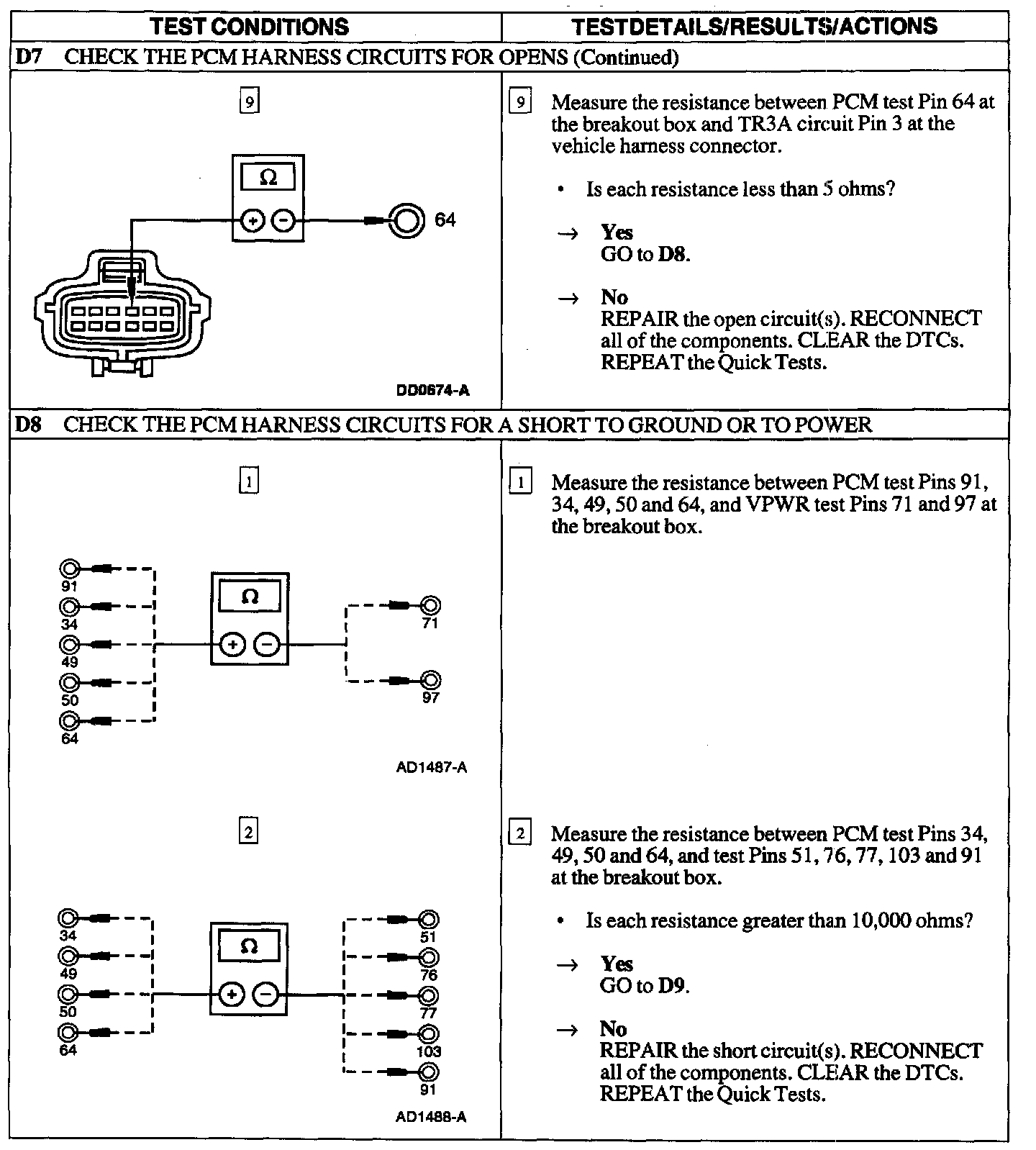

D7 - D8:

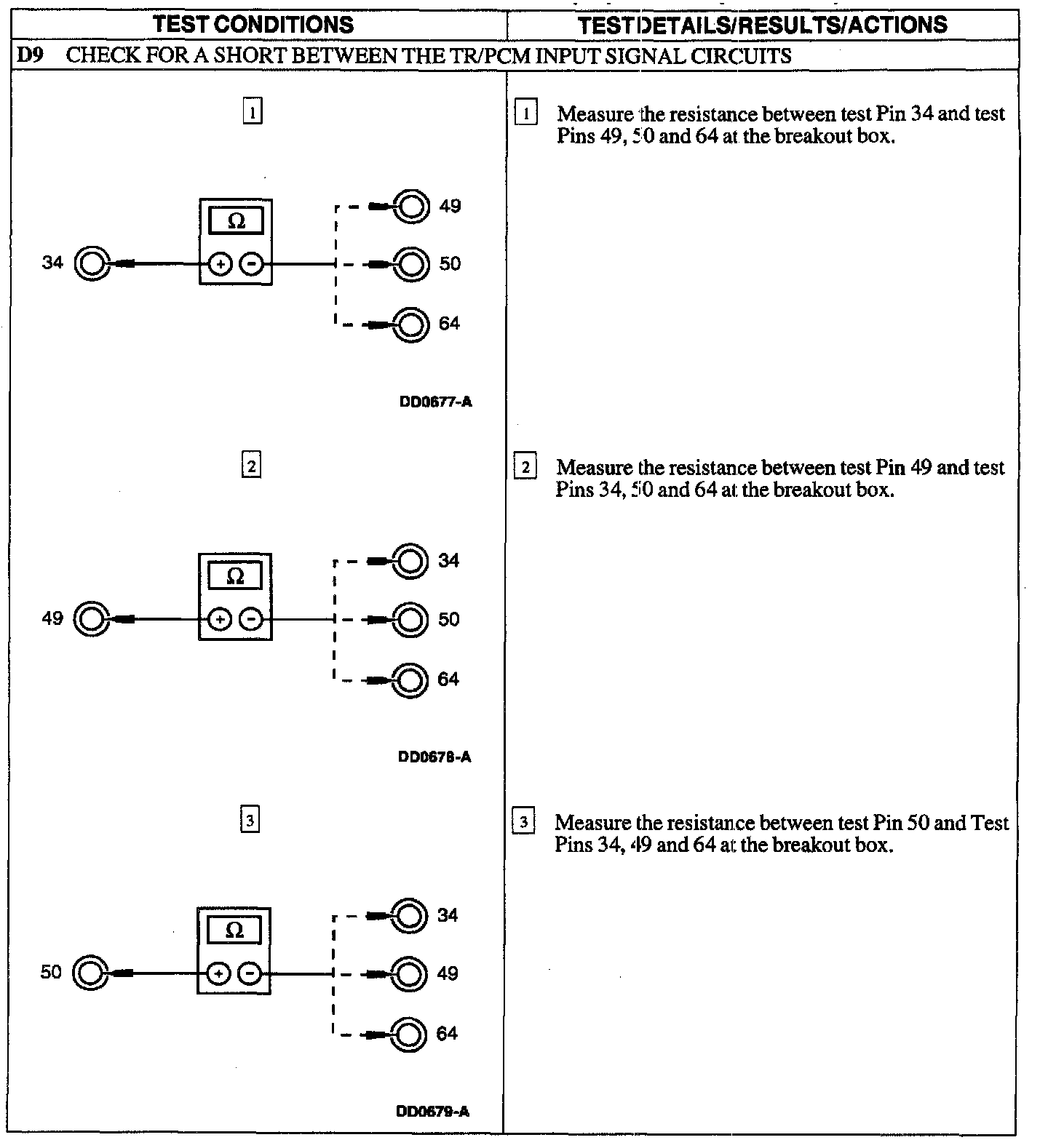

D9:

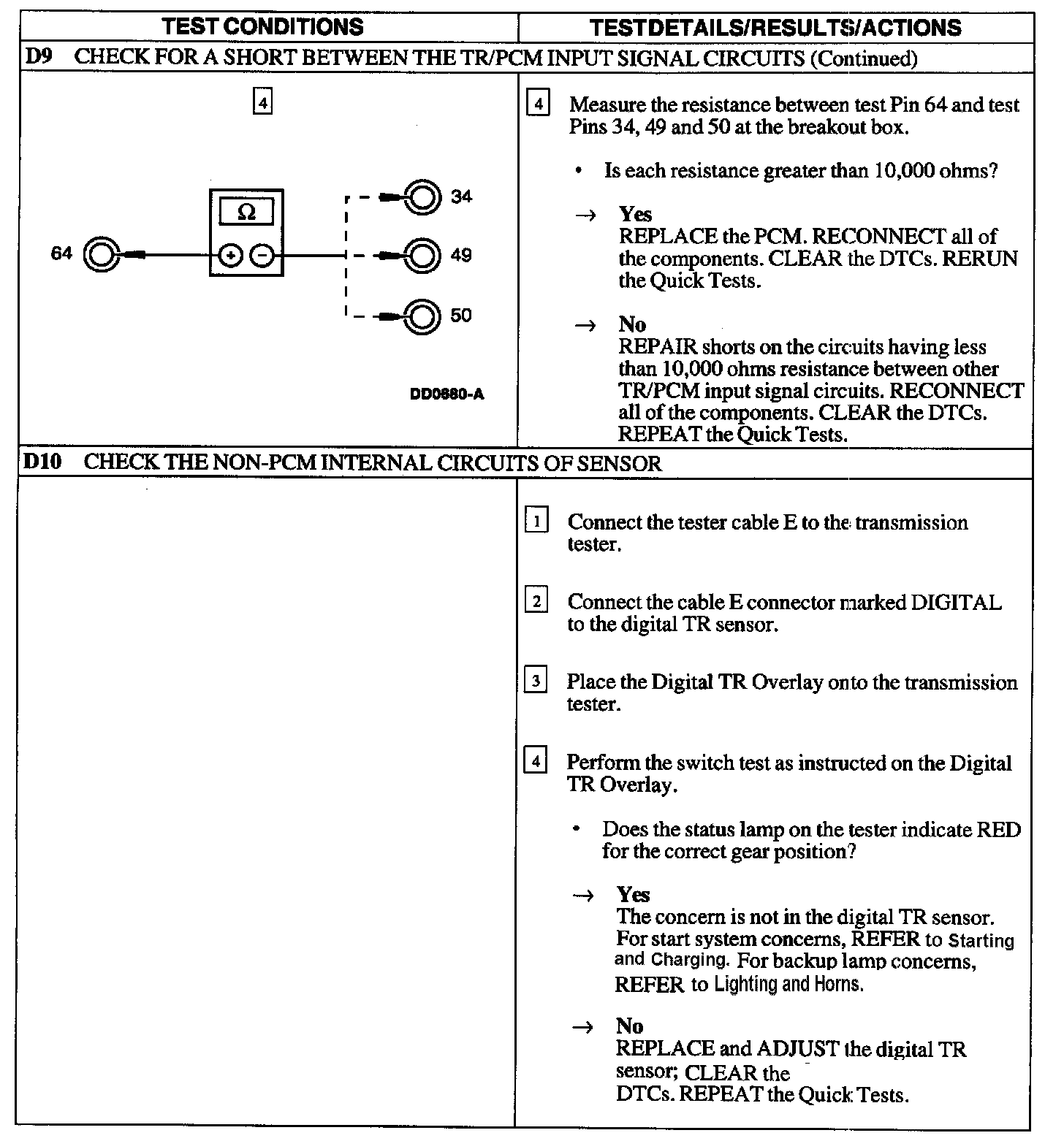

D9 - D10:





PINPOINT TEST D: DIGITAL TRANSMISSION RANGE (TR) SENSOR

NOTE: Refer to the Digital Transmission Range (TR) Sensor Diagnosis Chart.
