Driver Seat Module (DSM)

REMOVAL
1. Disconnect the battery ground cable.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.







2. Remove the driver seat. For additional information, refer to Seats.

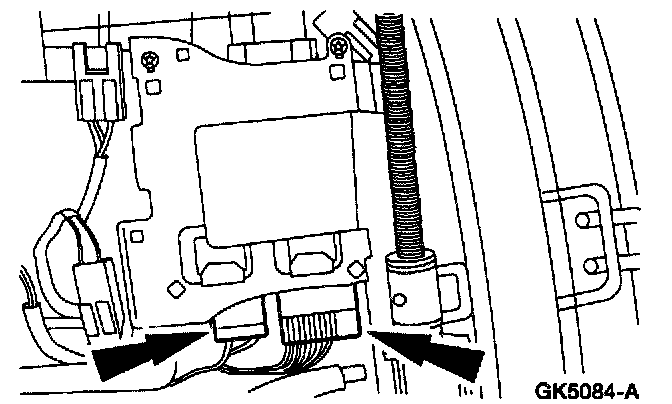

3. Disconnect the electrical connectors from the Driver Seat Module (DSM).

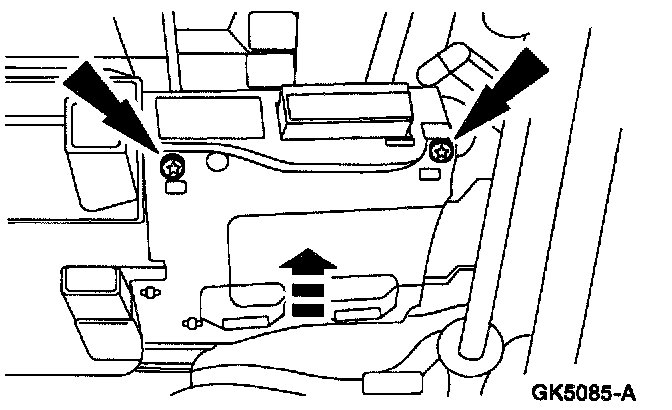

4. Remove the screws from the module and remove the module.

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 10 miles (16 km) or more to relearn the strategy.
