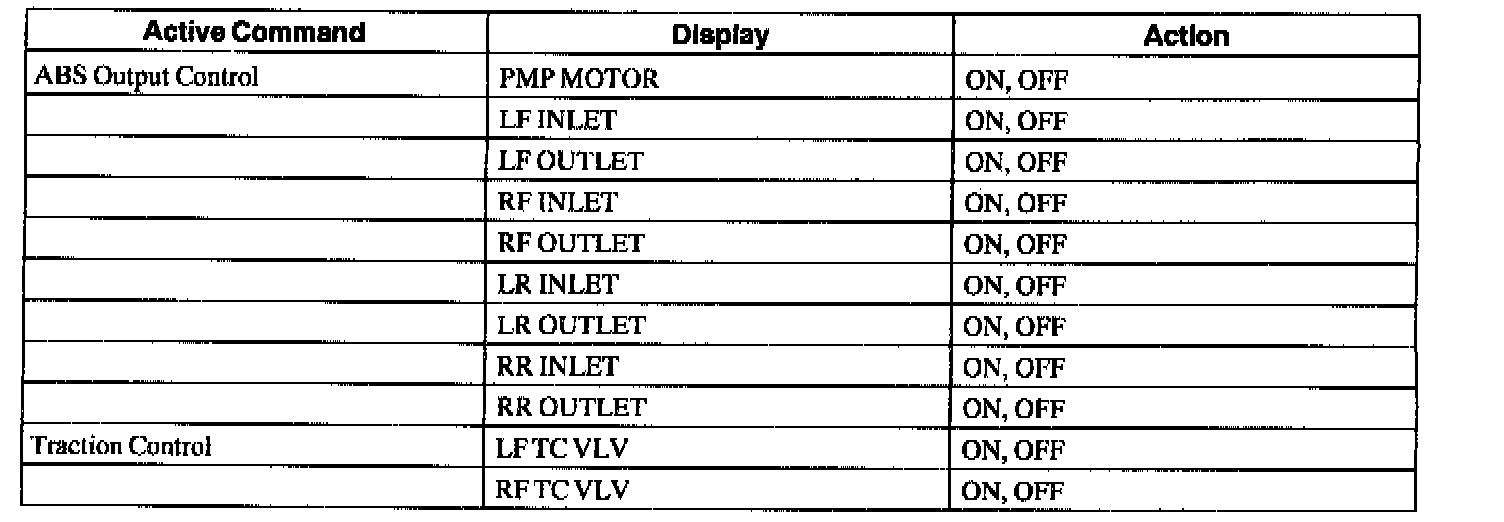

ABS Control Module Active Command Index






Note: When pump motor or values are turned on, the display on scan tool remains until the scan tool operator switches states, but the motor and valves are turned on for only approximately three seconds to avoid overheating.
