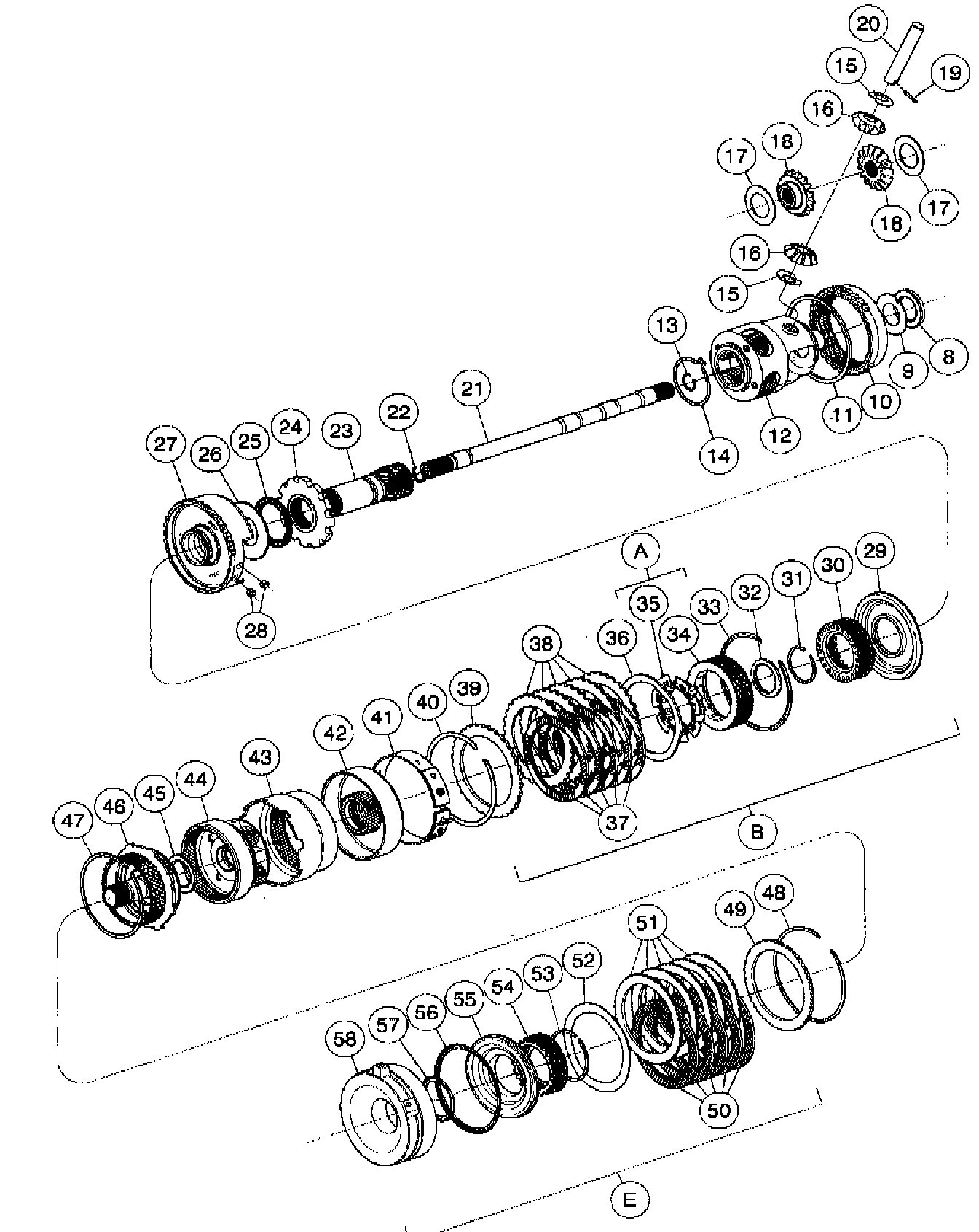

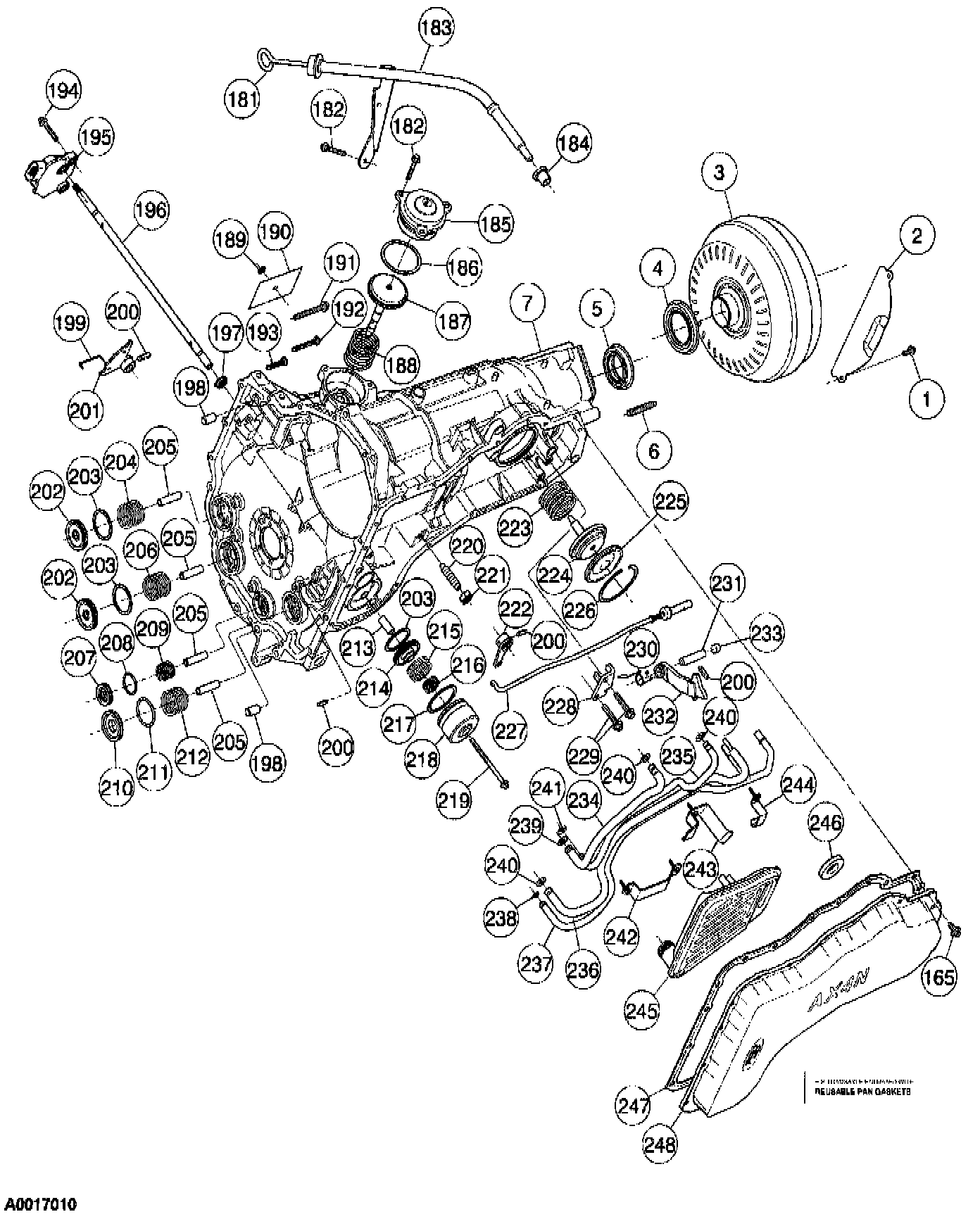

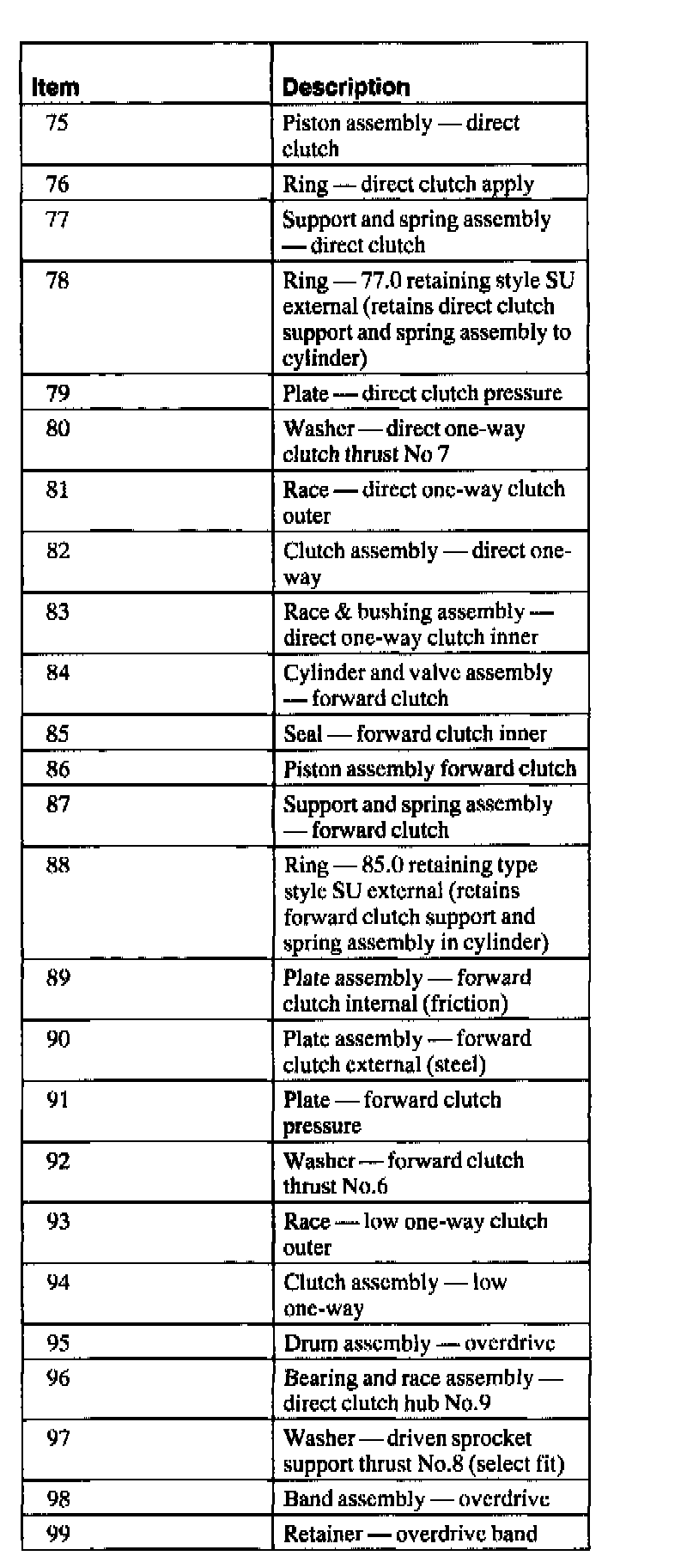

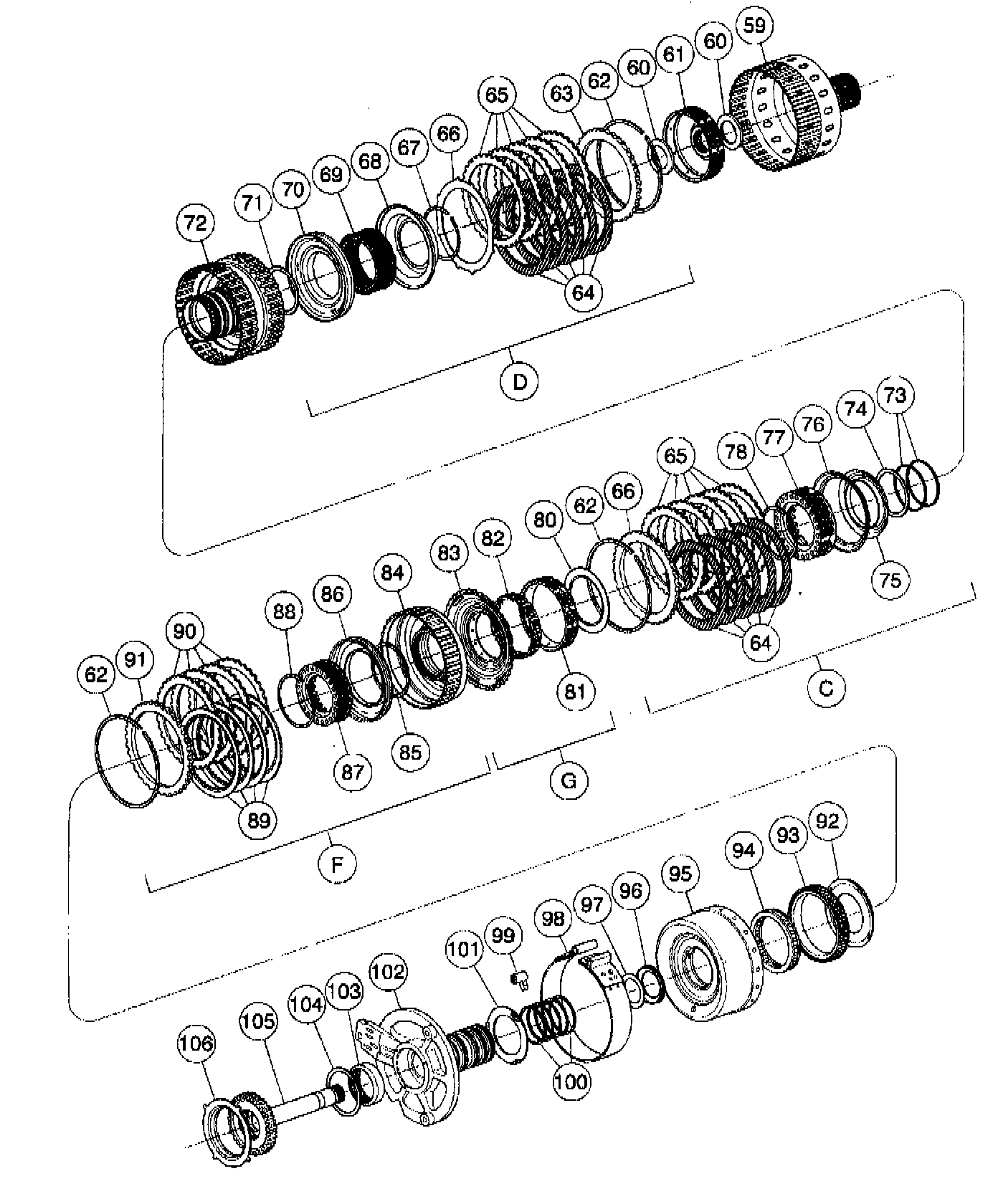

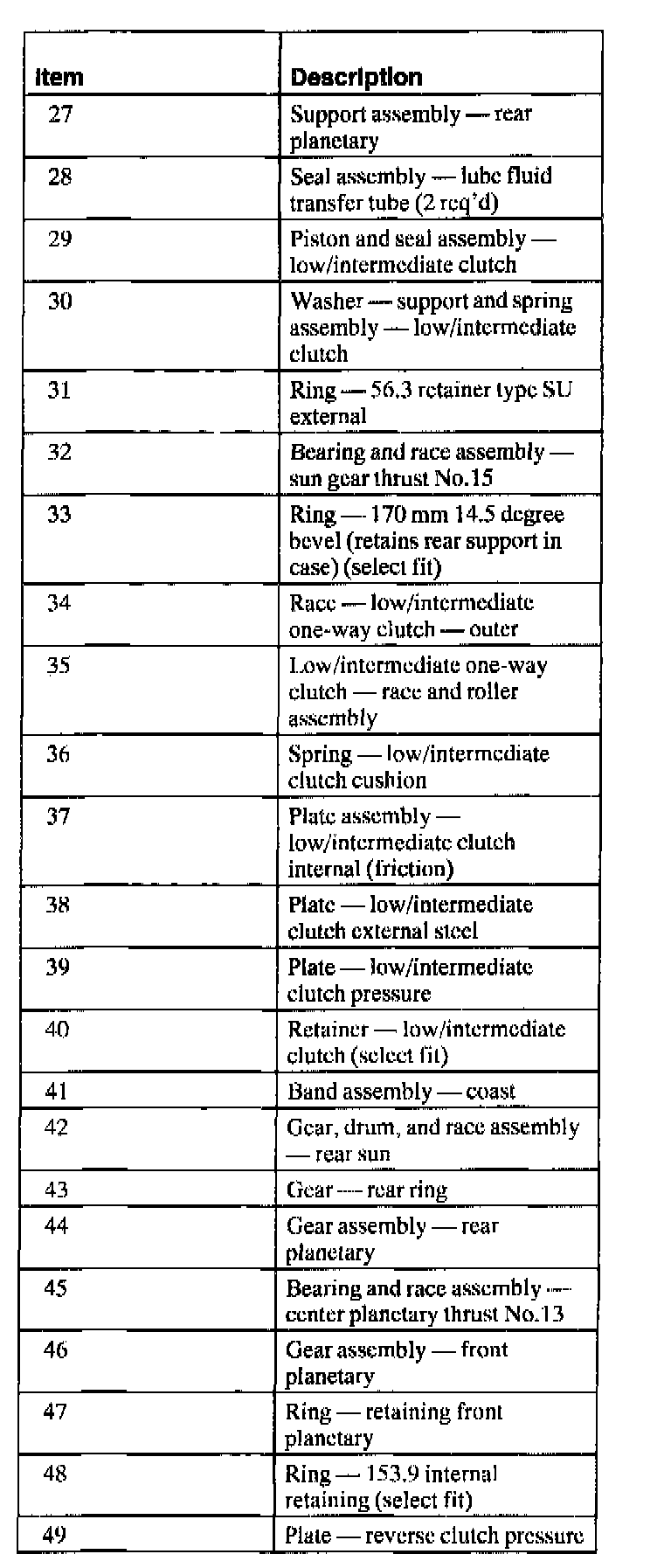

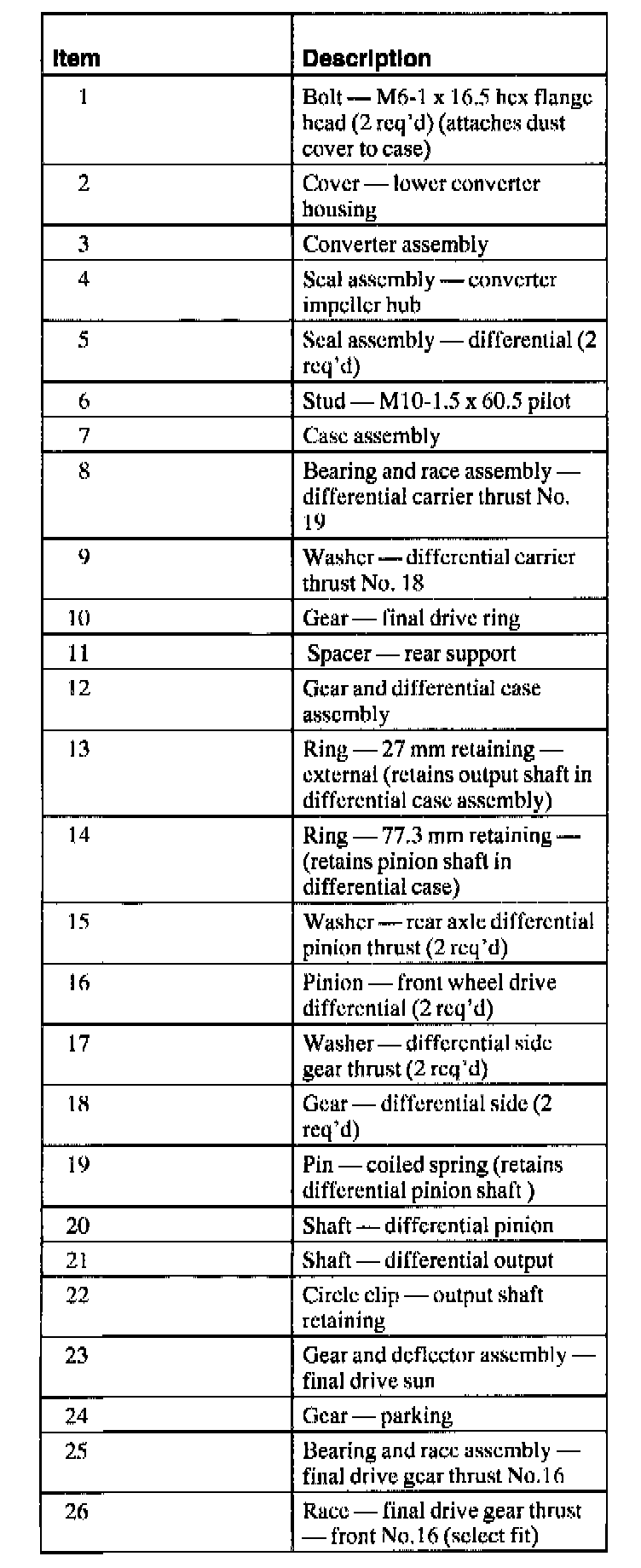

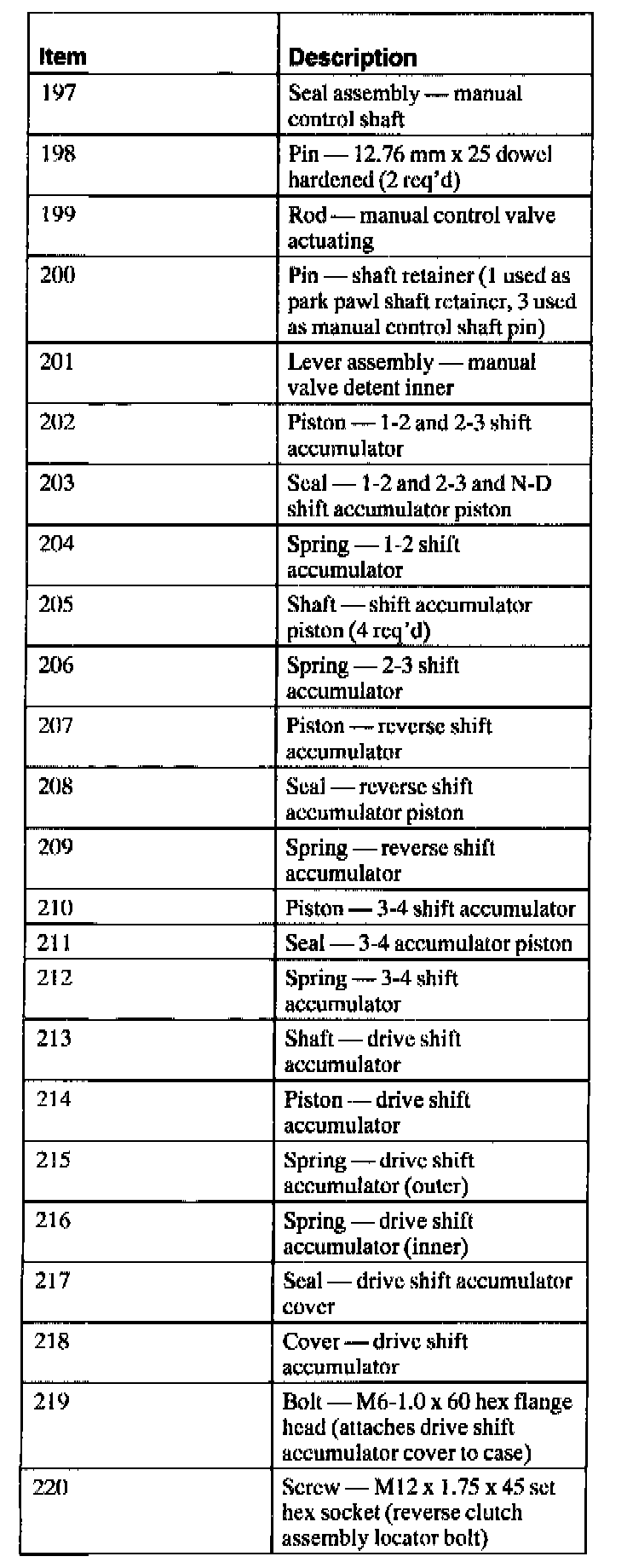

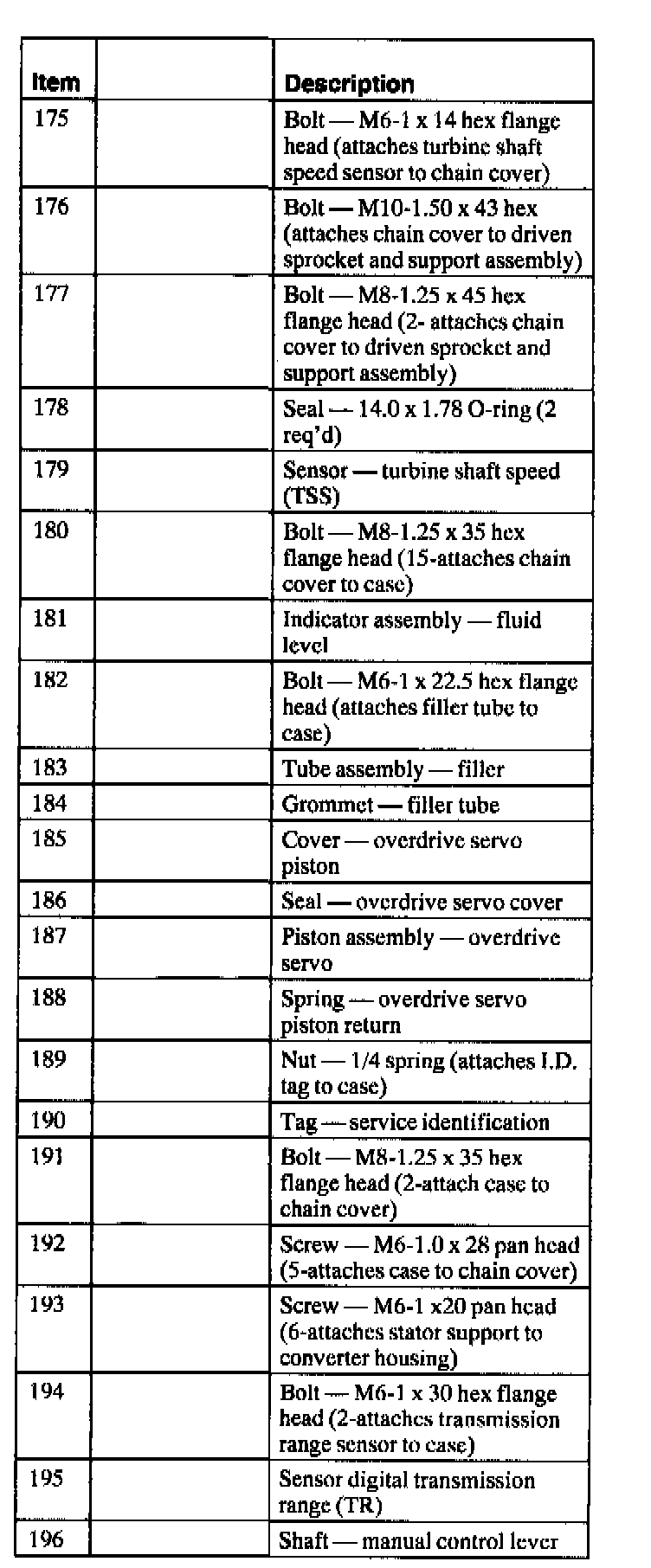

Automatic Transmission/Transaxle





1 of 16





2 of 16





3 of 16





4 of 16





5 of 16





6 of 16





7 of 16





8 of 16





9 of 16





10 of 16





11 of 16





12 of 16





13 of 16





14 of 16





15 of 16





16 of 16
