A/C Pressure Sensor

REMOVAL

1. Raise the vehicle on a hoist. For additional information, refer to Maintenance/Service and Repair.







2. Remove the radiator air deflector.
- Remove the pin-type retainers.
- Remove the screws and remove the radiator air deflector.

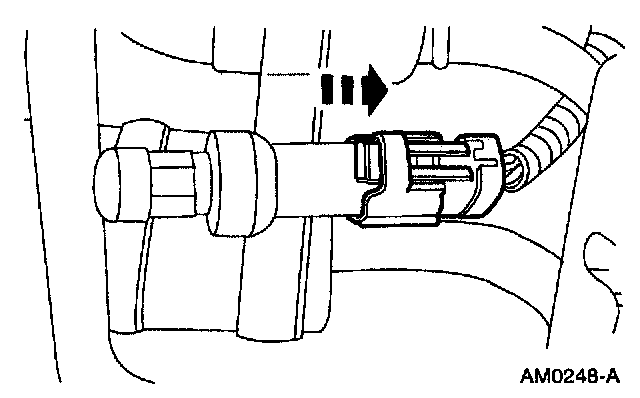

3. Disconnect the electrical connector.

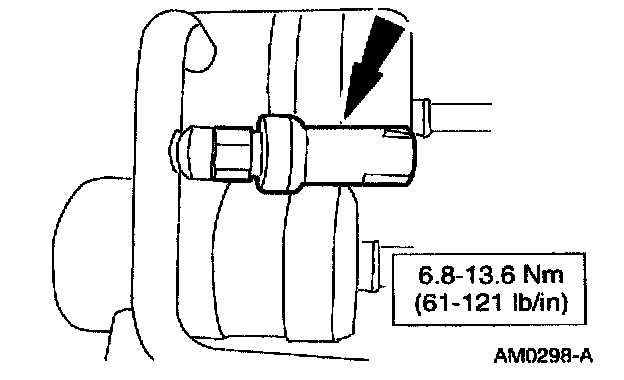

4. Remove the A/C pressure cutoff switch.

INSTALLATION












1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG compressor oil, YN-12c, F7AZ-19589-DA or equivalent meeting Ford specification WSH-M1C231-B.
