Timing Component Alignment Marks: Locations
Make sure that the RH timing chain gear is in front of the LH timing chain gear with the hubs facing each other.

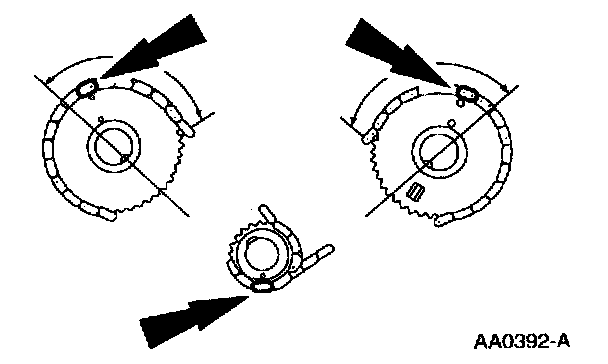

Check that the copper links on the timing chain is lined up with the corresponding dots on the timing chain gears.

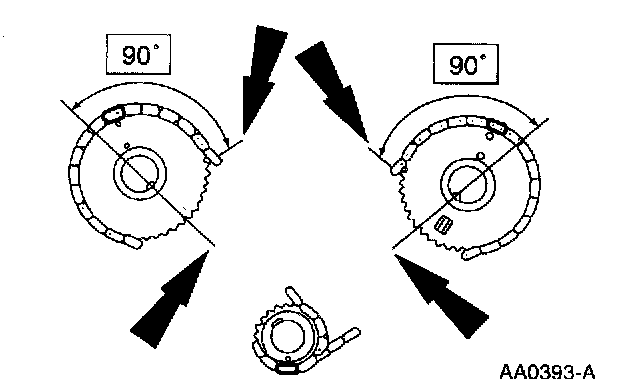

Check that the keyway on the camshaft sprockets are 90 degrees from the camshaft cover surface.
