Camshaft Position Sensor: Service and Repair

REMOVAL
1. Disconnect the battery ground cable. For additional information, refer to battery.
2. Remove the power steering reservoir. For additional information, refer to Steering.

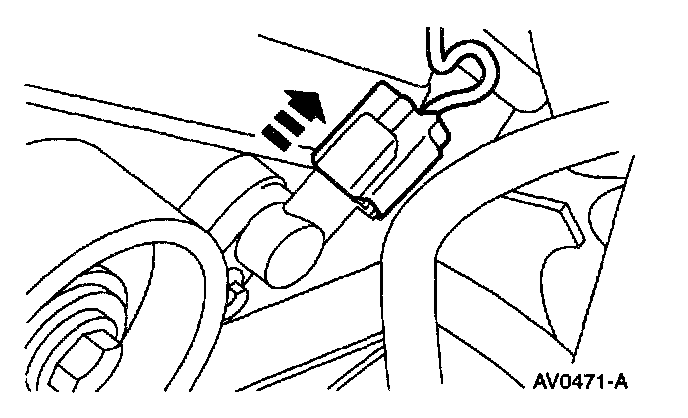

3. Disconnect the engine control sensor wiring.

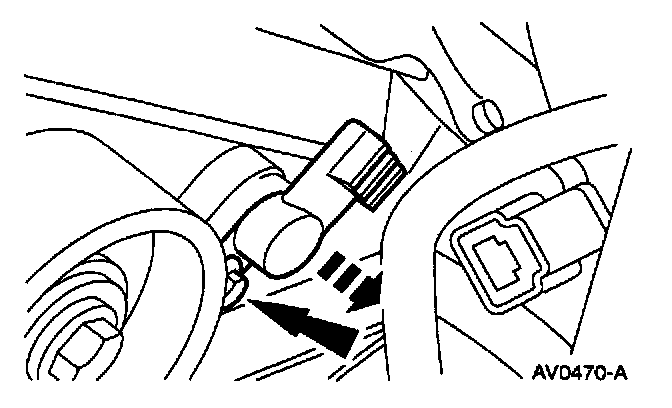

4. Remove the bolt and the Camshaft Position sensor (CMP sensor).

INSTALLATION







1. To install, reverse the removal procedure.

CAUTION: Do not overtighten the screw or damage to camshaft position sensor may occur.
