Power Steering Pressure Switch: Service and Repair
REMOVAL 1.
Lower rack and pinion assembly. For additional information, refer to Steering.
2.

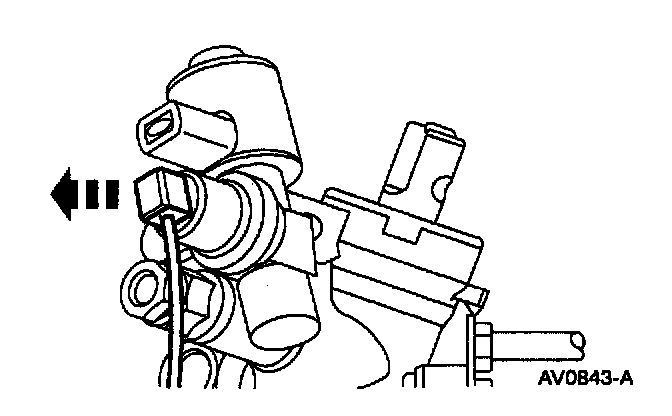

Disconnect the electrical connector from the
Power Steering Pressure Switch (PSP switch).
3.
Remove
power steering pressure switch.

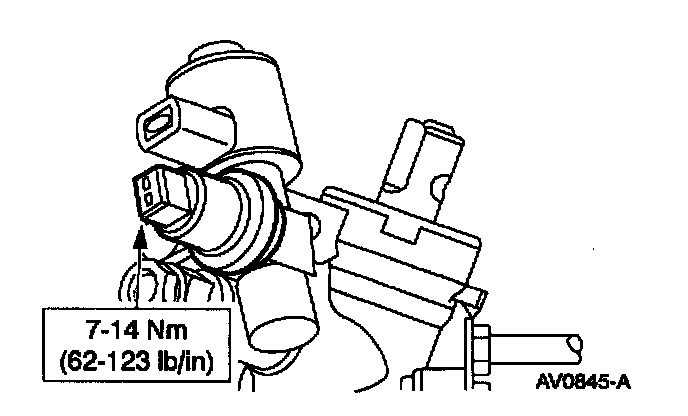

INSTALLATION 1.
To install, reverse the removal procedure.
NOTE: Install a new O-ring on power steering switch.
