Throttle Position Sensor: Service and Repair

REMOVAL
1. Remove the throttle body. For additional information, refer to Fuel Delivery and Air Induction.

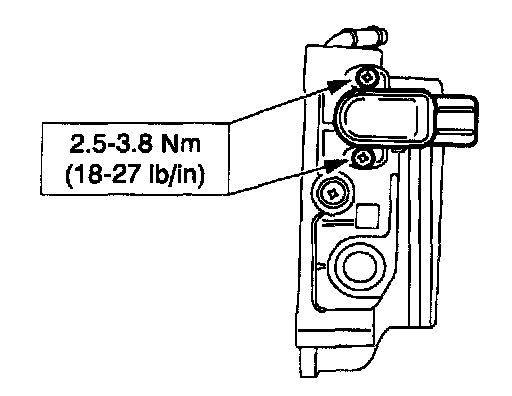

2. Remove the screws and the Throttle Position Sensor (TP sensor).

INSTALLATION
1. To install, reverse the removal procedure.

NOTE: The throttle position sensor cannot be adjusted. If necessary, it must be replaced.

2. Cycle the throttle lever to the Wide Open Throttle (WOT). It should return without interference.
