Spark Plug: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable.
2.

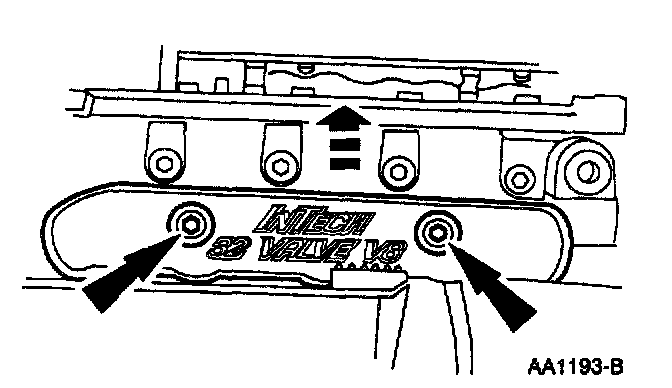

Remove the
spark plug covers.
3.

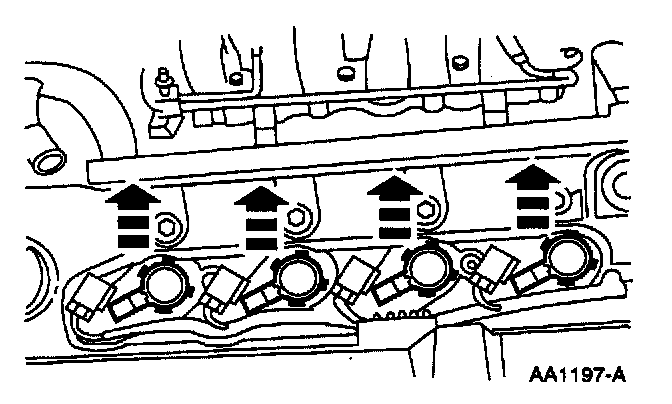

Disconnect the spark plug wire sets.
4.
Remove the
spark plugs.
5.
Repeat Steps 2, 3, and 4 for LH side.
6.
Inspect the
spark plugs.
7.
Check and adjust the
spark plugs.
INSTALLATION 1.

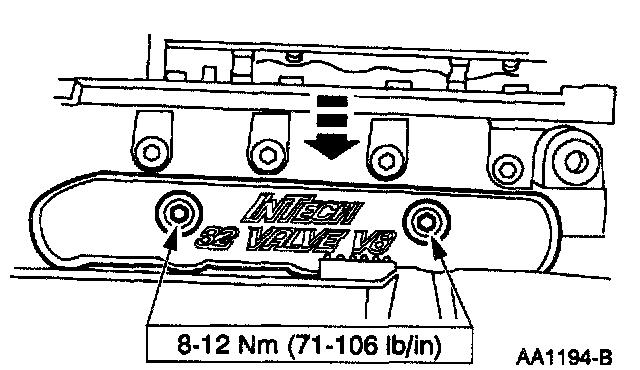

Follow the removal procedure in reverse order.
