Test E: No Communication With Lighting Control Module

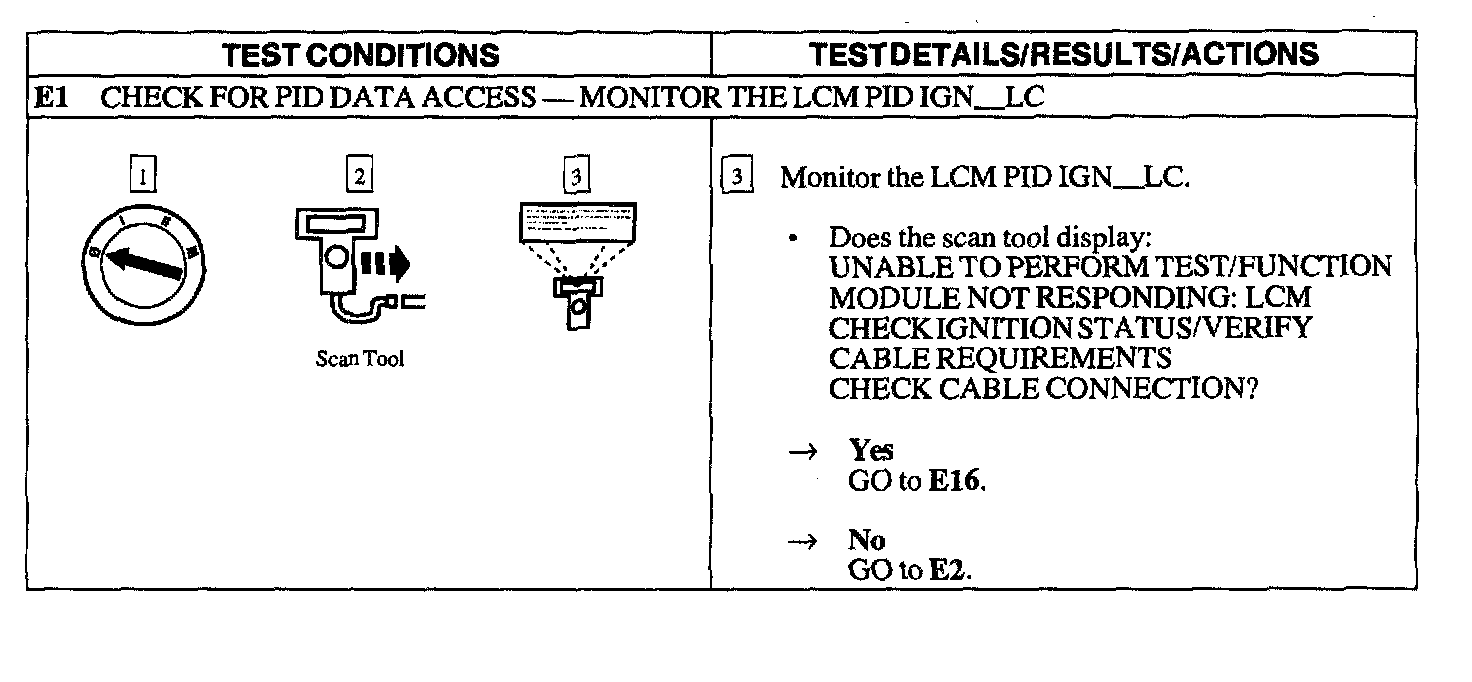

E1:

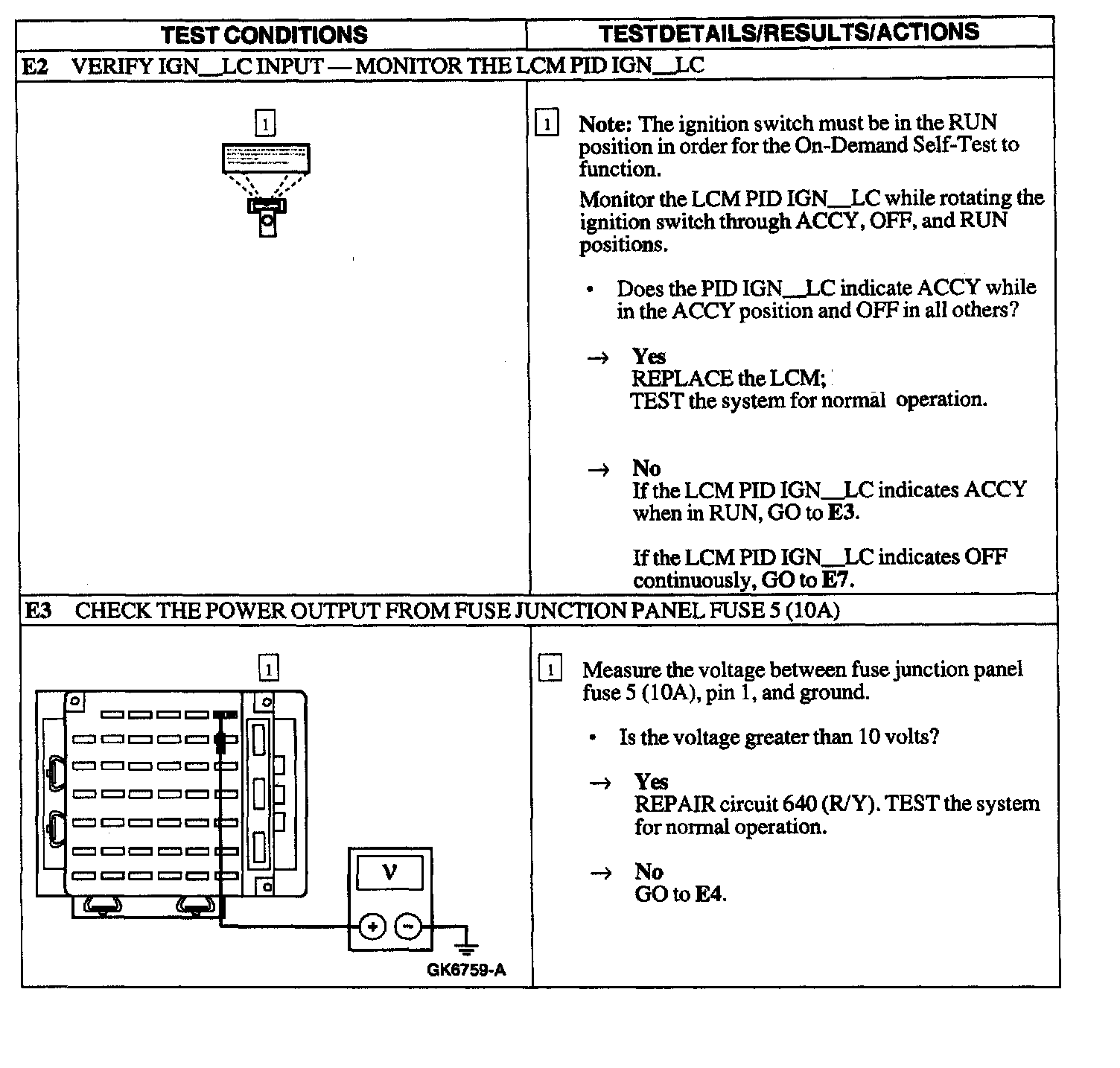

E2 - E3:




E4 -E5:

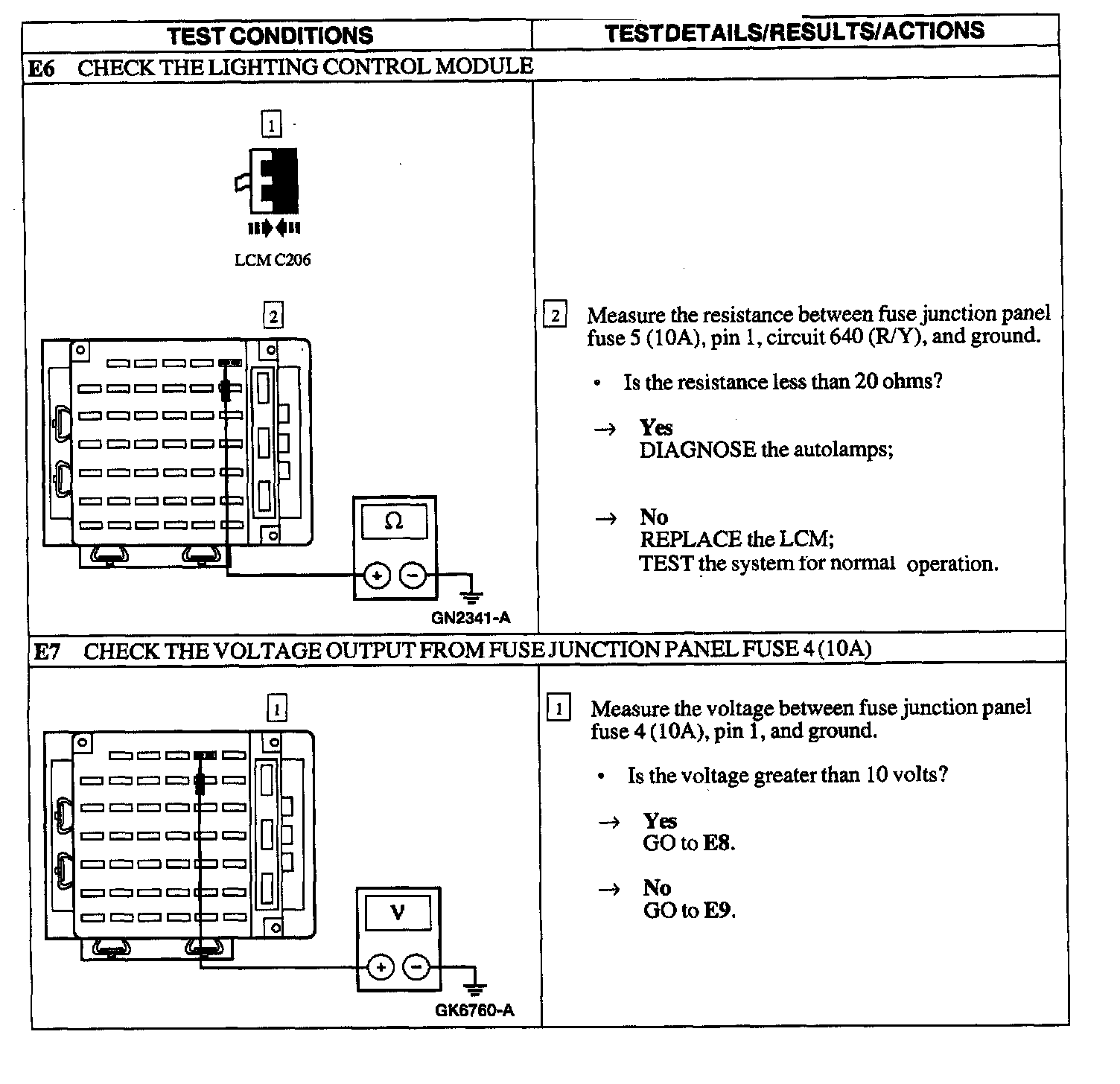

E6 - E7:




E8 - E9:

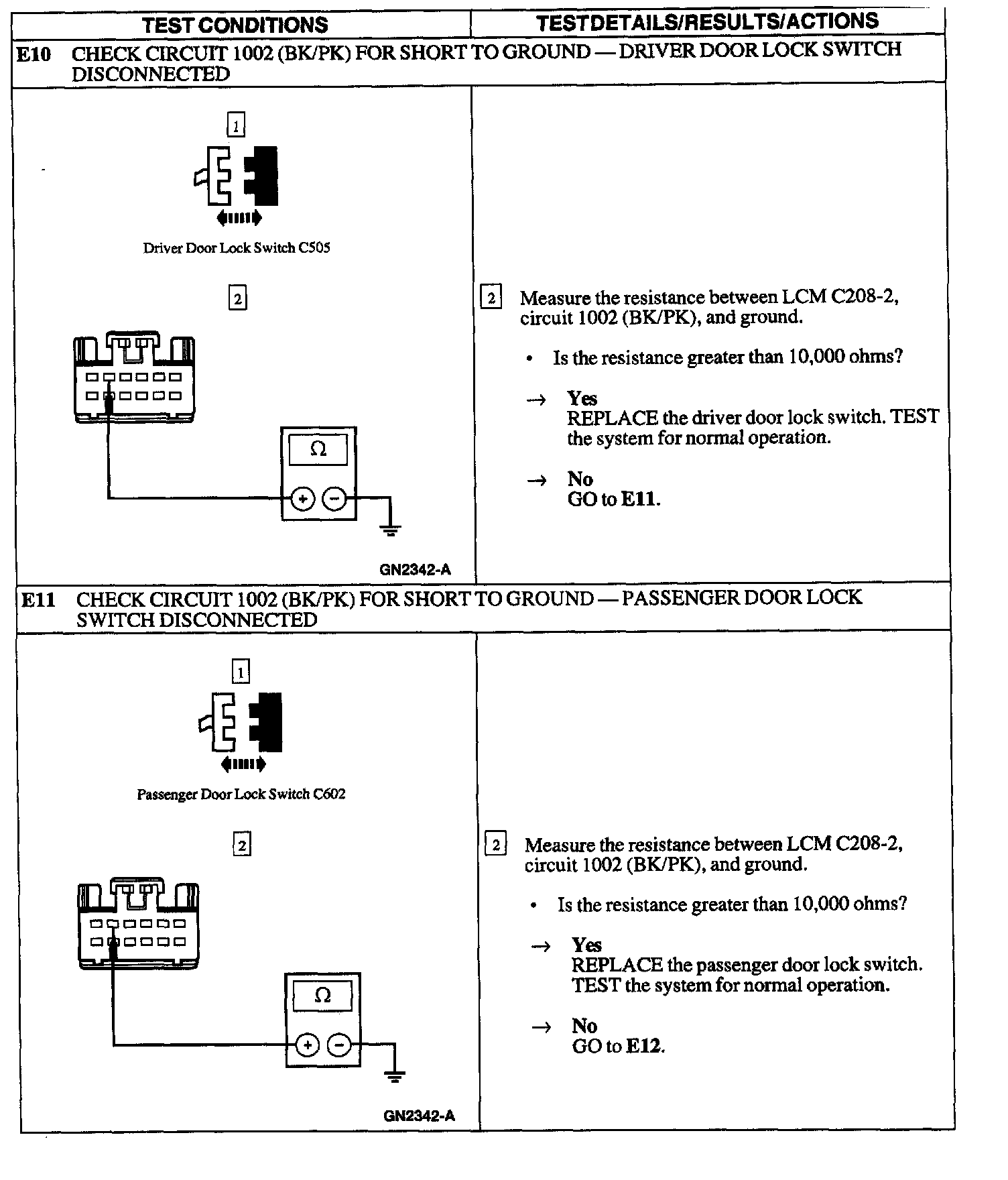

E10 - E11:

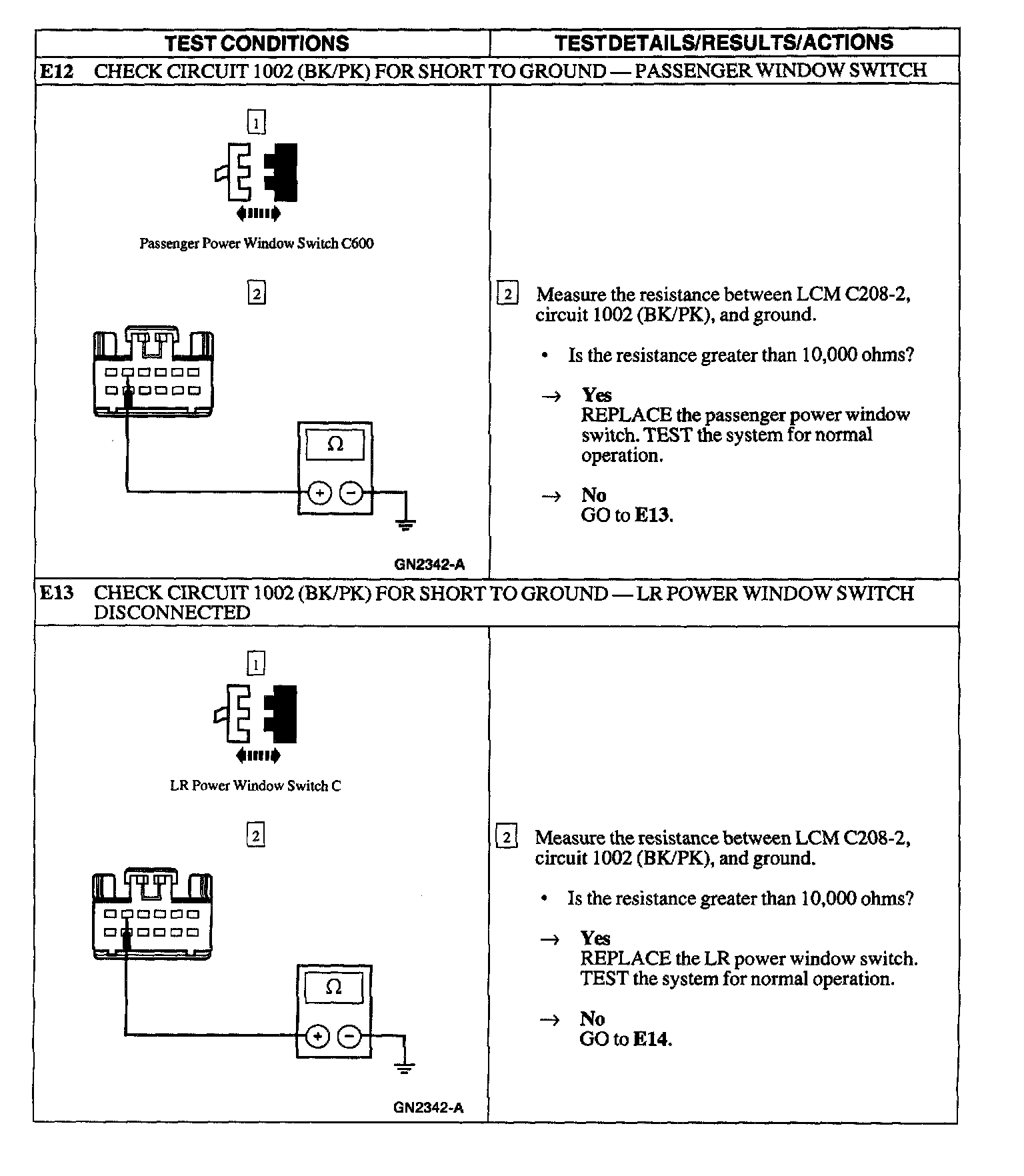

E12 - E13:

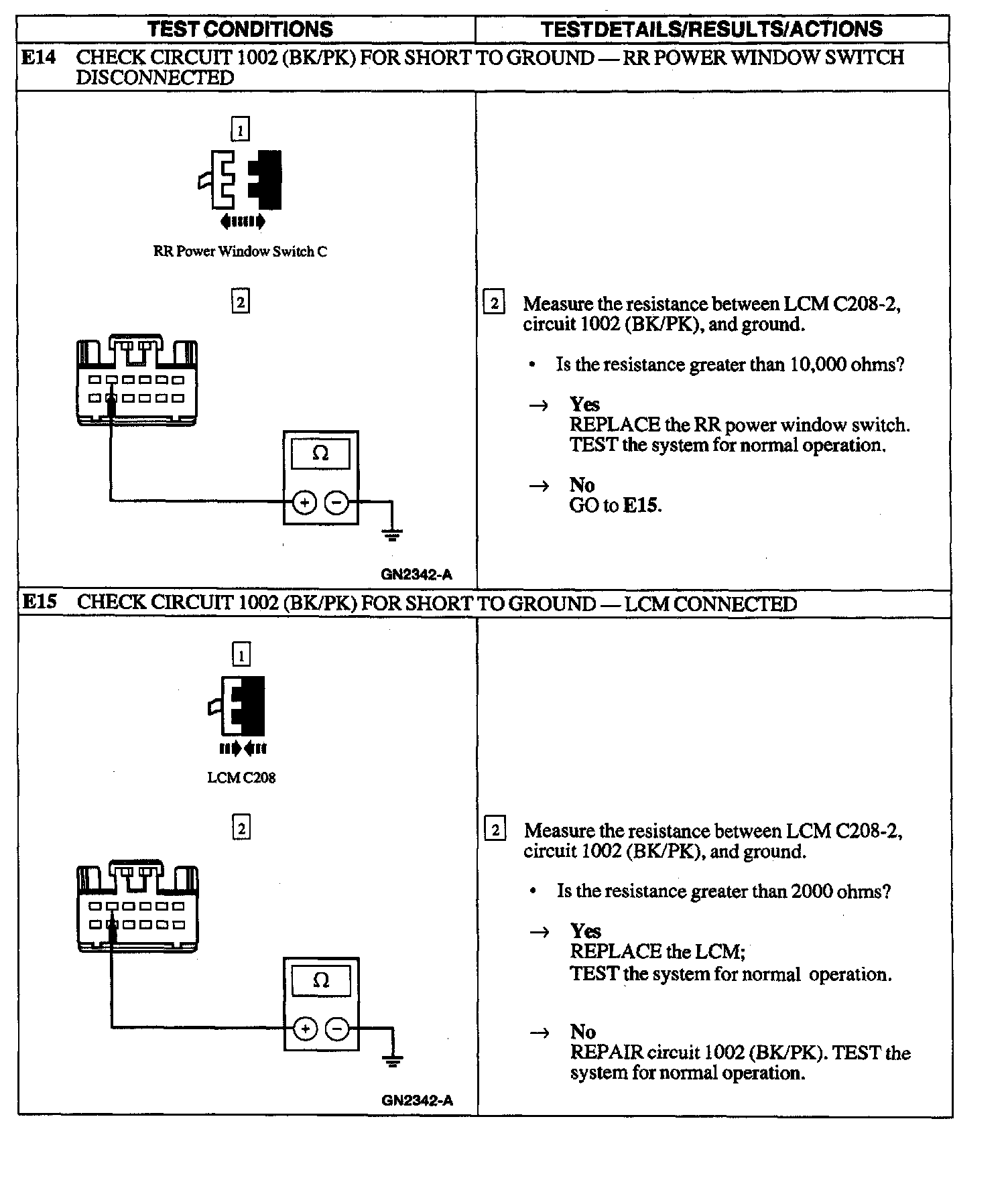

E14 - E15:

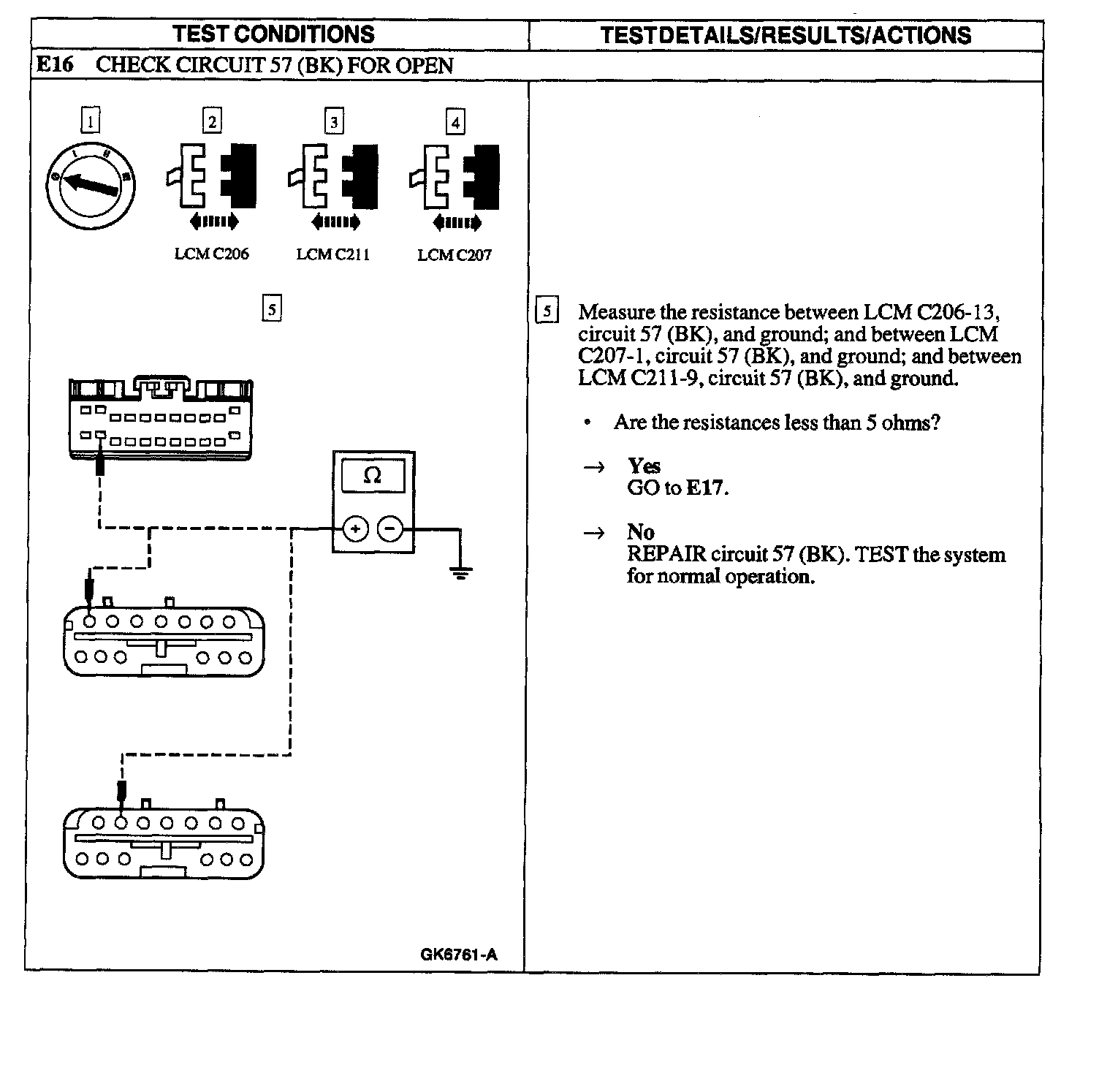

E16:

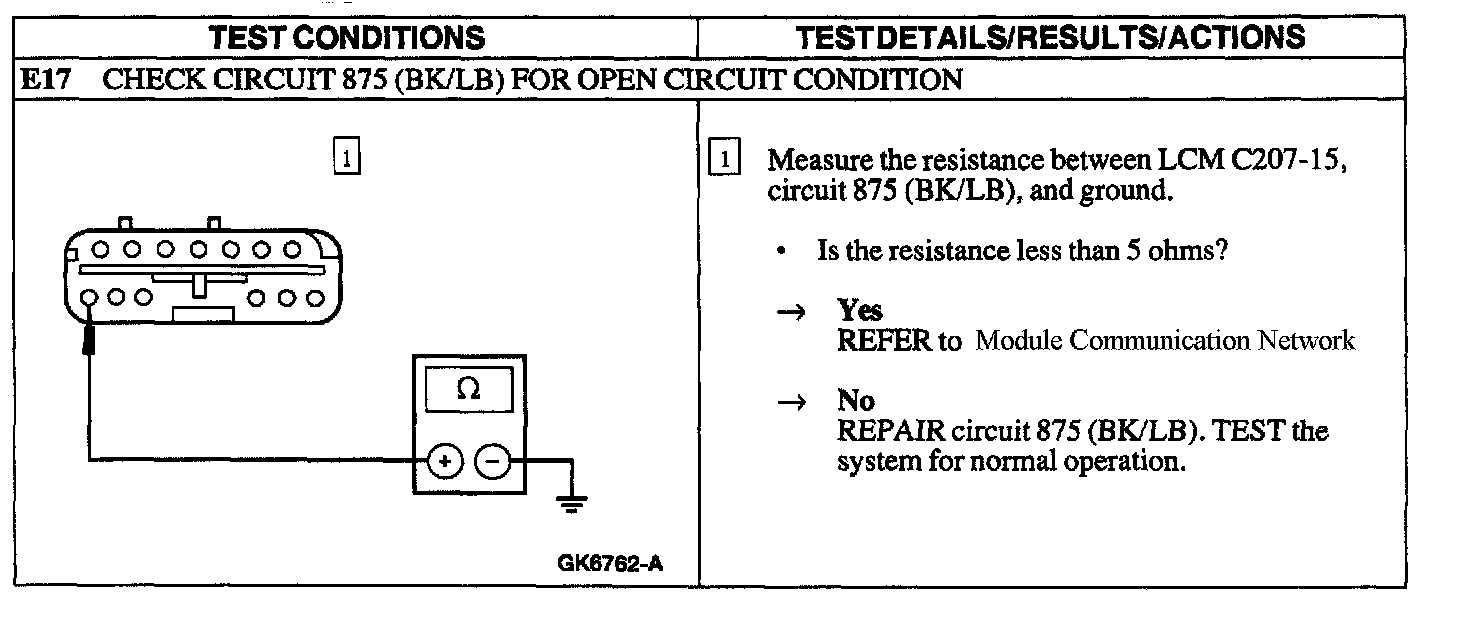

E17:






Pinpoint Test E: NO COMMUNICATION WITH THE MODULE - UNABLE TO PERFORM ON-DEMAND SELF-TEST ON LIGHTING CONTROL MODULE (LCM)
