Drive Belt: Service and Repair
Removal 1.
Remove the air cleaner outlet tube.
2.

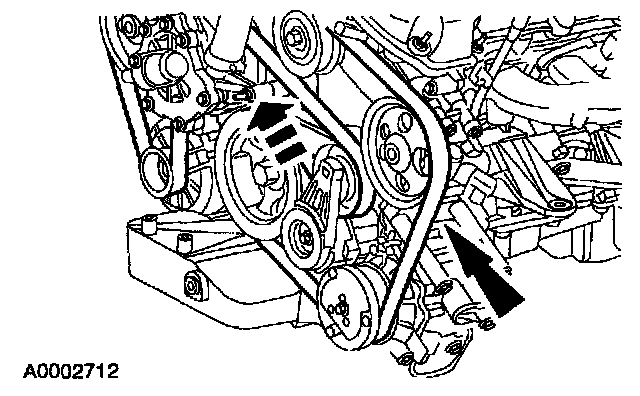

Rotate the tensioner counterclockwise and remove the
drive belt.
Installation 1.
CAUTION: Incorrect
drive belt installation will cause premature drive belt failure.
Note: Make sure the
drive belt is correctly installed on each pulley.
To install, reverse the removal procedure.
-
Refer to component locations-3.0L for correct
drive belt routing.
