RESCU Switch, Console

REMOVAL

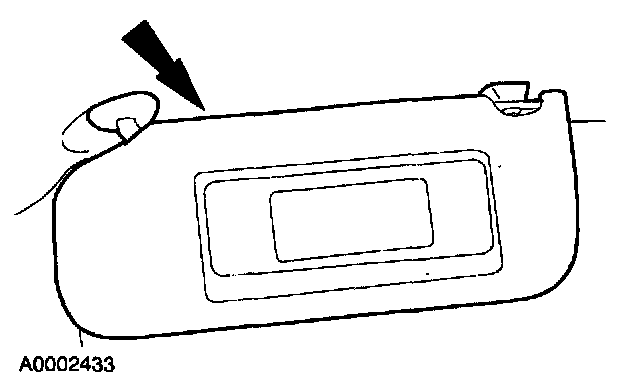

1. Remove the sun visors from each side.

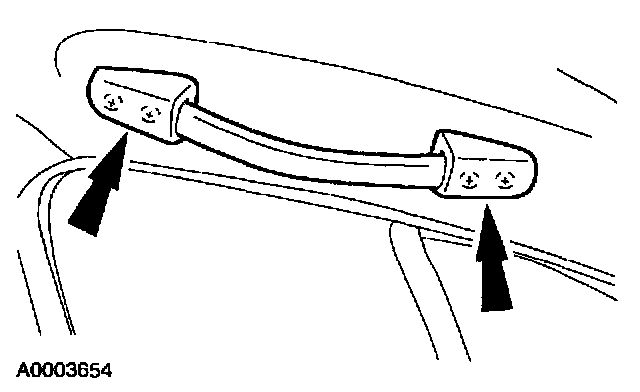

2. Remove the assist handle.

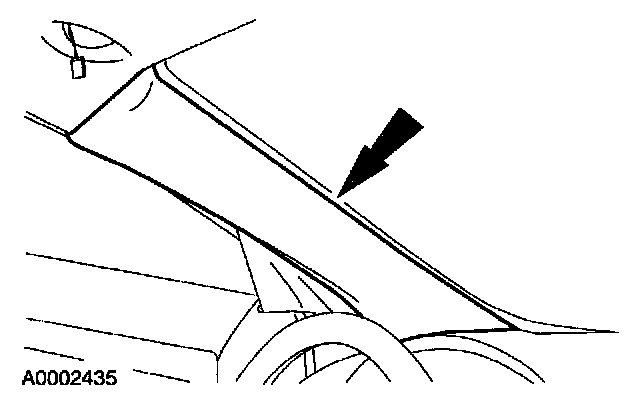

3. Remove the windshield garnish mouldings.







4. Remove the upper B-pillar trim.
5. Remove the front dome lamp assembly bezel.
6. Carefully pull the front of the headliner down to gain access to the console RESCU switch.

NOTE: Folding the headliner will require installing a new headliner.







7. Remove the switch.
1 Remove the screws.
2 Disconnect the electrical connector.

INSTALLATION
1. To install, reverse the removal procedure.
