Brake Pedal Assy: Service and Repair

Removal

1. Note: LH shown, RH similar.

Disconnect the battery ground cable.

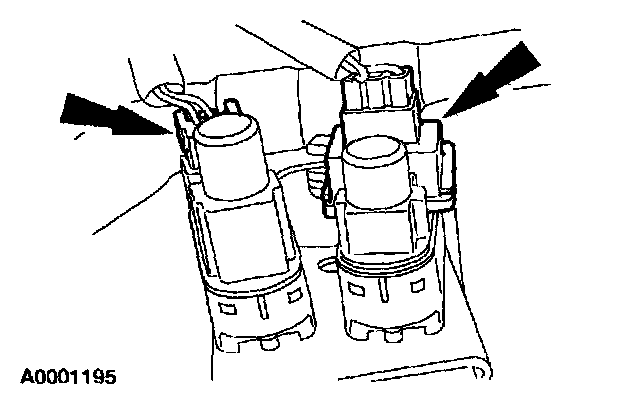

2. Disconnect the stoplight and cruise switch electrical connectors.

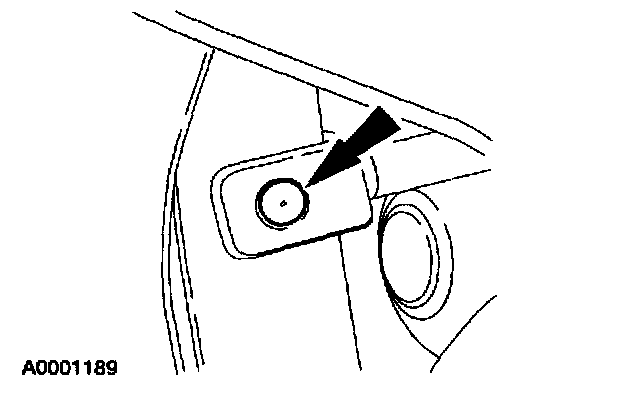

3. Remove the brake pedal pin clip.

4. Remove the brake pedal pin.

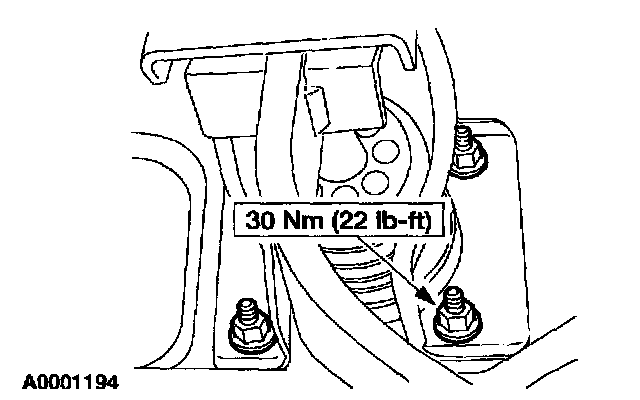

5. Remove the four brake pedal bracket nuts.

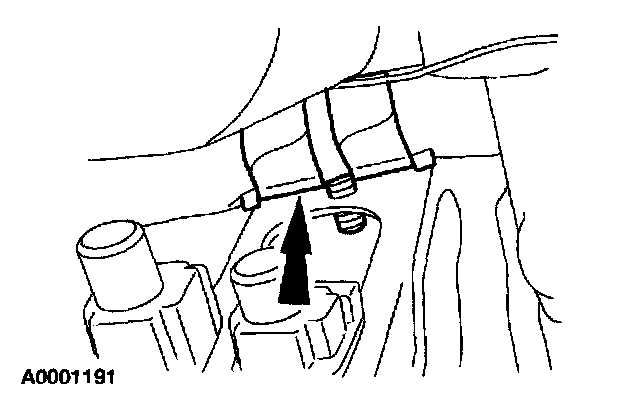

6. Remove the wiring harness pushpin.

7. Remove the brake pedal bracket bolts and remove the brake pedal and bracket.

Installation

1. To install, reverse the removal procedure.
