Rear






Removal
1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.

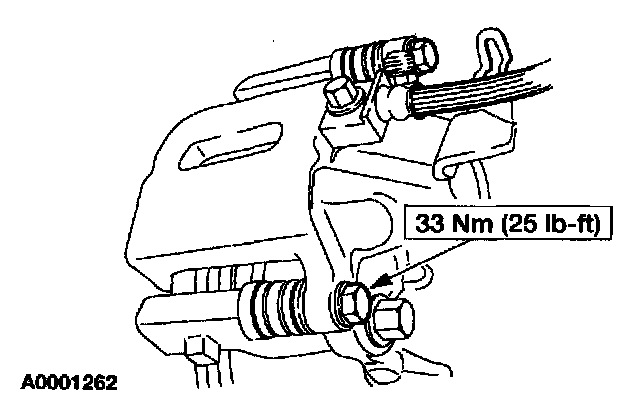

3. Remove the caliper bolts.

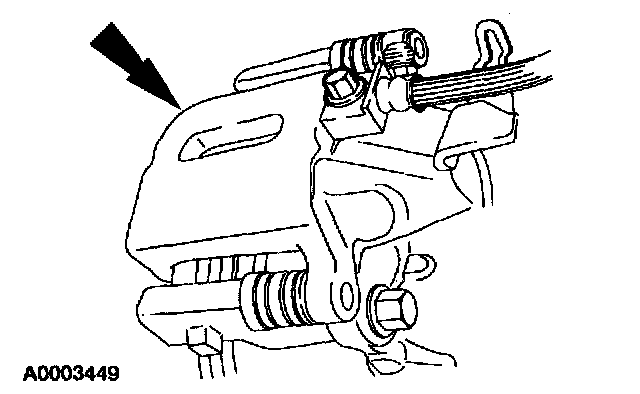

4. CAUTION: Do not allow the caliper to hang from the brake hose.

Remove the caliper.

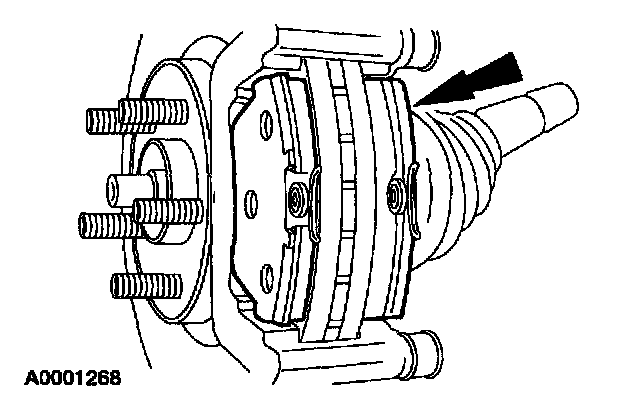

5. Remove the brake pads.





6. CAUTION: Use a hub-mount brake lathe if necessary to machine the brake disc.

Measure the brake disc, and resurface as necessary. Install a new brake disc if beyond specification.





7. Compress the disc brake piston and adjuster into the disc brake caliper using Rear Caliper Piston Adjuster.

Installation





1. To install, reverse the removal procedure.
